XC62RP
Series
XC62RP series is Discontinued.
ETR0314_001a
Positive Voltage Regulators for Voltage Reference Source
■GENERAL
DESCRIPTION
The XC62RP series are highly precise, low power consumption, positive voltage regulators, for voltage reference source,
manufactured using CMOS and laser trimming technologies.
SOT-23 (150mW), SOT-89 (500mW) and TO-92 (300mW) packages are available.
■APPLICATIONS
●Battery
powered equipment
●Reference
voltage sources
●Cameras
and video recorders
●Palmtops
■FEATURES
Maximum Output Current
: 6.0mA (within max. power
dissipation, V
OUT
=2.0V)
Output Voltage Range
Highly Accurate
: 1.5V ~ 3.5V in 0.1V increments
: Setting Voltage accuracy±2%
(±1%for semi-custom products)
Low Power Consumption
: 3.2μA (V
OUT
=2.0) (TYP.)
Output Voltage Temperature Characteristics
:
±100ppm/℃(TYP.)
Line Regulation
Dropout Voltage
Ultra Small Packages
: 0.2%/V (TYP.)
: 140mV @ 300μA
: SOT-23 (150mW) mini-mold
SOT-89 (500mW) mini-power mold
TO-92 (300mW)
CMOS Low Power Consumption
■TYPICAL
APPLICATION CIRCUIT
■TYPICAL
PERFORMANCE
CHARACTERISTICS
Please use with a load capacitance (C
L
) of less than 0.1μF.
Ambient Temperature: Topr (℃)
1/14
XC62RP
Series

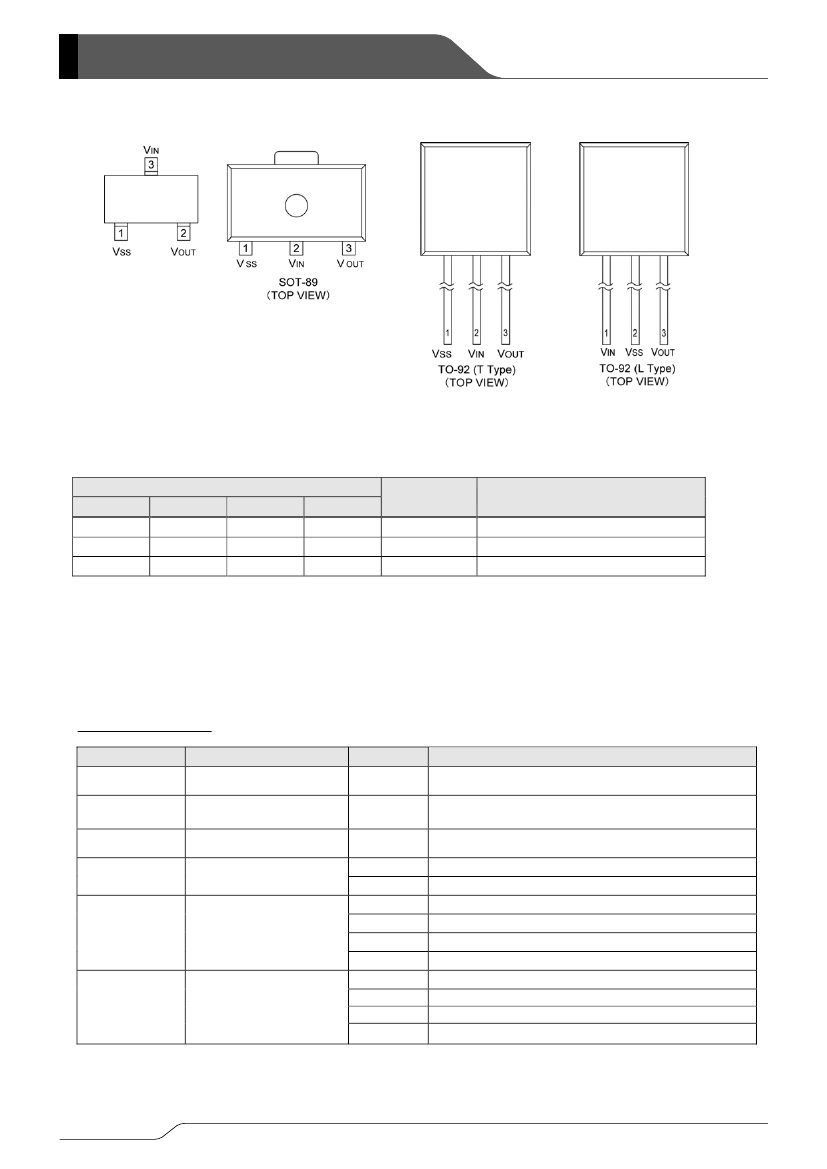

■PIN
CONFIGURATION
XC62RP series is Discontinued.
SOT-23
(TOP VIEW)
■PIN
ASSIGNMENT
PIN NUMBER
SOT-23
1
3
2
SOT-89
1
2
3
TO-92 (T)
1
2
3
TO-92 (L)
2
1
3
PIN NAME
V
SS
V
IN
V
OUT
FUNCTION
Ground
Supply Voltage Input
Output
■PRODUCT
CLASSIFICATION
●Ordering
Information
XC62R
①②③④⑤⑥⑦
DESIGNATOR
①
② ③
④
⑤
DESCRIPTION
Polarity of Output Voltage
Output Voltage
Temperature Coefficients
Output Voltage Accuracy
SYMBOL
P
15 ~ 35
0
1
2
M
P
T
L
R
L
H
B
: Positive
: e.g. V
OUT
1.5V→②=1,
③=5
V
OUT
3.0V→②=3,
③=0
:±100ppm (TYP.)
:±1% (Semi-custom)
:±2%
: SOT-23
: SOT-89
: TO-92 (standard)
: TO-92 (Custom pin configuration) (Discontinued Product)
: Embossed tape, standard feed
: Embossed tape, reverse feed
: Paper tape (TO-92)
: Bag (TO-92)
DESCRIPTION
⑥
Package
⑦
Device Orientation
2/14
XC62RP series is Discontinued.
XC62RP
Series
■BLOCK
DIAGRAM
■ABSOLUTE
MAXIMUM RATINGS
Ta=25
O
C
PARAMETER
Input Voltage
Output Current
Output Voltage
SOT-23
Power Dissipation
SOT-89
TO-92
Operating Temperature Range
Storage Temperature Range
Topr
Tstg
Pd
SYMBOL
V
IN
I
OUT
V
OUT
RATINGS
12.0
50*
V
SS
-0.3~V
IN
+0.3
150
500
300
-30 ~ +80
-40 ~ +125
℃
℃
mW
UNITS
V
mA
V
Note: Please ensure that I
OUT
is less than Pd / (V
IN
-V
OUT
).
3/14
XC62RP
Series
■ELECTRICAL
CHARACTERISTICS
XC62RP1602
V
OUT(T)=
1.6V (*1)
SYMBOL
V
OUT(E)
(*2)
I
OUT max
△V
OUT
Vdif1
Vdif2
I
SS
△V
OUT
△V
IN
・V
OUT
V
IN
△V
OUT
△Topr・V
OUT
I
OUT
=100μA
-30℃≦Topr≦80℃
CONDITIONS
I
OUT
=100μA
V
IN
=2.6V
V
IN
=2.6V,
V
OUT(E)
≧V
OUT(T)
x 0.95
V
IN
=2.6 V
100μA≦I
OUT
≦
300μA
I
OUT
=100μA
I
OUT
=300μA
V
IN
=2.6V
I
OUT
=100μA
2.6V≦V
IN
≦6.0V
XC62RP series is Discontinued.
Ta=25℃
MIN.
1.568
4.0
-
-
-
-
-
-
-
TYP.
1.600
-
20
30
50
3.0
0.2
-
±100
MAX.
1.632
-
40
80
140
5.8
0.3
6.0
-
UNITS CIRCUIT
V
mA
mV
mV
mV
μA
%/V
V
ppm/℃
1
1
1
1
1
2
1
-
1
PARAMETER
Output Voltage
Maximum Output Current
Load Regulation
Dropout Voltage (*3)
Supply Current
Line Regulation
Input Voltage
Output Voltage
Temperature Characteristics
XC62RP2002
V
OUT(T)=
2.0V (*1)
SYMBOL
V
OUT(E)
(*2)
I
OUT max
△V
OUT
Vdif1
Vdif2
I
SS
△V
OUT
△V
IN
・V
OUT
V
IN
△V
OUT
△Topr・V
OUT
CONDITIONS
I
OUT
=100μA
V
IN
=3.0V
V
IN
=3.0V,
V
OUT(E)
≧V
OUT(T)
x 0.95
V
IN
=3.0 V
100μA≦I
OUT
≦300μA
I
OUT
=100μA
I
OUT
=300μA
V
IN
=3.0V
I
OUT
=100μA
3.0V≦V
IN
≦6.0V
I
OUT
=100μA
-30℃≦Topr≦80℃
MIN.
1.960
6.0
-
-
-
-
-
-
-
TYP.
2.000
-
20
30
50
3.2
0.2
-
±100
MAX.
2.040
-
40
80
140
6.2
0.3
6.0
-
Ta=25℃
UNITS CIRCUIT
V
mA
mV
mV
mV
μA
%/V
V
ppm/℃
1
1
1
1
1
2
1
-
1
PARAMETER
Output Voltage
Maximum Output Current
Load Regulation
Dropout Voltage (*3)
Supply Current
Line Regulation
Input Voltage
Output Voltage
Temperature Characteristics
4/14
XC62RP series is Discontinued.
XC62RP
Series
■ELECTRICAL
CHARACTERISTICS (Continued)
XC62RP2502
V
OUT(T)=
2.5V (*1)
SYMBOL
V
OUT(E)
(*2)
I
OUT max
△V
OUT
Vdif1
Vdif2
I
SS
△V
OUT
△V
IN
・V
OUT
V
IN
△V
OUT
△Topr・V
OUT
CONDITIONS
I
OUT
=100μA
V
IN
=3.5V
V
IN
=3.5V,
V
OUT(E)
≧V
OUT(T)
x 0.95
V
IN
=3.5 V
100μA≦I
OUT
≦300μA
I
OUT
=100μA
I
OUT
=300μA
V
IN
=3.5V
I
OUT
=100μA
3.5V≦V
IN
≦6.0V
I
OUT
=100μA
-30℃≦Topr≦80℃
MIN.
2.450
8.0
-
-
-
-
-
-
-
TYP.
2.500
-
20
30
50
3.5
0.2
-
±100
MAX.
2.550
-
40
80
140
6.8
0.3
6.0
-
Ta=25℃
UNITS CIRCUIT
V
mA
mV
mV
mV
μA
%/V
V
ppm/℃
1
1
1
1
1
2
1
-
1
PARAMETER
Output Voltage
Maximum Output Current
Load Regulation
Dropout Voltage (*3)
Supply Current
Line Regulation
Input Voltage
Output Voltage
Temperature Characteristics
XC62RP3002
V
OUT(T)=
3.0V (*1)
SYMBOL
V
OUT(E)
(*2)
I
OUT max
△V
OUT
Vdif1
Vdif2
I
SS
△V
OUT
△V
IN
・V
OUT
V
IN
△V
OUT
△Topr・V
OUT
CONDITIONS
I
OUT
=100μA
V
IN
=4.0V
V
IN
=4.0V,
V
OUT(E)
≧V
OUT(T)
x 0.95
V
IN
=4.0 V
100μA≦I
OUT
≦300μA
I
OUT
=100μA
I
OUT
=300μA
V
IN
=4.0V
I
OUT
=100μA
4.0V≦V
IN
≦6.0V
I
OUT
=100μA
-30℃≦Topr≦ 80℃
MIN.
2.940
10.0
-
-
-
-
-
-
-
TYP.
3.000
-
20
30
50
3.8
0.2
-
±100
MAX.
3.060
-
40
80
140
7.3
0.3
6.0
-
Ta=25℃
UNITS CIRCUIT
V
mA
mV
mV
mV
μA
%/V
V
ppm/℃
1
1
1
1
1
2
1
-
1
PARAMETER
Output Voltage
Maximum Output Current
Load Regulation
Dropout Voltage (*3)
Supply Current
Line Regulation
Input Voltage
Output Voltage
Temperature Characteristics
NOTE:
*1: V
OUT
(T)=Specified output voltage .
*2: V
OUT
(E)=Effective output voltage (i.e. the output voltage when "V
OUT
(T)+1.0V" is provided at the VIN pin while maintaining
a certain I
OUT
value).
*3: Vdif= {VIN1
(*5)
-VOUT1
(*4)
}
*4: V
OUT
1= A voltage equal to 98% of the output voltage whenever an amply stabilized I
OUT
{V
OUT
(T)+1.0V} is input.
*5: V
IN
1= The input voltage when V
OUT
1 appears as input voltage is gradually decreased.
5/14
