LP473M16E9P3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> LP473M16E9P3

LP473M16E9P3: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 47000uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size161KB，3 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

LP473M16E9P3 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 47000uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

LP473M16E9P3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1697984806
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7
capacitance	47000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	20 mΩ
JESD-609 code	e3
leakage current	15.04 mA
Manufacturer's serial number	LP
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
ripple current	6800 mA
surface mount	NO
Delta tangent	1.2
Terminal surface	Tin (Sn)
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

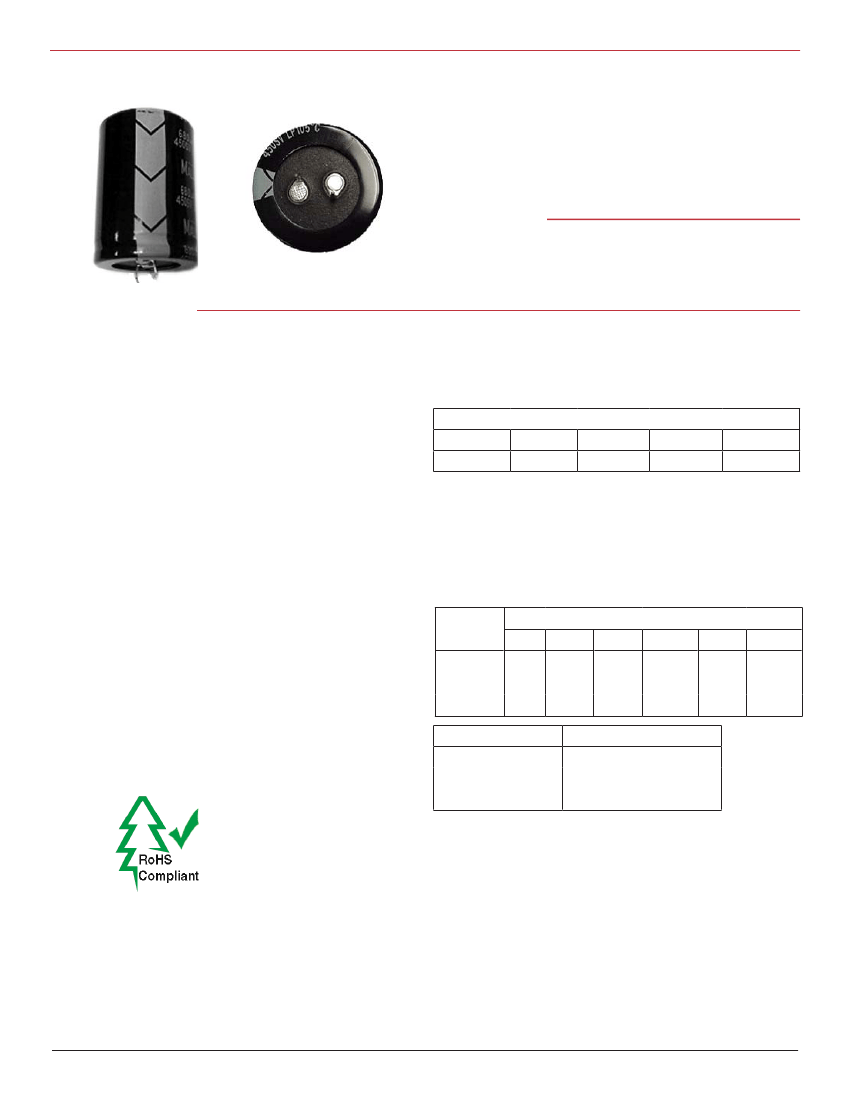

Type LP

105 ºC Snap-In Aluminum Electrolytic Capacitors

Stable ESR, Long Life, Snap-In

Type LP radial snap-in aluminum electrolytic capacitors

are small in size and are rated for low voltage applica-

tions. Their durable construction guarantees a long life

while operating up to 105 ºC with a stable ESR. These

features make the Type LP ideal for use in switch-mode

power supplies.

Highlights

•

Capacitance Range:

Voltage Range:

Capacitance tolerance:

Operating Temperature Range:

Dissipation Factor:

High Reliability

105 ºC

22 to 35 mm diameter with 10 mm lead spacing

Speciﬁcations

100 to 47,000 µF

16 to 250 Vdc

±20%

–40 ºC to +105 ºC

DF at 120 Hz, +25 ºC

Vdc

DF %

25 - 35

50 - 63

100- 250

DC Leakage Test:

For values that are >1000 µF, the DF (%) increases

2% for every additional 1000 µF

I = .02CV

C = capacitance in µF

V = rated voltage

I = leakage current in µA

Rated

Vdc

10 to 50

0.90

1.00

Ripple Multipliers

60 Hz 100 Hz 300 Hz 1000 Hz 10 kHz 100 kHz

1.03

1.07

1.15

1.65

2.25

2.55

Voltage/Frequency Ripple Multipliers:

1.05

1.13

1.25

1.10

1.19

1.35

1.10

1.20

1.40

63 to 100 0.85

160 to 250 0.80

Temperature Ripple Multipliers:

Temperature

+85 ºC

+65 ºC

+45 ºC

Ripple Multiplier

The maximum ripple current at 105 ºC and 120 Hz are

the Ratings Table. Adjust to other temperature and fre-

quencies using the tables here.

Complies with the EU Directive

2002/95/EC requirement restricting

the use of Lead (Pb), Mercury (Hg),

Cadmium (Cd), Hexavalent chromium

(Cr(VI)), PolyBrominated Biphenyls

(PBB) and PolyBrominated Diphenyl

Ethers (PBDE).

Load Life Test:

1,000 h @ full load at +105 ºC per EIA IS-749

∆ Capacitance ±20%

ESR 200% of limit

DCL 100% of limit

Shelf Life:

500 h @ 105 ºC, capacitance, ≤200% ESR and

DC ±20%, initial requirements

Vibration:

10 to 55 Hz, 0.06” and 10 g max, 2 h in each

plane

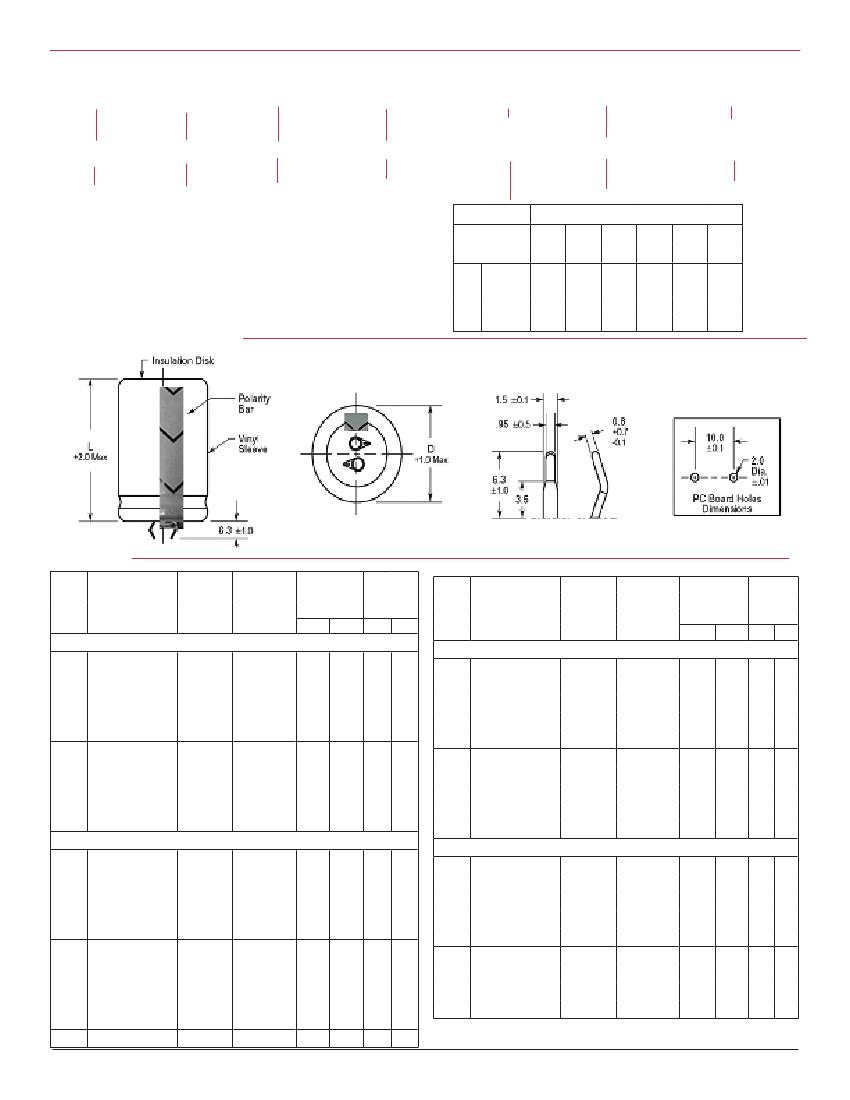

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
