APH-1-33-SDB-SG15 datasheet, PDF

Datasheet> All Categories > The connector> The connector> APH-1-33-SDB-SG15

APH-1-33-SDB-SG15: DescriptionBoard Connector, 33 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size253KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

APH-1-33-SDB-SG15 Overview

Board Connector, 33 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

APH-1-33-SDB-SG15 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166963363
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
YTEOL	9.1
Other features	ROHS COMPLIANT
body width	0.1 inch
subject depth	0.1 inch
body length	3.3 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	33

Preview

Download Datasheet

View All

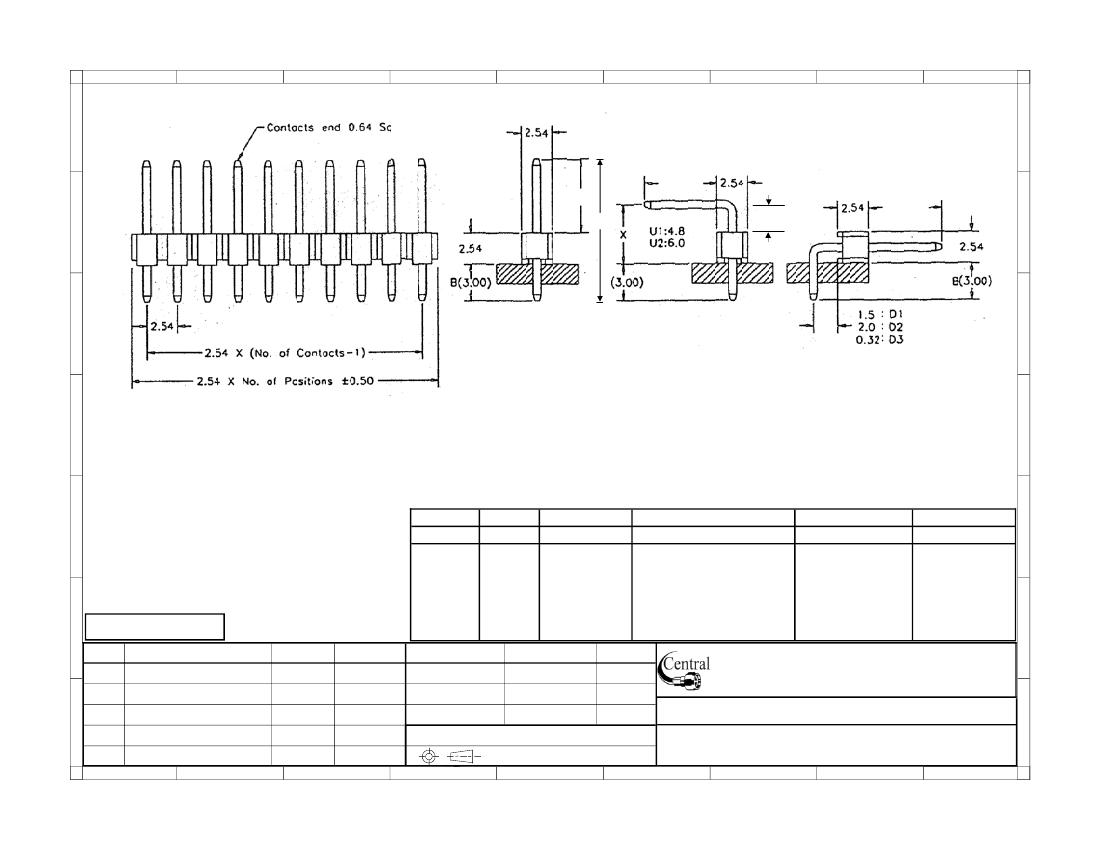

E=Overall pin length

A(8.08)

Straight

Reverse Right Angle

(RRA)

Right Angle (RA)

SPECIFICATIONS

Current rating:

Operating voltage:

Contact material:

Contact plating:

Contact resistance:

Insulator material:

Insulator resistance:

Withstanding:

Operating temperature:

5 amps

250VAC

Phosphor bronze

Tin, gold or duplex over nickel

10 milliohms max.

PBT, glass reinforced, UL94V-0

5,000 megohms min.

1,000VAC for 1 min.

-55˚C to 125˚C

RoHS compliant

Rev.

Description

A CSL

B DWG, PNT

Date

5/14/08

8/13/08

Approved

Greg

Series

Rows

Total Contacts

Type

Contact length

Plating

APH

XXX

Pin header, 1=Single Single row 1-40 Blank=Straight

SDA=.240”mating

GDXX=Gold

.100” pitch 2=Double Dual row 2-80

RAXX=Right Angle

SDB=.318”mating

SGXX=Duplex

3=Triple Triple row 3-120 RRAXX=Reverse right angle CSL=(A/E) [Straight] TN=Tin

XX=D1,U1, or custom if blank, CSL=(A/C/E) [RA]

XX=Flash if blank;

D2,D3,U2

15, 30, or 50µ”

SM=Surface Mount

Drawing

Name

Date

Central Components Manufacturing

Approved Howard

08/10/99

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

Checked Lizzy

08/10/99

APH-1-XX-XX-SDB-XX

Drawn Tina

08/10/99 Part No.:

0.0 ± 0.35

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: Pin header, single row, 0.100” pitch
