BFC-06-P-SG03 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BFC-06-P-SG03

BFC-06-P-SG03: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size73KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BFC-06-P-SG03 Overview

Board Connector, 6 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking, Plug, ROHS COMPLIANT

BFC-06-P-SG03 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166978328
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
YTEOL	7.8
Other features	ROHS COMPLIANT
body width	0.187 inch
subject depth	0.215 inch
body length	0.443 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	BFC
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-45 °C
Plating thickness	3u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	6

Preview

Download Datasheet

View All

Optional strain relief

SPECIFICATIONS

Current rating:

Contact material:

Contact plating:

Housing material:

Insulation resistance:

Withstanding:

1 amp

Brass, phosphor bronze

Gold flash over nickel

PBT +30% glass fiber,

UL94V-0

1,000 megohms min.

500VAC for 1 min.

Strain Relief

Item

11.34

13.34

15.34

17.34

19.34

21.34

23.34

25.34

27.34

29.34

31.34

33.34

35.34

39.34

41.34

45.34

49.34

55.34

65.34

69.34

73.34

Dimensions

4.00

5.00

6.00

7.00

8.00

9.00

10.00

11.00

12.00

13.00

14.00

15.00

16.00

17.00

18.00

19.00

20.00

21.00

22.00

23.00

24.00

25.00

26.00

27.00

28.00

29.00

32.00

33.00

34.00

35.00

38.00

39.00

42.00

43.00

48.00

49.00

58.00

59.00

62.00

63.00

66.00

67.00

Series

BSR

2mm Strain

Relief

11.14

13.14

15.14

17.14

19.14

21.14

23.14

25.14

27.14

29.14

31.14

33.14

35.14

39.14

41.14

45.14

49.14

55.34

65.14

69.14

73.14

Positions

See Chart

RoHS compliant

Rev.

Description

Date

Approved

Series

Positions

Polarization

Plating

BFC

IDC socket, See chart P=Polarized

TN=Tin

2mm pitch

NP=Not polarized SGXX=Selective gold

GDXX=Gold

XX=Flash if blank; 3, 5, 10, 15, 30µ” gold

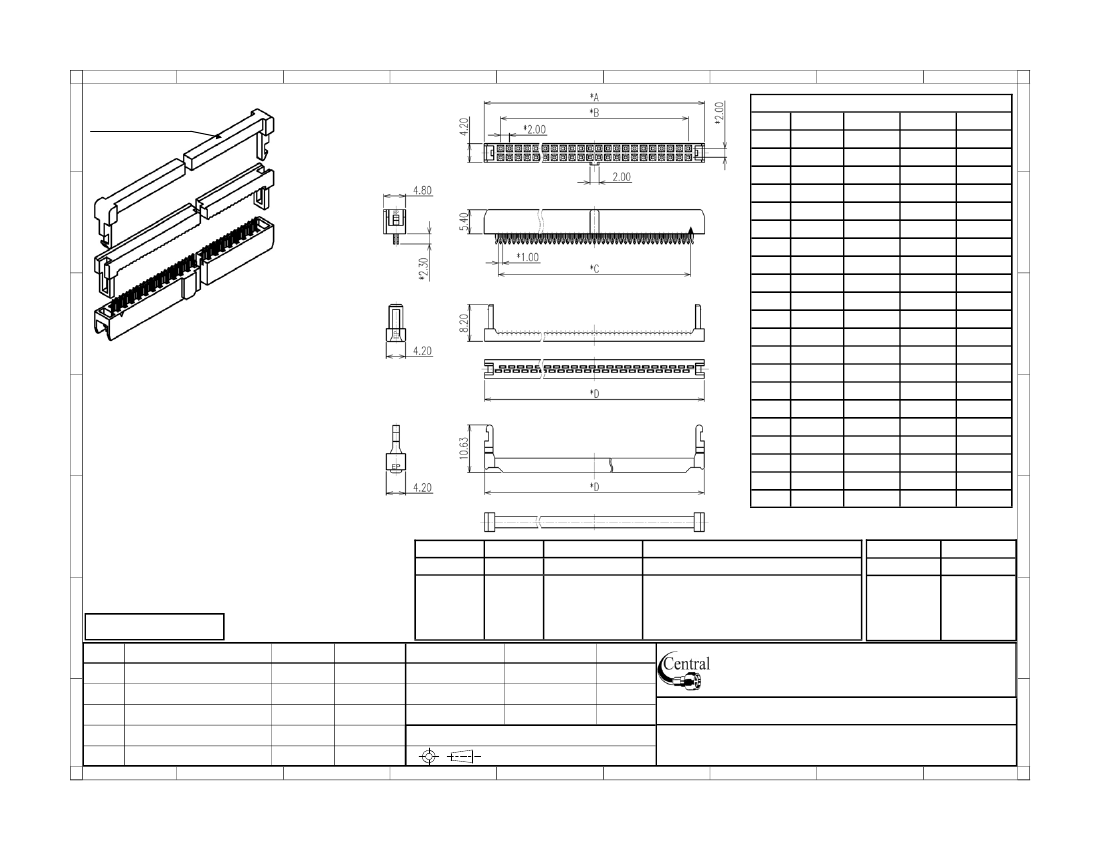

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

05/22/07

05/22/07 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

BFC-XX-P-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: IDC socket, 2mm pitch, with polarization
