100344FM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 100344FM

100344FM: DescriptionBus Driver, 100K Series, 1-Func, 8-Bit, True Output, ECL, CQFP24, CERPACK-24; Categorylogic logic; File Size248KB，12 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

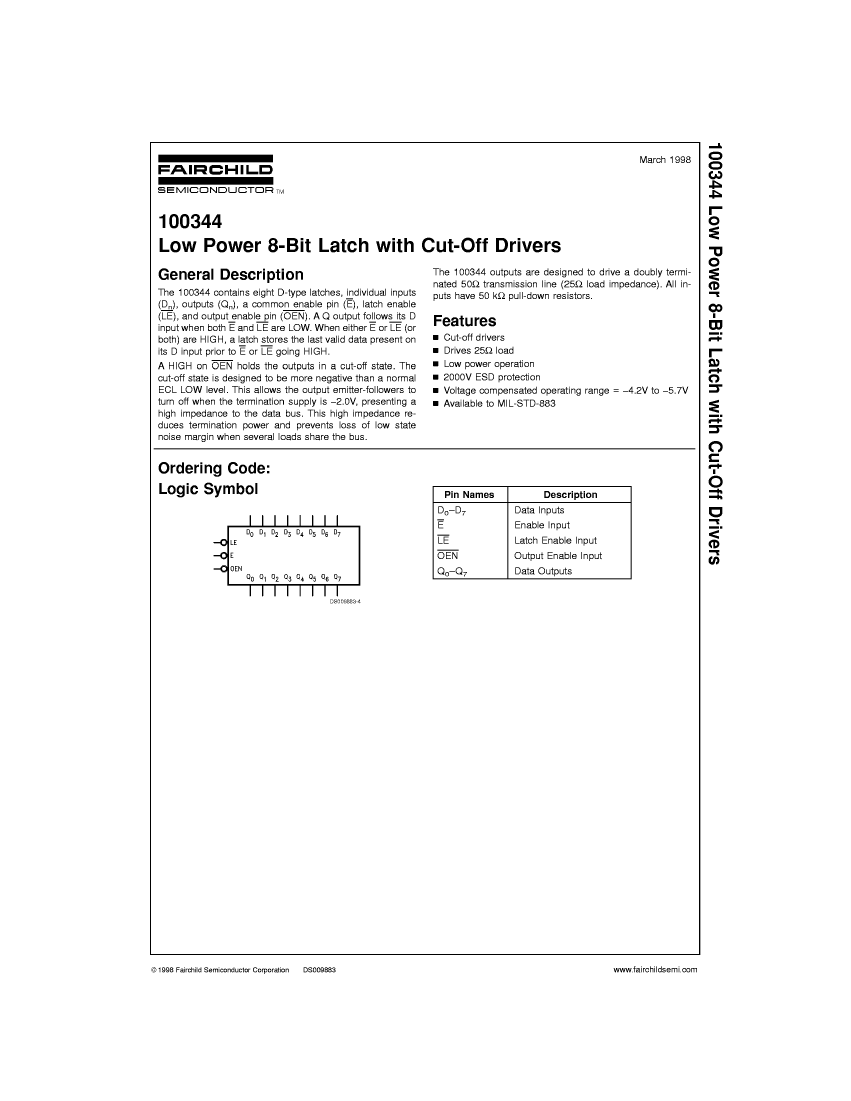

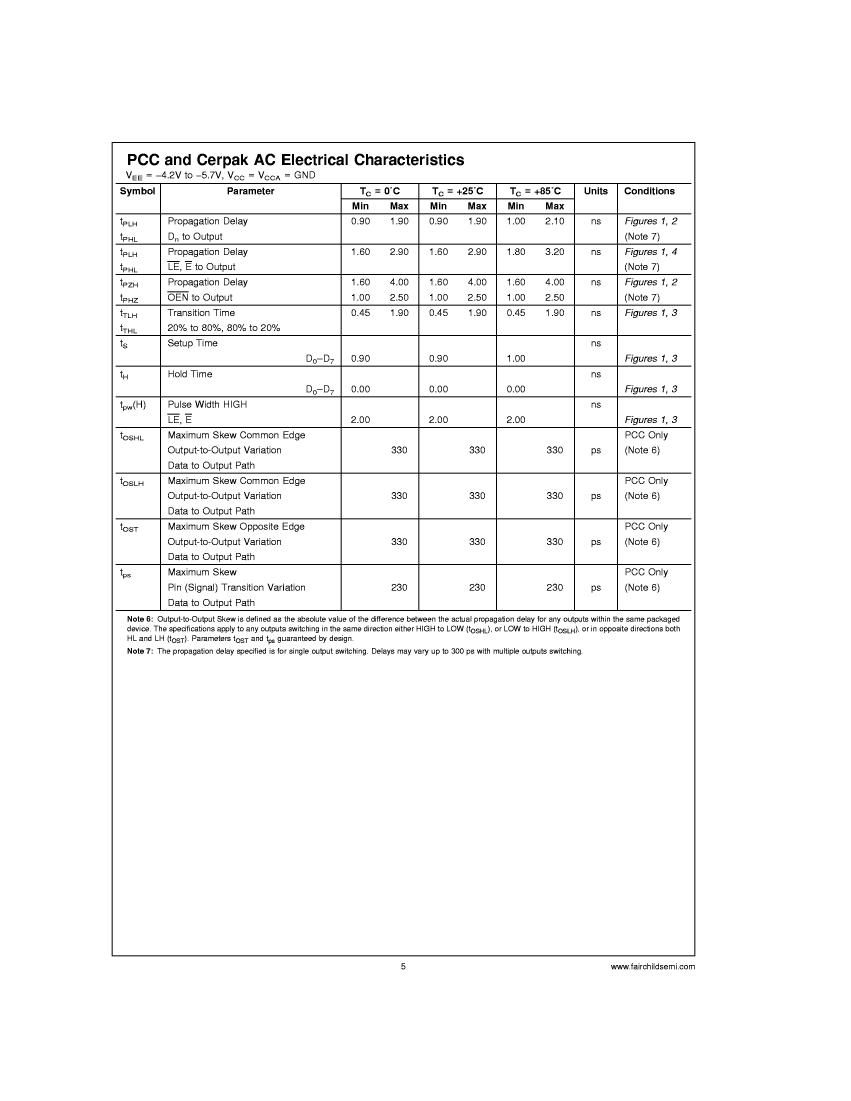

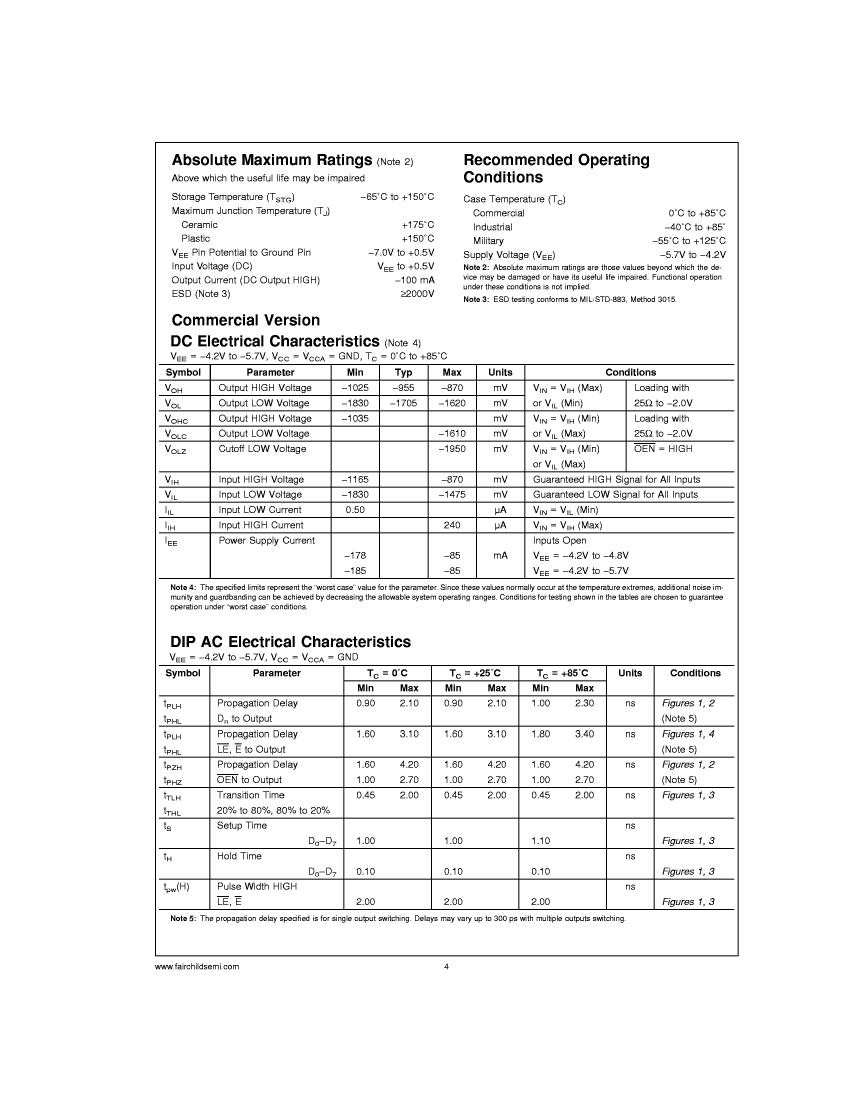

100344FM Overview

Bus Driver, 100K Series, 1-Func, 8-Bit, True Output, ECL, CQFP24, CERPACK-24

100344FM Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	QFF,
Reach Compliance Code	unknown
Is Samacsys	N
Other features	WITH 25 OHM LINE DRIVE CAPABILITY
series	100K
JESD-30 code	S-GQFP-F24
length	9.398 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-EMITTER WITH CUT-OFF
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	QFF
Package shape	SQUARE
Package form	FLATPACK
propagation delay (tpd)	3.8 ns
Maximum seat height	2.16 mm
surface mount	YES
technology	ECL
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	QUAD
width	9.398 mm
Base Number Matches	1

Preview

Download Datasheet

View All

100344FM Related Products

	100344FM	100344DM	100344PC	100344QC
Description	Bus Driver, 100K Series, 1-Func, 8-Bit, True Output, ECL, CQFP24, CERPACK-24	Bus Driver, 100K Series, 1-Func, 8-Bit, True Output, ECL, CDIP24, 0.400 INCH, CERAMIC, DIP-24	Bus Driver, 100K Series, 1-Func, 8-Bit, True Output, ECL, PDIP24, 0.400 INCH, PLASTIC, MS-010, DIP-24	Bus Driver, 100K Series, 1-Func, 8-Bit, True Output, ECL, PQCC28, 0.450 X 0.450 INCH, PLASTIC, MO-047, LCC-28
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics	Rochester Electronics
package instruction	QFF,	DIP,	DIP,	QCCJ,
Reach Compliance Code	unknown	unknown	unknown	unknown
Is Samacsys	N	N	N	N
Other features	WITH 25 OHM LINE DRIVE CAPABILITY	WITH 25 OHM LINE DRIVE CAPABILITY	WITH 25 OHM LINE DRIVE CAPABILITY	WITH 25 OHM LINE DRIVE CAPABILITY
series	100K	100K	100K	100K
JESD-30 code	S-GQFP-F24	R-GDIP-T24	R-PDIP-T24	S-PQCC-J28
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of ports	2	2	2	2
Number of terminals	24	24	24	28
Maximum operating temperature	125 °C	125 °C	85 °C	85 °C
Output characteristics	OPEN-EMITTER WITH CUT-OFF	OPEN-EMITTER WITH CUT-OFF	OPEN-EMITTER WITH CUT-OFF	OPEN-EMITTER WITH CUT-OFF
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFF	DIP	DIP	QCCJ
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	IN-LINE	CHIP CARRIER
propagation delay (tpd)	3.8 ns	3.8 ns	3.1 ns	2.9 ns
Maximum seat height	2.16 mm	5.72 mm	5.08 mm	4.57 mm
surface mount	YES	NO	NO	YES
technology	ECL	ECL	ECL	ECL
Temperature level	MILITARY	MILITARY	OTHER	OTHER
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	J BEND
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	QUAD
width	9.398 mm	10.16 mm	10.16 mm	11.43 mm
Base Number Matches	1	1	1	1
length	9.398 mm	-	31.585 mm	11.43 mm
