Model 1210 Low Pressure

PC Board Mountable Pressure Sensor

0-10" H

O to 0-1 PSI

0-100 mV Output

Gage and Differential

Low Cost

Medical Instruments

Air Flow Measurement

HVAC

Process Control

Factory Automation

Leak Detection

DESCRIPTION

The Model 1210 is a temperature compensated, piezoresistive

silicon pressure sensor packaged in a dual-in-line configuration

and intended for cost sensitive applications where excellent

performance and long-term stability are required.

Integral temperature compensation is provided over a range

of 0-50°C using laser-trimmed resistors. An additional laser-

trimmed resistor is included to adjust the gain of an external

differential amplifier. This provides sensitivity interchangeability

of ±1%.

The sensing element used in the low pressure Model 1210

includes a double bossed design that produces a sensor output

of 100 mV (typical) at 1 PSI.

The 1210 is also available in ranges up to 0-100 PSI. For a

compensated sensor using a current set resistor instead of a gain

FEATURES

Dual-in-line and TO-8 Packages

±0.1% Non-linearity

1.0% Temperature Performance

(typical)

1.0% Interchangeable Span

(provided by gain set resistor)

Temperature Compensated

Solid State Reliability

Low Power

set resistor, please refer to the Model 1220.

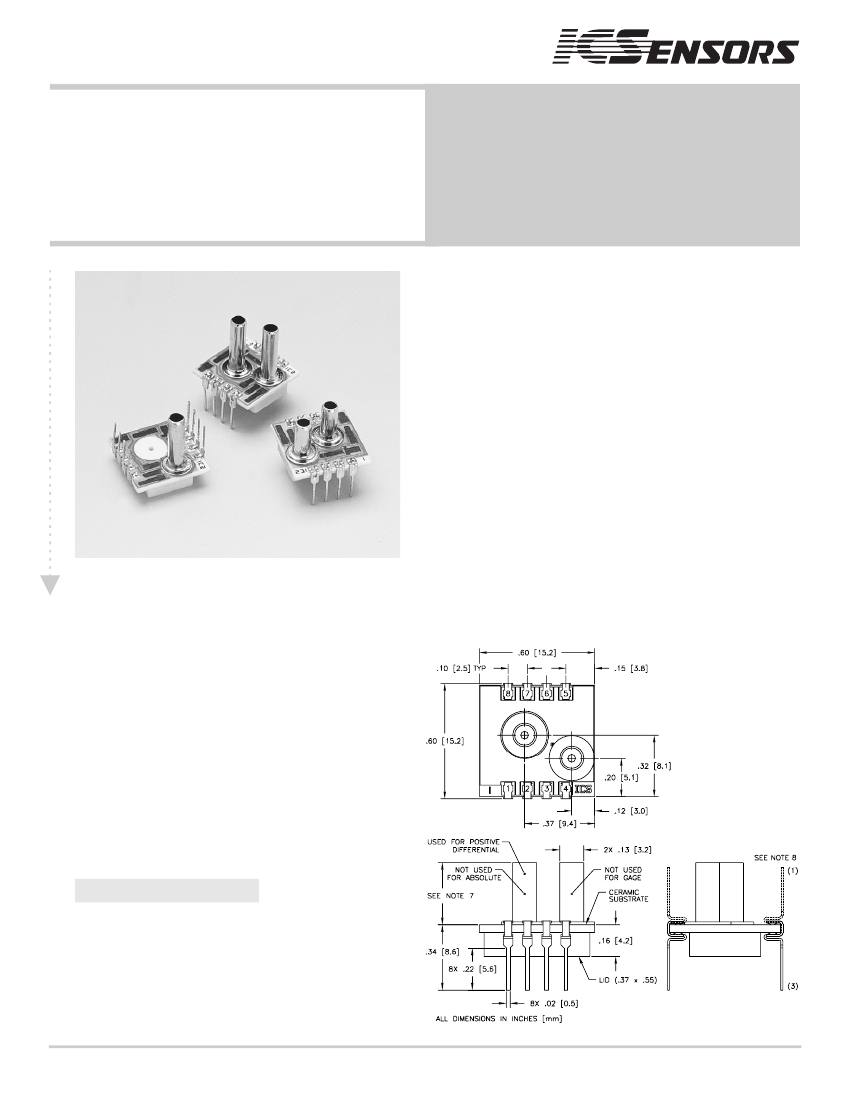

DIMENSIONS

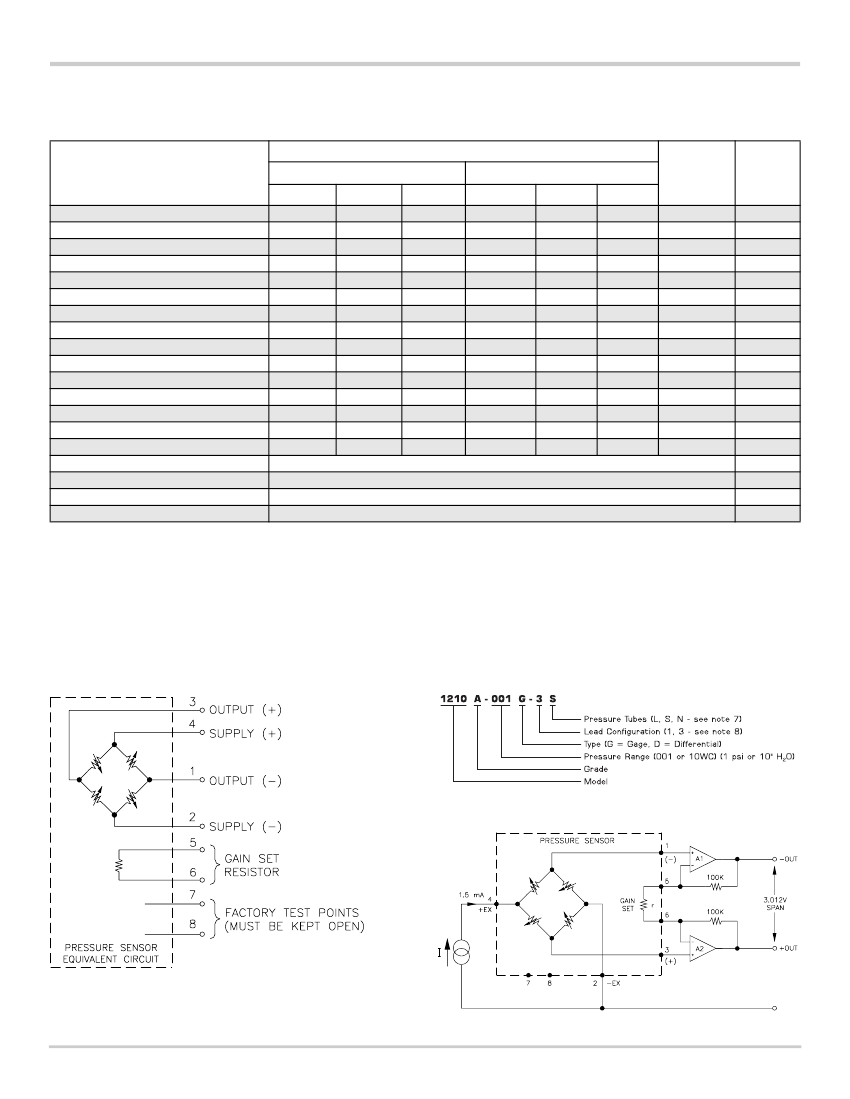

STANDARD RANGES

Range

0 to 1

0 to 10

psi

in H

●

1-10

HITs – Low Pressure
