OPA277AIDRMRG4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> OPA277AIDRMRG4

OPA277AIDRMRG4: DescriptionOP-AMP, 165 uV OFFSET-MAX, 1 MHz BAND WIDTH, PDSO8; Categorysemiconductor Analog mixed-signal IC; File Size918KB，25 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric View All

OPA277AIDRMRG4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	OPA277AIDRMRG4	-	-	View	Buy Now

OPA277AIDRMRG4 Overview

OP-AMP, 165 uV OFFSET-MAX, 1 MHz BAND WIDTH, PDSO8

OPA277AIDRMRG4 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	8
Maximum supply/operating voltage	18 V
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Rated supply voltage	15 V
Maximum negative supply voltage	-18 V
Rated negative supply voltage	-15 V
Rated bandwidth	1 kHz
Rated rotation rate	0.8000 V/us
Maximum input offset voltage	165 mV
Processing package description	4 × 4 MM, green, plastic, MO-229, SON-8
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
packaging shape	SQUARE
Package Size	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
surface mount	Yes
Terminal form	NO
Terminal spacing	0.8000 mm
terminal coating	Nickel Palladium
Terminal location	pair
Packaging Materials	Plastic/Epoxy
Temperature level	INDUSTRIAL
Amplifier type	Operational Amplifier
Rated common mode rejection ratio	140 dB
Maximum input bias current IIB	0.0040 uA

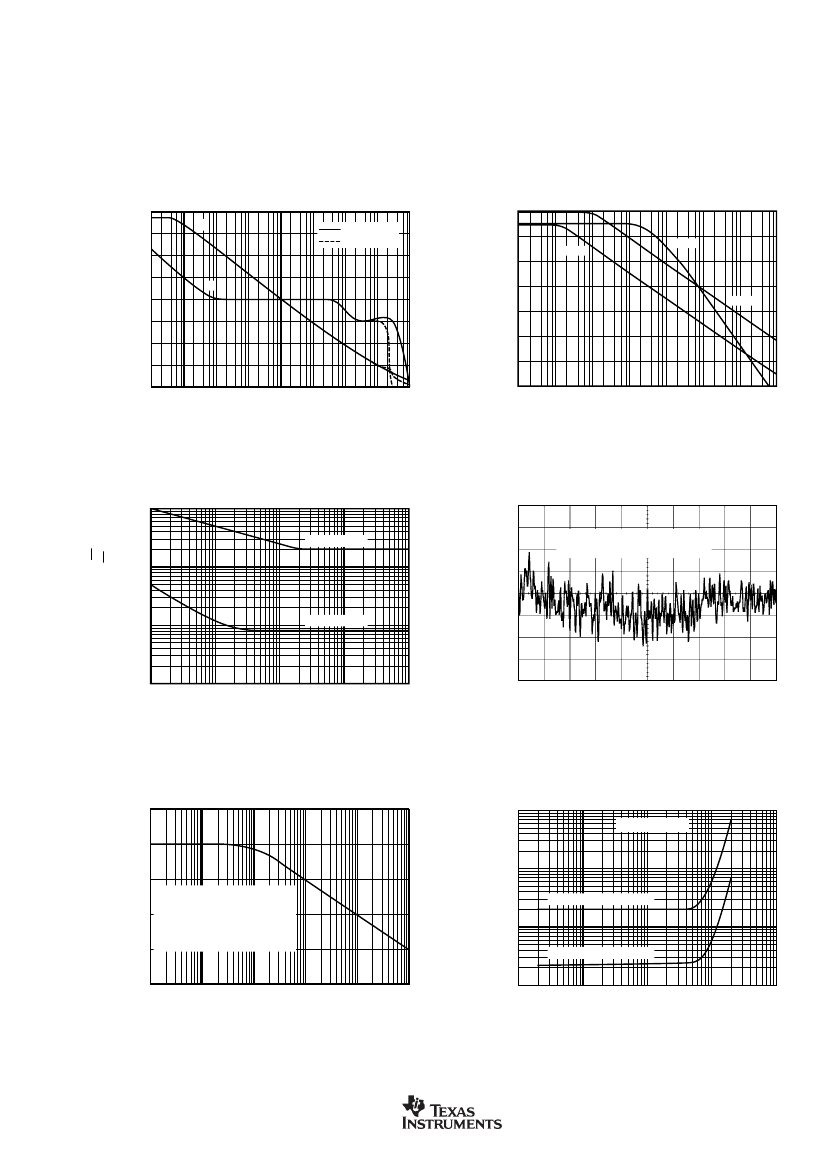

Preview

Download Datasheet

View All

OPA

277

OPA

227

OPA

4277

OPA

277

OPA

2277

OPA

4277

OPA

277

O PA

2277

OPA277

OPA2277

OPA4277

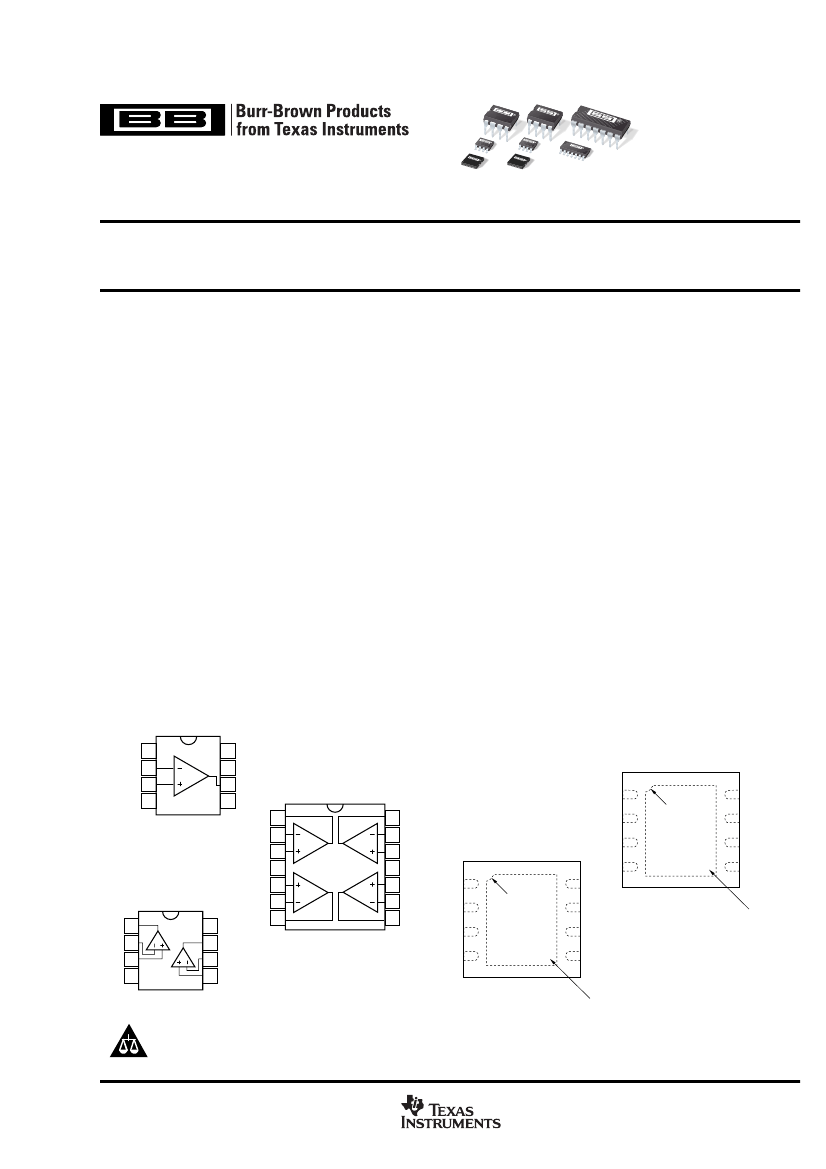

SBOS079A – MARCH 1999 – REVISED APRIL 2005

High Precision

OPERATIONAL AMPLIFIERS

FEATURES

ULTRA LOW OFFSET VOLTAGE: 10

ULTRA LOW DRIFT:

0.1

HIGH OPEN-LOOP GAIN: 134dB

HIGH COMMON-MODE REJECTION: 140dB

HIGH POWER SUPPLY REJECTION: 130dB

LOW BIAS CURRENT: 1nA max

WIDE SUPPLY RANGE:

2V to

18V

LOW QUIESCENT CURRENT: 800

A/amplifier

SINGLE, DUAL, AND QUAD VERSIONS

REPLACES OP-07, OP-77, OP-177

DESCRIPTION

The OPA277 series precision op amps replace the industry

standard OP-177. They offer improved noise, wider output

voltage swing, and are twice as fast with half the quiescent

current. Features include ultra low offset voltage and drift, low

bias current, high common-mode rejection, and high power

supply rejection. Single, dual, and quad versions have identical

specifications for maximum design flexibility.

OPA277 series op amps operate from

±2V

±18V

supplies with

excellent performance. Unlike most op amps which are specified

at only one supply voltage, the OPA277 series is specified for

real-world applications; a single limit applies over the

±5V

±15V

supply range. High performance is maintained as the

amplifiers swing to their specified limits. Because the initial offset

voltage (±20µV max) is so low, user adjustment is usually not

required. However, the single version (OPA277) provides exter-

nal trim pins for special applications.

OPA277 op amps are easy to use and free from phase inversion

and overload problems found in some other op amps. They are

stable in unity gain and provide excellent dynamic behavior over

a wide range of load conditions. Dual and quad versions feature

completely independent circuitry for lowest crosstalk and free-

dom from interaction, even when overdriven or overloaded.

Single (OPA277) and dual (OPA2277) versions are available

in DIP-8, SO-8, and DFN-8 (4mm x 4mm) packages. The quad

(OPA4277) comes in DIP-14 and SO-14 surface-mount pack-

ages. All are fully specified from –40°C to +85°C and operate

from –55°C to +125°C.

OPA277AIDRM

APPLICATIONS

TRANSDUCER AMPLIFIER

BRIDGE AMPLIFIER

TEMPERATURE MEASUREMENTS

STRAIN GAGE AMPLIFIER

PRECISION INTEGRATOR

BATTERY POWERED INSTRUMENTS

TEST EQUIPMENT

OPA277

Offset Trim

–In

+In

V–

8-Pin DIP, SO-8

Offset Trim

V+

Output

OPA4277

14-Pin DIP, SO-14

V−

Offset Trim

−In

Pin 1

Indicator

Offset Trim

Out A

–In A

+In A

V+

+In B

Out D

–In D

V+

+In

Output

+In D

V–

+In C

–In C

Out C

+In A

Out A

−In

OPA2277AIDRM

V−

Pin 1

Indicator

Out B

DFN-8 4mm x 4mm

(top view)

Thermal Pad

on Bottom

(Connect to V−)

OPA2277

Out A

–In A

+In A

V–

8-Pin DIP, SO-8

V+

Out B

–In B

+In B

–In B

Out B

V+

−In

+In B

NC = No connection.

DFN-8 4mm x 4mm

(top view)

Thermal Pad

on Bottom

(Connect to V−)

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

All trademarks are the property of their respective owners.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.

www.ti.com
