Silicon Medium Barrier
Schottky Diode
MA4E1339 Series

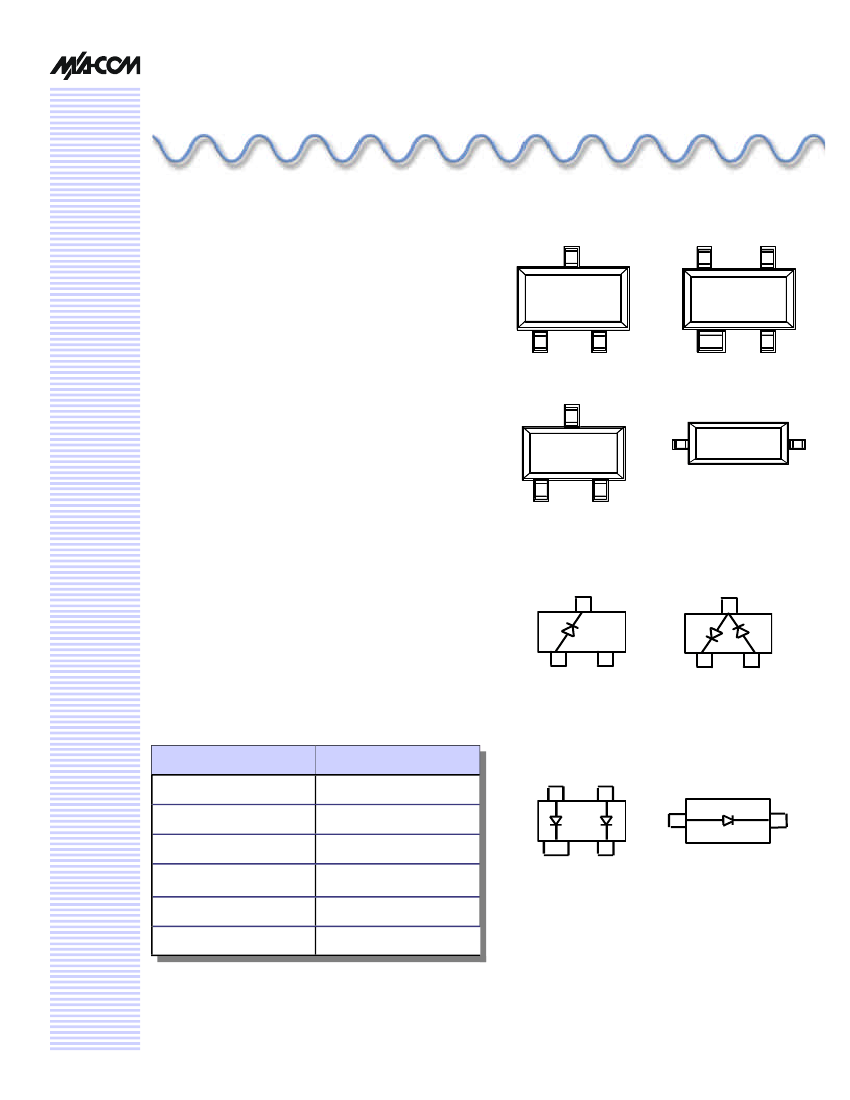

Features
Medium Barrier Si Schottky Diode
Available as Single Diode, Series Tee or
Unconnected Pair
n
Surface Mount Packages
n
Tape and Reel
n
n

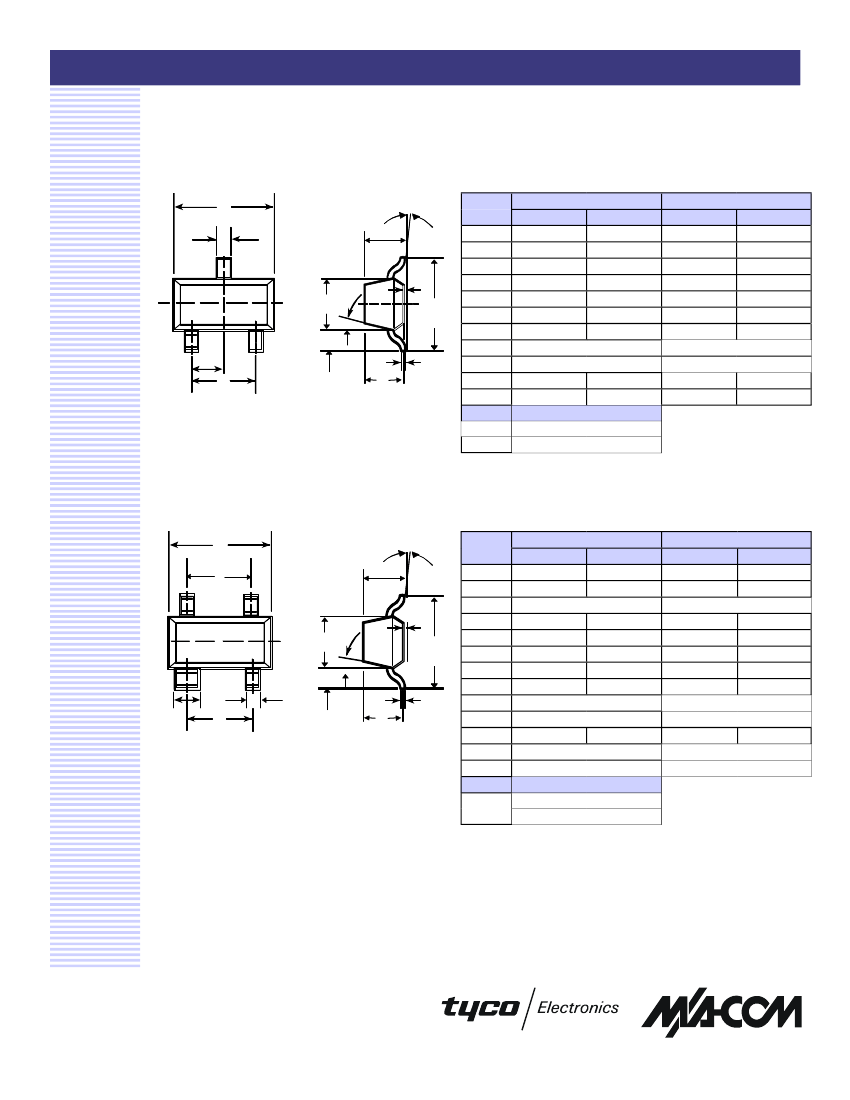

Case Styles
SOT-23
SOT-143
Description
The MA4E1339 series is a silicon, medium barrier Schottky
diode suitable for use in mixer or detector circuits.
Applications
The MA4E1339 family of silicon Schottky diodes may be
used in mixer or detector circuits. The MA4E1339A-287T,
MA4E1339A-1146T, and MA4E1339A-1141T are suitable
for use in single ended mixers or single diode detectors.
The MA4E1339B-287T and MA4E1339B-1146T are
suitable for use in single balanced mixers or voltage doubler
detectors. The MA4E1339E-1068T may be used in
temperature compensated detectors, single balanced mixers
or double balanced mixers.
The MA4E1339 series of Schottky diodes is available in the
SOT-23 (case style 287), the SOT-143 (case style 1068),
the SOT-323 (case style 1146) and the SOD-323 (case style
1141) packages. These packages are supplied on tape and
reel for automatic pick and place assembly on surface
mount circuit boards, as indicated by a “T” to the case style
suffix.
SOT-323
SOD-323
Configurations
3
3
Absolute Maximum Ratings
@TA = +25 °C (unless otherwise
specified)
Parameter
Reverse Voltage
Forward Current
Surge Forward Current
Total Power Dissipation
(TC = 25 °C)
Operating Temperature
Storage Temperature
Maximum Ratings
20 V
100 mA
500 mA
1
2
1
2
Single
MA4E1339A-287T
MA4E1339A-1146T
4
3
Series Pair
MA4E1339B-287T
MA4E1339B-1146T
1
2
1
2
250 mW
-55 °C to +125 °C
-55 °C to +125 °C
Unconnected Pair
MA4E1339E-1068T
Single
MA4E1339A-1141T
Silicon Medium Barrier Schottky Diode
Electrical Specifications @ T
A
= +25 °C
Parameters and Test Conditions
Forward Voltage at I
F
= 1 mA
Delta Forward Voltage at I
F
= 1 mA
MA4E1339 Series
Symbol
V
F
∆
V
F
Specification
410 mV maximum
20 mV maximum
(for series pair and unconnected pair
configurations)
1.0 V maximum
1.2 pF maximum
200 nA maximum
20 V minimum
Forward Voltage at I
F
= 35 mA
Total Capacitance at V
R
= 0 V and f = 1 MHz
Reverse Leakage Current at V
R
= 15 V
Reverse Voltage Breakdown at I
R
= 10 µA
V
F
C
T0
I
R
V
b

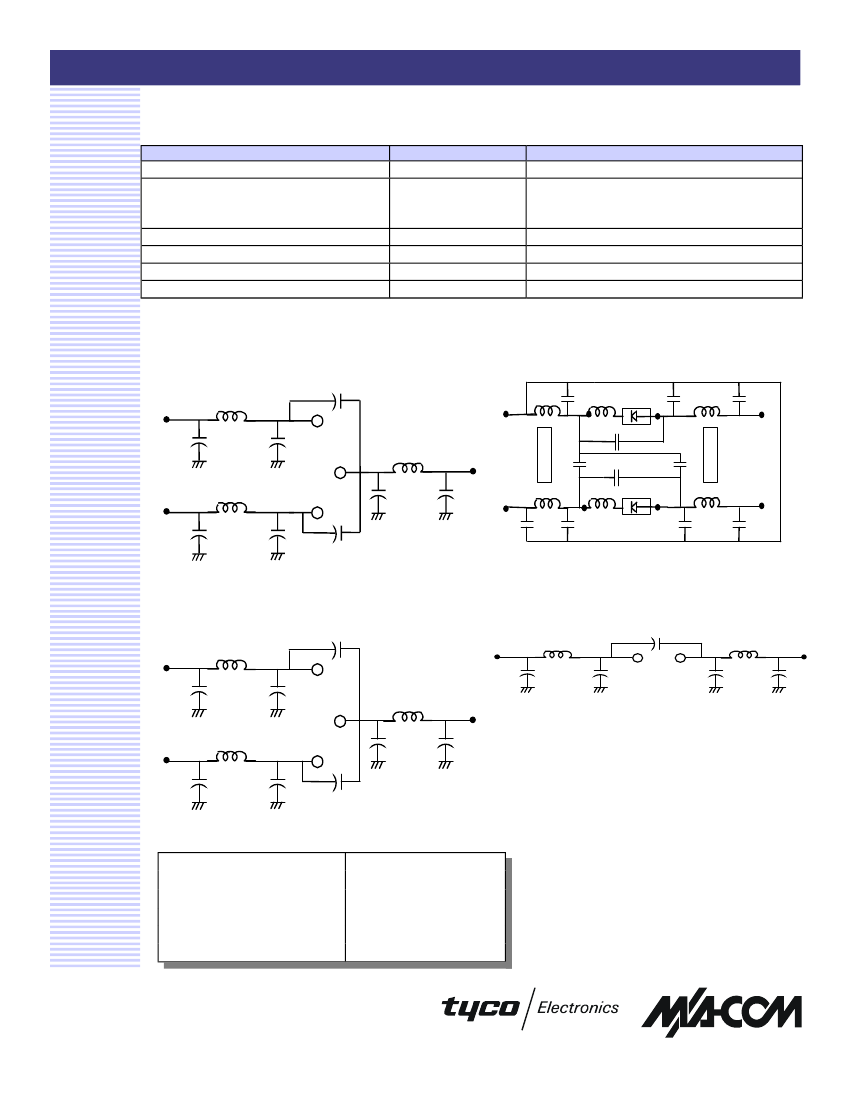

Circuit Models
SOT-23
.05 pf
1
.65 nH
SOT-143
C
1
1
Lg
7
Cp
2
M
3
LBW
6
C
1
L
1
C
1
4
.13 pf
.01 pf
.7 nH
M
C
3
p
C
1
p
Cp
4
5
C
1
L
1
3
2
.65 nH
.013 pf
.015 pf
2
C
1
L
1
LBW
8
C
1
.13 pf
.01 pf
.05 pf
C
1
LBW = 0.08nH, Lg = 0.36nh, L1 = 0.31nH, M = 0.12nH, C1 = 0.01pF,
Cp1 = 0.05pF, CP2 = 0.10pF, Cp3 = 0.05pF, Cp4 = 0.03pF
SOT-323
.05 pf
1
.6 nH
SOD-323
.05 pf
.47 nH
1
.47 nH
2
.2 pf
.02 pf
.02 pf
.2 pf
.04 pf
.06 pf
.6 nH
3
2
.6 nH
.06 pf
.04 pf
.04 pf
.06 pf
.05 pf
Spice Model Parameters
IS = 5.1E-9 amps
RS = 12.5Ω
N = 1.02
IK = 4.5 mA
CT = 0.87 pF
VJ = 0.59 V
M = 0.5
FC = 0.5
BV = 20 V
IBV = 10 µA
Specifications subject to change without notice.
n
North America:
Tel. (800) 366-2266
n
Asia/Pacific:
Tel.+81-44-844-8296, Fax +81-44-844-8298
n
Europe:
Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
Visit www.macom.com for additional data sheets and product information.
2
Silicon Medium Barrier Schottky Diode
Case Styles
SOT-23
F
D
A
N
MA4E1339 Series
SOT-23 (Case Style 287)
INCHES
MIN.
MAX.
0.048
0.008
0.040
0.013
0.020
0.003
0.006
0.110
0.119
0.047
0.056
0.037 typical
0.075 typical
0.103
0.024
GRADIENT
10° max.
1
2° . . .30°
MILLIMETERS
MIN.
MAX.
1.22
0.20
1.00
0.35
0.50
0.08
0.15
2.80
3.00
1.20
1.40
0.95 typical
1.90 typical
2.60
0.60
M
G
B
K
L
H
J
C
E
DIM.
A
B
C
D
E
F
G
H
J
K
L
DIM.
M
N
Note: 1. Applicable on all
SOT-143
G
J
A
P
SOT-143 (Case Style 1068)
DIM.
A
B
C
D
E
F
G
H
J
K
L
M
N
DIM.
P
Q
INCHES
MIN.
MAX.
0.031
0.044
0.001
0.005
0.038 ref.
0.013
0.020
0.030
0.035
0.003
0.006
0.105
0.120
0.047
0.056
0.075 typical
0.065 typical
0.083
0.103
0.024 ref.
0.006 typical
GRADIENT
10° max.
1
2° . . . 30°
MILLIMETERS
MIN.
MAX.
0.97
1.10
0.03
0.13
0.965 ref.
0.33
0.51
0.76
0.90
0.08
0.15
2.7
3.10
1.2
1.40
1.90 typical
1.70 typical
2.11
2.62
0.61 ref.
0.15 typical
N
H
B
L
M
E
K
D
C
F
Note: 1. Applicable on all
Specifications subject to change without notice.
n
North America:
Tel. (800) 366-2266
n
Asia/Pacific:
Tel.+81-44-844-8296, Fax +81-44-844-8298
n
Europe:
Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
Visit www.macom.com for additional data sheets and product information.
3
Silicon Medium Barrier Schottky Diode
Case Styles (Cont’d)

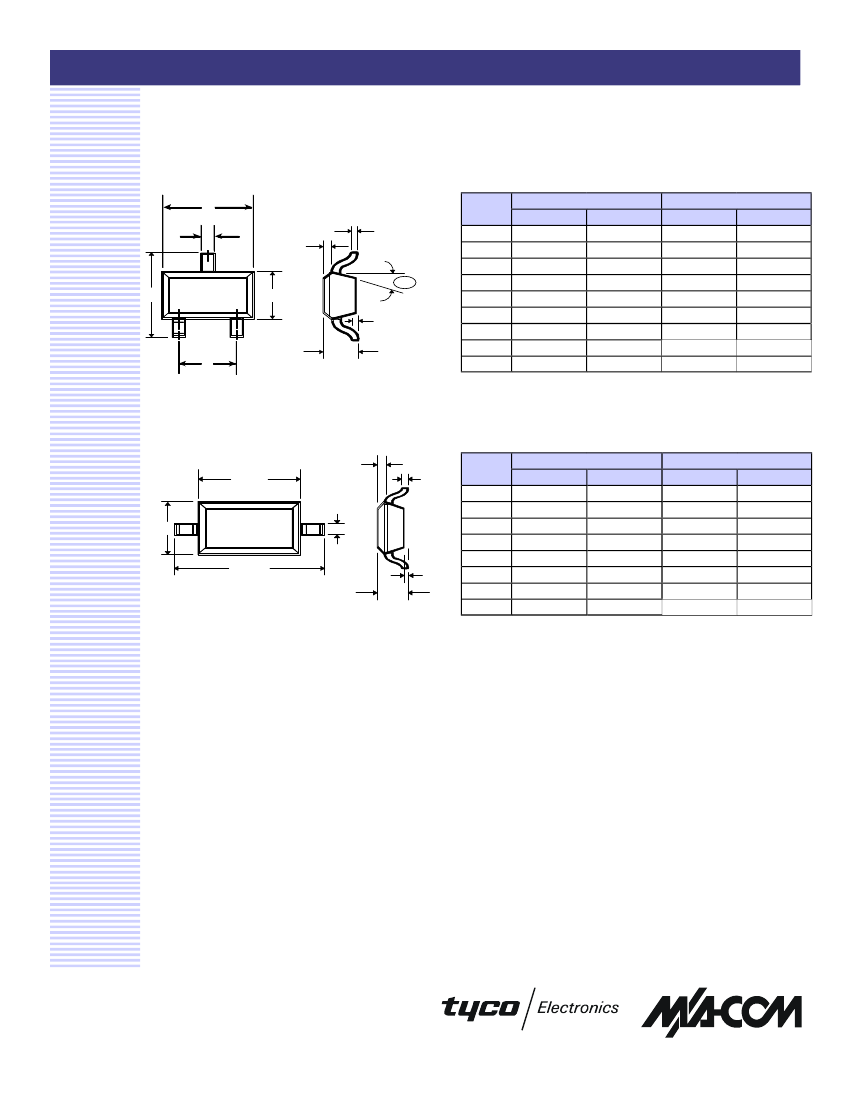

SOT-323
Case Style 1146
A
E
J
H
MA4E1339 Series
SOT-323 (Case Style 1146)
INCHES
MIN.
MAX.
0.063
0.087
0.045
0.053
0.079
0.087
0.047
0.055
0.008
0.016
0.031
0.039
0.004
0.003
0.006
0.004
0.010
MILLIMETERS
MIN.
MAX.
1.6
2.2
1.15
1.35
2.0
2.2
1.2
1.4
0.2
0.4
0.8
1.0
0.1
0.15
0.08
0.1
0.25
10
°
M A X .
C
B
G
F
D
DIM.
A
B
C
D
E
F
G
H
J
SOD-323
Case Style 1141
C
F
D
G
E
SOD-323 (Case Style 1141)
INCHES
MIN.
MAX.
0.043
0.004
0.008
0.010
0.016
0.003
0.006
0.063
0.075
0.045
0.057
0.091
0.106
MILLIMETERS
MIN.
MAX.
1.1
0.1
0.2
0.25
0.4
0.08
0.15
1.6
1.9
1.15
1.45
2.7
2.3
H
A
B
DIM.
A
B
C
D
E
F
G
H
Specifications subject to change without notice.
n
North America:
Tel. (800) 366-2266
n
Asia/Pacific:
Tel.+81-44-844-8296, Fax +81-44-844-8298
n
Europe:
Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
Visit www.macom.com for additional data sheets and product information.
4
