M55342K12B5D62TS2 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> M55342K12B5D62TS2

M55342K12B5D62TS2: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.1W, 5.62ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, HALOGEN FREE; CategoryPassive components The resistor; File Size104KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

M55342K12B5D62TS2 Overview

Fixed Resistor, Metal Glaze/thick Film, 0.1W, 5.62ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, HALOGEN FREE

M55342K12B5D62TS2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay
package instruction	CHIP, HALOGEN FREE
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
structure	Chip
JESD-609 code	e0
Manufacturer's serial number	M55342
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package height	0.46 mm
Package length	1.6 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	0.81 mm
method of packing	TR
Rated power dissipation(P)	0.1 W
Rated temperature	70 °C
Guideline	MIL-PRF-55342
resistance	5.62 Ω
Resistor type	FIXED RESISTOR
series	RCWPM (MIL M/D55342)
size code	0603
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Lead (Sn80Pb20) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	50 V
Base Number Matches	1

Preview

Download Datasheet

View All

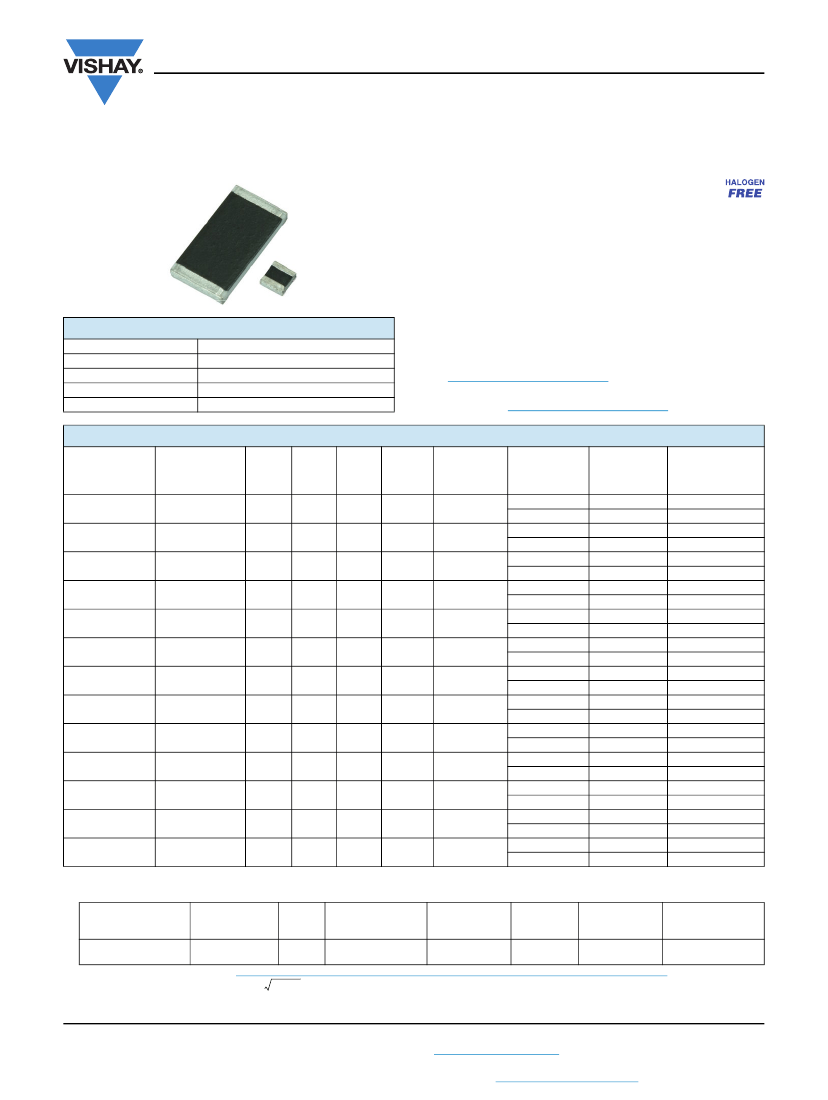

RCWPM (Military M/D55342)

www.vishay.com

Vishay Dale

Thick Film Chip Resistors, Military/Established Reliability

MIL-PRF-55342 Qualified, Type RM

FEATURES

• Fully conforms to the requirements of

MIL-PRF-55342

• Established reliability - verified failure rate; M, P, R, U, S,

V, and T levels

• Construction is sulfur impervious against a high sulfur

environment (ASTM B 809-95 test method)

• 100 % group A screening per MIL-PRF-55342

• Termination style B - tin/lead wraparound over nickel

barrier

• Operating temperature range is - 55 °C to + 150 °C

• For MIL-PRF-32159 zero ohm jumpers, see Vishay Dale’s

RCWPM

Jumper

(Military

M32159)

datasheet

(www.vishay.com/doc?31028)

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

MECHANICAL SPECIFICATIONS

Resistive element

Encapsulation

Substrate

Termination

Solder finish

Ruthenium oxide

Epoxy

96 % alumina

Solder-coated nickel barrier

Tin/lead solder alloy

STANDARD ELECTRICAL SPECIFICATIONS

MIL

VISHAY DALE MIL-PRF-55342

SPEC. TERM.

MODEL

STYLE

SHEET

RCWPM-0502

RCWPM-550

RCWPM-5100

RCWPM-5150

RCWPM-7225

RCWPM-575

RCWPM-1206

RCWPM-2010

RCWPM-2512

RCWPM-1100

RCWPM-0402

RCWPM-0603

RCWPM-0302

RM0502

RM0505

RM1005

RM1505

RM2208

RM0705

RM1206

RM2010

RM2512

RM1010

RM0402

RM0603

RM0302

CASE

SIZE

0502

0505

1005

1505

2208

0705

(3)

1206

2010

2512

1010

0402

0603

0302

POWER

MAX.

RATING WORKING RESISTANCE TOLERANCE TEMPERATURE

COEFFICIENT

(2)

RANGE

70 °C

VOLTAGE

(1)

±%



± ppm/°C

1 to 9.1

2, 5, 10

300

0.05

10 to 22M

1, 2, 5, 10

100, 200, 300

1 to 9.1

2, 5, 10

300

0.125

10 to 22M

1, 2, 5, 10

100, 200, 300

1 to 5.6

2, 5, 10

300

0.20

5.62 to 22M

1, 2, 5, 10

100, 200, 300

1 to 5.6

2, 5, 10

300

0.15

125

5.62 to 22M

1, 2, 5, 10

100, 200, 300

1 to 5.6

2, 5, 10

300

0.225

175

5.62 to 22M

1, 2, 5, 10

100, 200, 300

1 to 5.6

2, 5, 10

300

0.15

5.62 to 22M

1, 2, 5, 10

100, 200, 300

1 to 5.6

2, 5, 10

300

0.25

100

5.62 to 22M

1, 2, 5, 10

100, 200, 300

1 to 5.6

2, 5, 10

300

0.80

150

5.62 to 22M

1, 2, 5, 10

100, 200, 300

1 to 5.6

2, 5, 10

300

1.0

200

5.62 to 22M

1, 2, 5, 10

100, 200, 300

1 to 5.6

2, 5, 10

300

0.50

5.62 to 22M

1, 2, 5, 10

100, 200, 300

1 to 9.1

2, 5, 10

300

0.05

10 to 22M

1, 2, 5, 10

100, 200, 300

1 to 5.6

2, 5, 10

300

0.10

5.62 to 22M

1, 2, 5, 10

100, 200, 300

1 to 9.1

2, 5, 10

300

0.04

10 to 22M

1, 2, 5, 10

100, 200, 300

Notes

• DSCC has created a series of drawings to support the need for 0201-sized product. Vishay Dale is listed as a resource on this drawing as

follows:

POWER RATING RES. RANGE RES. TOL. TEMP. COEF. MAX. WORKING

DSCC DRAWING VISHAY DALE

TERM.

70 °C

VOLTAGE

(1)

NUMBER

MODEL



±%

± ppm/°C

200

10 to 46.4

1, 5

07009

RCWP-0201

0.05

100

47 to 1M

This drawing can be viewed at:

www.landandmaritime.dla.mil/Programs/MilSpec/ListDwgs.aspx?DocTYPE=DSCCdwg.

(1)

Continuous working voltage shall be

or maximum working voltage, whichever is less.

(2)

Characteristics: K = ± 100 ppm/°C; L = ± 200 ppm/°C; M = ± 300 ppm/°C.

(3)

MIL case size 0705 and EIA case size 0805 are dimensionally the same.

Revision: 22-Nov-12

Document Number: 31010

For technical questions, contact:

ff2aresistors@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please

contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Material Category Policy

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the

definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council

of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(EEE) - recast, unless otherwise specified as non-compliant.

Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that

all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free

requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference

to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21

conform to JEDEC JS709A standards.

Revision: 02-Oct-12

Document Number: 91000

M55342K12B5D62TS2 Related Products

	M55342K12B5D62TS2	M55342K12B4E99TS3	M55342K06B38D3TS2
Description	Fixed Resistor, Metal Glaze/thick Film, 0.1W, 5.62ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, HALOGEN FREE	Fixed Resistor, Metal Glaze/thick Film, 0.1W, 4990ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP, HALOGEN FREE	Fixed Resistor, Metal Glaze/thick Film, 0.15W, 38.3ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, HALOGEN FREE
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	CHIP, HALOGEN FREE	CHIP, HALOGEN FREE	CHIP, HALOGEN FREE
Reach Compliance Code	not_compliant	not_compliant	compliant
ECCN code	EAR99	EAR99	EAR99
structure	Chip	Chip	Chip
JESD-609 code	e0	e0	e0
Manufacturer's serial number	M55342	M55342	M55342
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package height	0.46 mm	0.46 mm	0.51 mm
Package length	1.6 mm	1.6 mm	2.03 mm
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	SMT	SMT	SMT
Package width	0.81 mm	0.81 mm	1.6 mm
method of packing	TR	TR	TR
Rated power dissipation(P)	0.1 W	0.1 W	0.15 W
Rated temperature	70 °C	70 °C	70 °C
Guideline	MIL-PRF-55342	MIL-PRF-55342	MIL-PRF-55342
resistance	5.62 Ω	4990 Ω	38.3 Ω
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
series	RCWPM (MIL M/D55342)	RCWPM (MIL M/D55342)	RCWPM (MIL M/D55342)
size code	0603	0603	0805
surface mount	YES	YES	YES
technology	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C	100 ppm/°C	100 ppm/°C
Terminal surface	Tin/Lead (Sn80Pb20) - with Nickel (Ni) barrier	Tin/Lead (Sn80Pb20) - with Nickel (Ni) barrier	Tin/Lead (Sn80Pb20) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND
Tolerance	1%	1%	1%
Operating Voltage	50 V	50 V	50 V
Base Number Matches	1	1	-
