170M4147 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 170M4147

170M4147: DescriptionElectric Fuse, 630A, 1300VAC, 1100VDC, 100000A (IR), Inline/holder,; CategoryCircuit protection Circuit protection; File Size242KB，4 Pages; ManufacturerCooper Industries; Environmental Compliance

Download Datasheet Parametric View All

170M4147 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	170M4147	-	-	View	Buy Now

170M4147 Overview

Electric Fuse, 630A, 1300VAC, 1100VDC, 100000A (IR), Inline/holder,

170M4147 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cooper Industries
Reach Compliance Code	compliant
Is Samacsys	N
Other features	RATED BREAKING CAPACITY AT 1100 VDC: 100000 A
body width	53 mm
body height	53 mm
Body length or diameter	80 mm
Built-in features	INDICATOR
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	130000 J
Manufacturer's serial number	170M
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	80mm x 53mm x 53mm
Rated breaking capacity	100000 A
Rated current	630 A
Rated voltage (AC)	1300 V
Rated voltage (DC)	1100 V
Guideline	CE; DIN 43653; IEC; UL
surface mount	NO
Terminal shape	TAB/BLADE
Base Number Matches	1

Preview

Download Datasheet

View All

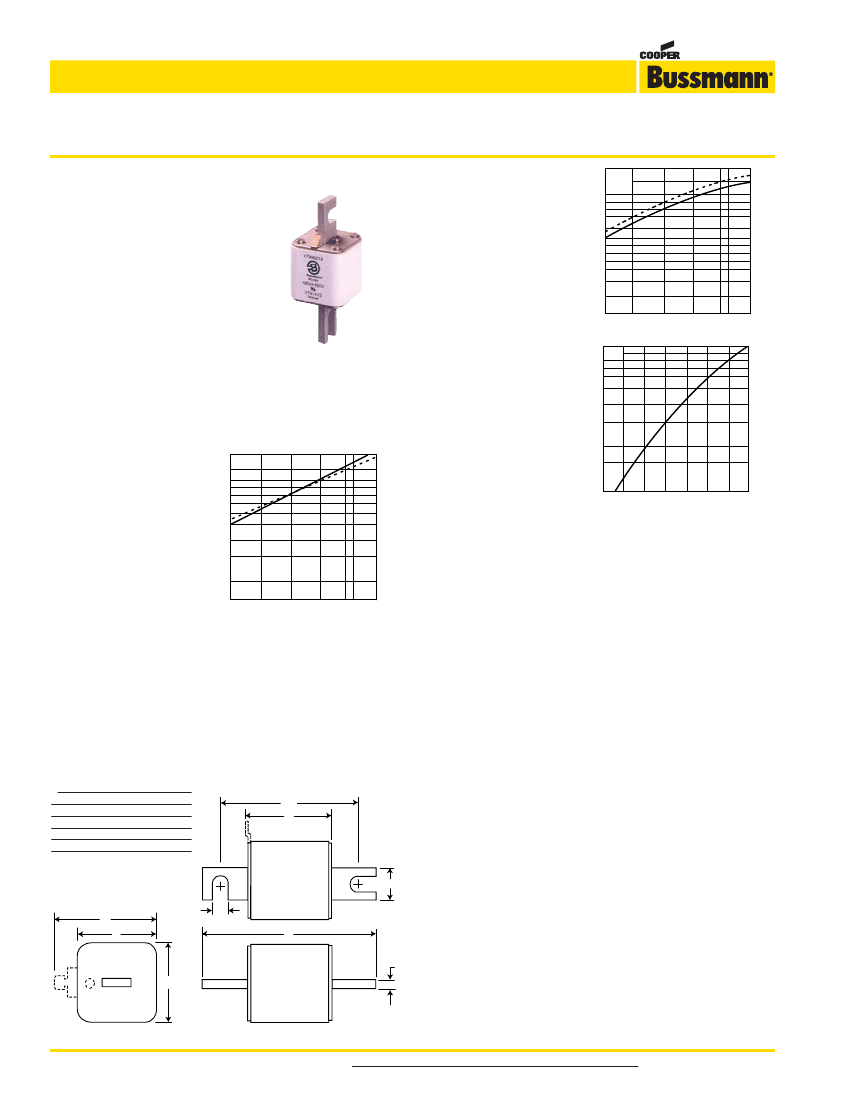

High Speed Fuses

Square body DIN 43 653 — 1250V/1300V (IEC/UL):

50-1400A

1250V/1300V (IEC/UL) 50-1400A

Specifications

Description:

Square body DIN

43 653 stud-mount high speed

fuses.

Dimensions:

See dimensions

illustration.

Ratings:

Volts: —

—

Amps: —

IR: —

1250Vac (IEC)

1300Vac (UL)

50-1400A

100kA RMS Sym.

Arc Voltage

This curve gives the peak

arc voltage, UL, which may

1.8

1.4

appear across the fuse

during its operation as a

function of the applied

working voltage, Eg, (rms)

at a power factor of 15%.

2.5

Power Losses

400

600

800

1000 1200 1400

Agency Information:

CE, Designed and tested to IEC

60269: Part 4, UL Recognized. Consult Cooper Bussmann for

UL Recognition/CSA Component Acceptance status.

Electrical Characteristics

Total Clearing I

1.5

1.25

1.0

The total clearing I

t at

rated voltage and at

power factor of 15% are

0.5

given in the electrical

0.4

characteristics. For other

0.3

voltages, the clearing I

is found by multiplying by

0.2

correction factor, K, given

400 600 800 1000 1200 1400

as a function of applied

Dashed lines (- - - - - -) apply to the following

working voltage, Eg,

amperages:.

(rms).

Size

Amps.

400A

500-630A

630-1000A

800-1400A

Watts loss at rated current

is given in the electrical

1.0

characteristics. The curve

0.8

allows the calculation of

0.6

the power losses at load

0.5

0.4

currents lower than the

rated current. The correc-

0.3

tion factor, Kp, is given as

a function of the RMS load

0.2

current, Ib, in % of the

rated current.

0.1

30 40 50

80 90 100%

Features and Benefits

• Excellent dc performance

• Low arc voltage and low energy let-through (I

• Low watts loss

• Superior cycling capability

Typical Applications

• DC common bus

• DC drives

• Power converters/rectifiers

• Reduced voltage starters

Dimensions (mm)

Type -/110, -TN/110

Size

138

139

D**

108

**Microswitch.

1mm = 0.0394” / 1” = 25.4mm

128

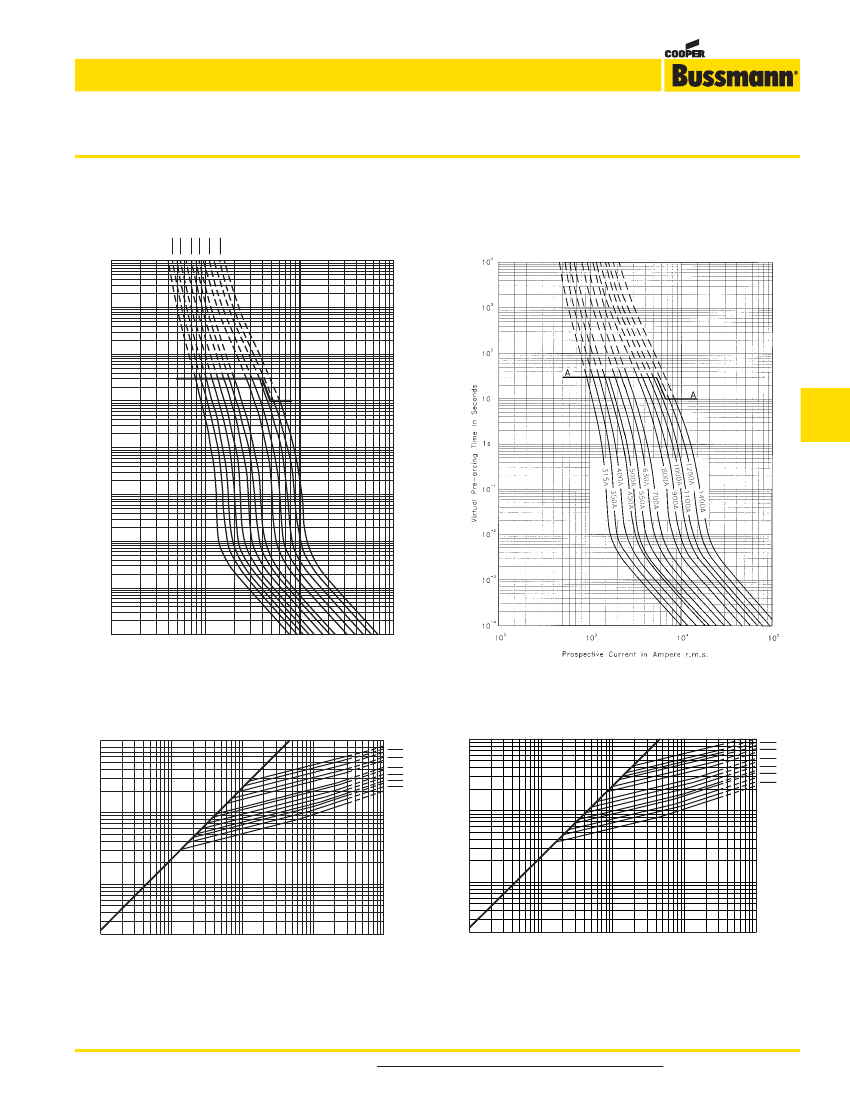

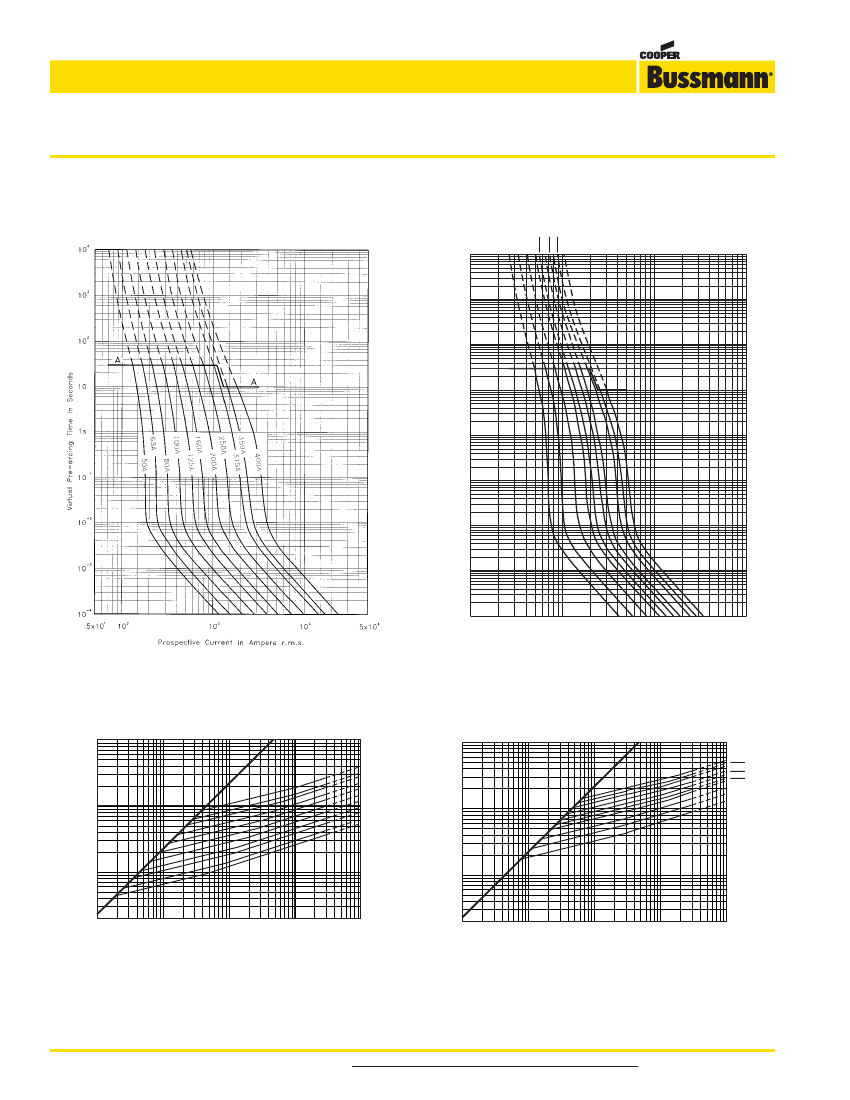

For product data sheets, visit www.cooperbussmann.com/products/datasheet.asp
