BS2-062-H45A-55/11C: DescriptionBoard Connector, 62 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size303KB，1 Pages; ManufacturerE-tec Interconnect Ltd.

Download Datasheet Parametric Compare View All

BS2-062-H45A-55/11C Overview

Board Connector, 62 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Plug

BS2-062-H45A-55/11C Parametric

Parameter Name	Attribute value
Objectid	307182155
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.122 inch
subject depth	0.177 inch
body length	1.698 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	BS2
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.6576 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	62

Preview

Download Datasheet

View All

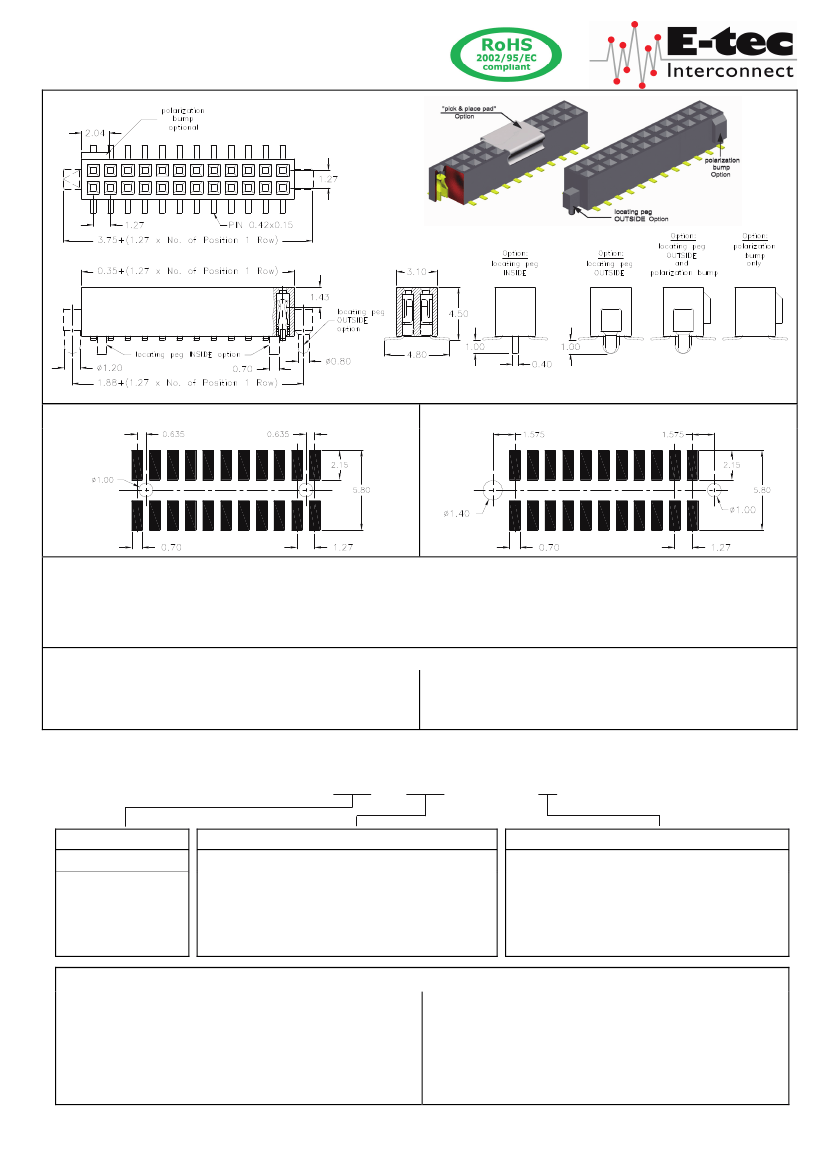

1.27mm pitch

- SMT -

Female Header

4.50mm profile

dual row

H450

PCB

Surface Mount Layout

Version

”H450”

PCB

H450

H45A

Version

H45B

H45P

Surface Mount Layout

”H45A” & ”H45B”

APPLICATION

Standard: tube packing

without locating pegs and polarization bump

Also available with “pick & place pad” for automatic

suck assembly to the PCB

AND

FEATURES

Medium profile, 4.50mm height Type.

Hi-rel dual beam contacts.

Mating with 1.27mm x 1.27mm pitch,

0.40mm square or round pin headers.

Operating temperature

Processing temperature

Contact material

(RoHS compliant)

Insulator material

(RoHS compliant)

- 40°C to +105°C

+250°C

+0/-5°C

for 10sec.

Phosphor Bronze

LCP UL 94 V-0

SPECIFICATIONS

Current rating

Insulator resistance

Contact resistance

Withstanding voltage

1000 MΩ min.

20 mΩ max.

500 V AC

How to order

BS2 - xxx - H xxx -

/ 11 X

Nbr of contacts

008

100

004

100

only

BS2-xxx-H450-55/11

BS2-xxx-H450-55/11A

BS2-xxx-H450-55/11B

Version

450

without & with inside locating pegs

45A

with outside locating pegs

45B

with outside locating pegs & polarization bump

45P

with polarization bump; without locating pegs

Packing and ”pick & place pad” Option

See below

Order Code Options:

without ”locating pegs”

BS2-xxx-H450-55/11

BS2-xxx-H45P-55/11

BS2-xxx-H450-55/11A

BS2-xxx-H45P-55/11A

BS2-xxx-H450-55/11B

BS2-xxx-H45P-55/11B

tube packing; w/o pick & place pad

tube packing; with pick & place pad

reel packing; with pick & place pad

with ”locating pegs”

BS2-xxx-H450-55/11C

BS2-xxx-H450-55/11D

BS2-xxx-H45A-55/11D

BS2-xxx-H45B-55/11D

BS2-xxx-H450-55/11E

BS2-xxx-H45A-55/11E

BS2-xxx-H45B-55/11E

tube packing; w/o pick & place pad

tube packing, with pick & place pad

tube packing; with pick & place pad

reel packing; with pick & place pad

reel packing ;with pick & place pad
