FCZ-006-H115-99/R datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> FCZ-006-H115-99/R

Preview

FCZ-006-H115-99/R: DescriptionCard Edge Connector, 6 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal; CategoryThe connector The connector; File Size186KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

FCZ-006-H115-99/R Overview

Card Edge Connector, 6 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal

FCZ-006-H115-99/R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304764431
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.114 inch
subject depth	0.232 inch
body length	0.453 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn)
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
maximum insertion force	ZIF N
Insulation resistance	100000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Plug contact pitch	0.039 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	6

Preview

Download Datasheet

View All

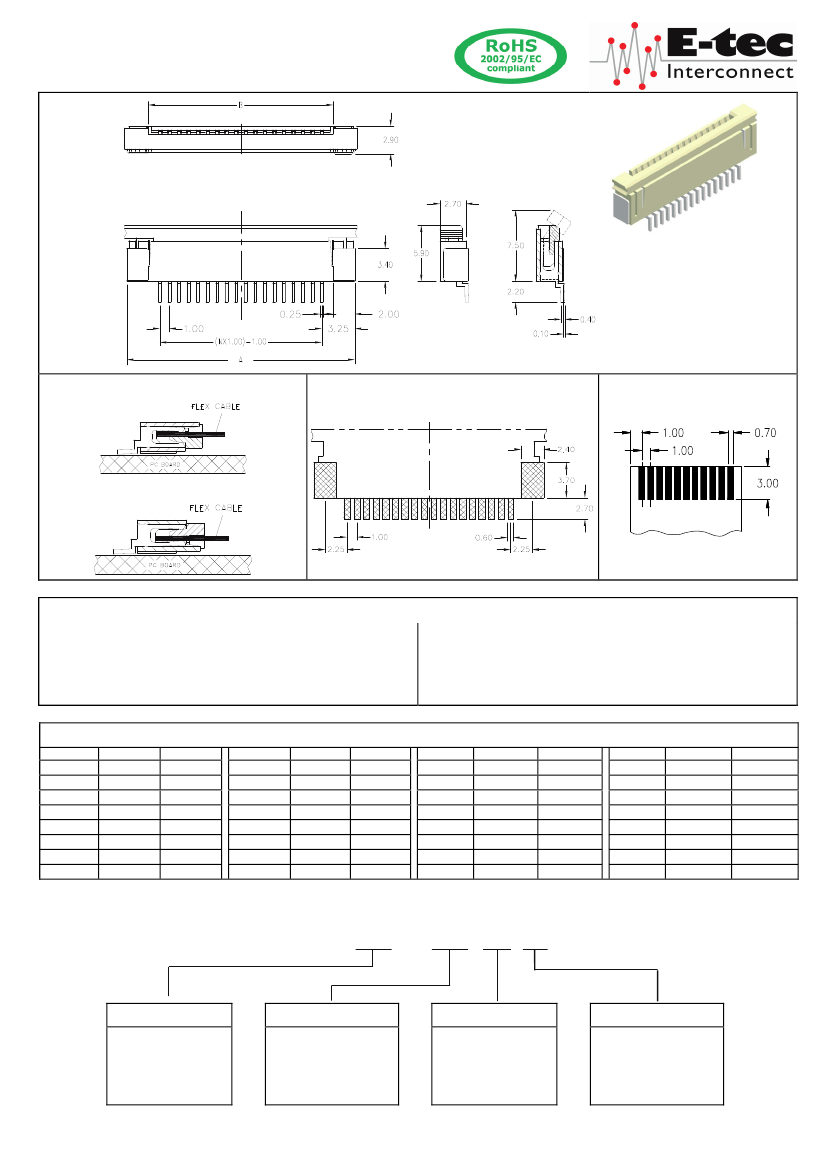

FPC/FFC

- SMT -

Connector ZIF Type

1.00mm

pitch horizontal

upper contact style

115

PCB Surface Mount Layout

Recommended

FPC/FFC dimensions

lower contact style

116

thickness 0.30mm±0.05

SPECIFICATIONS

Current rating

Insulator resistance

Contact resistance

Withstanding voltage

0.5 A max.

100 MΩ min.

20 mΩ max.

500 V AC/1 Min.

Operating temperature

Processing temperature

Contact material

(RoHS compliant)

Contact plating

Insulator material

(RoHS compliant)

Actuator material

(RoHS compliant)

- 40°C to +105°C.

+250°C

+0/-5°C

for 3sec.

Phosphor Bronze

Tin

(leadfree)

LCP

UL 94 V-0

PPA

UL 94 V-0

Dimensions

(mm)

Contacts

003

004

005

006

007

008

009

010

DIM “A“

8.50

9.50

10.50

11.50

12.50

13.50

14.50

15.50

DIM “B“

4.20

5.20

6.20

7.20

8.20

9.20

10.20

11.20

Contacts

011

012

013

014

015

016

017

018

DIM “A“

16.50

17.50

18.50

19.50

20.50

21.50

22.50

23.50

DIM “B“

12.20

13.20

14.20

15.20

16.20

17.20

18.20

19.20

Contacts

019

020

021

022

023

024

025

026

DIM “A“

24.50

25.50

26.50

27.50

28.50

29.50

30.50

31.50

DIM “B“

20.20

21.20

22.20

23.20

24.20

25.20

26.20

27.20

Contacts

027

028

029

030

031

032

DIM “A“

32.50

33.50

34.50

35.50

36.50

37.50

DIM “B“

28.20

29.20

30.20

31.20

32.20

33.20

How to order

FCZ - xxx – H xxx -

99

/ X

Nbr of contacts

003

to

032

Contact

115

=

116

=

style

upper

lower

Plating

99

=

(leadfree)

Option

R

If reel packing

(reel packing QTY. on request)

tin

100
