1147-20812: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size228KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

1147-20812 Overview

Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking, Receptacle

1147-20812 Parametric

Parameter Name	Attribute value
Objectid	304380054
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	REEL PACKAGING
Board mount options	PEG
body width	0.098 inch
subject depth	0.224 inch
body length	0.588 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
insulator material	NYLON
Manufacturer's serial number	1147
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.2446 mm
Termination type	SURFACE MOUNT
Total number of contacts	8

Preview

Download Datasheet

View All

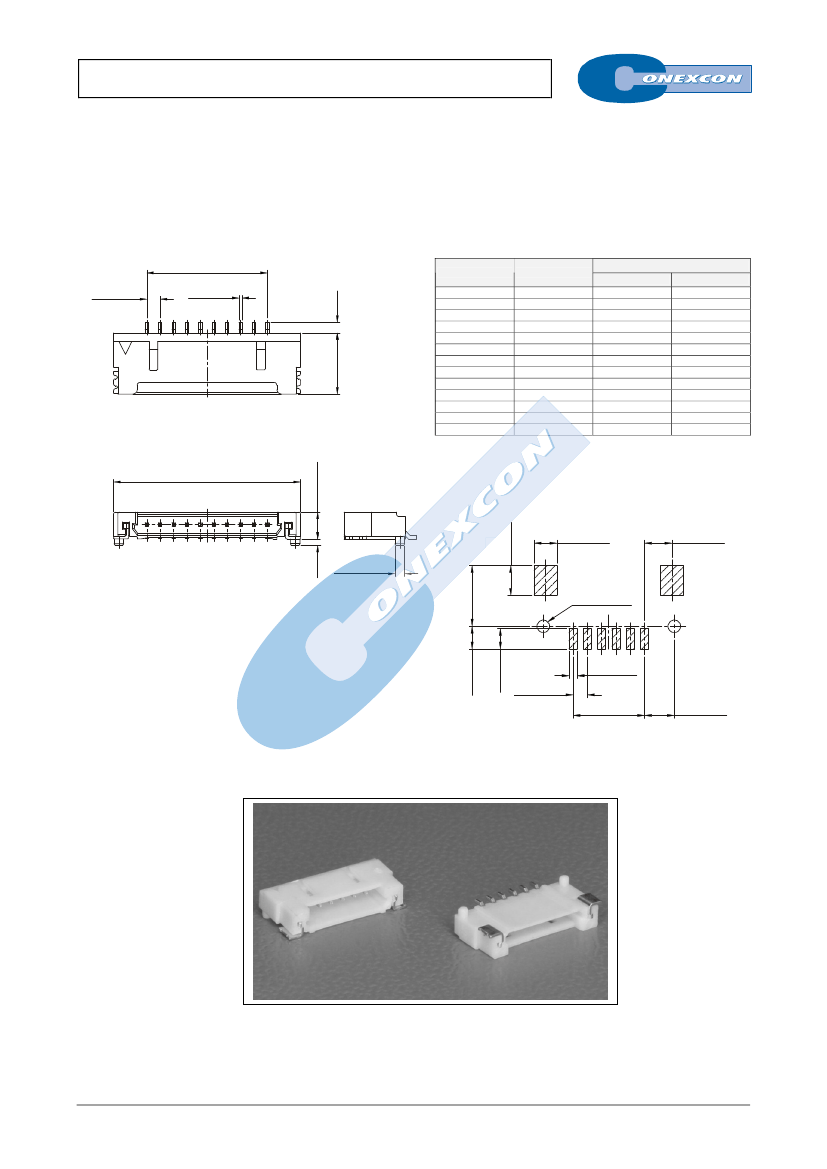

MALE RIGHT ANGLE HEADER

1147 SERIE

Features

Available in 2 to 10, 15, 20, 25 and 30 circuits

Insulator material: Nylon 6/6 UL 94V-0

0.30 mm square pins

Dimensional information:

A

1.00

1.25±0.10

0.30±0.10

1.25 mm. (0.0492”).

Mates with housing 1145 serie

Completely polarized and protected

Low profil

Ordering and dimensional information:

Dimensions

A

1.25 (0.049)

2.50 (0.098)

3.75 (0.148)

5.00 (0.197)

6.25 (0.246)

7.50 (0.295)

8.75 (0.344)

10.00 (0.394)

11.25 (0.443)

17.50 (0.689)

23.75 (0.935)

30.00 (1.181)

36.25 (1.427)

B

7.45 (0.293)

8.70 (0.342)

9.95 (0.392)

11.20 (0.441)

12.45 (0.491)

13.70 (0.539)

14.95 (0.588)

16.20 (0.638)

17.45 (0.687)

23.70 (0.933)

29.95 (1.179)

36.20 (1.425)

42.45 (1.671)

Circuit Size

2

3

4

5

6

7

8

9

10

15

20

25

30

Part Number

1147-2021E

1147-2031E

1147-2041E

1147-2051E

1147-2061E

1147-2071E

1147-2081E

1147-2091E

1147-2101E

1147-2151E

1147-2201E

1147-2251E

1147-2301E

5.70±0.25

B±0.25

2.50±0.25

E =. Connector packaging

E =

2.

Reel

2.60±0.10

2.00±0.10

2.40±0.10

0.60

ø0.90±0.10

5.30±0.10

2-ø1.10±0.10

2.00±0.10

1.80±0.10

0.70±0.10

1.25±0.10

B±0.10

2.60±0.10

RECOMMENDED PCB LAYOUT

A-20

FULL LINE CATALOGUE
