1343-6-38-0 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 1343-6-38-0

Preview

1343-6-38-0: DescriptionBoard Connector, 38 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size179KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1343-6-38-0 Overview

Board Connector, 38 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Plug

1343-6-38-0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307204087
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.189 inch
body length	1.193 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	1343
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	38

Preview

Download Datasheet

View All

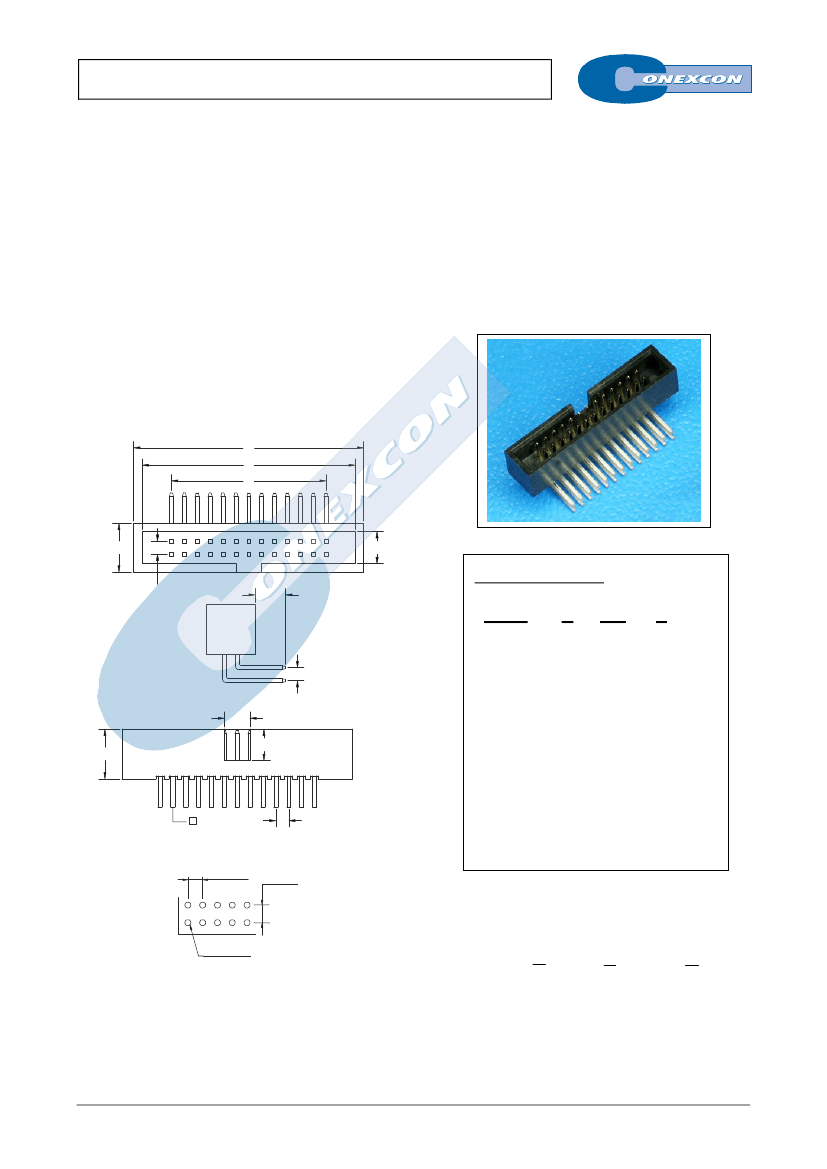

DUAL ROW SIDE ENTRY HEADER

1343 SERIES.

1.27 x 1.27 mm. (0.050 x 0.050”) pitch.

General Features

Electrical Features



Available in 6, 8, 10, 12, 14, 16, 20, 22, 26, 30, 34, 36, 40,

44, 50, 60, 68 and 80 circuits

Mates with IDC connectors 1341 series

Gold plated 0.40 mm square pin

Fully shrouded with polarized slot



Voltage rating: < 250V

Current rating: < 1 A

Contact resistance: < 30 mΩ

Dielectric withstanding Voltage: 250 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Insulator: LCP, glass reinforced, rated UL 94V-0

Terminal: Phosphor bronze

Operating temperature. -25ºC to +85ºC

RoHS compliant

Mechanical Features

Durability: 50 Cycles

Dimension Information

C

B

A

4.8

3.1

Ordering Information:

1.27

3.0

1343 -

1

T-

2

XX-

3

0

4

1. Connector Series

1.27

2.5

3.1

2. (T) Contact Plating

4.9



T =

2.

Tin plated

T =

3.

Gold flash over nickel

Recommended Finish

T =

5.

15µ” gold over nickel

T =

6.

30µ” gold over nickel

0.4*0.4

1.27

3. (XX) Number of circuits



1.27±0.05

.050±.002

1.27±0.05

.050±.002

Available in 6 through 80 circuits

Dimensions:

(In mm.)

ø0.65±0.05

.026±.002

RECOMMENDED HOLE PATTERN



XX



A

½

1.27



2



1



B

½

1.27









XX









2

 

4.50







XX







6.16

C

½

1.27



2







(XX) = Number of circuits

A-XX
