2202-5-72-1: DescriptionBoard Connector, 72 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size79KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2202-5-72-1 Overview

Board Connector, 72 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking

2202-5-72-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307302284
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.197 inch
subject depth	0.28 inch
body length	3.62 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	50 Cycles
maximum insertion force	3.9198 N
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	2202
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	72
Evacuation force-minimum value	.278 N

Preview

Download Datasheet

View All

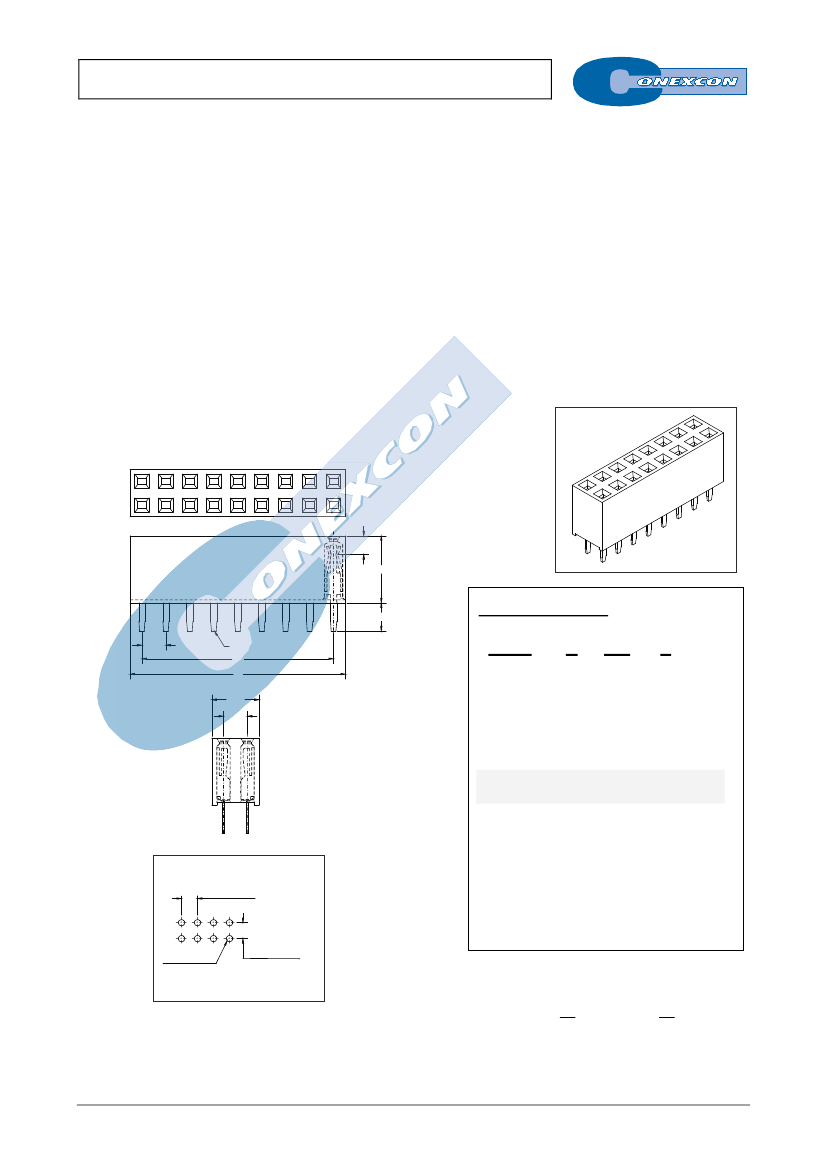

DUAL ROW VERTICAL SOCKET 7.10 mm.

2202 SERIES.

2.54 mm (0.100”) pitch.

General Features

Electrical Features



Available in 4 through 80 circuits



Mates with pin header 2.54 mm pitch 2558, 2559, 2458,

•



2582, 2583, 2666, 2667, 2468 and 2579 series

Accept 0.64 square pin

7.10 mm. height

Dual beam contact with different plating



Voltage rating: < 250V



Current rating: < 3 A



Contact resistance: < 20 mΩ



Dielectric withstanding voltage: 600 V AC/minute



Insulation resistance: >1000 MΩ



Capacitance: < 2 pF at 1 KHz

Mechanical Features

Materials



Insulator: PBT UL 94 V-0

Contact: Phosphor bronze

Operating temperature: -40ºC to +105ºC

RoHS compliant



Insertion force receptacle/plug: < 0,40 Kgf/pin

Unmating force receptacle/plug: > 0,03 Kgf/pin

Contact retention force to housing: > 0,50 Kgf/pin

Durability: 50 cycles

Dimension Information

3.55

7.10

3.00

2.54

PIN 0.65X0.25± 0.05

Ordering Information:

A

B

5.00

2.54

2202 -

1

T-

2

XX-

3

1

1. Connector Series

2. (T) Contact Plating



T =

2.

Tin plated



T =

3.

Gold flash over nickel

Recommended Finish

RECOMMENDED HOLE PATTERN

2.54±0.05

.100±.002



T =

5.

15µ” gold over nickel

T =

6.

30µ” gold over nickel

T =

13.

Sel. gold flash over nickel overall

T =

15.

15µ" sel. gold over nickel overall

T =

16.

30µ" sel. gold over nickel overall

3. (XX) Number of circuits



Available in 4 through 80 circuits

1.02±0.05

.040±.002

2.54±0.05

.100±.002

DIMENSIONS

A

=

2.54





XX



2

−

1









XX





B

=

2.54



2

 +

0.50





(XX) = Number of circuits

E-XX
