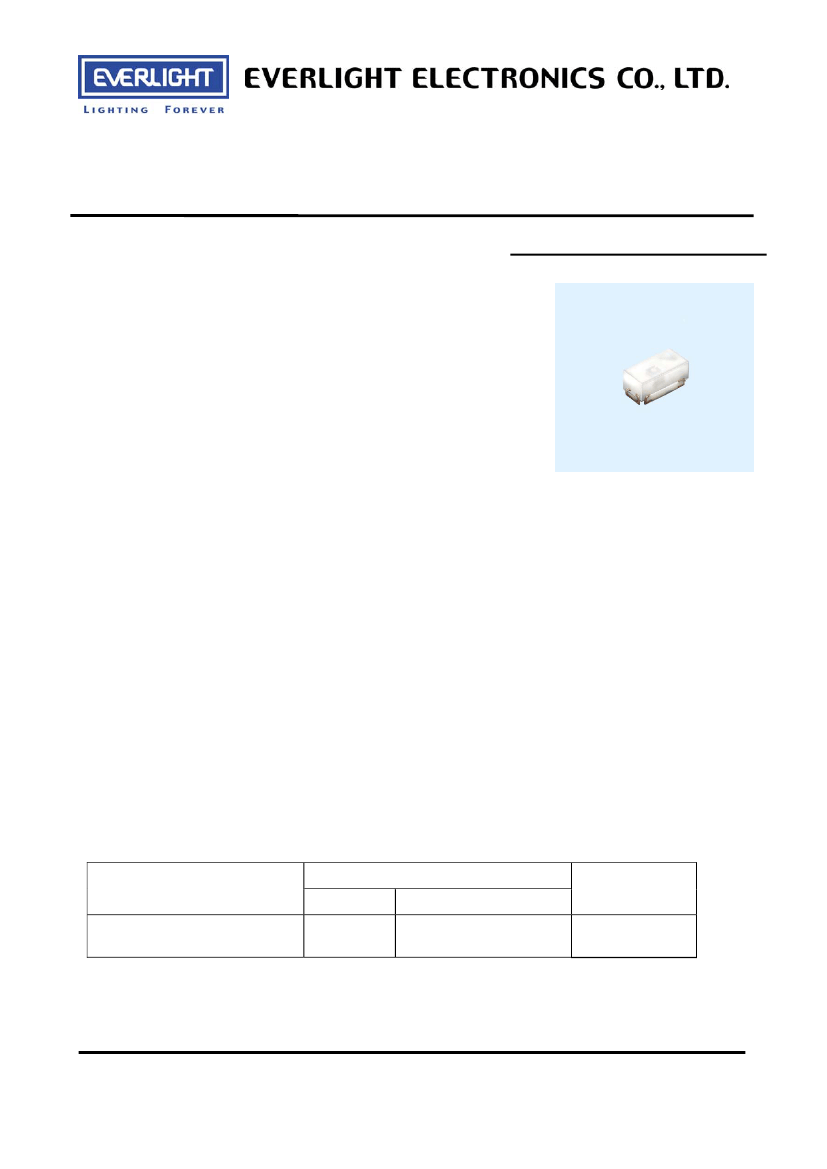

Technical Data Sheet
0402 Package Chip LED (0.45mm Height)
16-213/T7D-AQ1R1QY/3T
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Mono-color
type.
․Pb-free.
․The
product itself will remain within RoHS
compliant version.
Descriptions
․The
16-213 SMD LED is much smaller than lead
frame type components, thus enable smaller board
size, higher packing density, reduced storage space
and finally smaller equipment to be obtained.
․Besides,
lightweight makes them ideal for
miniature applications. etc.
Applications
․Backlighting
in dashboard and switch.
․Telecommunication:
indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
Device Selection Guide
Chip
Material
InGaN
Emitted Color
Pure White
Part No.
16-213/T7D-AQ1R1QY/3T
Resin Color
Yellow Diffused
Everlight Electronics Co., Ltd.
Device No. : DSE-0005374
http://www.everlight.com
Prepared date: 05-Jul-2011
Rev.2
Page: 1 of 12
Prepared by: Esther Yan
16-213/T7D-AQ1R1QY/3T

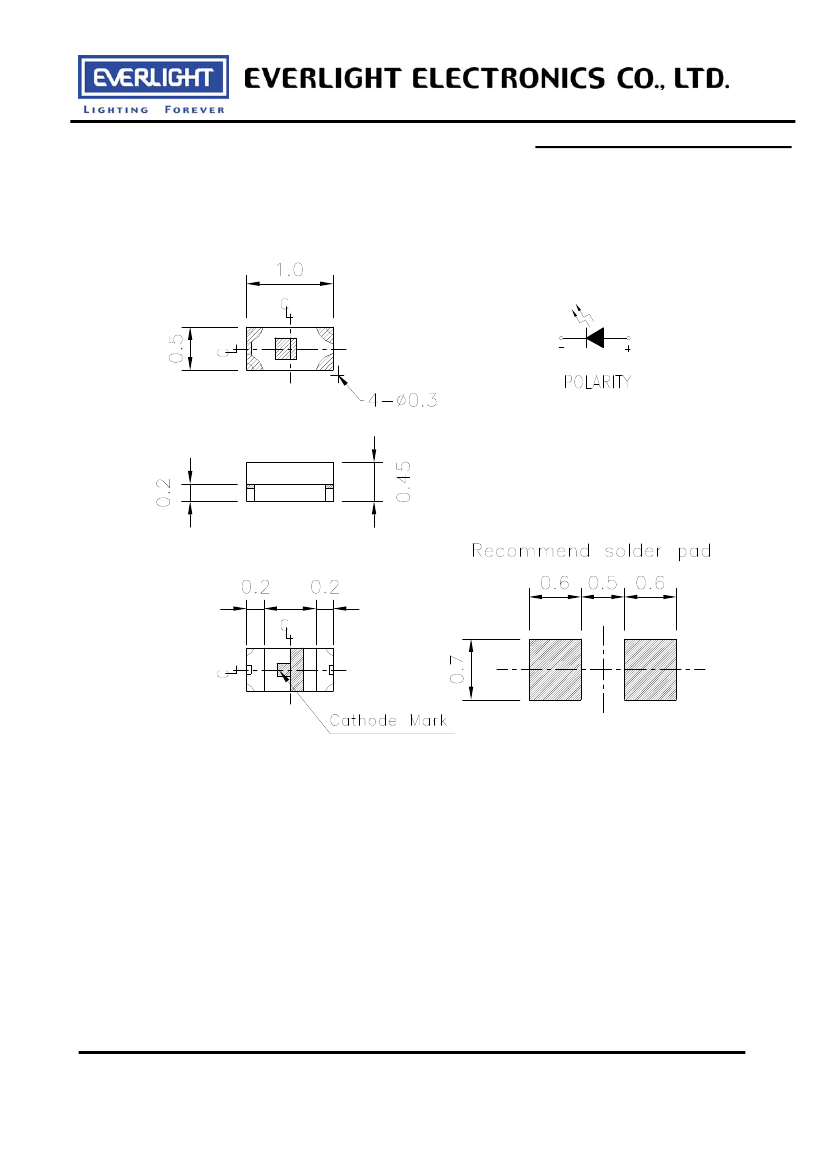

Package Outline Dimensions
Note:
The tolerances unless mentioned is
±0.1mm
,Unit = mm
Everlight Electronics Co., Ltd.
Device No. : DSE-0005374
http://www.everlight.com
Prepared date: 05-Jul-2011
Rev.2
Page: 2 of 12
Prepared by: Esther Yan
16-213/T7D-AQ1R1QY/3T
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
Electrostatic Discharge (HBM)
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
V
R
I
F
I
FP
Pd
ESD
Topr
Tstg
Tsol
Rating
5
30
100
120
1000
-40 ~ +85
-40 ~ +90
Unit
V
mA
mA
mW
V
℃
℃
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
Everlight Electronics Co., Ltd.
Device No. : DSE-0005374
http://www.everlight.com
Prepared date: 05-Jul-2011
Rev.2
Page: 3 of 12
Prepared by: Esther Yan
16-213/T7D-AQ1R1QY/3T
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity
Viewing Angle
Forward Voltage
Reverse Current
Symbol
Iv
2θ1/2
V
F
I
R
Min.
72
----
2.7
----
Typ.
----
120
----
----
Max.
140
----
3.2
50
Unit
mcd
deg
V
μA
V
R
=5V
I
F
=5mA
Condition
Bin Range Of Luminous Intensity & Forward Voltage
Symbol
Bin Code
Q1
I
V
Q2
R1
29
30
V
F
31
32
33
Min.
72
90
112
2.7
2.8
2.9
3.0
3.1
Max.
90
112
140
2.8
2.9
3.0
3.1
3.2
V
I
F
=5mA
mcd
I
F
=5mA
Unit
Condition
Notes:
1.Tolerance of Luminous Intensity
±11%
2.Tolerance of Forward Voltage
±0.05V
Everlight Electronics Co., Ltd.
Device No. : DSE-0005374
http://www.everlight.com
Prepared date: 05-Jul-2011
Rev.2
Page: 4 of 12
Prepared by: Esther Yan
16-213/T7D-AQ1R1QY/3T
Chromaticity Coordinates Specifications for Bin Grading
Group
Bin Code
CIE_x
0.274
1
0.274
0.294
0.294
0.274
2
0.274
0.294
0.294
0.294
3
A
4
0.294
0.314
0.314
0.294
0.294
0.314
0.314
0.314
5
0.314
0.334
0.334
0.314
6
0.314
0.334
0.334
Notes:
1.The C.I.E. 1931 chromaticity diagram ( Tolerance
±0.01
).
2.The products are sensitive to static electricity and care must be fully taken when
handling products.
CIE_y
0.226
0.258
0.286
0.254
0.258
0.291
0.319
0.286
0.254
0.286
0.315
0.282
0.286
0.319
0.347
0.315
0.282
0.315
0.343
0.311
0.315
0.347
0.376
0.343
IF= 5mA
Condition
Everlight Electronics Co., Ltd.
Device No. : DSE-0005374
http://www.everlight.com
Prepared date: 05-Jul-2011
Rev.2
Page: 5 of 12
Prepared by: Esther Yan
