5445-2-64-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 5445-2-64-1

Preview

5445-2-64-1: DescriptionBoard Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size162KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

5445-2-64-1 Overview

Board Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

5445-2-64-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307754382
Reach Compliance Code	unknown
ECCN code	EAR99
body length	3.361 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	IDC
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5445
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64

Preview

Download Datasheet

View All

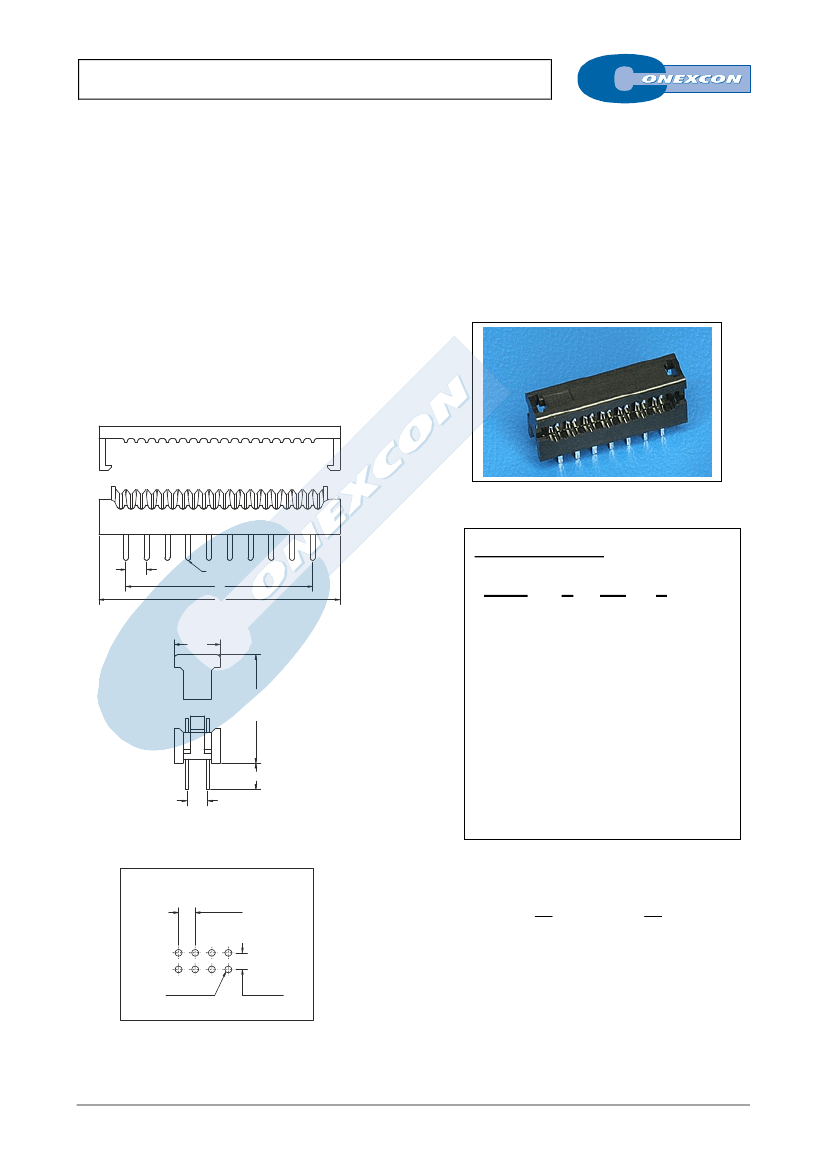

FLAT CBLE IDC DIP PLUG

5445 SERIES.

2.54 x 2.54 mm. (0.100 x 0.100”) pitch.

General Features

Electrical Features



Available in 6, 8, 10, 12, 14, 16, 20, 24, 26, 30, 32, 34, 40,

50, 60 and 64 circuits

Allows to solder the flat cable to the PCB

Use flat cable 1.27 mm pitch 9127 series



Voltage rating: < 250V

Current rating: < 1 A

Contact resistance: < 30 mΩ

Dielectric withstanding Voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Materials



Insulator: PBT glass reinforced UL 94V-0

Contact: Brass

Operating temperature. -25ºC to +85ºC

RoHS compliant

Dimension Information

Ordering Information:

2.54

PIN 0.62X0.3

A

B

5445 -

1

T-

2

XX-

3

1

4

5.60

1. Connector Series

2. (T) Contact Plating

6.0

(Terminated

height)



T =

2.

Tin plated

T =

3.

Gold flash over nickel

Recommended Finish

T =

5.

15µ” gold over nickel

T =

6.

30µ” gold over nickel

3.20

2.54

3. (XX) Number of circuits

Available in 6 through 64 circuits

RECOMMENDED HOLE PATTERN

2.54±0.05

.100±.002

Dimensions:

(In mm.)



XX



A

½

2.54



2



1







(XX) = Number of circuits



XX



B

½

2.54



2

 

4.10







1.02±0.05

.040±.002

2.54±0.05

.100.±002

A-XX
