133-3404-106 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 133-3404-106

133-3404-106: DescriptionRF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug; CategoryThe connector The connector; File Size57KB，1 Pages; ManufacturerEF Johnson Technologies Inc.

Download Datasheet Parametric Compare View All

133-3404-106 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	133-3404-106	-	-	View	Buy Now

133-3404-106 Overview

RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug

133-3404-106 Parametric

Parameter Name	Attribute value
Maker	EF Johnson Technologies Inc.
Reach Compliance Code	unknown
Is Samacsys	N
Other features	APPLICABLE CABLE:RG 316DS, INSERTION LOSS MAX AT 1GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF MCX CONNECTOR
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
insulator material	TEFLON
MIL compliance	NO
Manufacturer's serial number	133
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.31
Base Number Matches	1

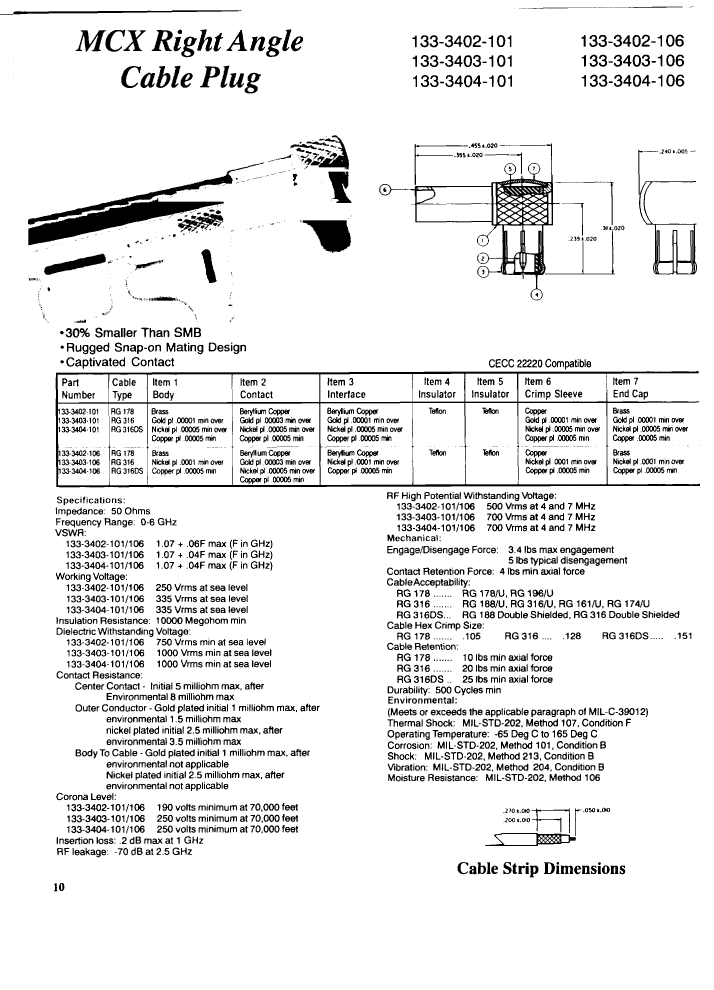

Preview

Download Datasheet

View All

133-3404-106 Related Products

	133-3404-106	133-3402-101	2590-6-39-2-62	133-3403-101	133-3403-106	133-3404-101
Description	RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug	RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug	Board Connector, 39 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Receptacle	RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug	RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug	RF MCX Connector, Male, Cable Mount, Crimp Terminal, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	PLUG	PLUG	RECEPTACLE	PLUG	PLUG	PLUG
Connector type	RF MCX CONNECTOR	RF MCX CONNECTOR	BOARD CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR	RF MCX CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
insulator material	TEFLON	TEFLON	THERMOPLASTIC	TEFLON	TEFLON	TEFLON
Manufacturer's serial number	133	133	2590	133	133	133
Installation method	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE	BOARD	CABLE	CABLE	CABLE
Termination type	CRIMP	CRIMP	SURFACE MOUNT	CRIMP	CRIMP	CRIMP
Maker	EF Johnson Technologies Inc.	EF Johnson Technologies Inc.	-	EF Johnson Technologies Inc.	EF Johnson Technologies Inc.	-
Is Samacsys	N	N	-	N	N	N
Other features	APPLICABLE CABLE:RG 316DS, INSERTION LOSS MAX AT 1GHZ	APPLICABLE CABLE:RG 178, INSERTION LOSS MAX AT 1GHZ	-	APPLICABLE CABLE:RG 316, INSERTION LOSS MAX AT 1GHZ	APPLICABLE CABLE:RG 316, INSERTION LOSS MAX AT 1GHZ	APPLICABLE CABLE:RG 316DS, INSERTION LOSS MAX AT 1GHZ
Characteristic impedance	50 Ω	50 Ω	-	50 Ω	50 Ω	50 Ω
Coupling type	SNAP	SNAP	-	SNAP	SNAP	SNAP
DIN compliance	NO	NO	-	NO	NO	NO
Filter function	NO	NO	-	NO	NO	NO
IEC compliance	NO	NO	-	NO	NO	NO
Insertion loss	0.2 dB	0.2 dB	-	0.2 dB	0.2 dB	0.2 dB
MIL compliance	NO	NO	-	NO	NO	NO
Maximum operating frequency	6 GHz	6 GHz	-	6 GHz	6 GHz	6 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	-	NO	NO	NO
voltage standing wave ratio	1.31	1.43	-	1.31	1.31	1.31
Base Number Matches	1	1	-	1	1	1
