Z1SMA5.1: DescriptionZener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-214AC, PLASTIC, SMA, 2 PIN; CategoryDiscrete semiconductor diode; File Size173KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

Z1SMA5.1 Overview

Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-214AC, PLASTIC, SMA, 2 PIN

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SEMIKRON
Parts packaging code	DO-214AC
package instruction	PLASTIC, SMA, 2 PIN
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
JESD-609 code	e2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
Nominal reference voltage	5.1 V
surface mount	YES
technology	ZENER
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5%
Working test current	5 mA
Base Number Matches	1

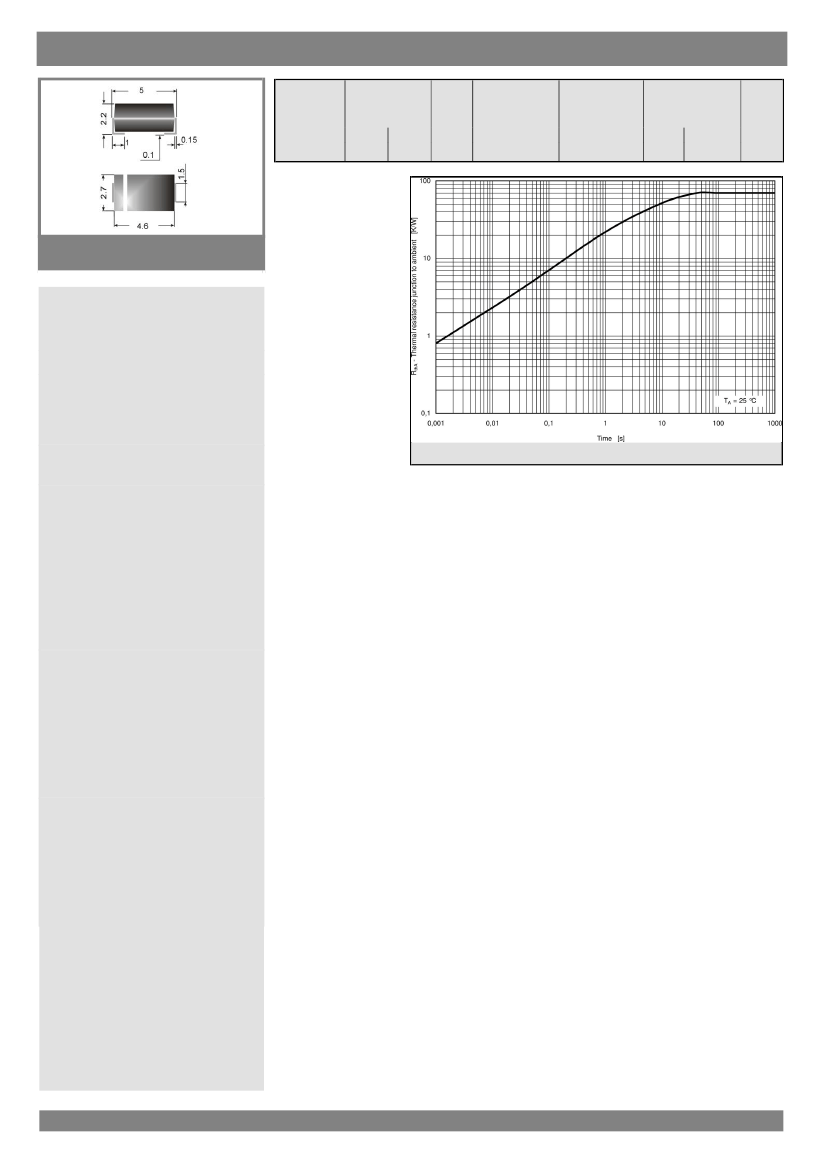

Z1 SMA 1 ... Z1 SMA 100 (1W)

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Surface mount diode

Zener silicon diodes

Z1 SMA 1 ... Z1 SMA 100 (1W)

Maximum Power

Dissipation: 1 W

Nominal Z-voltage: 1 to 100 V

Features

Mechanical Data

1)

1

23-06-2009 MAM

	Z1SMA5.1	Z1SMA5.6
Description	Zener Diode, 5.1V V(Z), 5%, 1W, Silicon, Unidirectional, DO-214AC, PLASTIC, SMA, 2 PIN	Zener Diode, 5.6V V(Z), 5%, 1W, Silicon, Unidirectional, DO-214AC, PLASTIC, SMA, 2 PIN
Is it Rohs certified?	conform to	conform to
Maker	SEMIKRON	SEMIKRON
Parts packaging code	DO-214AC	DO-214AC
package instruction	PLASTIC, SMA, 2 PIN	R-PDSO-C2
Contacts	2	2
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Is Samacsys	N	N
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE
JEDEC-95 code	DO-214AC	DO-214AC
JESD-30 code	R-PDSO-C2	R-PDSO-C2
JESD-609 code	e2	e2
Number of components	1	1
Number of terminals	2	2
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-50 °C	-50 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	1 W	1 W
Certification status	Not Qualified	Not Qualified
Nominal reference voltage	5.1 V	5.6 V
surface mount	YES	YES
technology	ZENER	ZENER
Terminal surface	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Terminal form	C BEND	C BEND
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Maximum voltage tolerance	5%	5%
Working test current	5 mA	5 mA
Base Number Matches	1	1
