1614240000

Description
Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,
CategoryThe connector    The connector
File Size69KB，1 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Environmental Compliance
Download Datasheet Parametric View All

1614240000 Online Shopping

Suppliers Part Number Price MOQ In stock
1614240000 - - View Buy Now

1614240000 Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

1614240000 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerWeidmuller
Reach Compliance Codecompliant
Factory Lead Time4 weeks
Is SamacsysN
Other featuresHIGH DENSITY
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberSL3.5/2/180G
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch3.5 mm
Termination typeSOLDER
Total number of contacts2
UL Flammability Code94V-0
Base Number Matches1

Preview

Download Datasheet

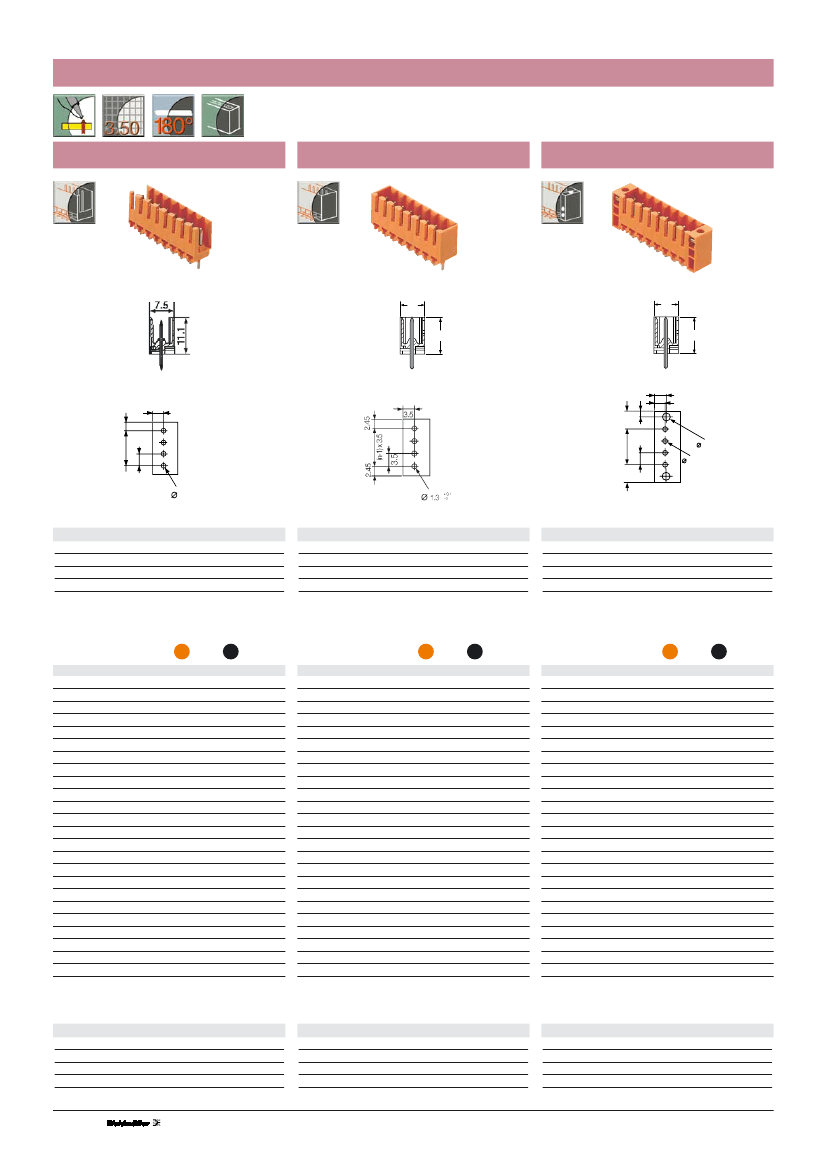

Omnimate Range - Pitch 3.50 mm
Pin headers SL 3.5/180
Pin headers SL 3.5/180G
Pin headers SL 3.5/180F
7.5
7.5
11.1
1.75
3.75
3.5
(n-1) x 3.5
1.75
3.5
(n-1) x 3.5
5.25
11.1
2.3
+0.1
-0
3.5
5.25
1.3
+0.1
-0
Fixing screw
Cat. No.
161074 0000
3.5
1.3
+ 0.1
-0
Technical Data
Rated voltage
Rated current
V
A
VDE
160*
12
UL
300
10
CSA
300
10
Technical Data
Rated voltage
Rated current
V
A
VDE
160*
12
UL
300
10
CSA
300
10
Technical Data
Rated voltage
Rated current
V
A
VDE
160*
12
UL
300
10
CSA
300
10
*Overvoltage category III / Pollution severity 3
Additional technical data see page 211
*Overvoltage category III / Pollution severity 3
Additional technical data see page 211
*Overvoltage category III / Pollution severity 3
Additional technical data see page 211
Solder pin length
Colour
Poles
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
3.2 mm
4.5 mm
Solder pin length
Colour
Poles
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
3.2 mm
4.5 mm
Solder pin length
Colour
Poles
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
3.2 mm
4.5 mm
Type
SL 3.5/2/180
SL 3.5/3/180
SL 3.5/4/180
SL 3.5/5/180
SL 3.5/6/180
SL 3.5/7/180
SL 3.5/8/180
SL 3.5/9/180
SL 3.5/10/180
SL 3.5/11/180
SL 3.5/12/180
SL
SL
SL
SL
SL
SL
SL
SL
SL
SL
SL
SL
3.5/13/180
3.5/14/180
3.5/15/180
3.5/16/180
3.5/17/180
3.5/18/180
3.5/19/180
3.5/20/180
3.5/21/180
3.5/22/180
3.5/23/180
3.5/24/180
Cat. No.
1604770000
1604780000
1604790000
1604800000
1604810000
1604820000
1604830000
1604840000
1604850000
1604860000
1604870000
1604880000
1604890000
1604900000
1604910000
1621400000
1621410000
1621420000
1621430000
1621440000
1621450000
1621460000
1621470000
Cat. No.
1614210000
1615930000
1615940000
1615950000
1610150000
1610160000
1614220000
1615960000
1610170000
1615970000
1615980000
1615990000
1616000000
1616010000
1614230000
1618450000
1618460000
1618470000
1618480000
1618490000
1618500000
1618510000
1618520000
Qty.
100
100
100
50
50
50
50
50
50
50
50
50
50
50
50
20
20
20
20
20
20
20
20
Type
SL 3.5/2/180G
SL 3.5/3/180G
SL 3.5/4/180G
SL 3.5/5/180G
SL 3.5/6/180G
SL 3.5/7/180G
SL 3.5/8/180G
SL 3.5/9/180G
SL 3.5/10/180G
SL 3.5/11/180G
SL 3.5/12/180G
SL
SL
SL
SL
SL
SL
SL
SL
SL
SL
SL
SL
3.5/13/180G
3.5/14/180G
3.5/15/180G
3.5/16/180G
3.5/17/180G
3.5/18/180G
3.5/19/180G
3.5/20/180G
3.5/21/180G
3.5/22/180G
3.5/23/180G
3.5/24/180G
Cat. No.
1604470000
1604480000
1604490000
1604500000
1604510000
1604520000
1604530000
1604540000
1604550000
1604560000
1604570000
1604580000
1604590000
1604600000
1604610000
1621790000
1621800000
1621810000
1621820000
1621830000
1621840000
1621850000
1621860000
Cat. No.
1614240000
1616020000
1616030000
1616040000
1616050000
1616060000
1614250000
1616070000
1616080000
1616090000
1616100000
1616110000
1616120000
1616130000
1614260000
1618610000
1618620000
1618630000
1618640000
1618650000
1618660000
1618670000
1618680000
Qty.
100
100
100
50
50
50
50
50
50
50
50
50
50
50
50
20
20
20
20
20
20
20
20
Type
SL 3.5/2/180F
SL 3.5/3/180F
SL 3.5/4/180F
SL 3.5/5/180F
SL 3.5/6/180F
SL 3.5/7/180F
SL 3.5/8/180F
SL 3.5/9/180F
SL 3.5/10/180F
SL 3.5/11/180F
SL 3.5/12/180F
SL
SL
SL
SL
SL
SL
SL
SL
SL
SL
SL
SL
3.5/13/180F
3.5/14/180F
3.5/15/180F
3.5/16/180F
3.5/17/180F
3.5/18/180F
3.5/19/180F
3.5/20/180F
3.5/21/180F
3.5/22/180F
3.5/23/180F
3.5/24/180F
Cat. No.
1607500000
1607510000
1607520000
1607530000
1607540000
1607550000
1607560000
1607570000
1607580000
1607590000
1607600000
1607610000
1607620000
1607630000
1607640000
1622180000
1622190000
1622200000
1622210000
1622220000
1622230000
1622240000
1622250000
Cat. No.
1616140000
1616150000
1616160000
1616170000
1616180000
1616190000
1614270000
1616200000
1616210000
1616220000
1616230000
1616240000
1616250000
1616260000
1616270000
1618910000
1618920000
1618930000
1618940000
1618950000
1618960000
1618970000
1618980000
Qty.
100
100
100
50
50
50
50
50
50
50
50
50
50
50
50
20
20
20
20
20
20
20
20
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
195
196
199
–
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
195
196
199
–
Accessories
Fixing
Marking
Coding
Miscellaneous
Page
194, 195
196
199
–
86
