LPS5015-822MTC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LPS5015-822MTC

LPS5015-822MTC: DescriptionGeneral Purpose Inductor, 8.2uH, 20%, 1 Element, Ferrite-Core, SMD, 1919, ROHS COMPLIANT; CategoryPassive components inductor; File Size168KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric View All

LPS5015-822MTC Overview

General Purpose Inductor, 8.2uH, 20%, 1 Element, Ferrite-Core, SMD, 1919, ROHS COMPLIANT

LPS5015-822MTC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	COILCRAFT
package instruction	1919
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
uppercase and lowercase codes	1919
structure	Shielded
core material	FERRITE
DC Resistance	0.28 Ω
Nominal inductance(L)	8.2 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Manufacturer's serial number	LPS5015
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	1.53 mm
Package length	4.93 mm
Package form	SMT
Package width	4.93 mm
method of packing	TR, 7 Inch
Maximum rated current	1.4 A
self resonant frequency	49 MHz
series	LPS5015
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn95.5Ag4.0Cu0.5)
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

Document 585NR-1

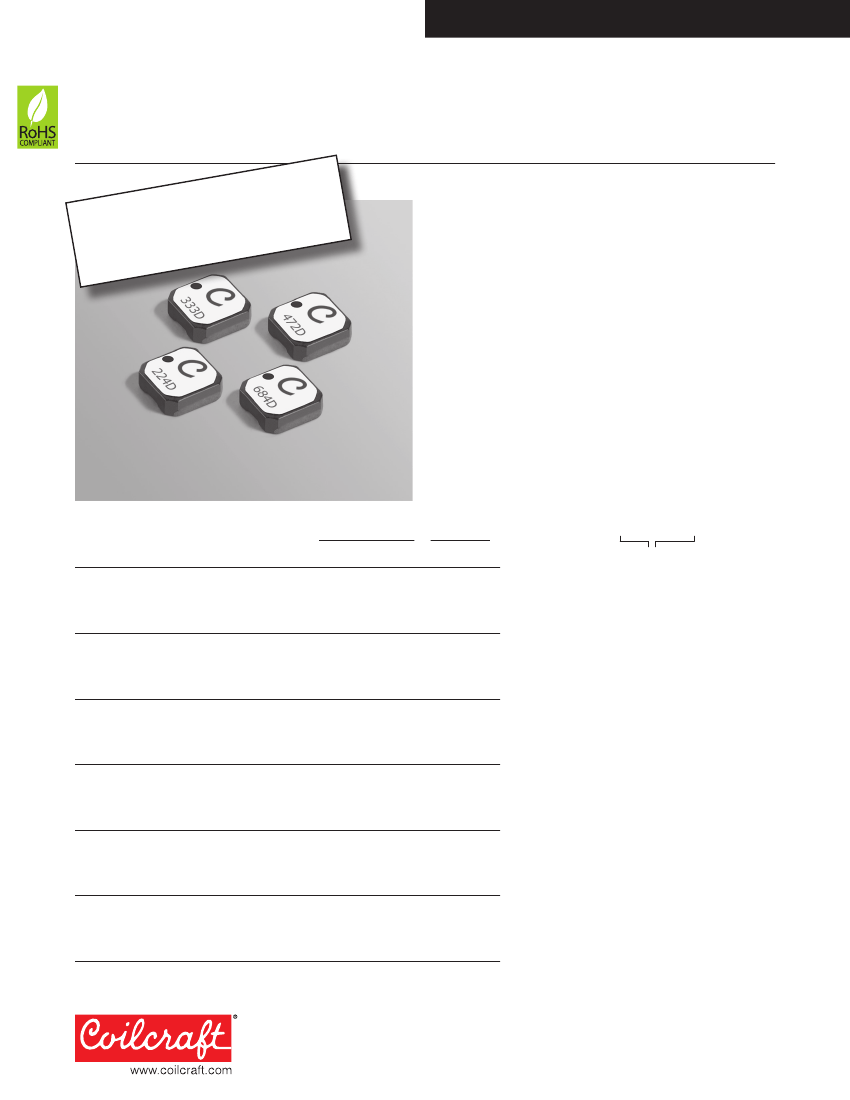

Shielded Power Inductors – LPS5015

par ts a d by new lea

t and fu

These

form, fi

cfm.

ntical in

re repla

They a which are ide

ft.com/lps501

w.coilc

versio

See

ded for

ed ver

en free

mprov

not recommen free and halog ction.

lable

w avai

ew designs.

ion no

• Very low DCR; excellent current handling

• 5.0 × 5.0 mm footprint; less than 1.5 mm tall

Core material

Ferrite

Core and winding loss

See www.coilcraft.com/coreloss

Terminations

RoHS compliant silver-palladium-platinum-glass frit.

Other terminations available at additional cost.

Weight

102 – 107 mg

Ambient temperature

–40°C to +85°C with

Irms

current, +85°C to

+125°C with derated current

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide,

0.3 mm thick, 8 mm pocket spacing, 1.57 mm pocket depth

(Refer to dimensional drawing for part orientation in tape.)

Recommended pick and place nozzle

OD: 5 mm; ID:

≤

2.5 mm

PCB washing

Tested with pure water or alcohol only. For other solvents,

see Doc787_PCB_Washing.pdf.

Part number

LPS5015-102ML_

LPS5015-132ML_

LPS5015-182ML_

LPS5015-222ML_

LPS5015-332ML_

LPS5015-472ML_

LPS5015-562ML_

LPS5015-682ML_

LPS5015-822ML_

LPS5015-103ML_

LPS5015-123ML_

LPS5015-153ML_

LPS5015-183ML_

LPS5015-223ML_

LPS5015-333ML_

LPS5015-473ML_

LPS5015-563ML_

LPS5015-683ML_

LPS5015-104ML_

LPS5015-124ML_

LPS5015-154ML_

LPS5015-224ML_

LPS5015-334ML_

LPS5015-474ML_

LPS5015-564ML_

LPS5015-684ML_

LPS5015-105ML_

LPS5015-155ML_

LPS5015-185ML_

LPS5015-225ML_

LPS5015-335ML_

LPS5015-475ML_

Isat

(A)

DCR SRF

Inductance

max

typ

10% 20% 30%

±20% (µH) (Ohms) (MHz) drop drop drop

1.0

1.3

1.8

2.2

3.3

4.7

5.6

6.8

8.2

100

120

150

220

330

470

560

680

1000

1500

1800

2200

3300

4700

0.050

0.065

0.075

0.090

0.125

0.150

0.175

0.225

0.280

0.300

0.350

0.360

0.550

0.675

0.750

1.00

1.13

1.45

1.95

2.50

3.40

4.50

7.40

7.50

8.50

10.6

15.0

25.0

28.0

36.0

55.0

80.0

183

150

128

116

9.3

7.3

5.7

4.9

4.3

4.0

3.2

2.5

2.2

2.1

1.7

1.4

3.6

2.5

2.6

2.4

1.9

1.6

1.3

1.2

1.0

0.80

0.75

0.70

0.55

0.46

0.40

0.33

0.30

0.25

0.23

0.20

0.15

0.12

0.10

0.080

0.078

0.072

0.064

0.062

3.8

2.6

2.8

2.6

2.0

1.7

1.6

1.4

1.3

1.1

0.84

0.77

0.73

0.59

0.48

0.43

0.38

0.33

0.28

0.25

0.21

0.17

0.12

0.11

0.090

0.086

0.083

0.078

0.072

0.069

3.9

2.8

2.9

2.7

2.0

1.8

1.6

1.5

1.4

1.3

1.2

0.86

0.80

0.75

0.60

0.49

0.45

0.39

0.34

0.30

0.26

0.22

0.18

0.13

0.12

0.11

0.093

0.088

0.086

0.080

0.076

0.072

Irms

(A)

20°C 40°C

rise rise

1.90

1.70

1.50

1.40

1.30

1.20

1.10

0.90

0.85

0.80

0.75

0.73

0.70

0.60

0.50

0.45

0.40

0.35

0.30

0.27

0.25

0.22

0.17

0.16

0.14

0.13

0.10

0.090

0.085

0.065

0.055

0.045

2.65

2.35

2.15

2.00

1.80

1.62

1.45

1.25

1.05

0.95

0.84

0.83

0.82

0.70

0.57

0.52

0.47

0.42

0.37

0.33

0.29

0.22

0.21

0.190

0.175

0.150

0.140

0.130

0.090

0.075

0.065

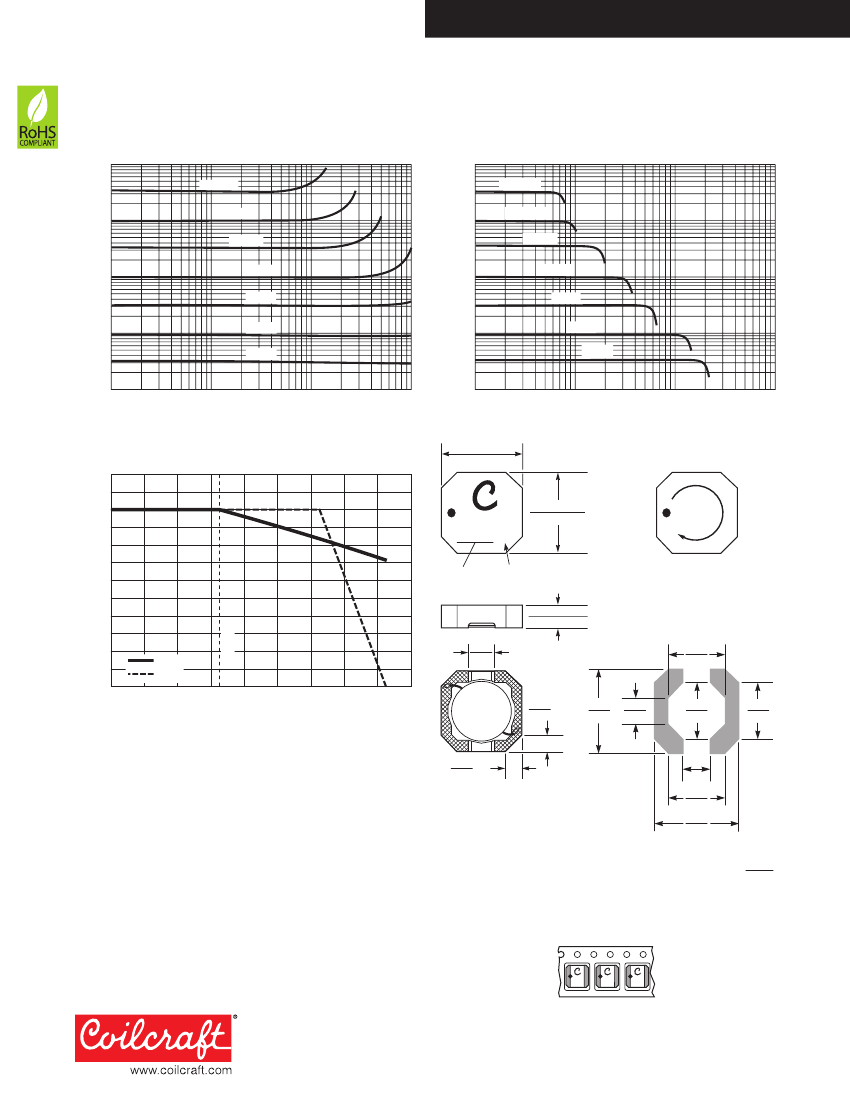

1. Please specify

termination

and

packaging

codes:

LPS5015-335MLC

Termination: L

= RoHS compliant silver-palladium-

platinum-glass frit.

Special order:

= RoHS tin-silver-copper

(95.5/4/0.5) or

= non-RoHS tin-

lead (63/37).

Packaging: C

= 7″ machine-ready reel. EIA-481

embossed plastic tape 1000 parts

per full reel).

= Less than full reel. In tape, but not

machine ready. To have a leader and

trailer added ($25 charge), use code

letter C instead.

= 13″ machine-ready reel. EIA-481

embossed plastic tape. Factory order

only, not stocked (3500 parts per full

reel).

2. Inductance tested at 100 kHz, 0.1 Vrms using an Agi-

lent/HP 4192A.

3. DCR measured on a micro-ohmmeter.

4. SRF measured using Agilent/HP 8753ES or equivalent.

5. DC current that causes the specified inductance drop

from its value without current.

6. Current that causes the specified temperature rise from

25°C ambient.

7. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components”

before soldering.

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 585NR-1

Revised 12/08/11

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
