61300815721 Overview

2.54mm Socket Header Bottom Entry WR-PHD

61300815721 Parametric

Parameter Name	Attribute value
Brand Name	Wurth Electronik
Is it Rohs certified?	conform to
Maker	Wurth Elektronik
Reach Compliance Code	compliant
Is Samacsys	N
Other features	ROHS COMPLIANT
body width	0.1 inch
subject depth	0.197 inch
body length	0.82 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	613
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	5.08 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

1

2

3

4

5

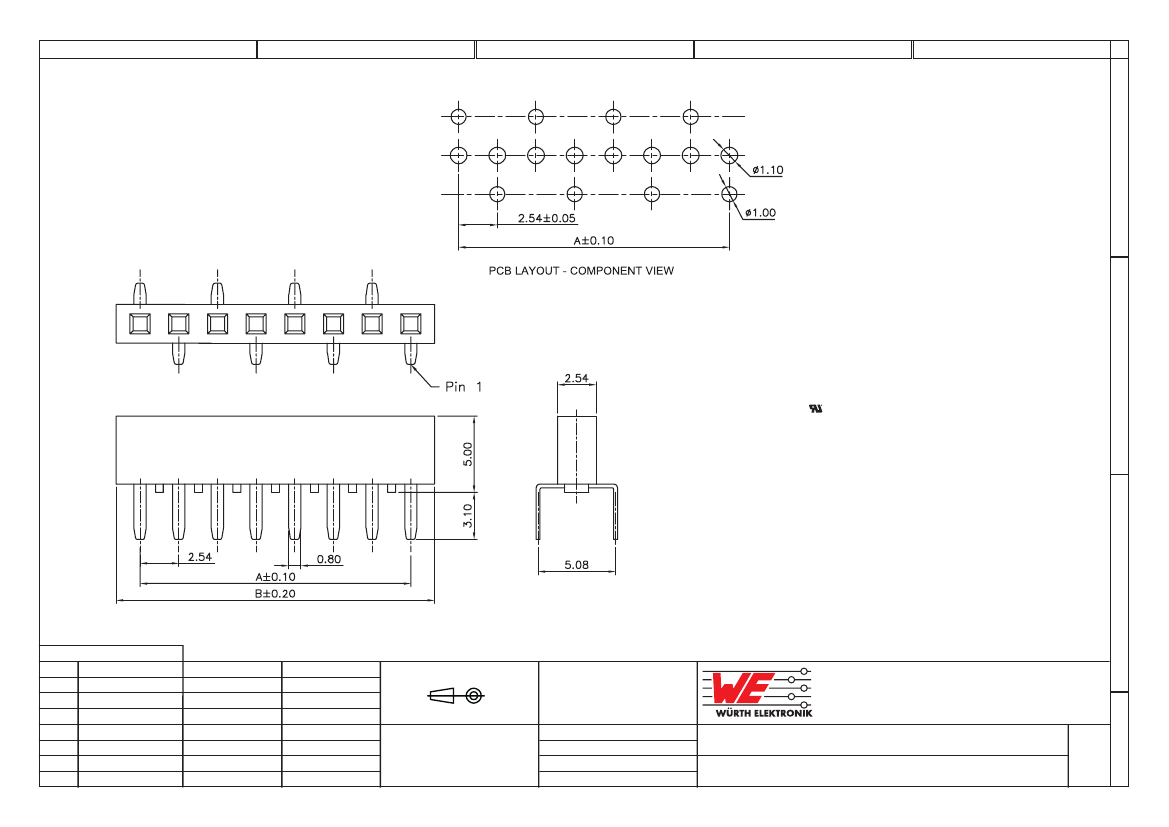

TECHNICAL CHARACTERISTICS

MATERIAL

INSULATOR: PA 46

FLAMABILITY RATING: UL94-V0

MAX TEMPERATURE: WAVE SOLDERING COMPATIBLE

COLOR: BLACK

CONTACT MATERIAL: COPPER ALLOY

CONTACT TYPE: STAMPED

CONTACT PLATING: GOLD

QUALITY CLASS: 3 AS PER IEC 60 603-13

PITCH: 2.54MM

ENVIRONMENTAL

OPERATING TEMPERATURE: -40 UP TO 125°C

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL

CURRENT RATING: 3 A

WORKING VOLTAGE: 250 VAC

INSULATOR RESISTANCE: >1000 MOHM

DIELECTRIC WITHSTANDING VOLTAGE: 500 VAC/MN

CONTACT RESISTANCE: 20 mOHM MAX

STANDARD

CERTIFIED: E323964

SOLDERING

JEDEC LEAD FREE WAVE SOLDERING PROCESS

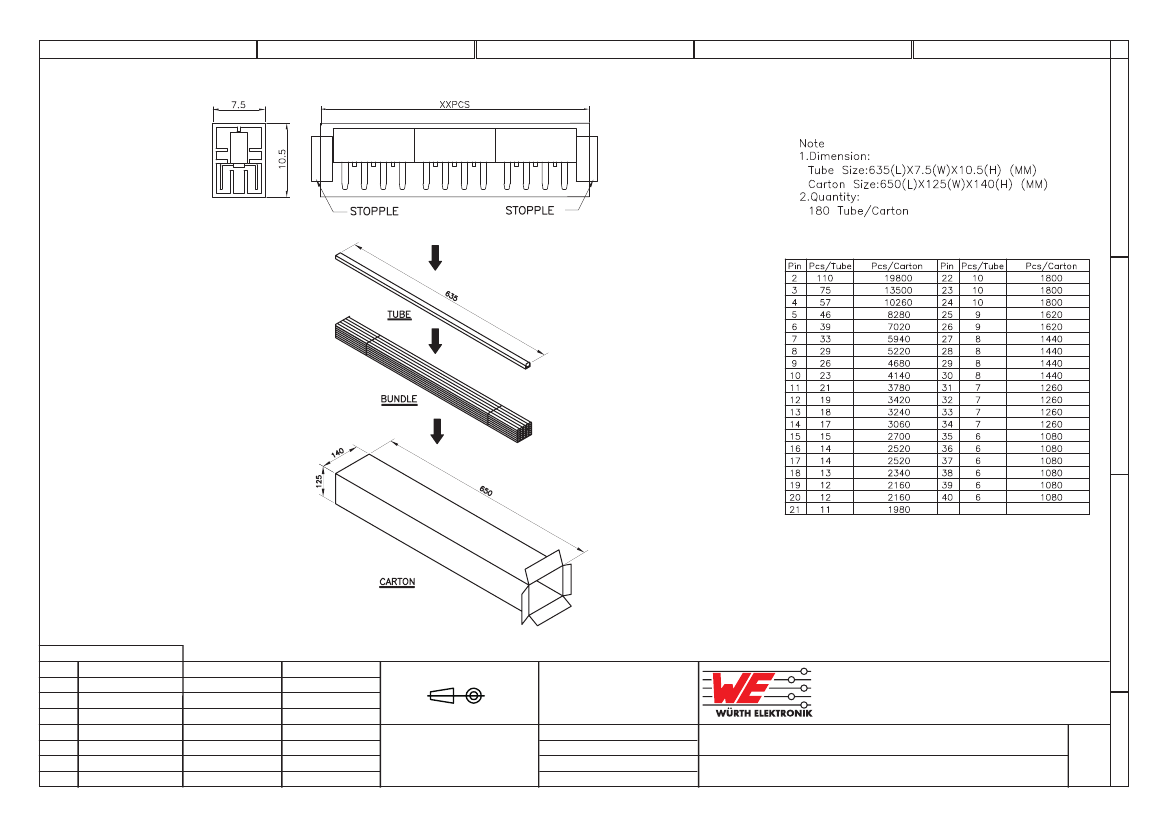

PACKAGING

TUBE

DIMENSION

A = 2.54x (NB. PIN - 1)

B = 2.54x NB. PIN + 0.5

A

B

C

RoHS Compliant

PROJECTION:

GENERAL TOLERANCE

.X = +/- 0.2

.XX = +/- 0.15

APPROVAL: GMo

I

H

REV

21-JUN-16

19-FEB-14

DATE

TPK

SOLDERING

FILE

AK

QL

BY

UNIT: MM

SCALE:

SHEET: 1/3

DRAW: PEARL

WERI PART NO: 613 0xx 157 21

DESCRIPTION: 2.54MM SOCKET HEADER BOTTOM ENTRY

SIZE

A4

D

61300815721 Related Products
