225.375 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 225.375

225.375: DescriptionFAST BLOW ELECTRIC FUSE, 0.375A, 250VAC, 35A (IR), INLINE/HOLDER; CategoryCircuit protection Circuit protection; File Size41KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

225.375 Overview

FAST BLOW ELECTRIC FUSE, 0.375A, 250VAC, 35A (IR), INLINE/HOLDER

225.375 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Fusing characteristics	FAST
body height	14.48 mm
Body length or diameter	4.5 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal
Installation features	INLINE/HOLDER
physical size	4.5mm x 14.48mm
Rated breaking capacity	35 A
Rated current	0.375 A
Rated voltage (AC)	250 V
Guideline	CSA; PSE; UL
surface mount	NO
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

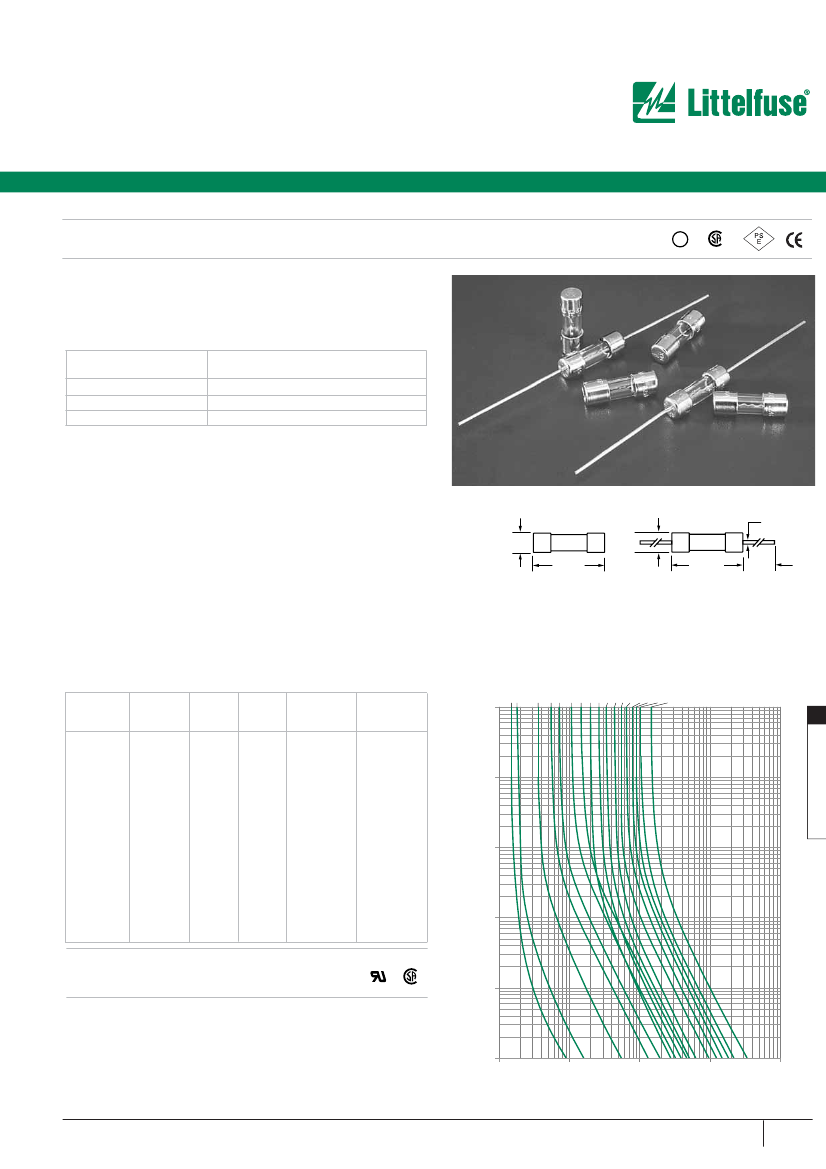

Axial Lead and Cartridge Fuses

Subminiature Glass Body

2AG

Fast-Acting Fuse 224/225 Series

The 2AG Fast-Acting fuses are available in cartridge form or with axial

leads. Axial leaded fuses are board washable. 2AG fuses provide the

same performance characteristics as their 3AG counterpart, while

occupying one-third the space. Sleeved fuses are available.

ELECTRICAL CHARACTERISTICS:

% of Ampere

Rating

100%

135%

200%

Opening

Time

4 hours,

Minimum

1 hour,

Maximum

1 second,

Maximum

AGENCY APPROVALS:

All ratings are Listed by UL and Certified by

CSA. 1 through 10 amperes approved by METI.

AGENCY FILE NUMBERS:

UL E10480, CSA LR 29862.

INTERRUPTING RATINGS:

0.1–10A

0.1–1A

1.5–3.5A

10,000 amperes at 125 VAC

35 amperes at 250 VAC

100 amperes at 250 VAC

PACKAGING OPTIONS:

224 Series available on Tape and Reel per

225

000

Series

4.7 (.184")

4.5

(.177")

14.48

(.57")

224

000

Series

.635

(.025")

EIA-296. For 1500 pieces per reel, add packaging suffix DRT1.

See page 8 for pitch Dimensions. 224, 225 series available in

bulk packaging. For 1000 pieces bulk add packaging suffix M.

PATENTED

14.48

(.57")

38.1

(1.50") TYP.

Axial Lead Material: Solder coated copper.

Average Time Current Curves

1/10A

1/8A

100

ORDERING INFORMATION:

Cartridge

Catalog

Number

225.100

225.125

225.250

225.375

225.500

225.750

225

001

225

01.5

225

002

225

02.5

225

003

225

03.5

225

004

225

005

225

006

225

007

225

008

225

010

Axial Lead

Catalog

Number

224.100

224.125

224.250

224.375

224.500

224.750

224

001

224

01.5

224

002

224

02.5

224

003

224

03.5

224

004

224

005

224

006

224

007

224

008

224

010

Ampere

Rating

1/10

1/8

1/4

3/8

1/2

3/4

Voltage

Rating

250

125

Nominal

Resistance

Cold Ohms

6.15

3.90

1.15

0.395

0.265

0.152

0.102

0.0705

0.0490

0.0365

0.0310

0.0258

0.0233

0.0179

0.0147

0.0123

0.0100

0.00675

Nominal

Melting I

Sec.

0.000750

0.00286

0.0300

0.171

0.365

1.05

2.22

0.800

1.50

2.68

4.62

6.70

9.40

17.00

22.1

40.0

56.0

116.0

1/4A

3/8A

1/2A

3/4A

1 1/2A

2 1/2A

10A

AXIAL LEAD AND

0.1

100

CURRENT IN AMPERES

1000

TIME IN SECONDS

0.1

2AG Special 350V

Fast-Acting Fuse

The

220 007

subminiature fuse is intended for fluorescent lighting ballast

protection or similar applications up to 350V.

AXIAL LEAD PART NUMBER: 220 007

(ampere rating of 3A).

DIMENSIONS:

Same as 224 Series.

ELECTRICAL CHARACTERISTICS:

Same as 224 Series.

INTERRUPTING RATING:

100 amperes at 350 VAC.

Contact Littelfuse concerning other ampere ratings.

0.01

0.001

w w w. l i t t e l f u s e . c o m

395

225.375 Related Products

	225.375	224	225.500	225.750	22502.5
Description	FAST BLOW ELECTRIC FUSE, 0.375A, 250VAC, 35A (IR), INLINE/HOLDER	FAST BLOW ELECTRIC FUSE, 0.125A, 250VAC, 35A (IR), INLINE/HOLDER	FAST BLOW ELECTRIC FUSE, 0.125A, 250VAC, 35A (IR), INLINE/HOLDER	FAST BLOW ELECTRIC FUSE, 0.125A, 250VAC, 35A (IR), INLINE/HOLDER	FAST BLOW ELECTRIC FUSE, 2.5A, 250VAC, 100A (IR), INLINE/HOLDER
Is it Rohs certified?	conform to	-	conform to	conform to	incompatible
Reach Compliance Code	unknow	-	unknown	unknown	unknow
ECCN code	EAR99	-	EAR99	EAR99	EAR99
Fusing characteristics	FAST	-	FAST	FAST	FAST
body height	14.48 mm	-	14.48 mm	14.48 mm	14.48 mm
Body length or diameter	4.5 mm	-	4.5 mm	4.5 mm	4.5 mm
Circuit protection type	ELECTRIC FUSE	-	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Installation features	INLINE/HOLDER	-	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
physical size	4.5mm x 14.48mm	-	4.5mm x 14.48mm	4.5mm x 14.48mm	4.5mm x 14.48mm
Rated breaking capacity	35 A	-	35 A	35 A	100 A
Rated current	0.375 A	-	0.5 A	0.75 A	2.5 A
Rated voltage (AC)	250 V	-	250 V	250 V	250 V
Guideline	CSA; PSE; UL	-	CSA; PSE; UL	CSA; PSE; UL	CSA; METI; PSE; UL
surface mount	NO	-	NO	NO	NO
Terminal shape	END CAP	-	END CAP	END CAP	END CAP
