BF180-152-A-0150-1970-N-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> BF180-152-A-0150-1970-N-D

BF180-152-A-0150-1970-N-D: DescriptionBoard Connector, 152 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking,; CategoryThe connector The connector; File Size147KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BF180-152-A-0150-1970-N-D Overview

Board Connector, 152 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking,

BF180-152-A-0150-1970-N-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	316066585
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.315 inch
subject depth	0.776 inch
body length	3.004 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	100 Cycles
maximum insertion force	3.0024 N
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
Manufacturer's serial number	BF180
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.059 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	152
Evacuation force-minimum value	.199882 N

Preview

Download Datasheet

View All

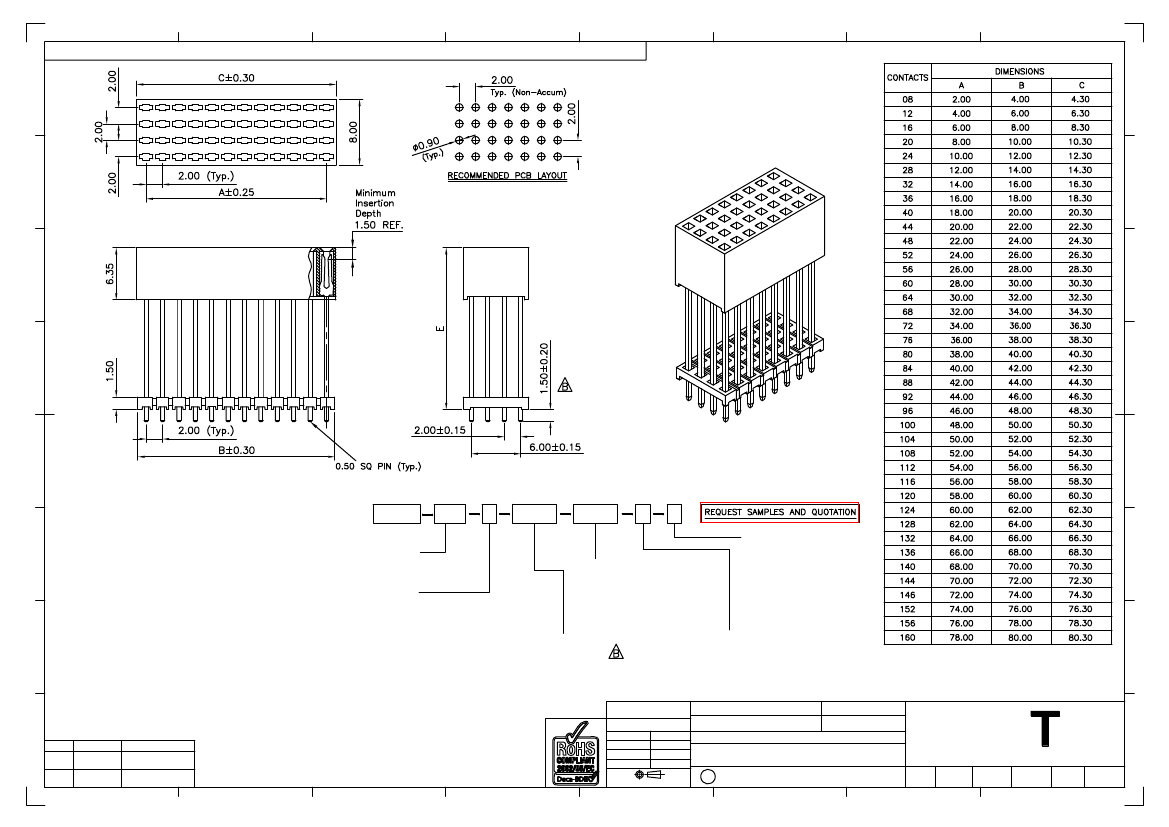

Global Connector Technology Ltd. - 2.00mm PITCH ELEVATED SOCKET, QUAD ROW, THROUGH HOLE, VERTICAL

Ordering Grid

SPECIFICATIONS

规格

BF180 XXX X

XXXX

0150

X X

CURRENT RATING

电流额定值

: 3 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MΩ Min.

Packing

D = Tube (Standard)

CONTACT RESISTANCE

接触电阻值

: 20mΩ Max.

No. of Contacts

DIELECTRIC WITHSTANDING

耐电压

: AC 500 V

F = Tube with Film

Dimension E (1/100mm)

08 to 160

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

G = Plastic Box

(Stacking Height)

CONTACT MATERIAL

端子物料

: PHOSPHOR BRONZE

Standard - 19.70mm = 1970

INSULATOR MATERIAL

绝缘½物料

Contact Plating

Or specify Dimension E

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

A = Gold Flash All Over (Standard)

e.g. 12.50mm = 1250

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

B = Selective Gold Flash Contact Area/

TOL.: ±0.2mm

SOLDERING PROCESS

可焊性

Tin On Tail

NYLON 6T (STANDARD

标准物料

) -

Insulator Material

C = Tin All Over

Tail Length (1/100mm)

IR REFLOW

回流焊

: 260°C for 10 sec.

N = Nylon 6T (Standard)

G = 10µ" Gold Contact Area/Tin On Tail

0150 = 1.50mm

WAVE

波峰焊

: 230°C for 5-10 sec.

L = LCP

I = 30µ" Gold Contact Area/Tin On Tail

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec.

Tolerances

Part Number:-

Date:-

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

(Except as noted)

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

08 APR 07

Dimensions in mm

BF180

BF175

X.°±5°

X. ± 0.30

DETAIL

REV

DATE

DRAWING

RELEASE

08/4/07

AJO

SELECTABLE

LENGTH REMOVED

25/07/12

X.X ± 0.25

X.XX ± 0.15

X.XXX ± 0.10

.X°±3°

.XX°±2°

.XXX°±1°

Description:-

2.00mm PITCH ELEVATED SOCKET, QUAD ROW,

THROUGH HOLE, VERTICAL

www.globalconnectortechnology.com

Scale

NTS

Material

See Note

Sheet No.

E & OE

1/1

Third Angle Projection

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by
