BG140-66-A-N-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BG140-66-A-N-D

BG140-66-A-N-D: DescriptionBoard Connector, 66 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug,; CategoryThe connector The connector; File Size94KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG140-66-A-N-D Overview

Board Connector, 66 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug,

BG140-66-A-N-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304461080
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.234 inch
subject depth	0.319 inch
body length	3.3 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	BG140
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.62 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	66

Preview

Download Datasheet

View All

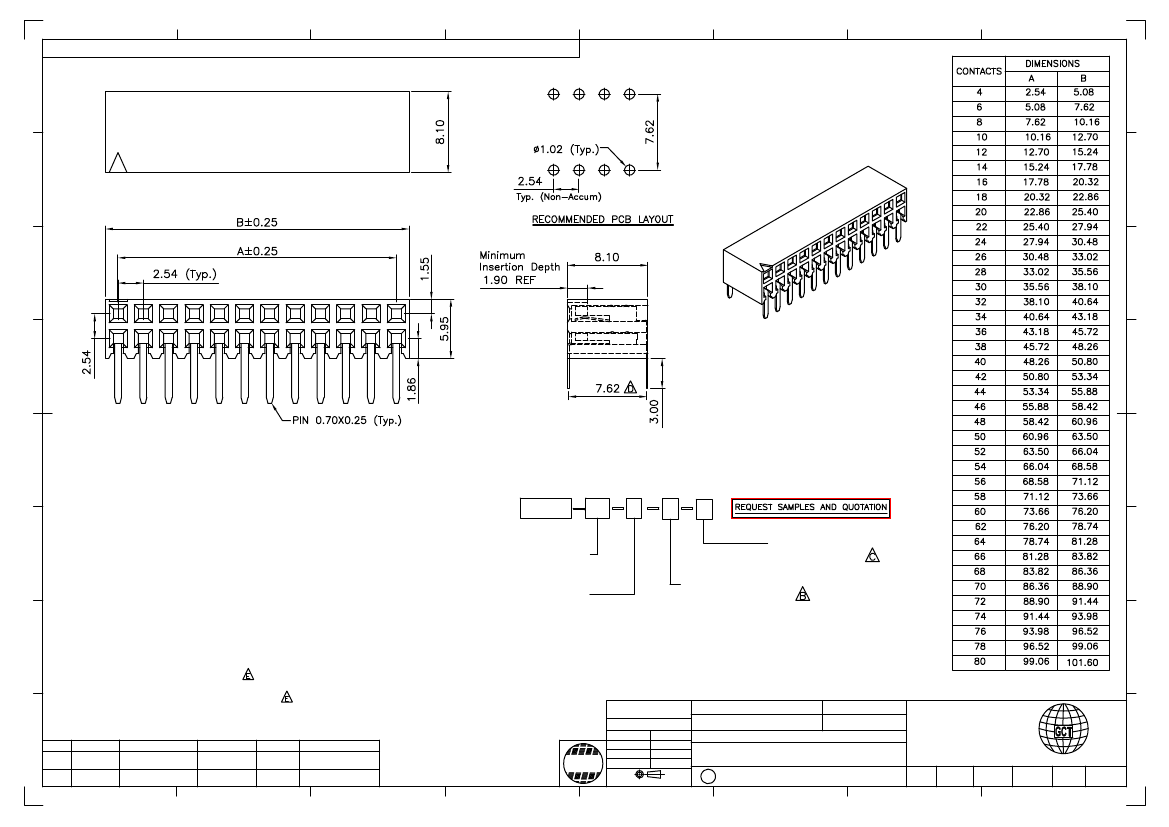

Global Connector Technology Ltd. - BG140: 2.54mm PITCH SOCKET, DUAL ROW, THROUGH-HOLE, HORIZONTAL

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 3 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 M

MIN.

DIELECTRIC WITHSTANDING

耐电压

: AC 600 V

CONTACT RESISTANCE

接触电阻值

: 20m

Max.

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

CONTACT MATERIAL

端子物料：

COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

OR POLYESTER

聚酯

, PBT, UL94-V0

SOLDERING PROCESS

可焊性

NYLON 6T (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

PBT (OPTION

可选物料

) - MANUAL SOLDER

人工焊接

: 330°C for 3-5 sec.

(NOT SUITABLE FOR HI-TEMP PROCESS

不适合高温处理

)

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BG025

BG040

BG045

BG050

BG065

BG070

BG085

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

30/10/06

STANDARD INSULATOR

MATERIAL CHANGED

Ordering Grid

BG140

Packing Options

D = Tube (Standard)

G = Plastic Box

No. of Contacts

04 to 80

Insulator Material

Contact Plating

N = Nylon 6T (Standard)

A = Gold Flash All Over

P = PBT

B = Selective Gold Flash Contact

L = LCP

Area/Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On

Tail

I = 30µ" Gold Contact Area/Tin On Tail

Standard = Gold Flash All Over

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X. ± 0.30

X.X ± 0.20

X.XX ± 0.15

X.XXX ± 0.10

X.°±5°

.X°±2°

.XX°±1°

.XXX°±0.5°

BG140

Description:-

30 OCT 06

CHANGE TO SOLDER

TEMP. INFORMATION

05/08/09

PACKING OPTIONS DIMENSION

CHANGED

CORRECTION

12/03/09

27/04/09

06/07/09

RoHS

2.54mm PITCH SOCKET, DUAL ROW, THROUGH HOLE,

HORIZONTAL

Global

Connector

Technology

www.globalconnectortechnology.com

Scale

NTS

Third Angle Projection

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Material

See Note

Drawn by

LYH

E & OE

Sheet No.

1/1
