4118R-3-331/391LF datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> 4118R-3-331/391LF

4118R-3-331/391LF: DescriptionArray/Network Resistor, Terminator, Metal Glaze/thick Film, 2.5W, 330ohm, 100V, 2% +/-Tol, 100ppm/Cel, Through Hole Mount, 9631, DIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size213KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

4118R-3-331/391LF Overview

Array/Network Resistor, Terminator, Metal Glaze/thick Film, 2.5W, 330ohm, 100V, 2% +/-Tol, 100ppm/Cel, Through Hole Mount, 9631, DIP, ROHS COMPLIANT

4118R-3-331/391LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	DIP, ROHS COMPLIANT
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
Other features	DUAL TERMINATOR
structure	Molded
Component power consumption	0.125 W
The first element resistor	330 Ω
JESD-609 code	e3
Lead length	3.43 mm
lead spacing	2.54 mm
Manufacturer's serial number	4100R
Installation features	THROUGH HOLE MOUNT
Network Type	TERMINATOR
Number of components	2
Number of functions	16
Number of terminals	18
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	4.57 mm
Package length	24.51 mm
Package shape	RECTANGULAR PACKAGE
Package form	DIP
Package width	7.87 mm
Rated power dissipation(P)	2.5 W
Rated temperature	70 °C
resistance	330 Ω
Resistor type	ARRAY/NETWORK RESISTOR
Second/last element resistor	390 Ω
series	4100R
size code	9631
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Temperature coefficient tracking	50 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	FLAT
Tolerance	2%
Operating Voltage	100 V
Base Number Matches	1

Preview

Download Datasheet

View All

VE S C O

AV R M

AI SIO PL

LA N IA

BL S NT

Features

■

RoHS compliant* versions available (see

How to Order “Termination” option)

■

Compatible with automatic insertion

equipment

■

Superior package integrity

■

Now available with improved tolerance

to ±0.5 %

For information on speciﬁc applications,

download Bourns’ application notes:

■

DRAM Applications

■

Dual Terminator Resistor Networks

■

R/2R Ladder Networks

■

SCSI Applications

Product Characteristics

Resistance Range

.................... 10 ohms to 10 megohms

Maximum Operating Voltage .........100 V

Temperature Coefﬁcient of Resistance

to 2.2 MΩ...............±100 ppm/°C

below 50

.....................±250 ppm/°C

above 2.2 MΩ.................±250 ppm/°C

TCR Tracking.........................50 ppm/°C

maximum; equal values

Resistor Tolerance ............... See circuits

Operating Temperature

................................-55 °C to +125 °C

Insulation Resistance

................ 10,000 megohms minimum

Dielectric Withstanding Voltage

...........................................200 VRMS

Lead Solderability .....Meet requirements

of MIL-STD-202 Method 208

Environmental Characteristics

TESTS PER MIL-STD-202 ...... ∆R MAX.

Short Time Overload..................±0.25 %

Load Life ....................................±1.00 %

Moisture Resistance ..................±0.50 %

Resistance to Soldering Heat

...............................................±0.25 %

Terminal Strength ......................±0.25 %

Thermal Shock ..........................±0.25 %

Physical Characteristics

Flammability ........ Conforms to UL94V-0

Lead Frame Material

.........................Copper, solder coated

Body Material.................. Novolac epoxy

How To Order

WATTS

41 14 R - 1 - 152 __ __

Model

(41 = Molded DIP)

Number of Pins

Physical Conﬁguration

(R = Thick Film Low Proﬁle)

Electrical Conﬁguration

• 1 = Isolated

• 2 = Bussed

• 3 = Dual Terminator

Resistance Code

• First 2 digits are signiﬁcant

• Third digit represents the

number of zeros to follow.

Resistance Tolerance

• Blank = ±2 % (see “Resistance Tolerance”

on next page for resistance range)

• F = ±1 % (100 ohms - 1 megohm)

• D = ±0.5 % (100 ohms - 1 megohm)

Terminations

• LF = Tin-plated (RoHS compliant version)

• Blank = Tin/Lead-plated

Consult factory for other available options.

R–

16 40

41 120 C11

–

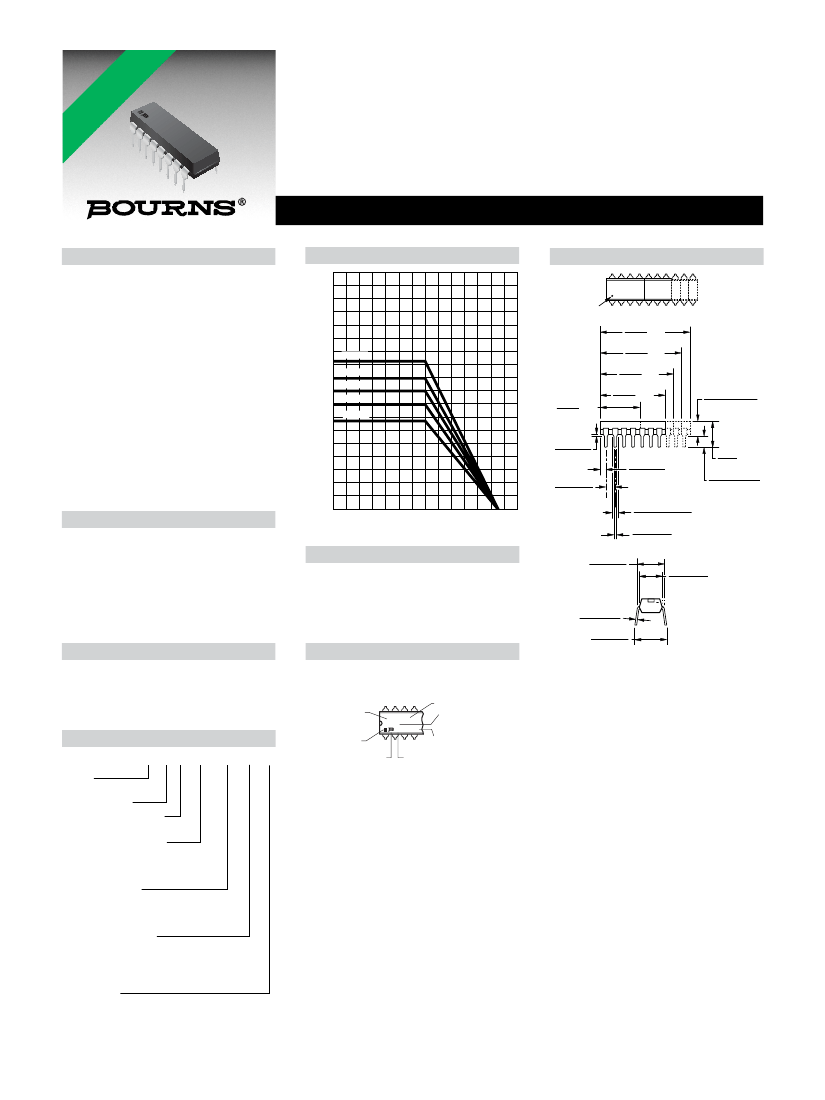

4100R Series - Thick Film Molded DIPs

Package Power Temp. Derating Curve

Product Dimensions

4.00

PIN #1 REF.

3.50

3.00

2.50

2.00

1.50

1.00

.50

.89 .25

(.035 .010)

TYP.

2.54 .25

(.100 .010*)

TYP.

NON-ACCUM.

8.40

MAX.

(.331)

3.43 + .38/ - .25.

(135 + .015/ - .010)

27.05

MAX.

(1.065)

24.51

MAX.

(.965)

21.97

MAX.

(.865)

19.43

MAX.

(.765)

4120R

4118R

4116R

4114R

4108R

11.81

MAX.

(.465)

4.57 + .12/ - .28

(.180 + .005/ - .007)

2.03 .12

(.080 .005)

125

AMBIENT TEMPERATURE (

C )

1.65 + .12/ - .07

(.065 + .005/ - .003)

.438

(.019

.050

TYP.

.002)

Package Power Rating at 70 °C

4108R .....................................1.69 watts

4114R .....................................2.00 watts

4116R .....................................2.25 watts

4118R .....................................2.50 watts

4120R .....................................2.80 watts

Typical Part Marking

Represents total content. Layout may

vary.

PART

NUMBER

PIN ONE

INDICATOR

MANUFACTURER'S

TRADEMARK

4116R-1-

120

CYYWW

7.87 .25

(.310 .010)

TO OUTSIDE

WHEN PINS

ARE PARALLEL

.254 .050

(.010 .002)

8.64 .50

(.340 .020)

6.71 .10

(.260 + .005)

(.260

- .000)

Governing dimensions are in metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

CIRCUIT

RESISTANCE

CODE

DATE CODE

COUNTRY OF MANUFACTURE

(C = COSTA RICA)

For Standard Values Used in

Capacitors, Inductors, and Resistors,

click here.

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.
