FT2-78-G-762 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> FT2-78-G-762

Preview

FT2-78-G-762: DescriptionBoard Connector, 78 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size99KB，1 Pages; ManufacturerAntelec; Websitehttp://www.antelec.fr; Environmental Compliance

Download Datasheet Parametric View All

FT2-78-G-762 Overview

Board Connector, 78 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, ROHS COMPLIANT

FT2-78-G-762 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8035813178
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	GOLD FLASH
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	FT2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	78
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

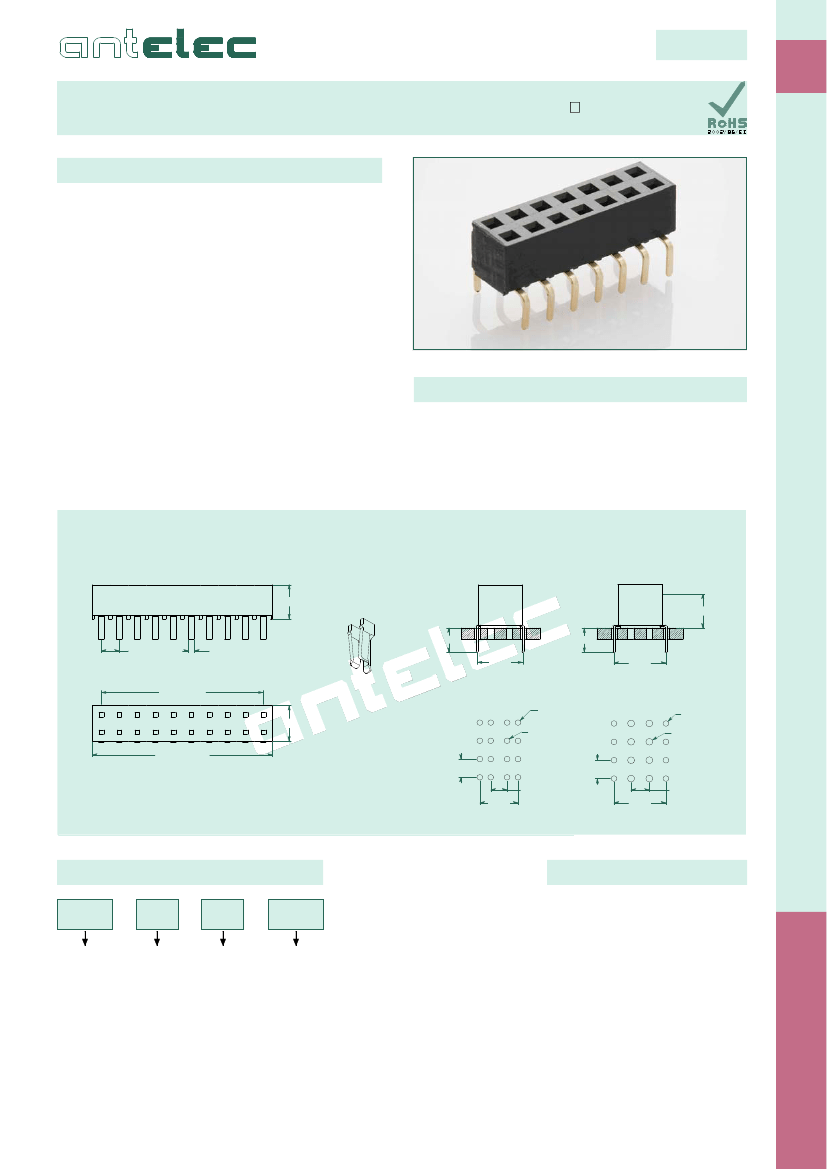

Female header straight type bottom entry 2 rows for pin

0.64 mm

Product specifications

Current rating : 3.0 A

Dielectric withstanding voltage : 1000 Volts AC during 1 mn

Insulation resistance : > 1000 MΩ

Contact resistance : < 20 mΩ

Operating temperature : -55°C to +125°C

Max processing temperature : 260°C during 5 sec

Contact : phosphor bronze

Plating : gold flash (standard)

Insulator : nylon-6T, UL94V-0

3.81 mm between rows : on request

Mates with

Pin headers

0.64 mm

Type 508

Type 762

5.0

contact at 3 mm

3.00

2.54

0.8 x 0.25

5.08

3.00

7.62

(N-1) x 2.54

U type contact

inverted

5.20

PCB layout

(tolerance ± 0.05 mm)

Ø 1.00

Ø 1.20

PCB layout

(tolerance ± 0.05 mm)

Ø 1.00

Ø 1.20

N x 2.54 + 0.5

2.54

5.08

7.62

2.54

Create your part number

Product range

FT2

Dual

entry

socket

2 rows

XX

Total

number

of contacts

G

Gold

(Standard)

508

Type 508

or 762 for

type 762

Number of pins :

2 rows : 4 to 80 pins

info@antelec.fr

tel: +33 (0)1 49 80 14 14

fax: +33 (0)1 49 80 14 15

139

BOARD TO BOARD 2.54

BTB

www.antelec.fr

2.54 mm
