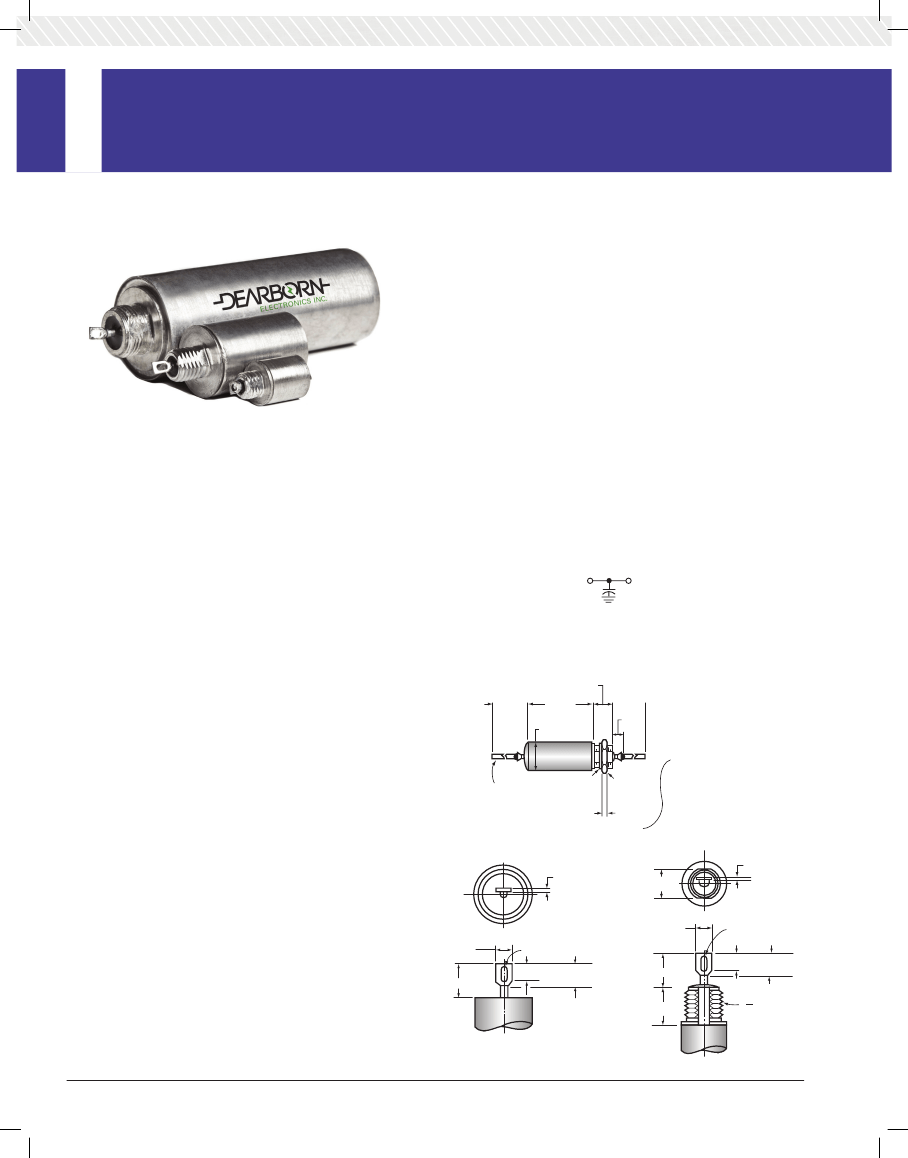

TYPE 103P
METAL-CASE SUBMINIATURE 10 AMPERE
THRU-PASS PAPER CAPACITORS
ELECTRICAL SPECIFICATIONS
CAPACITANCE RANGE:
0.001 μF to 1.0 μF
DC VOLTAGE RANGE:
200 VDC to 600 VDC
CAPACITANCE TOLERANCE:
±20%, ±10%
OPERATING TEMPERATURE:
-55°C to +125°C
VOLTAGE DERATING:
At +125°C, 50% of the 85°C rating
DISSIPATION FACTOR:
1.0% maximum
VOLTAGE TEST:
200% of rated voltage for 2 minutes
INSULATION RESISTANCE:
Measure at rated voltage, not to exceed 500 VDC, after a 2 minute charge.
• At +25°C, 20,000 Megohm-Microfarads, need not exceed 30,000 Megaohms
• At +85°C, 200 Megohm-Microfarads, need not exceed 300 Megaohms
DC RESISTANCE:
0.01 ohms maximum
INSERTION LOSS:
See table on next page
FEATURES
• Bulkhead mounting
• Excellent RFI specs
• Hermetically encased
• Low inductance connection
• Low insertion loss
• Approved to MIL-PRF-11693 / 07
• 10 Amp current ratings
MAJOR APPLICATIONS:
Used to suppress RF interference in the following equipment, rotating
machinery, ignition systems, electromechanical devices, and electronic device.
CIRCUIT DIAGRAM
DIMENSIONS
(in inches)
1.625
1.625
+1.000
-0.000
+1.000
-0.000
±0.031
L
0.312
±0.031
+1.000
-0.000
±0.031
0.312
1.625
PHYSICAL CHARACTERISTICS
CONSTRUCTION:
Non-inductive wound paper / foil, wound around a feed-thru bus. The case is the
common ground of the three terminal network.
CASE:
Hermetically sealed metal enclosure; the case and terminal styles are
shown above.
LEAD PULL:
5 lbs (2.3 kg) for one minute. No physical damage.
LEAD / BEND:
After three complete consecutive bends. No damage.
MARKING:
Dearborn trademark, type or catalog number, capacitance, tolerance and voltage.
C
L
+1.000
-0.000
L
±0.031
D
DIA.
+0.015 1.625
-0.005 DIA.
0.125
MAX
D
+0.015
-0.005
0.125
MAX
EXTERNAL TOOTHED
LOCKWASHER
+0.004
0.040 -0.001 DIA.
PT. NO. 2-123
(10 .18 AWG)
EXTERNAL TOOTHED
SOLID TINNED LEADS
NUT 5/16-
LOCKWASHER
+0.004
0.040 -0.001 DIA.
24UNF-2A
PT. NO. 2-123
PT. NO. 6-113
(10 .18 AWG)
0.125
SOLID TINNED LEADS
±0.015
NUT 5/16-
24UNF-2A
PT. NO. 6-113
0.125
±0.015
0.020
C
L
±0.005
0.020
0.255
0.250
0.255
0.250
ACROSS
FLATS
0.125 ±
0.015
ACROSS
FLATS
C
L
±0.005
0.020
C
L
±0.005
0.020
±0.005
C
L
0.125
C
L
±0.015
SLOT 0.062 x 0.125
±0.015
C
L
0.060
SLOT
0.050
0.125
x
0.125 ±
0.015
C
L
0.060
SLOT
0.050
0.125
x
0.156 ±0.015 0.187 ±0.015
0.156 ±0.015 0.187 ±0.015
0.125
±0.015
0.296
0.156
SLOT 0.062 x 0.125
±0.062
0.156
±0.015
0.187
±0.015
0.296 ± 0.062
0.296
±0.062
0.187
±0.015
0.296 ± 0.062
0.312 ± 0.031
0.312 ± 0.031
5
16
-24 UNF - 2A THD
5
16
-24 UNF - 2A THD
48
METAL-CASE SUBMINIATURE 10 AMPERE
THRU-PASS PAPER CAPACITORS
STANDARD RATINGS
μF
0.047
0.10
0.22
0.47
1.00
0.047
0.10
0.22
0.47
0.047
0.10
0.22
0.47
0.0010
0.0047
0.010
0.047
0.10
0.22
0.47
Catalog No.*
Tab. Term
103P473X0200T
103P104X0200T
103P224X0200T
103P474X0200T
103P105X0200T
103P473X0300T
103P104X0300T
103P224X0300T
103P474X0300T
103P473X0400T
103P104X0400T
103P224X0400T
103P474X0400T
103P102X0600T
103P472X0600T
103P103X0600T
103P473X0600T
103P104X0600T
103P224X0600T
103P474X0600T
Wire Lead
103P473X0200S
103P104X0200S
103P224X0200S
103P474X0200S
103P105X0200S
103P473X0300S
103P104X0300S
103P224X0300S
103P474X0300S
103P473X0400S
103P104X0400S
103P224X0400S
103P474X0400S
103P102X0600S
103P472X0600S
103P103X0600S
103P473X0600S
103P104X0600S
103P224X0600S
103P474X0600S
D
200 VDC
0.400
0.400
0.562
0.562
0.750
300 VDC
0.400
0.400
0.562
0.670
400 VDC
0.400
0.562
0.562
0.750
600 VDC
0.400
0.400
0.400
0.400
0.562
0.670
0.750
Inches
L
0.875
1.125
1.125
1.875
2.125
1.125
1.375
1.375
1.875
1.375
1.125
1.875
2.125
0.750
0.750
0.750
1.375
1.375
1.875
2.375
D
10.16
10.16
14.27
14.27
19.05
10.16
10.16
14.27
17.02
10.16
14.27
14.27
19.05
10.16
10.16
10.16
10.16
14.27
17.02
19.05
Millimeters
L
22.23
28.58
28.58
47.53
53.96
28.58
34.83
34.83
47.83
34.93
28.58
47.83
53.98
19.05
19.05
19.05
34.93
34.93
47.83.
60.32
*The catalog numbers given are for capacitance tolerance of ± 20%. To specify ± 10% tolerance, change X0 to X9. Mounting hardware furnished unassembled.

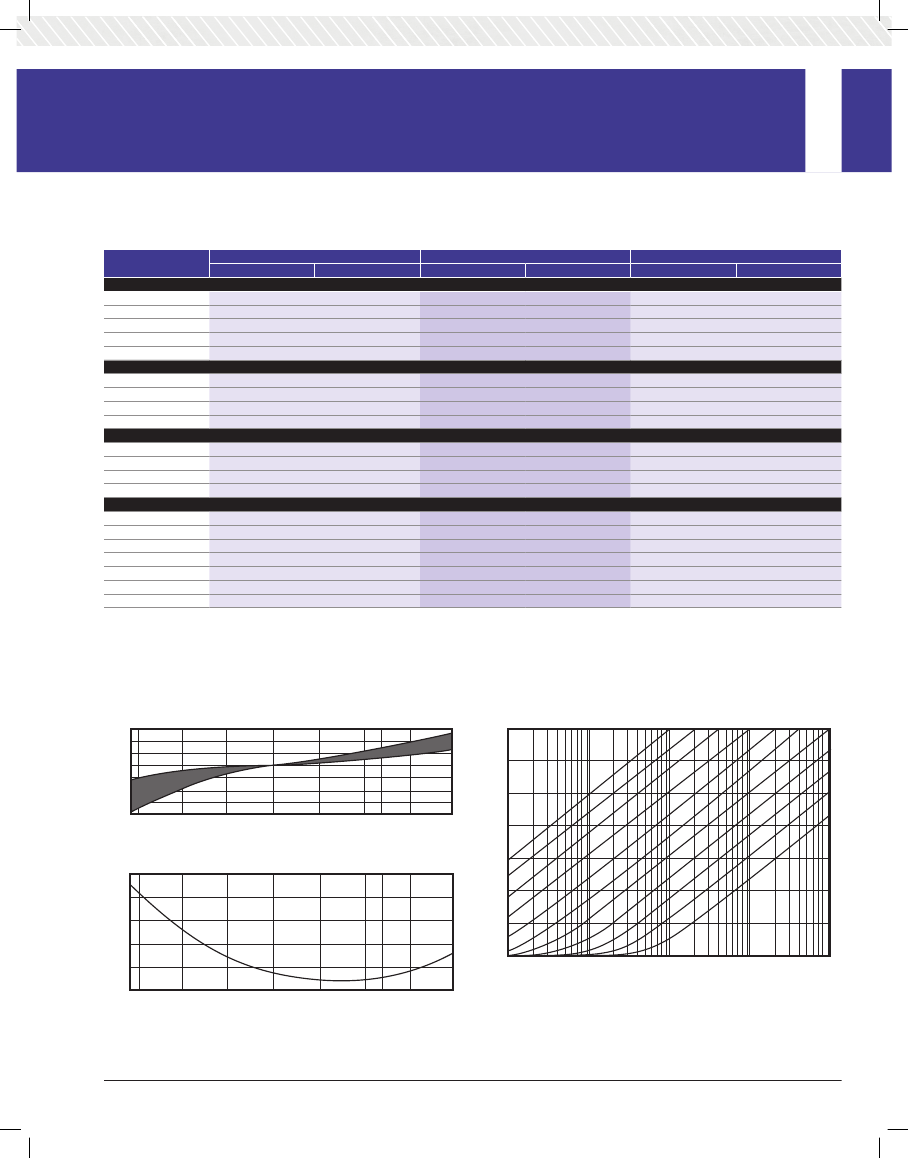

ELECTRICAL CHARACTERISTICS VS. TEMPERATURE
% Capaticance Change - 1000Hz
-55
+4
+2
0
-2
-4
-6
-8
-25
0
Temperature (°C)
+25
% Dissipation Factor - 1000Hz
INSERTION LOSS CHARACTERISTICS
FOR IDEAL CAPACITORS
2.5
+125
2.0
70
1.5
+50
+75 +85
+100
60
1.0
0.5
50
0
-55
-25
2.0
µF
1.
F
0µ
0.4
7µ
F
0.2
2µ
F
0.
TYPICAL
Insertion Loss (dB)
Capacitance Change Envelope For 95% Confidence Level
40
0
+25
F
1µ
0.0
µ
47
F
22
µF
0.0
1µ
F
7µ
F
+50
+75 +85
+100
Temperature (°C)
30
0.0
% Dissipation Factor - 1000Hz
2.5
2.0
1.5
1.0
TYPICAL
20
0.0
04
85
+100
+125
0.0
02
2µ
F
µ
01
F
10
0.0
0.5
0
0
0.1
1.0
10
100
Frequency (MHz)
-55
-25
0
+25
+50
+75 +85
+100
+125
These capacitors are designed to meet all the electrical, mechanical, and environmental requirements of Military Specification MIL-PRF-11693.
The insertion loss of such capacitors is defined by this military specification as follows. “...the insertion loss shall be not more than 6 decibels
(dB) permissible dips below the value shown on the graph above for an ideal capacitor of the same nominal capacitance value, when tested at
frequencies from 0.15 megahertz (MHz) up to that frequency at which the insertion loss of the capacitor under test becomes 60 dB; at all higher
frequencies, up to 1,000MHz, the insertion loss shall not fall below 60 dB. Deviations in the nature of dips in the curve will be permitted; such dips
indicate a drop in insertion loss below that of an ideal capacitor followed by a rise in insertion loss, as frequency is increased, faster than the rise
that is characteristic of an ideal capacitor. Such dips are characteristic of all extended foil capacitors.”
Temperature (°C)
TYPE 103P
+125
1,000
49
