1SS222-A

Description
0.1A, SILICON, SIGNAL DIODE, MINIMOLD PACKAGE-3
CategoryDiscrete semiconductor    diode
File Size208KB,4 Pages
ManufacturerRenesas Electronics Corporation
Websitehttps://www.renesas.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

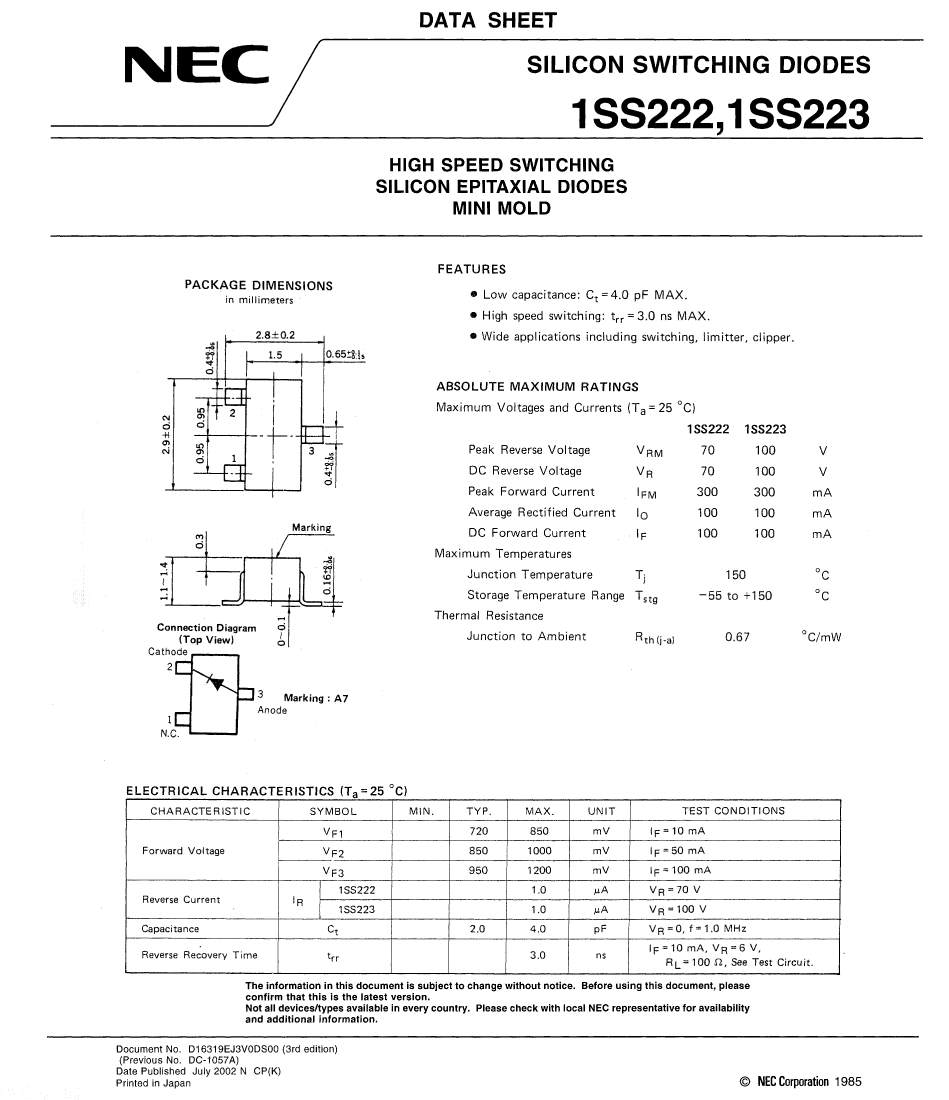

1SS222-A Overview

0.1A, SILICON, SIGNAL DIODE, MINIMOLD PACKAGE-3

1SS222-A Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerRenesas Electronics Corporation
package instructionR-PDSO-G3
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1 V
JESD-30 codeR-PDSO-G3
JESD-609 codee6
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Maximum output current0.1 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Certification statusNot Qualified
Maximum repetitive peak reverse voltage70 V

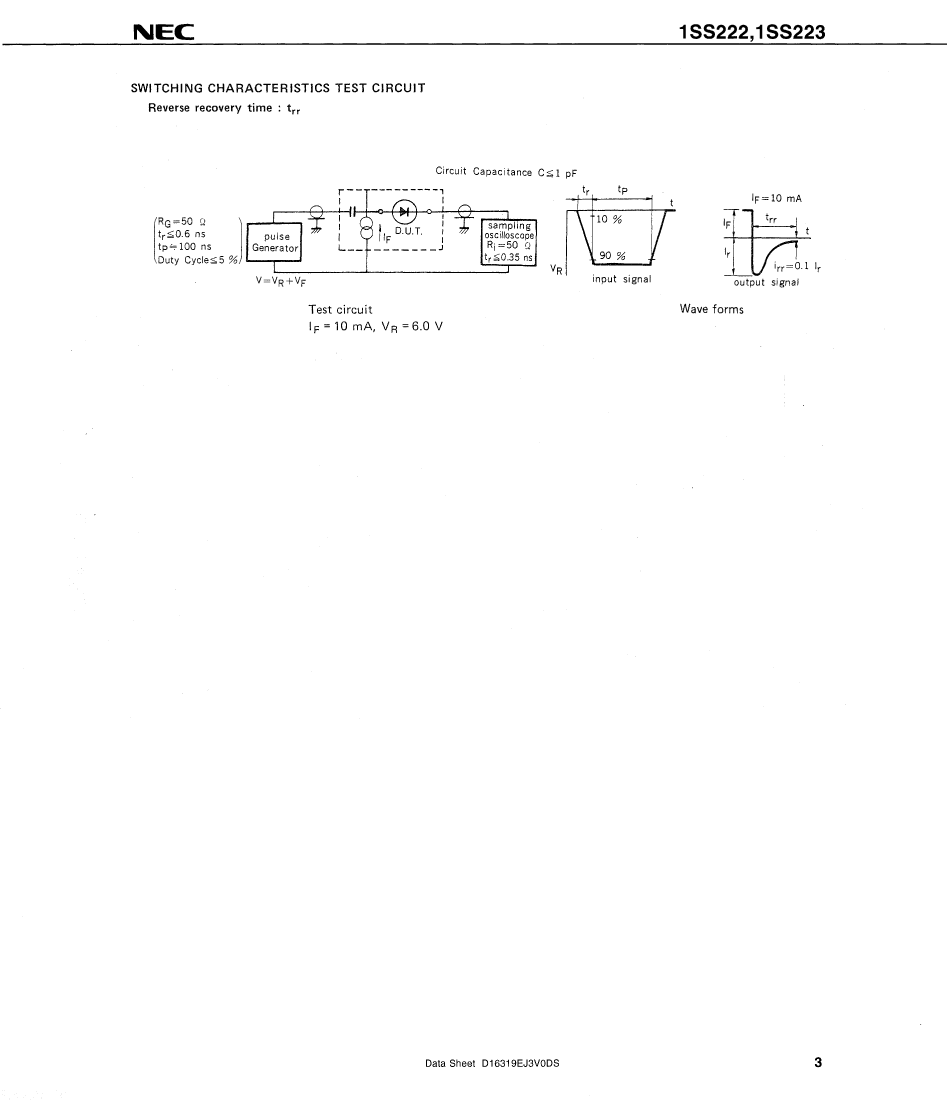

Maximum reverse recovery time0.003 µs
surface mountYES
Terminal surfaceTin/Bismuth (Sn98Bi2)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1

1SS222-A Related Products

1SS222-A 1SS223-A
Description 0.1A, SILICON, SIGNAL DIODE, MINIMOLD PACKAGE-3 0.1A, SILICON, SIGNAL DIODE, MINIMOLD PACKAGE-3
Is it lead-free? Lead free Lead free
Is it Rohs certified? conform to conform to
Maker Renesas Electronics Corporation Renesas Electronics Corporation
package instruction R-PDSO-G3 R-PDSO-G3
Contacts 3 3
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Is Samacsys N N
Configuration SINGLE SINGLE
Diode component materials SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 1 V 1 V
JESD-30 code R-PDSO-G3 R-PDSO-G3
JESD-609 code e6 e6
Number of components 1 1
Number of terminals 3 3
Maximum operating temperature 150 °C 150 °C
Maximum output current 0.1 A 0.1 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 260 260
Certification status Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 70 V 100 V
Maximum reverse recovery time 0.003 µs 0.003 µs
surface mount YES YES
Terminal surface Tin/Bismuth (Sn98Bi2) Tin/Bismuth (Sn98Bi2)
Terminal form GULL WING GULL WING
Terminal location DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
Base Number Matches 1 1
