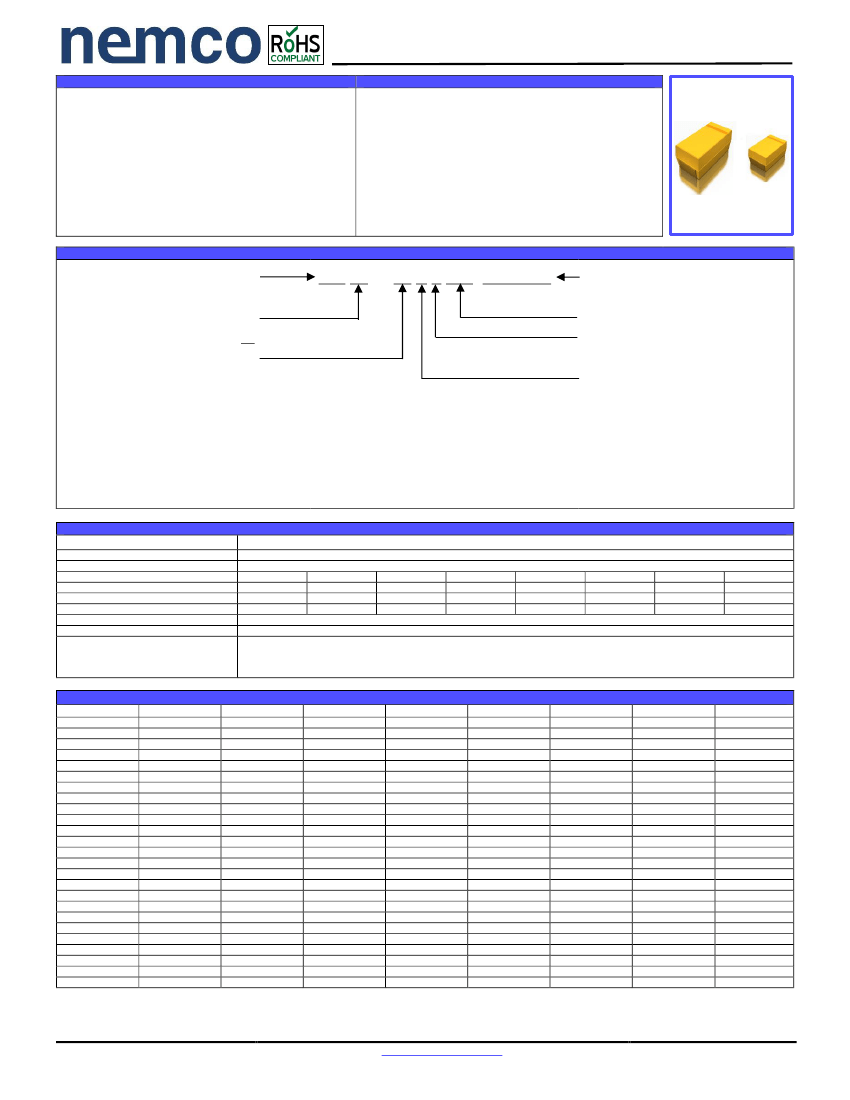

LOW EQUIVALENT SERIES RESISTANCE TANTALUM CAPACITORS
FEATURES
-
-
-
-
-
-
-
-
Very Low Equivalent Series Resistance (ESR), Ideal for
Power Supplies
High ripple and current capability
Meets or Exceeds EIA 535 BAAC and IECQ standards
(QC300801/US001, IS-28)
Pre-conditioned, surge current tested for maximum
robustness
Capacitance range: 0.1μF to 1500μF
Voltage range: 4 to 50 WVDC
Down sized, extended range values
Low profile sizes: XL, AL, BL, CL, DL
-
-
-
-
-
-
-
Operating Temperature range -55°C to +125°C
Precision molded case with flat surfaces for vacuum
pick-up
Laser marking and bold videcon
–
readable polarity
Compliant terminations
Glue pad on underside for bonding to circuit board prior
to soldering
Encapsulant material satisfies the UL 94 V0 flammability
classification
MSL (moisture sensitivity level) per IPC/Jedec J-STD-
020B is level 1
PART NUMBERING GUIDE
SERIES TYPE
LSR 10 / 35 D K 300 (optional)
OPTIONAL
-13 = 13 inch diameter Tape & Reel
<blank> = 7 inch standard Tape & Reel
MAXIMUM ESR in milliohms
TOLERANCE
M = (±20%)
K = (±10%)
CASE SIZE
A (3216-18)
B (3528-21)
C (6032-28)
D (7343-31)
H (7343-43)
Z (7361-38)
XL (2012-12) Low Profile
AL (3216-12) Low Profile
BL (3528-12) Low Profile
CL (6032-15) Low Profile
DL (7343-20) Low Profile
CAPACITANCE
in microfarads (µF)
Ex. 0.68µF would be .68
VOLTAGE
4
6(6.3)
10
16
20
25
35
50
ELECTRICAL SPECIFICATION
Technical Data:
Capacitance Range
Capacitance Tolerance
Rated Voltage DC (V
R
)
Category Voltage DC (V
C
)
Surge Voltage (V
S
)
Surge Voltage (V
S
)
Temperature Range
Reliability
Qualifications
All technical data relate to an ambient temperature of +25°C
0.10µF to 1500µF
±10% (K); ±20% (M)
4
6.3
10
16
20
25
35
2.7
4
7
10
13
17
23
5.2
8
13
20
26
32
46
3.2
5
8
13
16
20
28
-55°C to +125°C
with 2/3 Vr (linear derating) required for operation above +85°C
Level M (1% per 1000 hours at rated voltage (V
R
), rated temperature (85°C)
and 0.1Ω/volt circuit impedance.
Fixed Tantalum Specifications: EIA 525BAAC and IECQ standards (QC300801/US001, IS-28)
Solder-ability: Sn Plated Terminations
–
meets requirements of IEC 68 2.20 test Ta and MIL-STD=202, Method 208
MSL (moisture sensitivity level): Level 1 of IPC/Jedec J-STD-020B
≤+85°C
≤+125°C
≤+85°C
≤+125°C
50
33
65
40
CASE SIZE CROSS REFERENCE: CAPACITANCE AND VOLTAGE RATING (
Rated Voltage DC@ 85°C
)
Cap
(μF)
4V
6.3V
10V
16V
20V
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10.0
15.0
22.0
33.0
47.0
68.0
100.0
150.0
220.0
330.0
470.0
680.0
1000.0
1500.0
25V
35V
A
A
A,B
A
A,B
A
A,B,C
B,C
B,C,D
C,D
D,DL,H
C,D,DL
D,DL,H
D,H,Z
H,Z
Z
50V
A
A
C
C
C
D
D
D
D
D,H
H,Z
H
A
XL
XL
AL
A
A,BL,XL
A
A,AL,B
B,BL
A,B, BL,C
B,C, CL
B,C,CL,DL
C,D,DL
C,D,DL,H
C,D,DL,H,Z
D,DL,H,Z
H,Z
H,Z
A
BL
A,XL
A,BL
A,AL,BL
A,B,BL
A,B,BL,C
A,B,C,CL
B,C,CL,D
B,C,CL,D,DL
B,C,CL,D,DL,H
D,DL,H
D,DL,H
D,H,Z
H,Z
A,BL
A
B
A,B
A,B,BL,C,CL
B
B,C,CL
B,C,CL,D,DL
C,CL,D,DL
C,D,DL
C,D,DL,H
D,DL,H,Z
H,Z
H
A,AL,BL,XL
A
A
A,B
A,B,C
B,C,CL
B,C
B,C,D
C,D
D,H
D,H
D.H.Z
H,Z
A,XL
A
A,B
B
A,B
B
B,C
C,D
C,D
D,DL,H
D,H
H,Z
H,Z
Z
XL
A
B,CL
C
D,DL
C,D
D,H
D,H
D,H,Z
H,Z
142 Technology Dr., Suite 150
Irvine, CA 92618
www.nemcocaps.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
REV. 08/14/17
Telephone • 949.336.5500
Facsimile
•
949.336.5501
LSR SERIES
LOW EQUIVALENT SERIES RESISTANCE TANTALUM CAPACITORS

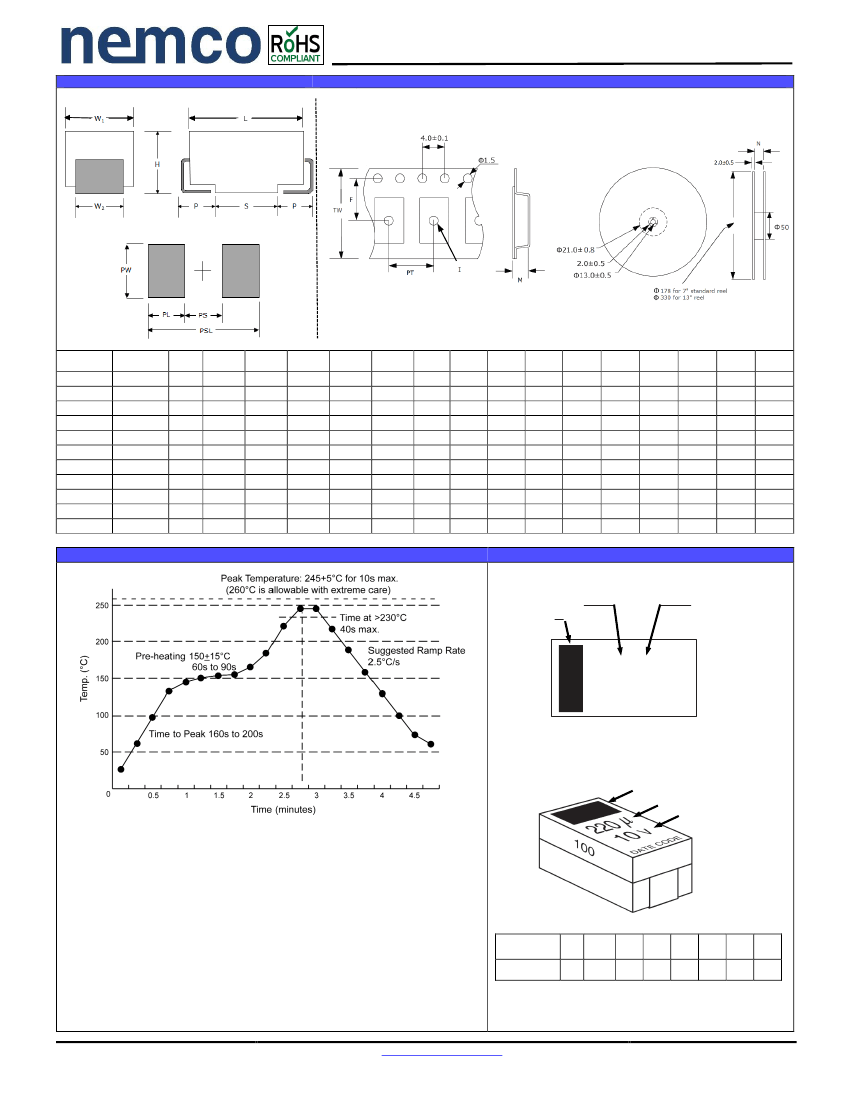

OUTLINE DRAWING AND PAD PRINT
TAPE AND REEL DIMENSION
(3) 0805 Footprint Compatible
(4) 1206 Footprint Compatible
NOTE: Dimensions in millimeters (mm)
NEMCO
Size
A
(4)
B
C
D
H
Z
XL
(3)
AL
(4)
BL
CL
DL
EIA
Size
3216-18
3528-21
6032-28
7343-31
7343-43
7361-38
2012-12
3216-12
3528-12
6032-15
7343-20
L
W
1
W
2
P
S
Min.
1.10
1.40
2.90
4.40
4.40
4.40
0.85
1.10
1.40
2.90
4.40
TW
8
8
12
12
12
12
8
8
8
8
8
N
F
±0.2
± 0.2
(MAX)
H
± 0.1
±0.3
PSL
3.8
4.0
6.5
8.0
8.0
8.0
2.7
3.8
4.0
6.5
8.0
PL
1.4
1.4
2.0
2.0
2.0
2.0
1.0
1.4
1.4
2.0
2.0
PS
1.0
1.2
2.5
4.0
4.0
4.0
0.8
1.0
1.2
2.5
4.0
PW
1.8
2.8
2.8
3.0
3.0
3.7
1.6
1.8
2.8
2.8
3.0
±0.3
(Pitch)
PT
4
4
8
8
8
8
4
4
4
4
4
(MAX)
M
I
1.0
1.0
1.5
1.5
1.5
1.5
1.0
1.0
1.0
1.0
1.0
±1
±0.05
3.2
3.5
6.0
7.3
7.3
7.3
2.05
3.2
3.5
6.0
7.3
1.6
2.8
3.2
4.3
4.3
6.1
1.3
1.6
2.8
3.2
4.3
1.6
1.9
2.6
2.9
4.1
3.45
1.2
1.2
1.2
1.5
2.0
1.2
2.2
2.2
2.4
2.4
3.1
1.2
1.2
2.2
2.2
2.4
0.8
0.8
1.3
1.3
1.3
1.4
0.5
0.8
0.8
1.3
1.3
2.3
2.6
3.3
3.6
4.8
4.8
1.9
1.9
1.9
1.9
1.7
9.5
9.5
13
13
13
13
9.5
9.5
9.5
9.5
9.5
3.5
3.5
5.5
5.5
5.5
5.5
3.5
3.5
3.5
3.5
3.5
REFLOW PROFILE
MARKING
Case Sizes: XL, A, AL, B, BL
Voltage Code
Polarity (+)
Capacitance with μ
representing decimal
C4µ7
DATE CODE
C4µ7 = 4.7 µfd / 16V
Case Sizes: C, CL, D, DL, H, Z
Polarity (+)
Capacitance
Voltage
Tantalum capacitors are lead-free system compatible system components, meeting the
requirements of J-STD-020 standard. Maximum peak temperature 260°C for 10 seconds
maximum, 3 reflow cycles.
There are several important general soldering considerations for tantalum capacitors.
•
•
•
•
Soldering temperature and time should be the minimum for a good connection.
Recommended
soldering profiles are designed to insure that the temperature of the internal
construction of the capacitors does not exceed +220°C.
Positioning capacitors near components radiating heat such as power transistors should be
avoided.
Allow for an increase to ESR ratings of 1.25 x catalog limit post PCB assembly.
Voltage
VDC
Voltage
Code
4V
G
6.3V
J
10V
A
16V
C
20V
D
25V
E
35V
V
50V
T
NEMCO reserves the right to supply a higher voltage rating,
tighter tolerance and/or lower ESR in the same case size, to the
same reliability standards.
142 Technology Dr., Suite 150
Irvine, CA 92618
www.nemcocaps.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
REV. 08/14/17
Telephone • 949.336.5500
Facsimile
•
949.336.5501
LSR SERIES
LOW EQUIVALENT SERIES RESISTANCE TANTALUM CAPACITORS
RATINGS AND PART NUMBER REFERENCE
4 V DC @ 85°C
Capacitance
(μF)
10.0
47.0
100.0
100.0
100.0
100.0
100.0
150.0
150.0
150.0
220.0
220.0
220.0
220.0
220.0
220.0
330.0
330.0
330.0
330.0
330.0
470.0
470.0
470.0
470.0
470.0
470.0
470.0
680.0
680.0
680.0
680.0
680.0
680.0
680.0
680.0
680.0
1000.0
1000.0
1000.0
1000.0
1000.0
1000.0
1000.0
1000.0
1000.0
1000.0
1000.0
1500.0
1500.0
1500.0
1500.0
1500.0
(2.7 V DC @ 125°C)
Case
Size
XL
A
B
B
B
B
CL
B
C
C
D
D
D
DL
DL
DL
C
D
D
D
D
D
D
D
D
H
H
H
D
D
D
D
H
H
H
H
H
D
D
H
H
H
H
Z
Z
Z
Z
Z
H
H
H
Z
Z
ESR
@ 100kHz
max. (mΩ)
3000
500
200
250
350
500
100
250
70
80
40
50
100
40
50
75
100
25
35
45
100
25
35
45
100
35
45
100
25
45
60
100
18
23
40
60
100
25
45
18
23
40
60
18
25
35
40
50
15
50
75
50
75
Nemco Part No.
LSR10
LSR47
LSR100
LSR100
LSR100
LSR100
LSR100
LSR150
LSR150
LSR150
LSR220
LSR220
LSR220
LSR220
LSR220
LSR220
LSR330
LSR330
LSR330
LSR330
LSR330
LSR470
LSR470
LSR470
LSR470
LSR470
LSR470
LSR470
LSR680
LSR680
LSR680
LSR680
LSR680
LSR680
LSR680
LSR680
LSR680
LSR1000
LSR1000
LSR1000
LSR1000
LSR1000
LSR1000
LSR1000
LSR1000
LSR1000
LSR1000
LSR1000
LSR1500
LSR1500
LSR1500
LSR1500
LSR1500
/ 4XL _ 3000
/ 4A
_ 500
/ 4B
_ 200
/ 4B
_ 250
/ 4B
_ 350
/ 4B
_ 500
/ 4CL _ 100
/ 4B
_ 250
/ 4C
_ 70
/ 4C
_ 80
/ 4D
_ 40
/ 4D
_ 50
/ 4D
_ 100
/ 4DL _ 40
/ 4DL _ 50
/ 4DL _ 75
/ 4C
_ 100
/ 4D
_ 25
/ 4D
_ 35
/ 4D
_ 45
/ 4D
_ 100
/ 4D
_ 25
/ 4D
_ 35
/ 4D
_ 45
/ 4D
_ 100
/ 4H
_ 35
/ 4H
_ 45
/ 4H
_ 100
/ 4D
_ 25
/ 4D
_ 45
/ 4D
_ 60
/ 4D
_ 100
/ 4H
_ 18
/ 4H
_ 23
/ 4H
_ 40
/ 4H
_ 60
/ 4H
_ 100
/ 4D
_ 25
/ 4D
_ 45
/ 4H
_ 18
/ 4H
_ 23
/ 4H
_ 40
/ 4H
_ 60
/ 4Z
_ 18
/ 4Z
_ 25
/ 4Z
_ 35
/ 4Z
_ 40
/ 4Z
_ 50
/ 4H
_ 15
/ 4H
_ 50
/ 4H
_ 75
/ 4Z
_ 50
/ 4Z
_ 75
DCL
(μA) max
0.5
1.9
4.0
4.0
4.0
4.0
4.0
6.0
6.0
6.0
8.8
8.8
8.8
8.8
8.8
8.8
13.2
13.2
13.2
13.2
13.2
18.8
18.8
18.8
18.8
18.8
18.8
18.8
27.2
27.2
27.2
27.2
27.0
27.0
27.2
27.2
27.2
40.0
40.0
40.0
40.0
40.0
40.0
40.0
40.0
40.0
40.0
40.0
40.0
60.0
60.0
60.0
60.0
tan
δ
max. (%)
6
8
8
8
8
8
6
10
6
6
8
8
8
8
8
8
8
8
8
8
8
8
8
12
12
10
10
10
8
14
14
14
6
6
14
14
14
8
8
6
6
14
14
6
16
16
16
16
6
30
30
30
30
Max. Ripple Current
@100kHz mA (milliamps)
25°C
135
387
652
583
493
412
949
583
1254
1173
1936
1732
1225
1768
1581
1291
1049
3194
2699
1826
1225
3194
2699
1826
1225
2171
1915
1285
3194
1915
1581
1225
3873
3426
2031
1658
1285
3194
2380
3873
3426
2031
1658
3979
3162
2673
2500
2236
4243
1817
1483
2236
1826
85°C
122
349
587
525
444
371
854
525
1128
1055
1743
1559
1102
1591
1423
1162
944
2874
2429
1643
1102
2874
2429
1643
1102
1954
1723
1156
2874
1643
1423
1102
3486
3084
1828
1492
1156
2874
2142
3486
3084
1828
1492
3581
2846
2405
2250
2012
3818
1635
1335
2012
1643
125°C
54
155
261
233
197
165
379
233
501
469
775
693
490
707
632
516
420
1277
1080
730
490
1277
1080
730
490
868
766
514
1277
730
632
490
1549
1370
812
663
514
1277
952
1549
1370
812
663
1592
1265
1069
1000
894
1697
727
593
894
730
6 V DC @ 85°C
Capacitance
(μF)
2.2
4.7
6.8
10.0
10.0
10.0
10.0
10.0
15.0
15.0
22.0
22.0
22.0
22.0
22.0
33.0
33.0
33.0
33.0
33.0
(4 V DC @ 125°C)
Case
Size
XL
AL
A
A
BL
XL
XL
XL
A
A
A
A
AL
B
B
A
B
B
B
B
ESR
@ 100kHz
max. (mΩ)
7000
4000
1800
1500
1000
1000
1500
3000
700
1500
500
900
900
375
600
600
250
350
450
600
Nemco Part No.
LSR2.2
LSR4.7
LSR6.8
LSR10
LSR10
LSR10
LSR10
LSR10
LSR15
LSR15
LSR22
LSR22
LSR22
LSR22
LSR22
LSR33
LSR33
LSR33
LSR33
LSR33
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
6XL
6AL
6A
6A
6BL
6XL
6XL
6XL
6A
6A
6A
6A
6AL
6B
6B
6A
6B
6B
6B
6B
_ 7000
_ 4000
_ 1800
_ 1500
_ 1000
_ 1000
_ 1500
_ 3000
_ 700
_ 1500
_ 500
_ 900
_ 900
_ 375
_ 600
_ 600
_ 250
_ 350
_ 450
_ 600
DCL
(μA) max
0.5
0.5
0.5
0.6
0.6
0.6
0.6
0.6
0.9
0.9
1.4
1.4
1.4
1.4
1.4
2.1
2.1
2.1
2.1
2.1
tan
δ
max. (%)
6
6
6
6
6
8
8
8
6
6
6
6
10
6
6
8
6
6
6
6
25°C
89
127
204
224
283
235
191
135
327
224
387
289
269
476
376
353
583
493
435
376
Max. Ripple Current
@100kHz mA (milliamps)
85°C
80
115
184
201
255
211
172
122
295
200
349
260
242
428
339
318
525
444
391
339
125°C
35
51
82
89
113
94
77
54
131
89
155
115
107
190
151
141
233
197
174
151
CONT”D ON NEXT PAGE
Insert tolerance M(±20%) or K(±10%) to complete the Nemco part number
NEMCO reserves the right to supply a higher voltage rating, tighter tolerance and/or lower ESR in the same case size, to the same reliability standards.
142 Technology Dr., Suite 150
Irvine, CA 92618
www.nemcocaps.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
REV. 08/14/17
Telephone • 949.336.5500
Facsimile
•
949.336.5501
LSR SERIES
LOW EQUIVALENT SERIES RESISTANCE TANTALUM CAPACITORS
RATINGS AND PART NUMBER REFERENCE
6 V DC @ 85°C
Capacitance
(μF)
33.0
47.0
47.0
47.0
47.0
47.0
47.0
68.0
68.0
68.0
68.0
68.0
68.0
68.0
68.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
150.0
150.0
150.0
150.0
150.0
150.0
150.0
150.0
150.0
220.0
220.0
220.0
220.0
220.0
220.0
220.0
220.0
220.0
220.0
220.0
330.0
330.0
330.0
330.0
330.0
330.0
330.0
330.0
330.0
330.0
330.0
330.0
330.0
330.0
330.0
470.0
470.0
470.0
470.0
470.0
470.0
470.0
470.0
470.0
470.0
470.0
470.0
(4 V DC @ 125°C)
CONT’D
Case
Size
BL
A
B
B
B
BL
C
B
B
B
C
C
CL
CL
CL
B
B
C
C
CL
CL
DL
C
C
C
C
C
D
D
DL
DL
C
C
C
C
D
D
D
DL
DL
DL
H
C
C
D
D
D
D
D
D
DL
DL
H
H
H
H
Z
D
D
D
D
DL
H
H
H
H
H
H
H
ESR
@ 100kHz
max. (mΩ)
800
800
250
350
500
1200
300
250
350
500
150
200
110
125
250
250
400
75
150
100
150
100
50
90
150
200
250
50
125
40
50
70
100
125
250
50
100
125
30
100
150
100
80
100
25
35
45
50
70
100
100
150
50
100
125
150
100
45
60
100
200
150
18
23
30
45
50
60
100
Nemco Part No.
LSR33
LSR47
LSR47
LSR47
LSR47
LSR47
LSR47
LSR68
LSR68
LSR68
LSR68
LSR68
LSR68
LSR68
LSR68
LSR100
LSR100
LSR100
LSR100
LSR100
LSR100
LSR100
LSR150
LSR150
LSR150
LSR150
LSR150
LSR150
LSR150
LSR150
LSR150
LSR220
LSR220
LSR220
LSR220
LSR220
LSR220
LSR220
LSR220
LSR220
LSR220
LSR220
LSR330
LSR330
LSR330
LSR330
LSR330
LSR330
LSR330
LSR330
LSR330
LSR330
LSR330
LSR330
LSR330
LSR330
LSR330
LSR470
LSR470
LSR470
LSR470
LSR470
LSR470
LSR470
LSR470
LSR470
LSR470
LSR470
LSR470
/ 6BL _ 800
/ 6A
_ 800
/ 6B
_ 250
/ 6B
_ 350
/ 6B
_ 500
/ 6BL _ 1200
/ 6C
_ 300
/ 6B
_ 250
/ 6B
_ 350
/ 6B
_ 500
/ 6C
_ 150
/ 6C
_ 200
/ 6CL _ 110
/ 6CL _ 125
/ 6CL _ 250
/ 6B
_ 250
/ 6B
_ 400
/ 6C
_ 75
/ 6C
_ 150
/ 6CL _ 100
/ 6CL _ 150
/ 6DL _ 100
/ 6C
_ 50
/ 6C
_ 90
/ 6C
_ 150
/ 6C
_ 200
/ 6C
_ 250
/ 6D
_ 50
/ 6D
_ 125
/ 6DL _ 40
/ 6DL _ 50
/ 6C
_ 70
/ 6C
_ 100
/ 6C
_ 125
/ 6C
_ 250
/ 6D
_ 50
/ 6D
_ 100
/ 6D
_ 125
/ 6DL _ 30
/ 6DL _ 100
/ 6DL _ 150
/ 6H
_ 100
/ 6C
_ 80
/ 6C
_ 100
/ 6D
_ 25
/ 6D
_ 35
/ 6D
_ 45
/ 6D
_ 50
/ 6D
_ 70
/ 6D
_ 100
/ 6DL _ 100
/ 6DL _ 150
/ 6H
_ 50
/ 6H
_ 100
/ 6H
_ 125
/ 6H
_ 150
/ 6Z
_ 100
/ 6D
_ 45
/ 6D
_ 60
/ 6D
_ 100
/ 6D
_ 200
/ 6DL _ 150
/ 6H
_ 18
/ 6H
_ 23
/ 6H
_ 30
/ 6H
_ 45
/ 6H
_ 50
/ 6H
_ 60
/ 6H
_ 100
DCL
(μA) max
2.1
2.8
3.0
3.0
3.0
2.8
3.0
4.0
4.0
4.0
4.3
4.3
4.3
4.3
4.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
9.5
9.5
9.5
9.5
9.5
9.5
9.5
9.5
9.5
13.9
13.9
13.9
13.9
13.9
13.9
13.9
13.2
13.9
13.9
13.9
19.8
19.8
19.8
19.8
20.8
20.8
20.8
20.8
20.8
20.8
20.8
20.8
20.8
20.8
20.8
28.0
28.0
28.0
28.0
28.2
28.0
28.0
28.0
28.0
28.0
28.0
28.0
tan
δ
max. (%)
10
10
6
6
6
10
6
8
8
6
6
6
6
6
6
10
10
6
6
6
6
6
6
6
6
6
6
6
6
6
6
8
8
8
8
8
8
8
6
8
10
8
12
12
8
8
8
8
8
8
12
12
8
8
8
8
8
12
12
12
12
20
6
6
6
10
10
10
10
Max. Ripple Current
@100kHz mA (milliamps)
25°C
316
306
583
493
412
258
606
583
493
412
856
742
905
849
600
583
461
1211
856
949
775
1118
1483
1106
856
742
663
1732
1095
1768
1581
1254
1049
938
663
1732
1225
1095
2646
1118
913
1285
1173
1049
3194
2699
1826
1732
1464
1225
1118
913
1817
1285
1149
1049
1581
1826
1581
1225
866
913
3873
3426
3000
1915
1817
1658
1285
85°C
285
276
525
444
371
232
545
525
444
371
771
667
814
764
540
525
415
1090
771
854
697
1006
1335
995
771
667
597
1559
986
1591
1423
1128
944
844
597
1559
1102
986
2381
1006
822
1156
1055
944
2874
2429
1643
1559
1317
1102
1006
822
1635
1156
1034
944
1423
1643
1423
1102
779
822
3486
3084
2700
1723
1635
1492
1156
125°C
126
122
233
197
165
103
242
233
197
165
343
297
362
339
240
233
184
484
343
379
310
447
593
442
343
297
265
693
438
707
632
501
420
375
265
693
490
438
1058
447
365
514
469
420
1277
1080
730
693
586
490
447
365
727
514
460
420
632
730
632
490
346
365
1549
1370
1200
766
727
663
514
_ Insert tolerance M(±20%) or K(±10%) to complete the Nemco part number
NEMCO reserves the right to supply a higher voltage rating, tighter tolerance and/or lower ESR in the same case size, to the same reliability standards.
142 Technology Dr., Suite 150
Irvine, CA 92618
www.nemcocaps.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
REV. 08/14/17
Telephone • 949.336.5500
Facsimile
•
949.336.5501
LSR SERIES
LOW EQUIVALENT SERIES RESISTANCE TANTALUM CAPACITORS
RATINGS AND PART NUMBER REFERENCE
10 V DC @ 85°C
Capacitance
(μF)
1.0
2.2
3.3
4.7
4.7
4.7
6.8
6.8
10.0
10.0
10.0
10.0
10.0
15.0
15.0
15.0
15.0
22.0
22.0
22.0
22.0
22.0
33.0
33.0
33.0
33.0
33.0
33.0
33.0
33.0
47.0
47.0
47.0
47.0
47.0
47.0
47.0
47.0
47.0
47.0
68.0
68.0
68.0
68.0
68.0
68.0
68.0
68.0
68.0
68.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
100.0
150.0
150.0
150.0
150.0
150.0
150.0
150.0
150.0
220.0
220.0
220.0
220.0
220.0
220.0
(7 V DC @ 125°C)
Case
Size
XL
A
BL
A
XL
XL
A
BL
A
A
AL
BL
BL
A
B
B
BL
A
B
B
B
C
A
B
B
B
B
C
C
C
B
B
B
B
C
C
CL
CL
CL
D
B
C
C
C
C
CL
CL
D
D
DL
B
C
C
C
C
CL
D
D
D
D
D
D
DL
DL
DL
DL
H
D
D
D
DL
DL
DL
DL
H
D
D
D
D
DL
DL
ESR
@ 100kHz
max. (mΩ)
9000
1800
1500
1400
3000
5000
1800
1800
900
1800
900
1000
2000
1000
450
600
1200
900
400
500
700
300
700
250
425
500
650
150
375
500
250
350
500
650
200
350
125
150
250
100
600
80
100
200
300
100
150
100
150
200
400
75
100
150
200
150
50
65
80
100
125
150
45
100
150
200
125
50
85
100
45
100
150
200
100
35
50
100
150
100
150
Nemco Part No.
LSR1
LSR2.2
LSR3.3
LSR4.7
LSR4.7
LSR4.7
LSR6.8
LSR6.8
LSR10
LSR10
LSR10
LSR10
LSR10
LSR15
LSR15
LSR15
LSR15
LSR22
LSR22
LSR22
LSR22
LSR22
LSR33
LSR33
LSR33
LSR33
LSR33
LSR33
LSR33
LSR33
LSR47
LSR47
LSR47
LSR47
LSR47
LSR47
LSR47
LSR47
LSR47
LSR47
LSR68
LSR68
LSR68
LSR68
LSR68
LSR68
LSR68
LSR68
LSR68
LSR68
LSR100
LSR100
LSR100
LSR100
LSR100
LSR100
LSR100
LSR100
LSR100
LSR100
LSR100
LSR100
LSR100
LSR100
LSR100
LSR100
LSR100
LSR150
LSR150
LSR150
LSR150
LSR150
LSR150
LSR150
LSR150
LSR220
LSR220
LSR220
LSR220
LSR220
LSR220
/ 10XL _ 9000
/ 10A _ 1800
/ 10BL _ 1500
/ 10A _ 1400
/ 10XL _ 3000
/ 10XL _ 5000
/ 10A _ 1800
/ 10BL _ 1800
/ 10A _ 900
/ 10A _ 1800
/ 10BL _ 900
/ 10BL _ 1000
/ 10BL _ 2000
/ 10A _ 1000
/ 10B _ 450
/ 10B _ 600
/ 10BL _ 1200
/ 10A _ 900
/ 10B _ 400
/ 10B _ 500
/ 10B _ 700
/ 10C _ 300
/ 10A _ 700
/ 10B _ 250
/ 10B _ 425
/ 10B _ 500
/ 10B _ 650
/ 10C _ 150
/ 10C _ 375
/ 10C _ 500
/ 10B _ 250
/ 10B _ 350
/ 10B _ 500
/ 10B _ 650
/ 10C _ 200
/ 10C _ 350
/ 10CL _ 125
/ 10CL _ 150
/ 10CL _ 250
/ 10D _ 100
/ 10B _ 600
/ 10C _ 80
/ 10C _ 100
/ 10C _ 200
/ 10C _ 300
/ 10CL _ 100
/ 10CL _ 150
/ 10D _ 100
/ 10D _ 150
/ 10DL _ 200
/ 10B _ 400
/ 10C _ 75
/ 10C _ 100
/ 10C _ 150
/ 10C _ 200
/ 10CL _ 150
/ 10D _ 50
/ 10D _ 65
/ 10D _ 80
/ 10D _ 100
/ 10D _ 125
/ 10D _ 150
/ 10DL _ 45
/ 10DL _ 100
/ 10DL _ 150
/ 10DL _ 200
/ 10H _ 125
/ 10D _ 50
/ 10D _ 85
/ 10D _ 100
/ 10DL _ 45
/ 10DL _ 100
/ 10DL _ 150
/ 10DL _ 200
/ 10H _ 100
/ 10D _ 35
/ 10D _ 50
/ 10D _ 100
/ 10D _ 150
/ 10DL _ 100
/ 10DL _ 150
DCL
(μA) max
0.5
0.5
0.5
0.5
0.5
0.5
0.7
0.7
1.0
1.0
1.0
1.0
1.0
1.5
1.5
1.5
1.5
2.2
2.2
2.2
2.2
2.2
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
4.7
4.7
4.7
4.7
4.7
4.7
4.7
4.7
4.7
4.7
6.8
6.8
6.8
6.8
6.8
6.8
6.8
6.8
6.8
6.8
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
22.0
22.0
22.0
22.0
22.0
22.0
tan
δ
max. (%)
4
6
6
6
6
6
6
6
6
6
8
6
6
6
6
6
8
8
6
6
6
6
8
6
6
6
6
6
6
6
8
8
8
8
6
6
6
6
6
6
8
6
6
6
6
6
6
6
6
6
8
8
8
8
8
6
6
6
6
6
6
6
8
6
6
6
6
8
8
8
8
6
6
6
8
8
8
8
8
10
10
Max. Ripple Current
@100kHz mA (milliamps)
25°C
78
204
231
231
135
105
204
211
289
204
269
283
200
274
435
376
258
289
461
412
348
606
327
583
447
412
362
856
542
469
583
493
412
362
742
561
849
775
600
1225
376
1173
1049
742
606
949
775
1225
1000
791
461
1211
1049
856
742
775
1732
1519
1369
1225
1095
1000
2160
1118
913
791
1149
1732
1328
1225
2160
1118
913
791
1285
2699
1732
1225
1000
1118
913
85°C
70
184
208
208
122
94
184
190
260
184
242
255
180
246
391
339
232
260
415
371
314
545
295
525
402
371
325
771
487
422
525
444
371
325
667
505
764
697
540
1102
339
1055
944
667
545
854
697
1102
900
712
415
1090
944
771
667
697
1559
1367
1232
1102
986
900
1944
1006
822
712
1034
1559
1196
1102
1944
1006
822
712
1156
2429
1559
1102
900
1006
822
125°C
31
82
92
93
54
42
82
84
115
82
107
113
80
110
174
151
103
115
184
165
139
242
131
233
179
165
145
343
217
188
233
197
165
145
297
224
339
310
240
490
151
469
420
297
242
379
310
490
400
316
184
484
420
343
297
310
693
608
548
490
438
400
864
447
365
316
460
693
531
490
864
447
365
316
514
1080
693
490
400
447
365
CONT”D ON NEXT PAGE
_ Insert tolerance M(±20%) or K(±10%) to complete the Nemco part number
NEMCO reserves the right to supply a higher voltage rating, tighter tolerance and/or lower ESR in the same case size, to the same reliability standards.
京公网安备 11010802033920号
EEWORLD
