1N3643E3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N3643E3

1N3643E3: DescriptionRectifier Diode, Blank, 1 Element, 0.25A, 1000V V(RRM), Silicon, ROHS COMPLIANT, HERMETIC SEALED, GLASS, S, 2 PIN; CategoryDiscrete semiconductor diode; File Size166KB，6 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1N3643E3 Overview

Rectifier Diode, Blank, 1 Element, 0.25A, 1000V V(RRM), Silicon, ROHS COMPLIANT, HERMETIC SEALED, GLASS, S, 2 PIN

1N3643E3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Microsemi
package instruction	ROHS COMPLIANT, HERMETIC SEALED, GLASS, S, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	HIGH RELIABILITY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	5 V
JESD-30 code	O-LALF-W2
Maximum non-repetitive peak forward current	14 A
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	0.25 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Maximum power dissipation	1.5 W
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

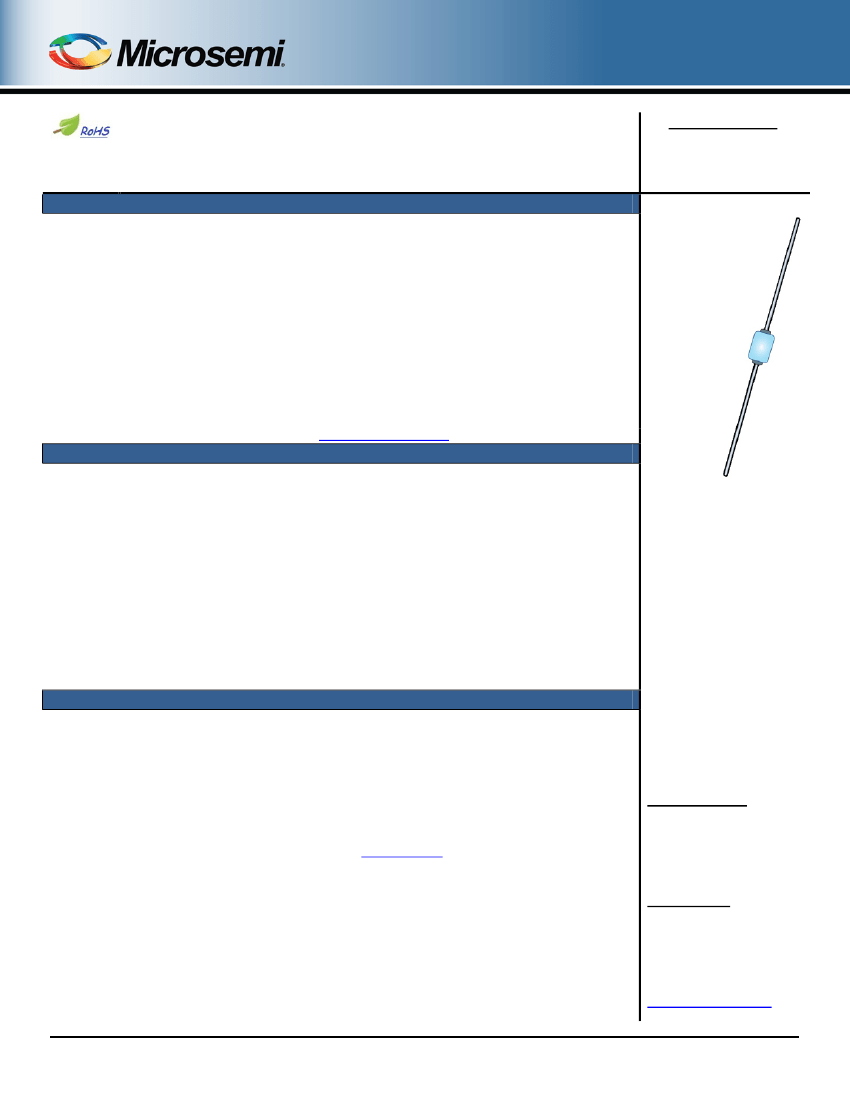

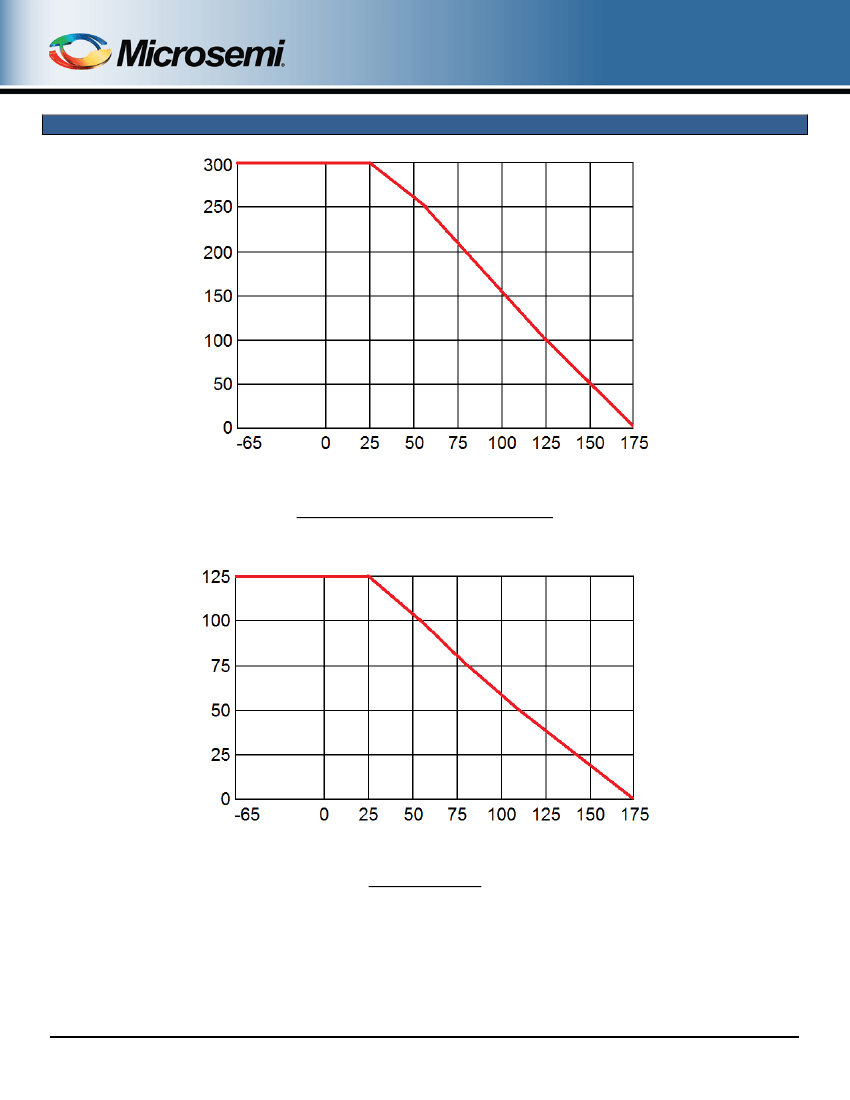

1N3643 - 1N3647, 1N4254 - 1N4257

and 1N5181 - 1N5184

Voidless Hermetically Sealed

High Voltage Rectifier

Qualified per MIL-PRF-19500/279

DESCRIPTION

These “standard recovery” high voltage rectifier diode series are military qualified to MIL-PRF-

19500/279 for the 1N3644 through 1N3647 part numbers. They are ideal for high voltage,

high-reliability applications where a failure cannot be tolerated. These 0.10 and 0.25 Amp

rated rectifiers with working peak reverse voltages from 1000 to 10,000 volts are hermetically

sealed with voidless-glass construction.

Available on

commercial

versions

Qualified Levels:

JAN and JANTX

(1N3644 – 1N3647 only)

Important:

For the latest information, visit our website

http://www.microsemi.com.

FEATURES

•

JEDEC registered 1N3643 – 1N3647, 1N4254 – 1N4257, and 1N5181 – 1N5187 series.

Voidless hermetically sealed glass package.

Triple-layer passivation.

Lowest reverse leakage available.

Absolute high voltage / high temperature stability.

JAN and JANTX qualifications are available only for 1N3644 – 1N3647 per MIL-PRF-19500/279.

RoHS compliant versions available (commercial grade only).

S Package

APPLICATIONS / BENEFITS

•

High voltage standard recovery rectifiers 1000 to 10,000 V.

Military and other high-reliability applications.

Applications include bridges, half-bridges, catch diodes, voltage multipliers,

X-ray machines,

power supplies, transmitters, and radar equipment.

High forward surge current capability.

Extremely robust construction.

Low thermal resistance.

Inherently radiation hard as described in Microsemi

MicroNote 050.

MSC – Lawrence

6 Lake Street,

Lawrence, MA 01841

Tel: 1-800-446-1158 or

(978) 620-2600

Fax: (978) 689-0803

MSC – Ireland

Gort Road Business Park,

Ennis, Co. Clare, Ireland

Tel: +353 (0) 65 6840044

Fax: +353 (0) 65 6822298

Website:

www.microsemi.com

T4-LDS-0266, Rev. 1 (120920)

Page 1 of 6

1N3643E3 Related Products

	1N3643E3	202C2225B102KN	202C2225B682MP	1N3646E3	MC0603X7R123M500NT	RMC1/16SK2802FTH	RMC1/32-391FB	1N4257E3	1210Y2000101KXT	1812A0250394KBR
Description	Rectifier Diode, Blank, 1 Element, 0.25A, 1000V V(RRM), Silicon, ROHS COMPLIANT, HERMETIC SEALED, GLASS, S, 2 PIN	Ceramic Capacitor, Ceramic, 2000V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.001uF, 2225,	Ceramic Capacitor, Ceramic, 2000V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 0.0068uF, 2225,	Rectifier Diode, Blank, 1 Element, 0.25A, 2500V V(RRM), Silicon, ROHS COMPLIANT, HERMETIC SEALED, GLASS, S, 2 PIN	Ceramic Capacitor, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 0.012uF, 0603,	Fixed Resistor, Metal Glaze/thick Film, 0.1W, 28000ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, ROHS COMPLIANT	Fixed Resistor, Metal Glaze/thick Film, 0.03W, 390ohm, 15V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 01005, CHIP	Rectifier Diode, Blank, 1 Element, 0.25A, 3000V V(RRM), Silicon, ROHS COMPLIANT, HERMETIC SEALED, GLASS, S, 2 PIN	Ceramic Capacitor, Multilayer, Ceramic, 200V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0001uF, Surface Mount, 1210, CHIP	Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, BX, 15% TC, 0.39uF, Surface Mount, 1812, CHIP
package instruction	ROHS COMPLIANT, HERMETIC SEALED, GLASS, S, 2 PIN	, 2225	, 2225	ROHS COMPLIANT, HERMETIC SEALED, GLASS, S, 2 PIN	, 0603	CHIP	CHIP	ROHS COMPLIANT, HERMETIC SEALED, GLASS, S, 2 PIN	, 1210	, 1812
Reach Compliance Code	compliant	unknown	unknown	compliant	unknown	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	125 °C	125 °C	175 °C	125 °C	155 °C	125 °C	175 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-55 °C	-55 °C	-65 °C	-55 °C	-55 °C	-55 °C	-65 °C	-55 °C	-55 °C
Package form	LONG FORM	SMT	SMT	LONG FORM	SMT	SMT	SMT	LONG FORM	SMT	SMT
Is it Rohs certified?	conform to	-	-	conform to	-	conform to	conform to	conform to	conform to	incompatible
surface mount	NO	-	-	NO	-	YES	YES	NO	YES	YES
Objectid	-	841593291	841593169	-	842823023	1643185325	992890881	-	262201182	1173141212
size code	-	2225	2225	-	0603	0402	01005	-	1210	1812
Temperature Coefficient	-	15% ppm/°C	15% ppm/°C	-	15% ppm/°C	100 ppm/°C	200 ppm/°C	-	15% ppm/°C	15% ppm/°C
