1SS403
TOSHIBA Diode Silicon Epitaxial Planar Type
1SS403
High Voltage Switching Applications
AEC-Q101 Qualified (Note1)
Two-pin small packages are suitable for higher mounting densities.
Excellent in forward current and forward voltage
characteristics
:
V
F (2)
= 0.90V (typ.)
Fast reverse recovery time
Small total capacitance
:
t
rr
= 60ns (max)
:
C
T
= 1.5pF (typ.)

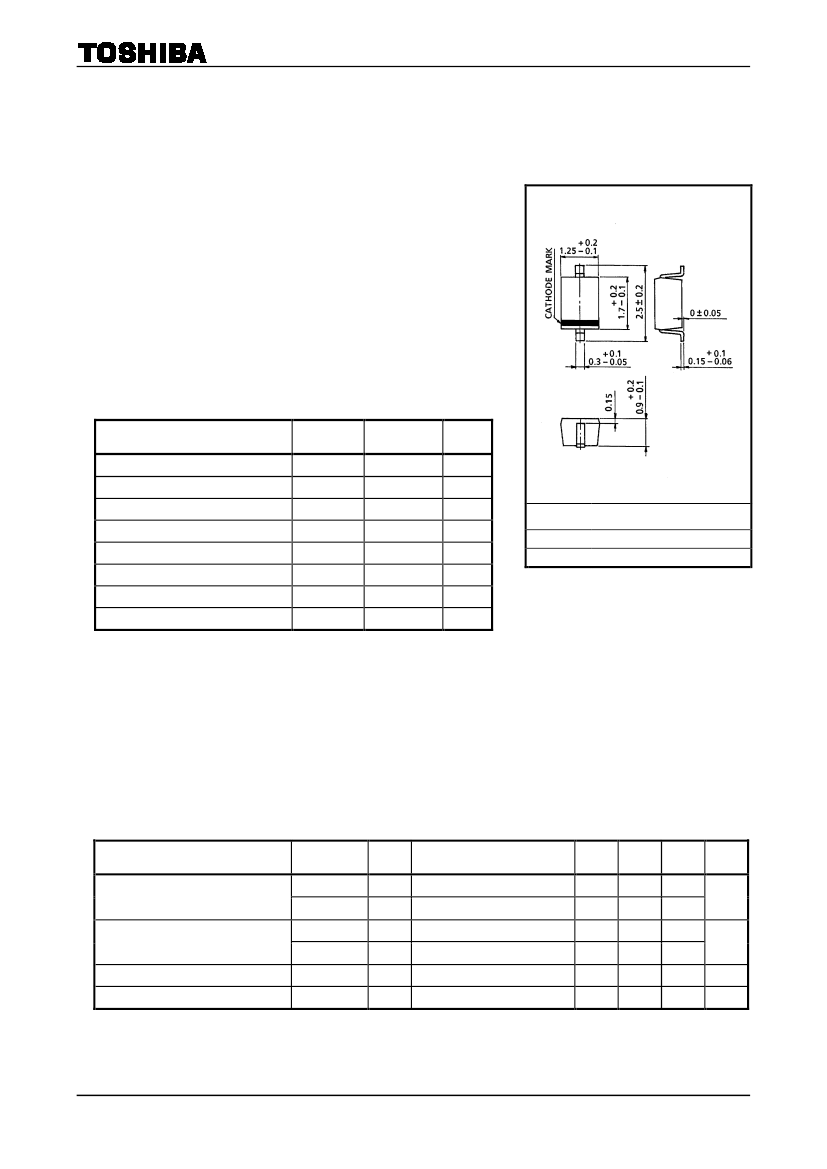

Unit: mm
Note1: For detail information, please contact to our sales.
Absolute Maximum Ratings
(Ta = 25°C)
Characteristic
Maximum (peak) reverse voltage
Reverse voltage
Maximum (peak) forward current
Average forward current
Surge current (10ms)
Power dissipation
Junction temperature
Storage temperature range
Symbol
V
RM
V
R
I
FM
I
O
I
FSM
P
T
j
T
stg
Rating
250
200
300
100
2
200 *
125
−55
to 125
Unit
V
V
mA
mA
A
mW
°C
°C
JEDEC
―
―
JEITA
1-1E1A
TOSHIBA
Weight: 0.0045g (typ.)
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
*: When mounted on a glass epoxy board PCB: 20 mm × 20 mm,
with copper pad 4 mm × 4 mm.

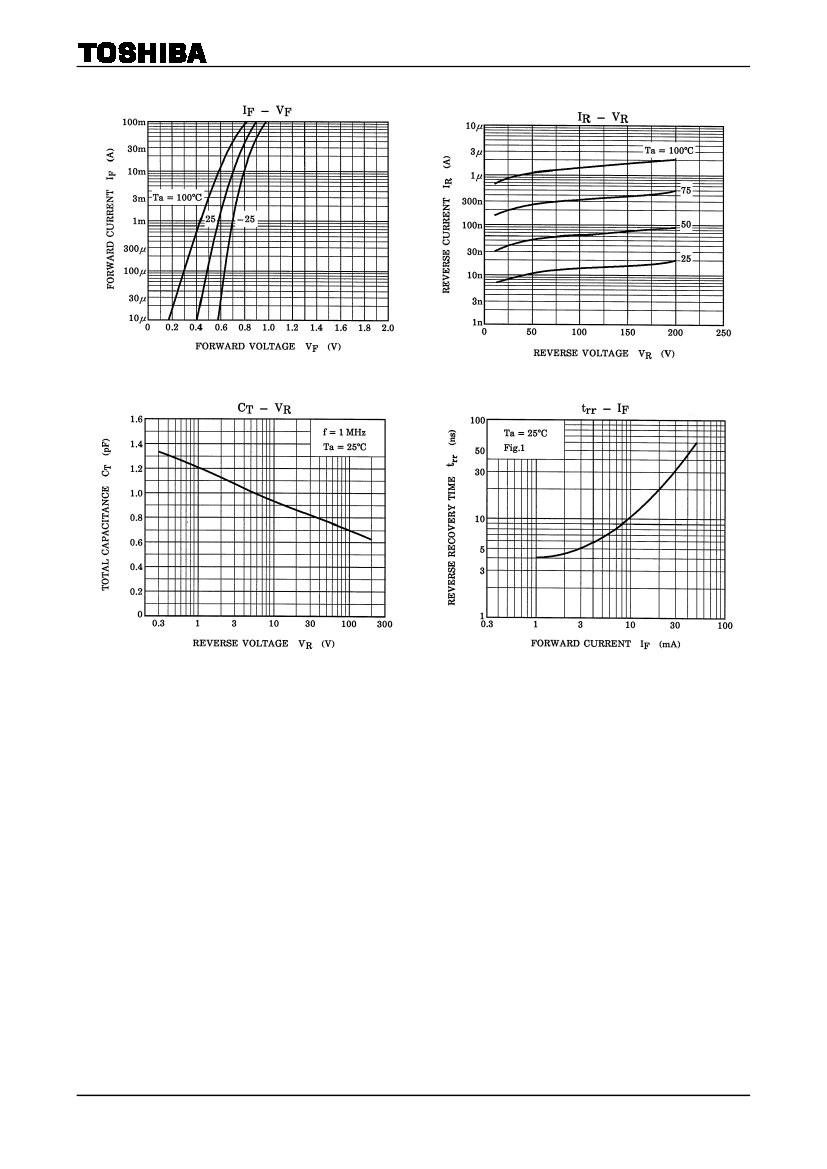

Electrical Characteristics
(Ta = 25°C)
Characteristic
Symbol
V
F (1)
V
F (2)
I
R (1)
Reverse current
I
R (2)
Total capacitance
Reverse recovery time
C
T
t
rr
Test
Circuit
―
―
―
―
―
―
Test Condition
I
F
= 10mA
I
F
= 100mA
V
R
= 50V
V
R
= 200V
V
R
= 0, f = 1MHz
I
F

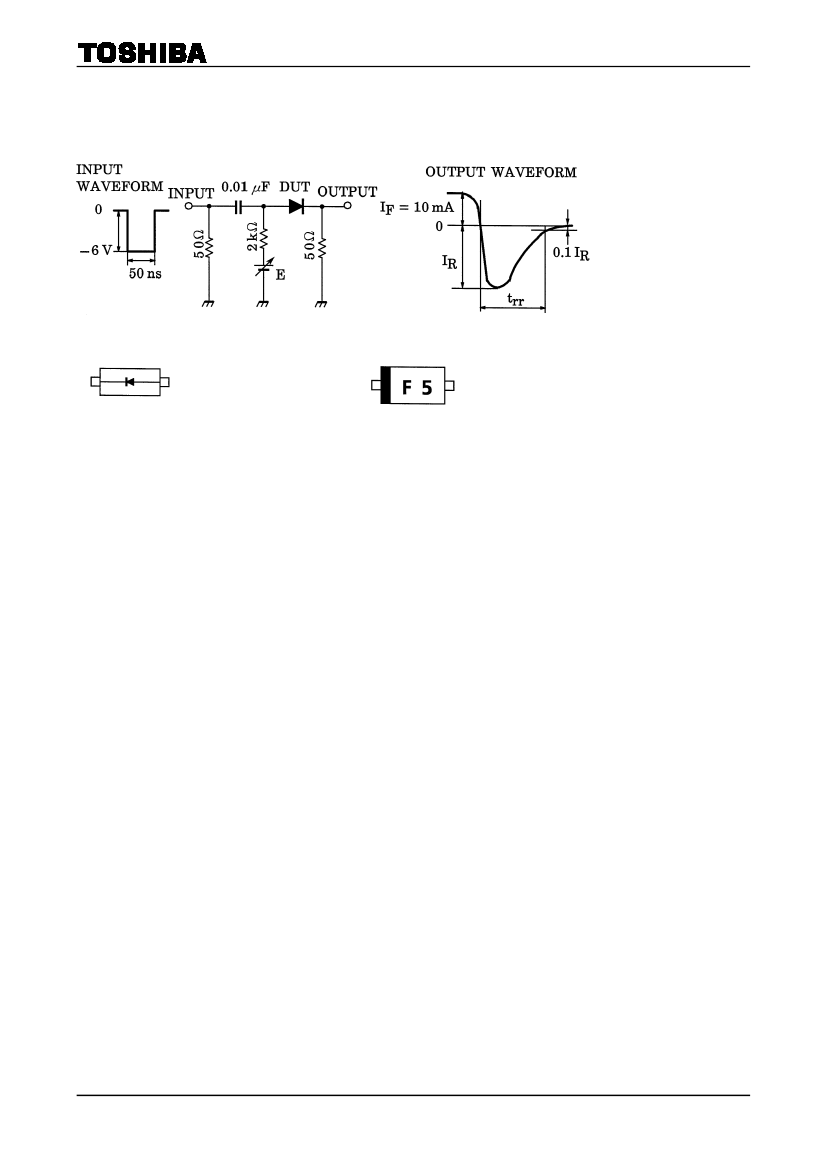

= 10mA (Fig. 1)
Min
―
―
―
―
―
―
Typ.
0.72
0.90
―
―
1.5
10
Max
1.0
V
1.2
0.1
1.0
3.0
60
pF
ns
μA
Unit
Forward voltage
Start of commercial production
1998-10
1
2015-01-09
1SS403
