1-1470360-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-1470360-8

1-1470360-8: DescriptionCONNECTOR, 18 CONTACT(S), FEMALE, STRAIGHT FFC/FPC CONNECTOR, SURFACE MOUNT, LEAD FREE; CategoryThe connector The connector; File Size62KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1-1470360-8 Overview

CONNECTOR, 18 CONTACT(S), FEMALE, STRAIGHT FFC/FPC CONNECTOR, SURFACE MOUNT, LEAD FREE

1-1470360-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
package instruction	LEAD FREE
Reach Compliance Code	unknown
Is Samacsys	N
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	18
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

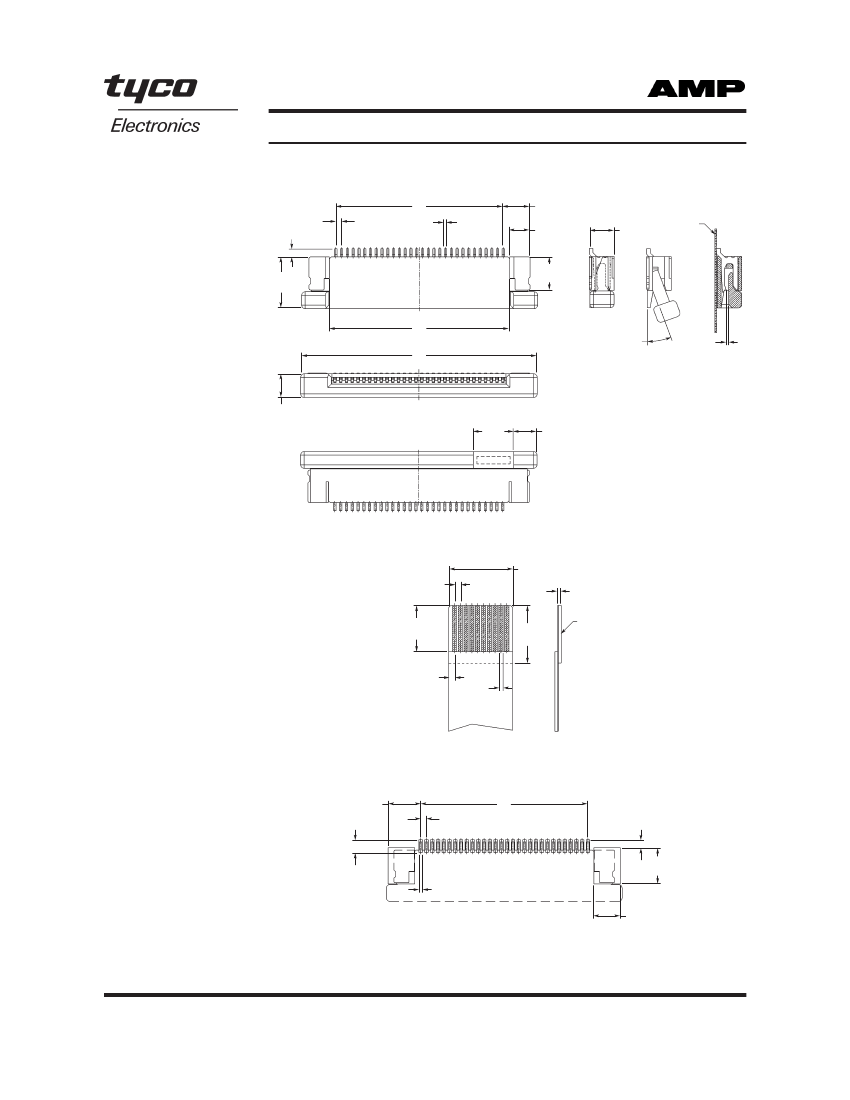

FPC Connector Family

Product Dimensions

(Continued)

0.5 mm, FPC Connector,

SMT, Bottom Contact

Part Number

Lead Free

1470360

1734592

0.70

Typ.

[.028]

0.50

Typ.

[.020]

0.20

Typ.

[.008]

2.31

2 Plcs.

[.091]

1.75

Typ.

[.069]

2.05

[.081]

PCB Board

Material and Finish

Housing

— High temperature thermo-

plastic, UL 94V-O, natural color

Actuator

— Thermoplastic, UL 94V-O,

ivory color

Hold Down

— Phosphor bronze

Contact

— Phosphor bronze

4.40

[.173]

2.80

Typ.

[.110]

20°

Ref.

0.23

[.009]

Technical Documents

Product Specification

— 108-57238

2.00

[.079]

3.50

[.138]

2.00

[.079]

0.50

Typ.

[.020]

0.50

(Pos. + 1)

[.020]

0.30

[.012]

Stiffener

Board

3.50

Min.

[.138]

4.50

Min.

[.177]

0.50

[.020]

0.35

[.014]

Typ.

Recommended FPC Layout

2.82

Typ.

[.111]

0.50

Typ.

[.020]

0.70

Typ.

[.028]

1.10

Typ.

[.043]

3.10

[.122]

0.30

[.012]

2.30

2 Plcs.

[.091]

Recommended PCB Layout

Catalog 1-1773440-6

Revised 05-06

www.tycoelectronics.com

Dimensions are in millimeters

and inches unless otherwise

specified. Values in brackets

are standard equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967
