1-120628-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-120628-2

1-120628-2: Description12 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1-120628-2 Overview

12 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

1-120628-2 Parametric

Parameter Name	Attribute value
Objectid	1662586319
Reach Compliance Code	unknown
YTEOL	0
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	12

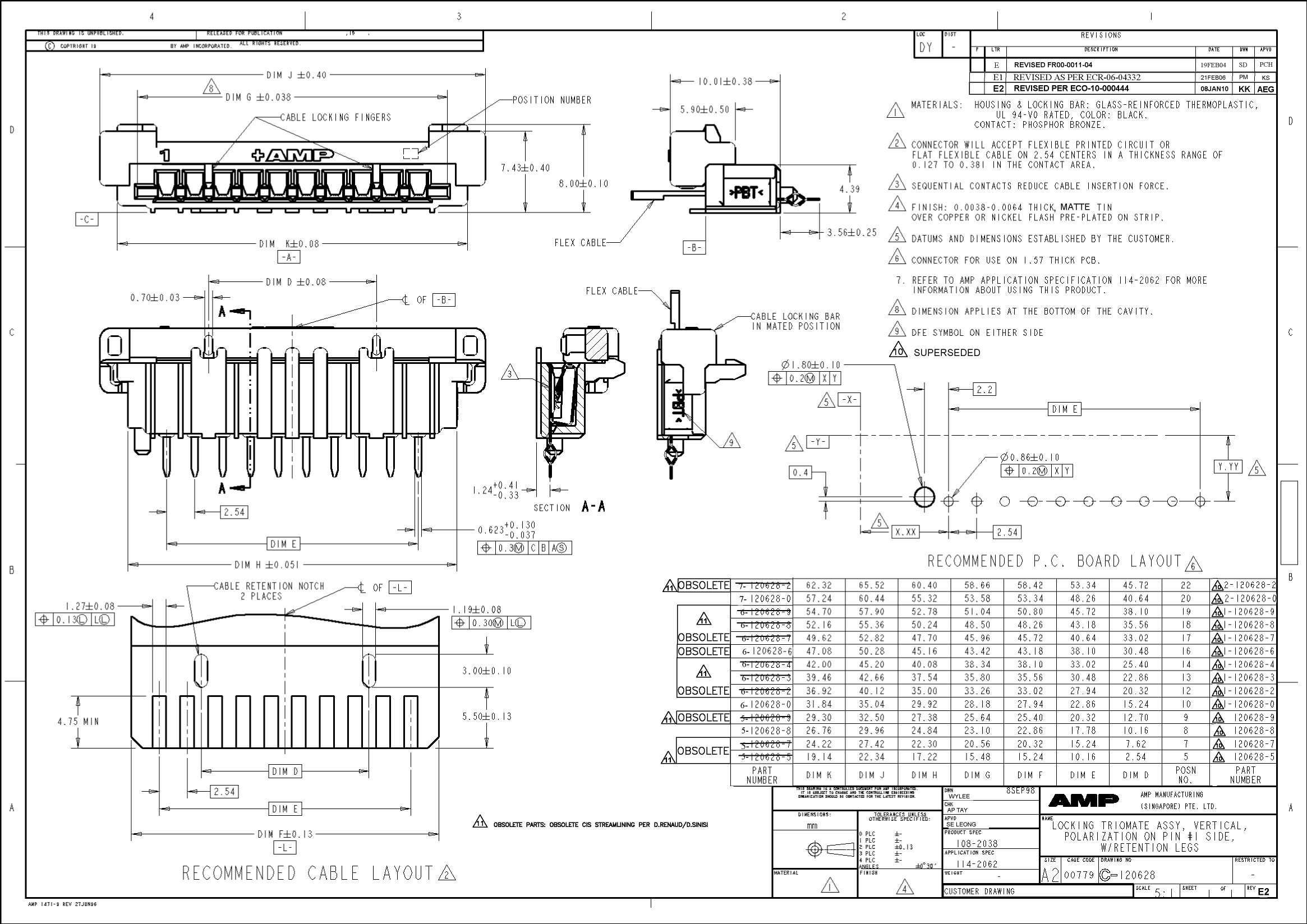

Preview

Download Datasheet

View All

1-120628-2 Related Products

	1-120628-2	81040-610400	81040-650300	3VH15/1JND12(083)	1-120628-8
Description	12 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	HEADER CONNECTOR,PCB MNT,RECEPT,40 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,BEIGE	HEADER CONNECTOR,PCB MNT,RECEPT,40 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,LATCH & EJECT,BEIGE	Card Edge Connector, 30 Contact(s), 2 Row(s), Right Angle, 0.1 inch Pitch, Wire Wrap Terminal, Green Insulator, Receptacle	18 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	CARD EDGE CONNECTOR	BOARD CONNECTOR
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	2	2	2	1
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	WIRE WRAP	SOLDER
Total number of contacts	12	40	40	30	18
Objectid	1662586319	300530537	300530541	302056937	-
Contact completed and terminated	TIN LEAD OVER NICKEL	GOLD	GOLD	-	TIN LEAD OVER NICKEL
Contact point gender	FEMALE	MALE	MALE	-	FEMALE
Filter function	NO	NO	NO	-	NO
MIL compliance	NO	-	-	YES	NO
Mixed contacts	NO	NO	NO	-	NO
Number of connectors	ONE	ONE	ONE	ONE	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
ECCN code	-	EAR99	EAR99	EAR99	-
Other features	-	POLARIZED	POLARIZED	TERM L=.49", INR ROW	-
body width	-	0.31 inch	0.31 inch	0.37 inch	-
subject depth	-	0.405 inch	0.405 inch	0.76 inch	-
body length	-	1.56 inch	1.56 inch	1.76 inch	-
Contact to complete cooperation	-	AU ON NI	AU ON NI	AU ON NI	-
Contact material	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-
contact mode	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Contact style	-	SQ PIN-SKT	SQ PIN-SKT	BELLOWED TYPE	-
Dielectric withstand voltage	-	700VAC V	700VAC V	650VAC V	-
Insulation resistance	-	1000000000 Ω	1000000000 Ω	5000000000 Ω	-
Insulator color	-	IVORY	IVORY	GREEN	-
insulator material	-	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	DIALLYL PHTHALATE	-
Plug contact pitch	-	0.05 inch	0.05 inch	0.1 inch	-
PCB row number	-	2	2	2	-
Maximum operating temperature	-	105 °C	105 °C	125 °C	-
Minimum operating temperature	-	-55 °C	-55 °C	-65 °C	-
PCB contact pattern	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
PCB contact row spacing	-	2.54 mm	2.54 mm	3.81 mm	-
Plating thickness	-	30u inch	30u inch	30u inch	-
Rated current (signal)	-	0.5 A	0.5 A	3 A	-
Guideline	-	UL	UL	UL, CSA	-
Terminal length	-	0.143 inch	0.112 inch	0.14 inch	-
