1-172210-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-172210-5

1-172210-5: Description2 CONTACT(S), FEMALE, COMBINATION LINE CONNECTOR; CategoryThe connector The connector; File Size1MB，14 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1-172210-5 Overview

2 CONTACT(S), FEMALE, COMBINATION LINE CONNECTOR

1-172210-5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1505054120
Reach Compliance Code	unknown
Other features	COMPATIBLE CONTACTS: 170324, 170325, 170326
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYAMIDE66
Total number of contacts	2
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

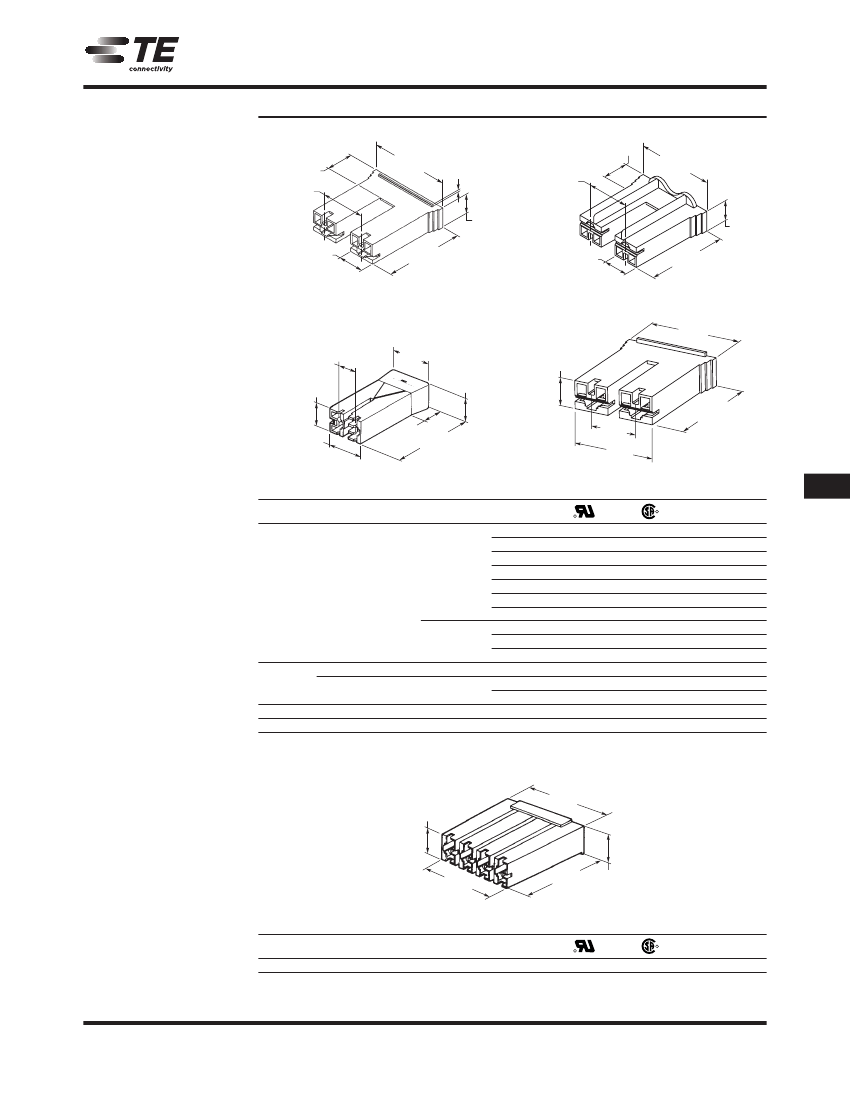

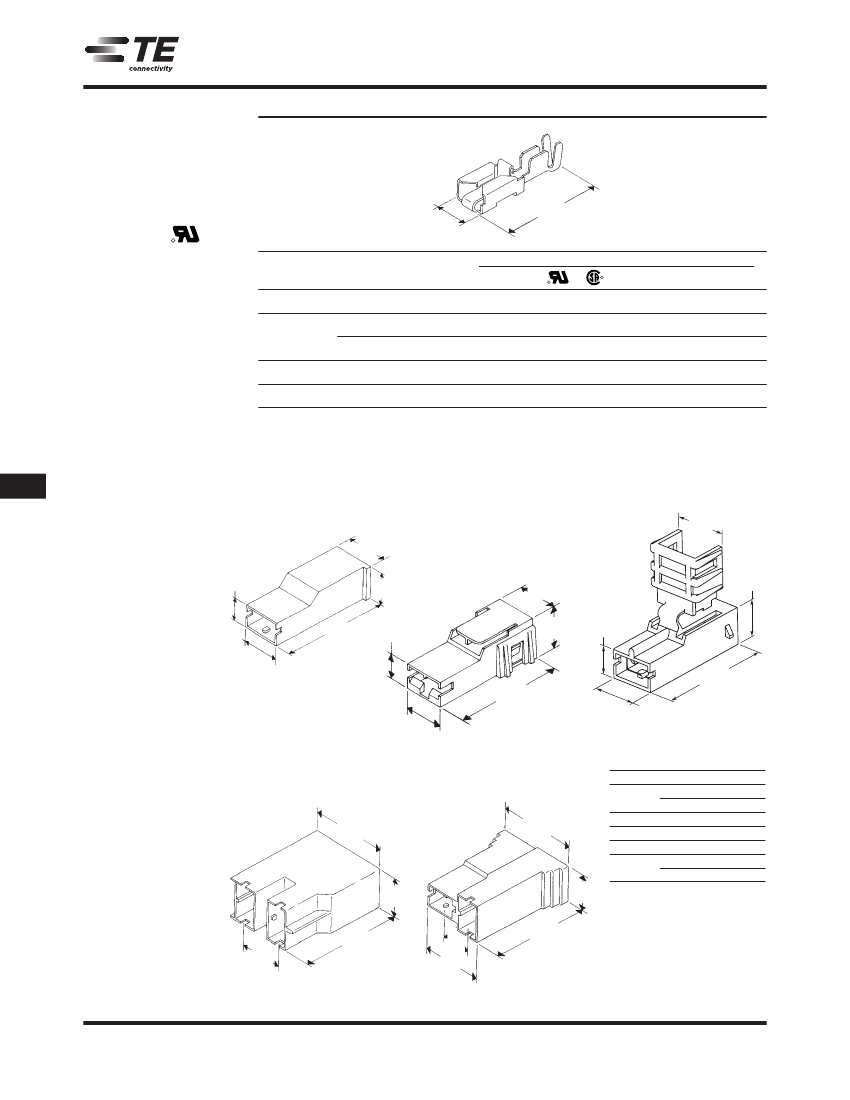

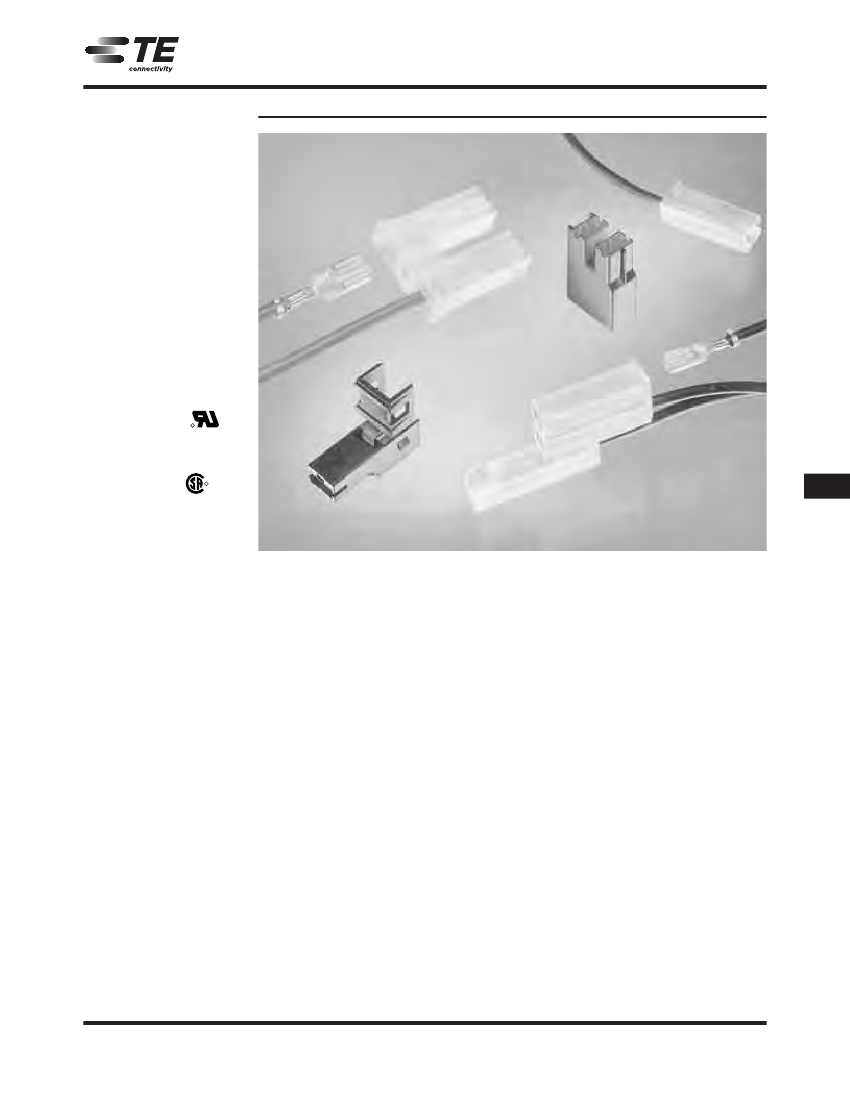

FASTON Terminals (Insulated and Uninsulated)

Positive Lock Receptacles

Product Facts

■

Reduced insertion force

Locks onto tabs containing

holes

Housing insulates and

serves as a removal tool

“Snap” action tells

assembler receptacle is

mated properly

Terminated by automatic or

semi-automatic equipment

Single and multiple circuit

housings available

Recognized under the

Component Program of

Underwriters Laboratories

Inc., File Nos.

E66717 and

E28476

■

Certified by Canadian

Standards Association

File No.

LR7189A

Positive Lock Receptacles

Positive Lock receptacles

are specifically designed to

provide ease of assembly

and secure retention to

mating tabs. These unique

features are attainable by

the reduced insertion force

of the product and the

locking dimple. The

receptacle locks onto

mating tabs containing

holes and is removable only

by deflecting an integrally

designed depressor prior to

withdrawal. The depressor

can be deflected manually

by thumb pressure, or

automatically by a cam

inside a specially designed

nylon housing. If the

housing is employed,

removal of the terminal from

the tab is performed by

simply applying withdrawal

force to the housing. In

addition to providing a

means of disconnecting the

terminal, the housing

performs its traditional

insulating function.

Aside from reduced

insertion forces, Positive

Lock receptacles give the

assembler a definite

mechanical “snap” when

the terminal is correctly

seated over the mating tab.

This facilitates correct

assembly in hard-to-reach

areas such as under

dashboards, recessed

switch tabs, etc.

Safety is enhanced by the

locking capability of the

product. Unless the

depressor is deliberately

deflected, either manually

or by withdrawal force

applied directly to the

optional housing, a terminal

will not easily come off of

the tab. Thus, the potential

of exposed live parts or

disruption of critical circuitry

due to improperly seated or

accidentally removed

terminals is greatly

reduced.

Catalog 82004

Revised 3-11

www.te.com

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

Dimensions are in inches and

millimeters unless otherwise

specified.

USA: +1 (800) 522-6752

Canada: +1 (905) 475-6222

Mexico/C. Am.: +52 (0) 55-1106-0800

Latin/S. Am.: +54 (0) 11-4733-2200

Germany: +49 (0) 6251-133-1999

UK: +44 (0) 800-267666

France: +33 (0) 1-3420-8686

Netherlands: +31 (0) 73-6246-999

China: +86 (0) 400-820-6015
