5120642-3 datasheet, PDF - EEWORLD Datasheet

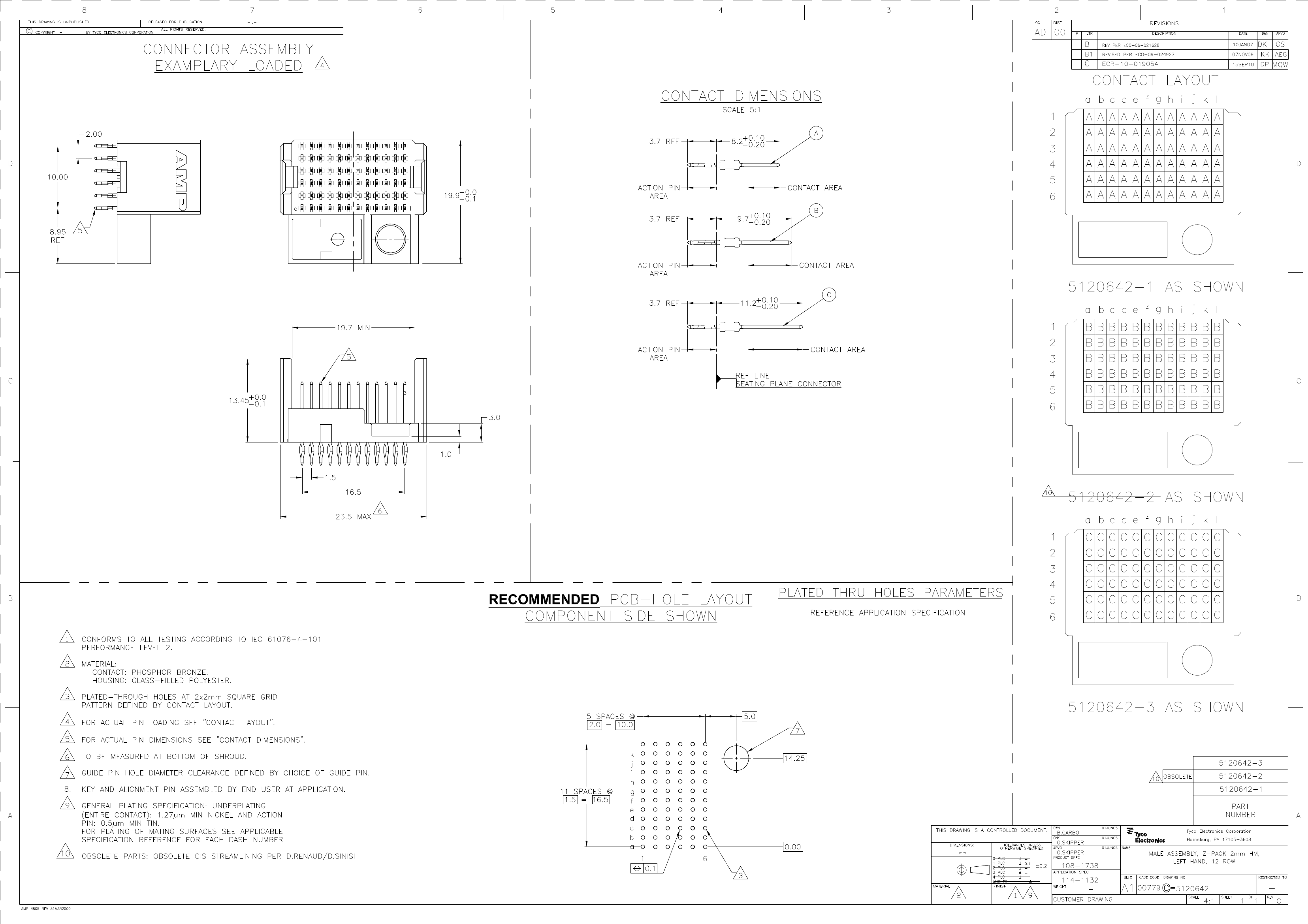

5120642-3: Description72 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT; CategoryThe connector The connector; File Size150KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5120642-3 Overview

72 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1733897248
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
body width	0.925 inch
subject depth	0.53 inch
body length	0.783 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.7506 N
Insulation resistance	10000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.059 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	12
Number of rows loaded	12
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.4986 mm
polarization key	POLARIZED HOUSING
Guideline	UL
Terminal length	0.146 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	72
Evacuation force-minimum value	.15012 N
