FX135-0.032768MHZ-EZM99910 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> FX135-0.032768MHZ-EZM99910

Preview

FX135-0.032768MHZ-EZM99910: DescriptionParallel - Fundamental Quartz Crystal, 0.032768MHz Nom, ROHS COMPLIANT, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size385KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric Compare View All

FX135-0.032768MHZ-EZM99910 Overview

Parallel - Fundamental Quartz Crystal, 0.032768MHz Nom, ROHS COMPLIANT, SMD, 2 PIN

FX135-0.032768MHZ-EZM99910 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
package instruction	ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compliant
Is Samacsys	N
Other features	TAPE AND REEL
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	0.1 µW
frequency stability	0.0162%
frequency tolerance	20 ppm
JESD-609 code	e4
load capacitance	9 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	0.032768 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L3.2XB1.5XH0.9 (mm)/L0.126XB0.059XH0.035 (inch)
Series resistance	70000 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Base Number Matches	1

Preview

Download Datasheet

View All

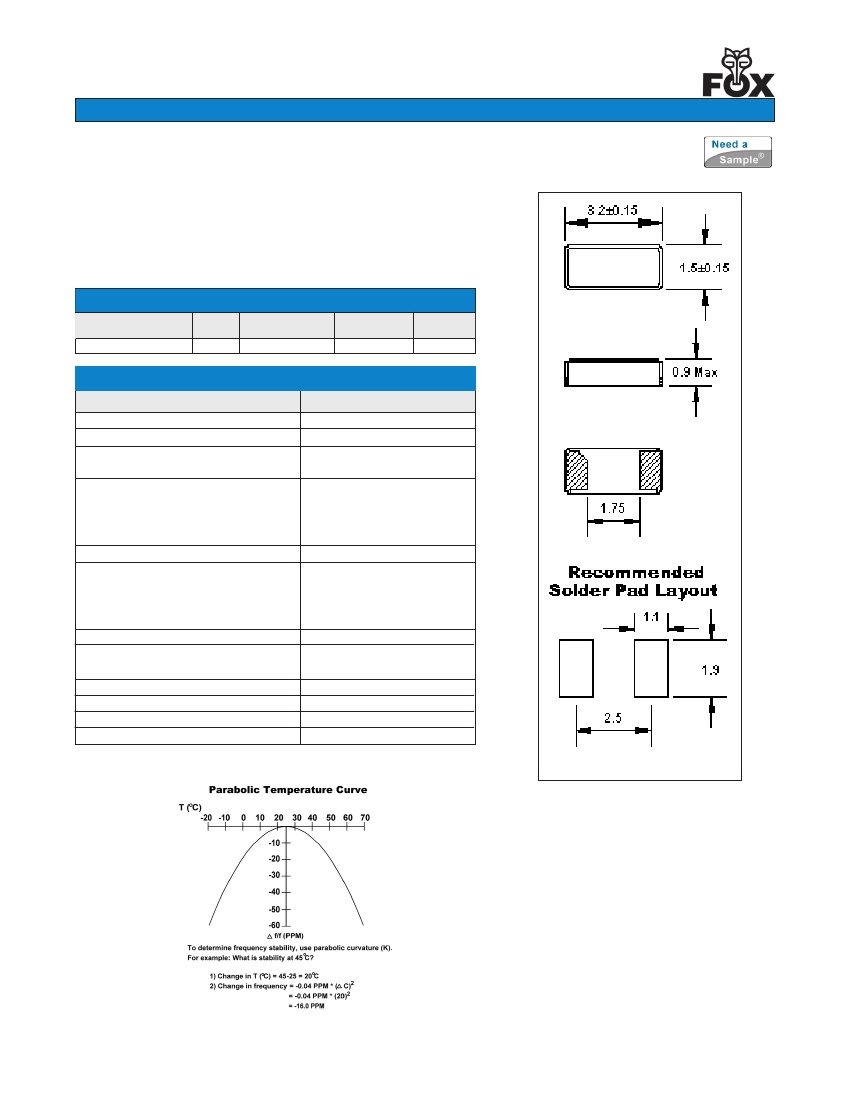

SMD 3.2x1.5mm Tuning Fork

Page 1 of 2

Model: FX135

RoHS Compliant / Pb Free

http://www.foxonline.com/need_a_sample.htm

Rev. 10/28/2013

FEATURES

•

Ultra Low Profile

0.9mm Height

Long Term Stability

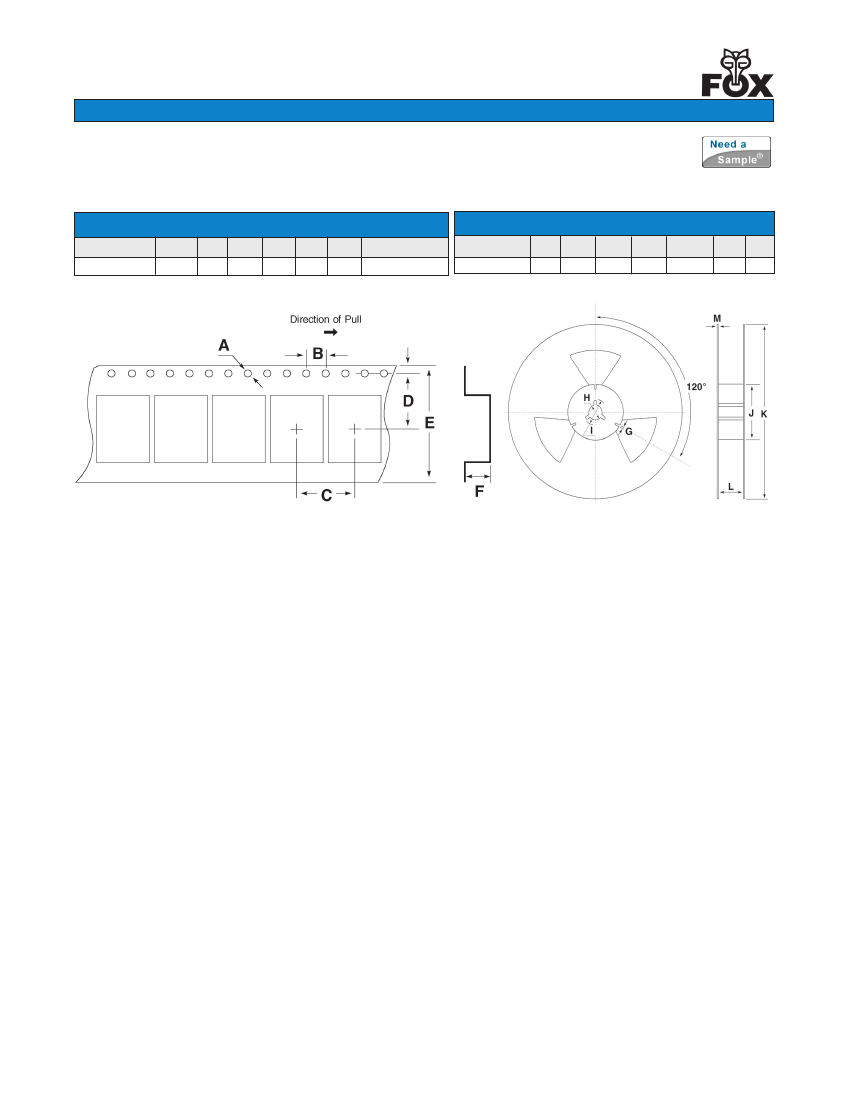

Tape and Reel (3,000 pcs.STD)

Model

Number

739-Frequency-xxxxx FX135

Part Number

• PART NUMBER

Frequency

Operating

Frequency

Stability

Temperature

-

0.045PPM/(∆ºC)

2

-40 ºC~ +85 ºC

32.768 kHz

• STANDARD SPECIFICATIONS

MAX

(unless otherwise

noted)

MAX

(unless otherwise

noted)

PARAMETERS

Frequency

32.768 kHz

Frequency Tolerance @ 25ºC

±20 PPM

Frequency Stability

Temperature Coefficient

-0.045 PPM / (∆ºC)

2

Temperature Range

Turnover (T

O

)

+20ºC ~ +30ºC

Operating (T

OPR

)

-40ºC ~ +85ºC

Storage

(T

STG

)

-55ºC ~ +125ºC

Equivalent Series Resistance (R

S

)

70 kΩ

Load Capacitance (C

l

)

12.5 pF(Standard)

(Fox P/N: FX135A-327)

9pF (Optional)

(Fox P/N: FX135B-327)

Insulation Resistance @ 100V

DC

500MΩ Min

Drive Level

1.0uW

0.1uW Typ

Aging per year

±3 PPM

Maximum Soldering Temp / Time

260ºC / 10 Seconds

Moisture Sensitivity Level (MSL)

1

Termination Finish

Ni/Au

All specifications subject to change without notice.

All dimensions are in millimeters.

FOXElectronics 5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554 www.foxonline.com

EMEA Tel: +44 .1283.568153 | Canada +1.888.438.2369 | Japan Tel: +81.3.3374.2079 | Singapore Tel: +65.68447989

FX135-0.032768MHZ-EZM99910 Related Products

	FX135-0.032768MHZ-EZM99910	WBDDSS8-B-02-6340-D-B	WBDDSS8-B-02-6342-B-D	SWC-12-A-0595-H-S-B-A
Description	Parallel - Fundamental Quartz Crystal, 0.032768MHz Nom, ROHS COMPLIANT, SMD, 2 PIN	Array/Network Resistor, Bussed, 0.05W, 634ohm, 100V, 0.5% +/-Tol, -50,50ppm/Cel, 1408,	Array/Network Resistor, Bussed, 0.05W, 63400ohm, 100V, 0.1% +/-Tol, -50,50ppm/Cel, 1408,	Splitter/Coupler, 1510nm Min, 1590nm Max, 1X2 Port, 5/95 Ratio, FC/UPC Connector
Reach Compliance Code	compliant	compliant	compliant	unknown
Maximum operating temperature	85 °C	150 °C	150 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C	-40 °C
Objectid	-	819698878	819698922	1175335695
