3-1393640-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-1393640-5

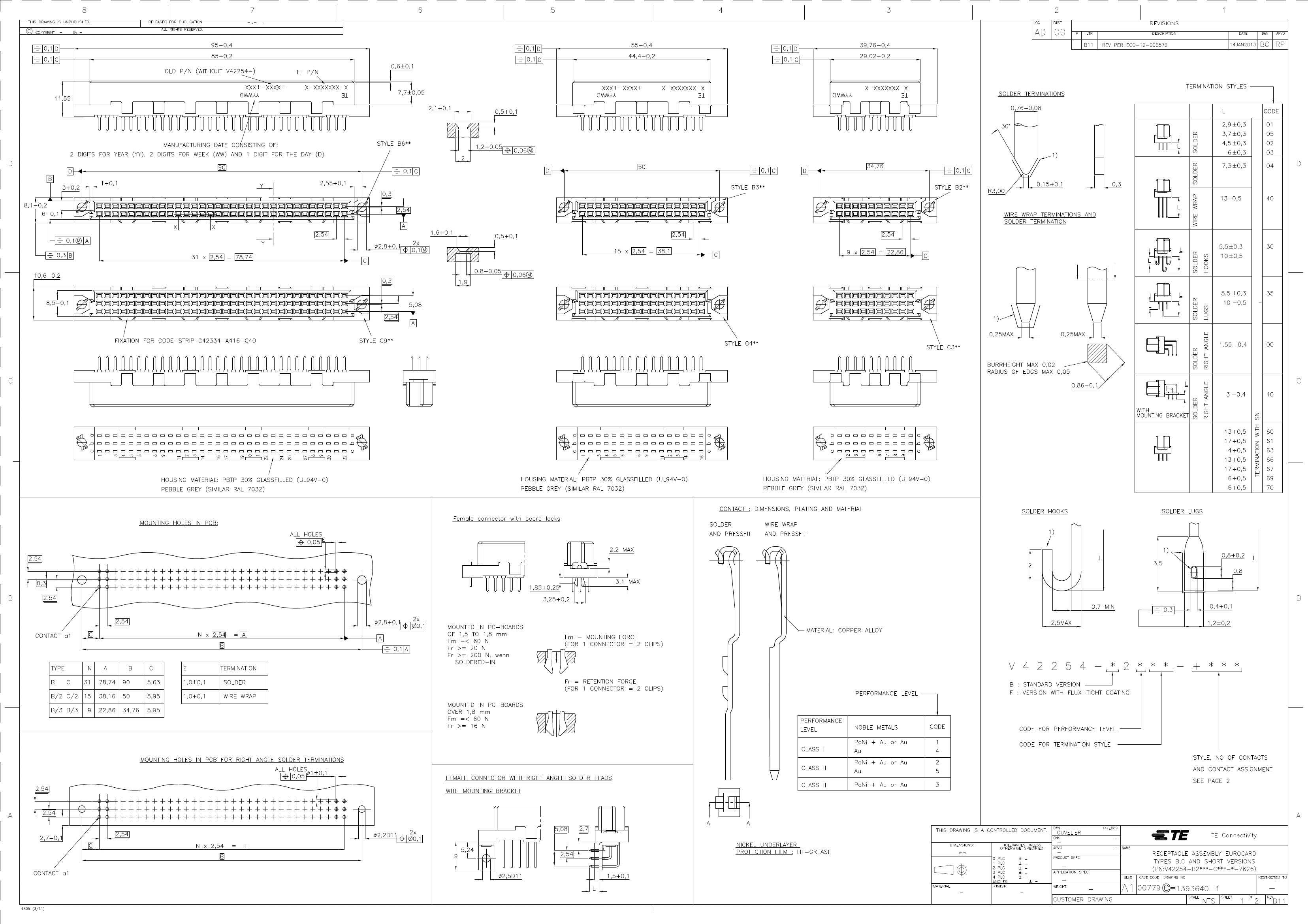

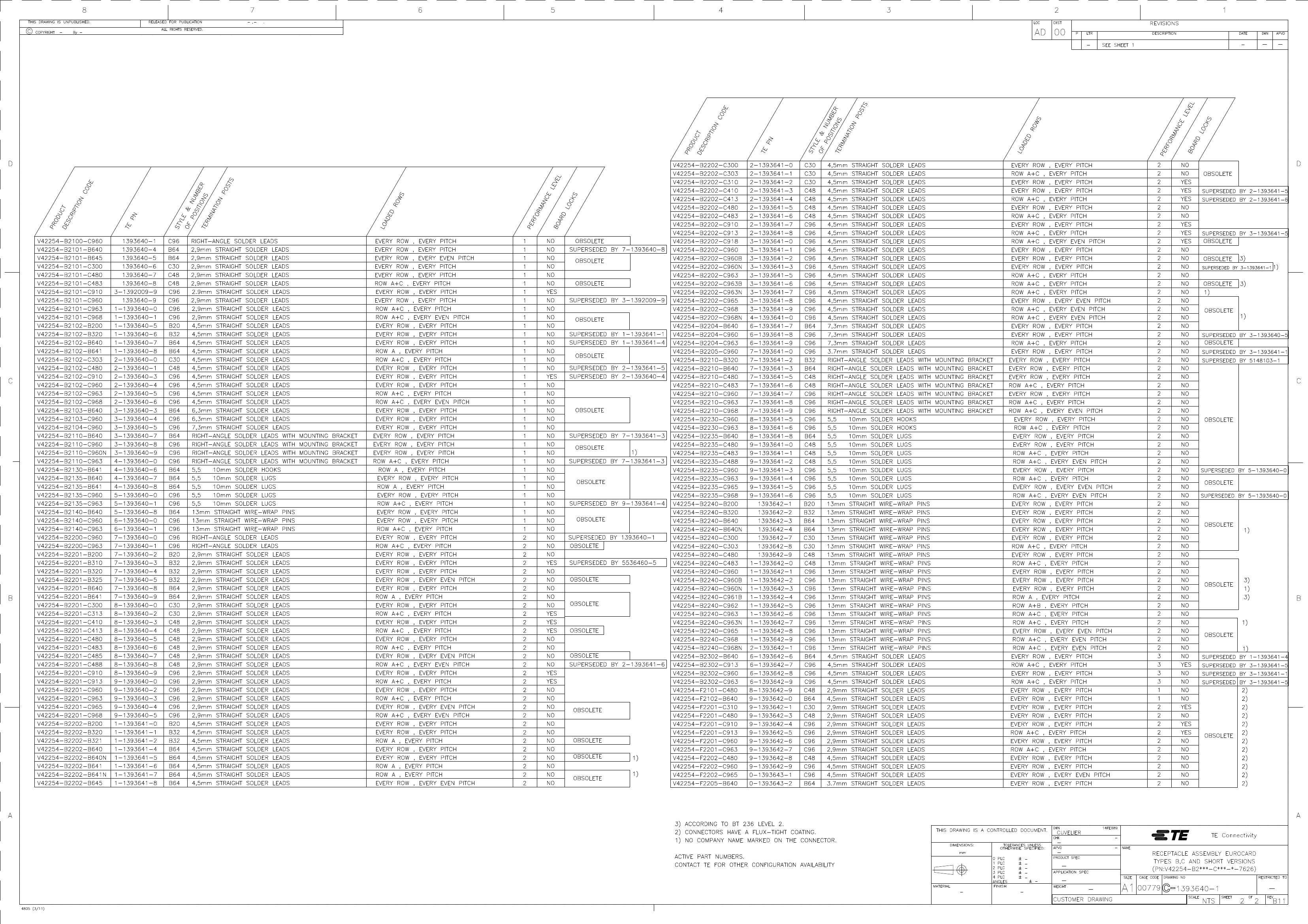

3-1393640-5: Description96 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size772KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1393640-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1393640-5	-	-	View	Buy Now

3-1393640-5 Overview

96 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER, RECEPTACLE

3-1393640-5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1940619179
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: DIN 41612
body width	0.417 inch
subject depth	0.455 inch
body length	3.74 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9452 N
Insulation resistance	1000000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Guideline	UL
Terminal length	0.287 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N

Preview

Download Datasheet

View All
