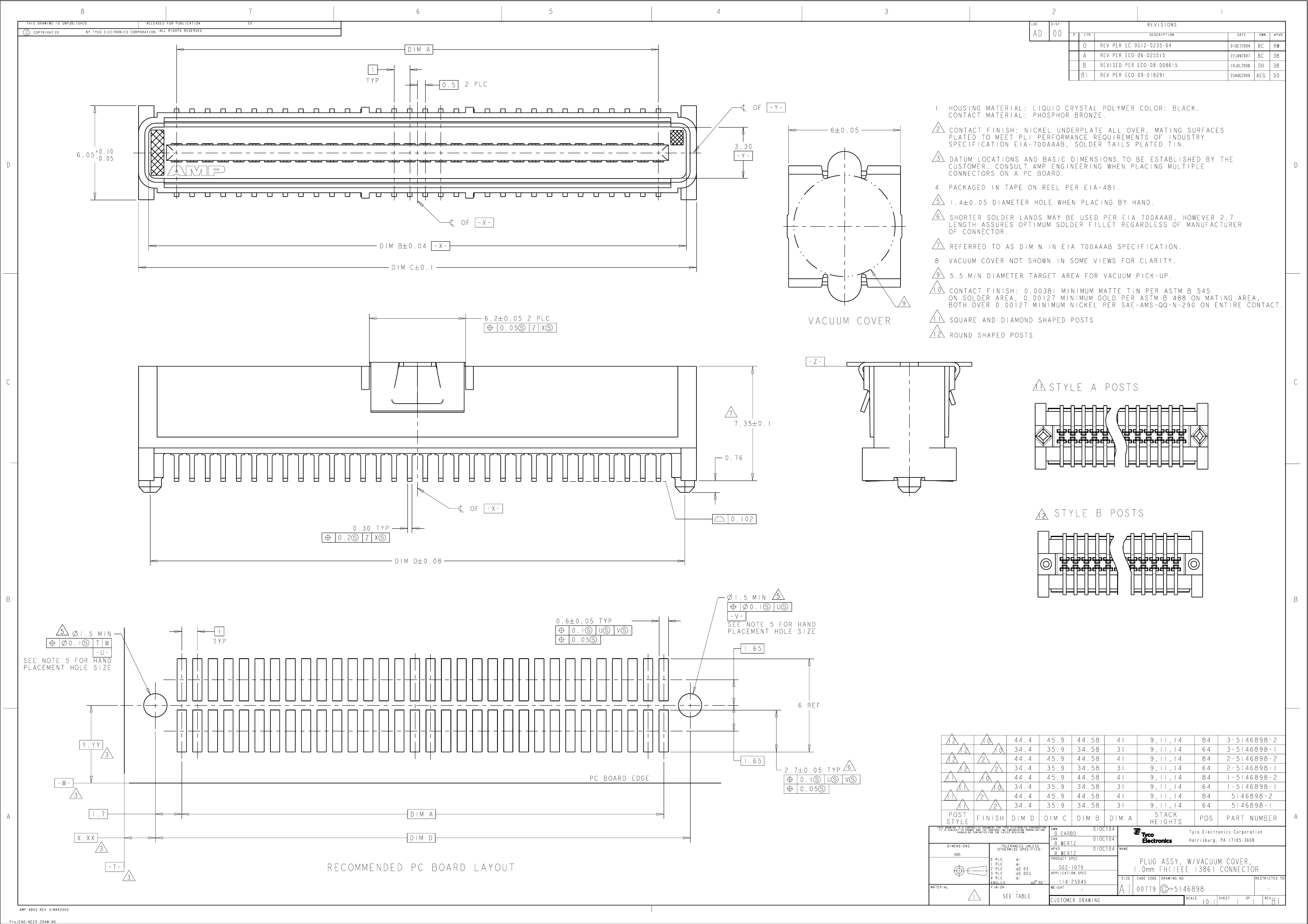

84 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | TE Connectivity |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Board mount options | PEG |
| body width | 0.238 inch |
| subject depth | 0.289 inch |
| body length | 1.807 inch |
| Body/casing type | PLUG |
| Connector type | BOARD STACKING CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact style | CENTRONIC |
| DIN compliance | NO |
| Dielectric withstand voltage | 250VAC V |
| Durability | 100 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| MIL compliance | NO |
| Manufacturer's serial number | 5146898 |
| Plug contact pitch | 0.039 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 110 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 3.302 mm |
| Plating thickness | 50u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 0.8 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal pitch | 1 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 84 |
| Base Number Matches | 1 |
| 3-5146898-2 | 3-5146898-1 | 2-5146898-1 | 2-5146898-2 | |
|---|---|---|---|---|
| Description | 84 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG | 64 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG | 64 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG | 84 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, PLUG |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| Is Samacsys | N | N | N | N |
| Board mount options | PEG | PEG | PEG | PEG |
| body width | 0.238 inch | 0.238 inch | 0.238 inch | 0.238 inch |
| subject depth | 0.289 inch | 0.289 inch | 0.289 inch | 0.289 inch |
| body length | 1.807 inch | 1.413 inch | 1.413 inch | 1.807 inch |
| Body/casing type | PLUG | PLUG | PLUG | PLUG |
| Connector type | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Contact point gender | MALE | MALE | MALE | MALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | CENTRONIC | CENTRONIC | CENTRONIC | CENTRONIC |
| DIN compliance | NO | NO | NO | NO |
| Dielectric withstand voltage | 250VAC V | 250VAC V | 250VAC V | 250VAC V |
| Durability | 100 Cycles | 100 Cycles | 100 Cycles | 100 Cycles |
| Filter function | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) |
| MIL compliance | NO | NO | NO | NO |
| Manufacturer's serial number | 5146898 | 5146898 | 5146898 | 5146898 |
| Plug contact pitch | 0.039 inch | 0.039 inch | 0.039 inch | 0.039 inch |
| Mixed contacts | NO | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 110 °C | 110 °C | 110 °C | 110 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 3.302 mm | 3.302 mm | 3.302 mm | 3.302 mm |
| Plating thickness | 50u inch | 50u inch | 30u inch | 30u inch |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 0.8 A | 0.8 A | 0.8 A | 0.8 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 1 mm | 1 mm | 1 mm | 1 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 84 | 64 | 64 | 84 |
| Base Number Matches | 1 | 1 | 1 | 1 |
| Maker | TE Connectivity | TE Connectivity | TE Connectivity | - |
| ECCN code | EAR99 | EAR99 | EAR99 | - |
