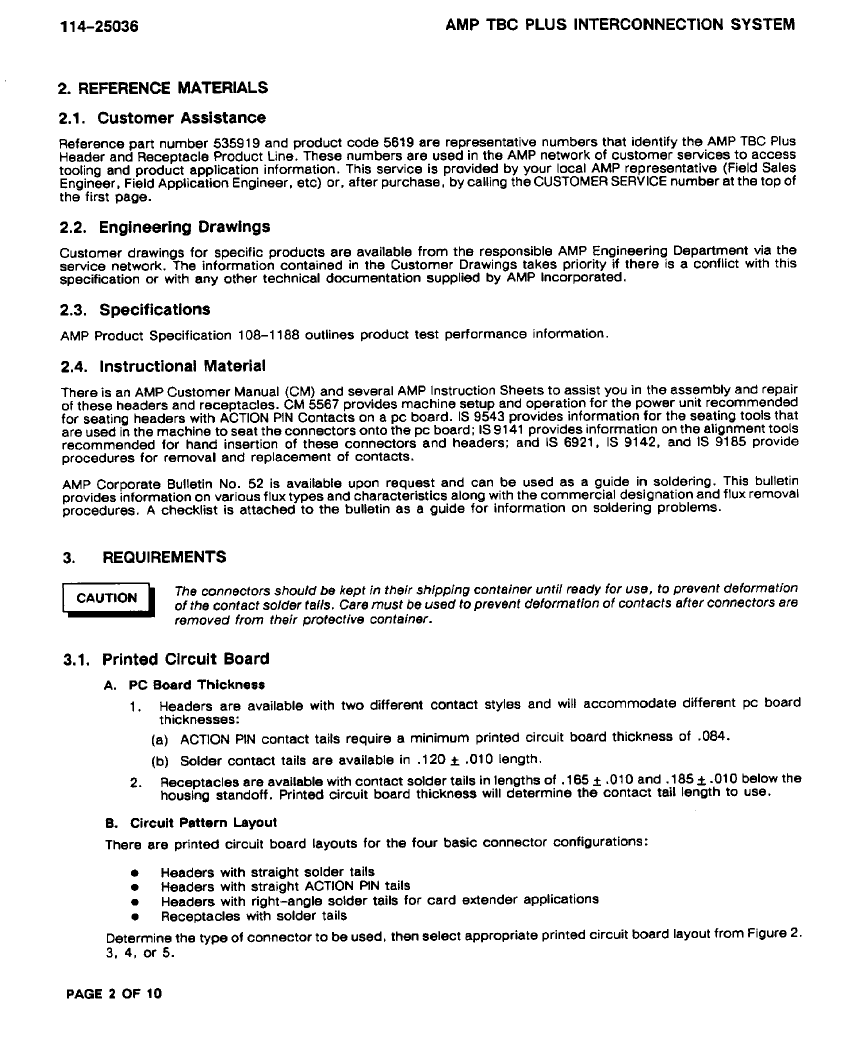

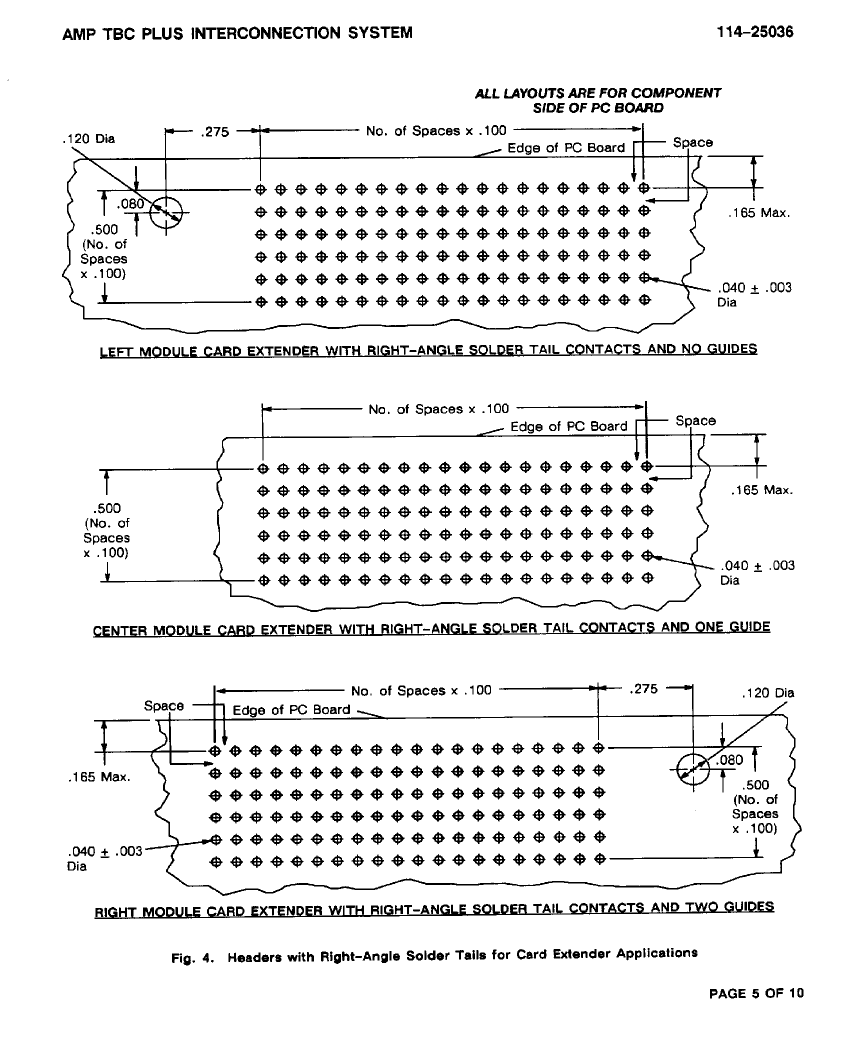

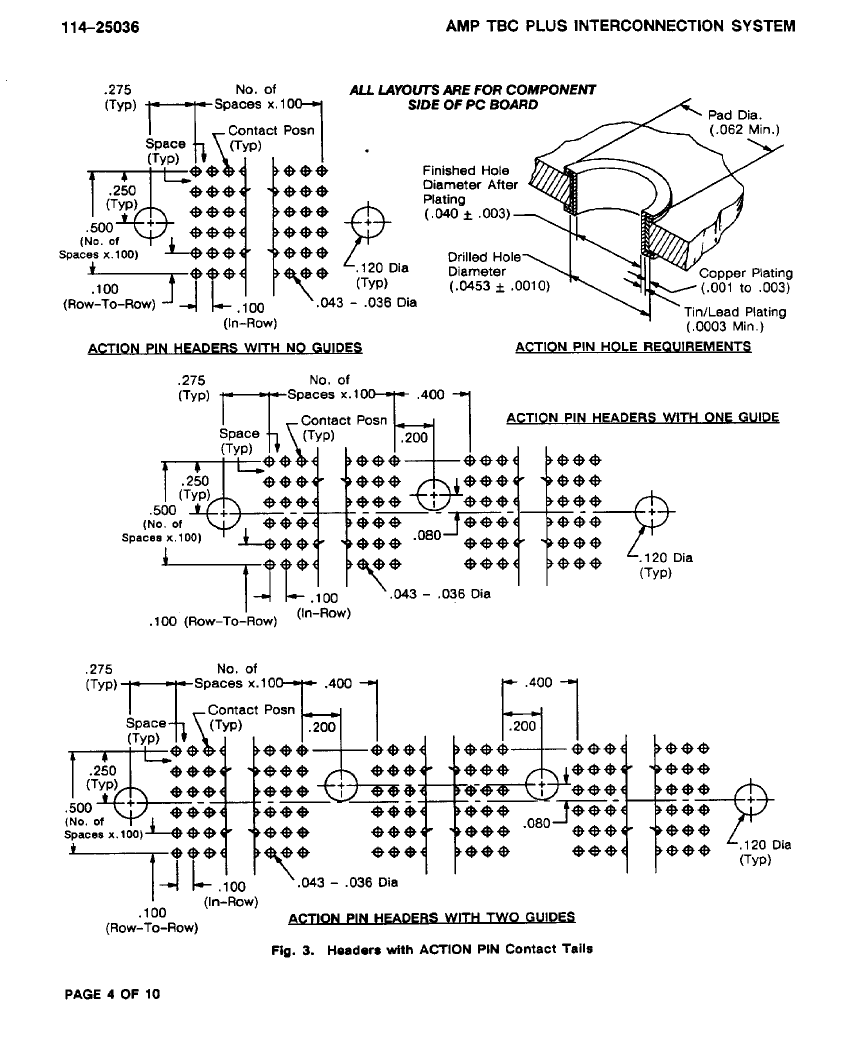

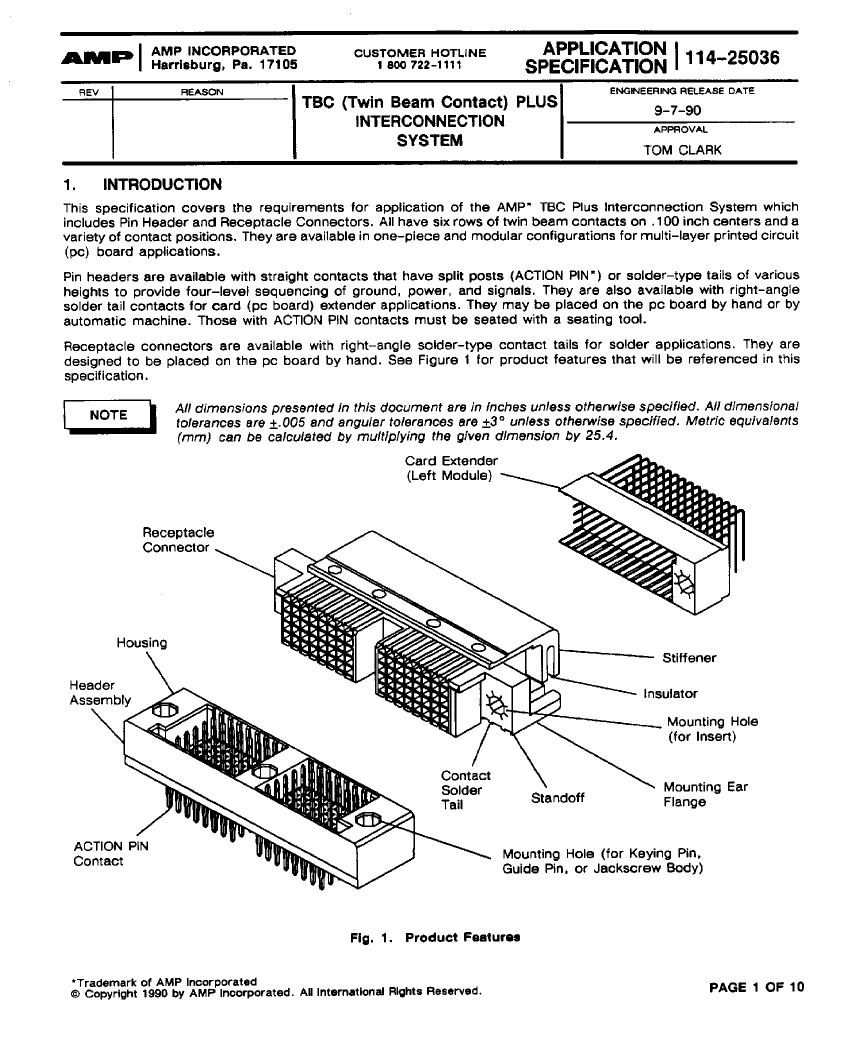

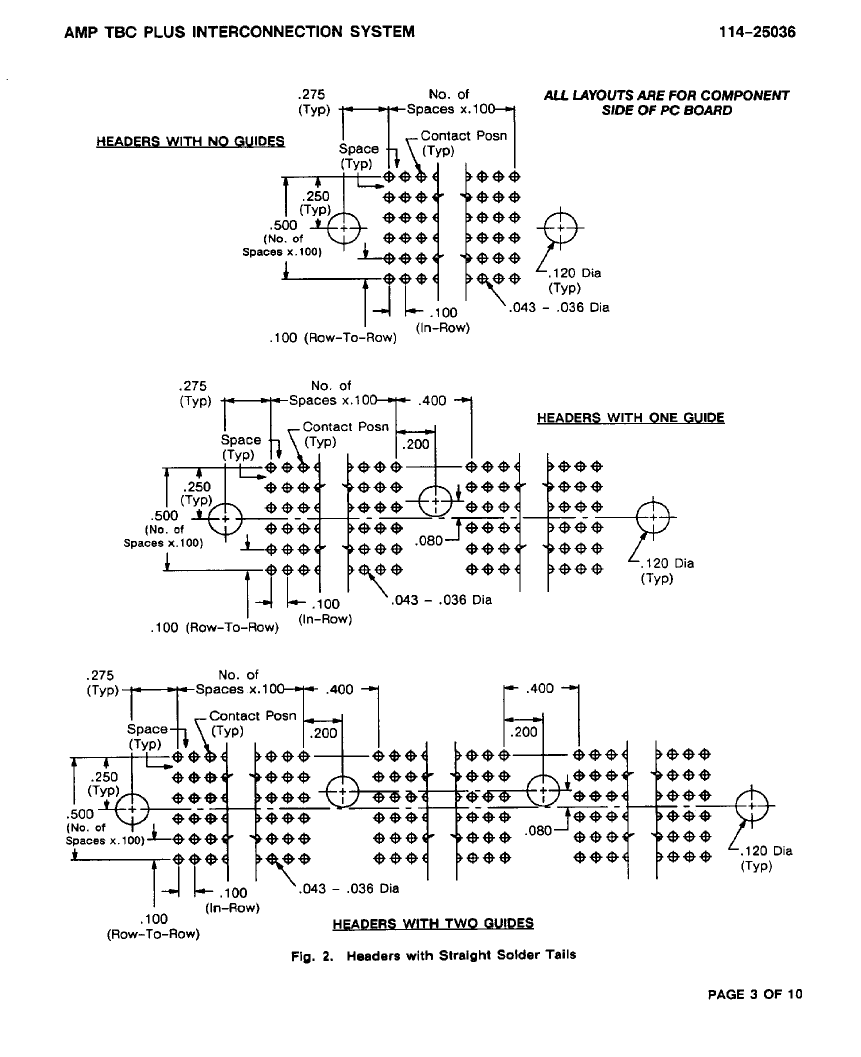

480 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT, RECEPTACLE
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | TE Connectivity |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Other features | MOUNT, EARS OPTIONAL |
| Board mount options | #2-56 THD HOLE |
| body width | 0.564 inch |
| subject depth | 1.175 inch |
| body length | 8.73 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | TIN LEAD |
| Contact point gender | FEMALE |
| Contact material | BERYLLIUM COPPER |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 900VAC V |
| Durability | 250 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .6672 N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED POLYESTER |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | 535919 |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | GUIDE PIN |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 6 |
| Number of rows loaded | 6 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 30u inch |
| polarization key | POLARIZED KEY |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.185 inch |
| Terminal pitch | 2.54 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 480 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 1-535919-3 | 535919-2 | 535817-1 | 1-535919-2 | 535845-1 | |
|---|---|---|---|---|---|
| Description | 480 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT, RECEPTACLE | 210 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT, RECEPTACLE | CONNECTOR ACCESSORY | 600 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT, RECEPTACLE | 90 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, PLUG |
| Reach Compliance Code | compliant | compliant | unknown | unknown | compliant |
| Manufacturer's serial number | 535919 | 535919 | 535817 | 535919 | 535845 |
| Is it Rohs certified? | incompatible | incompatible | - | incompatible | incompatible |
| Maker | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity | - |
| ECCN code | EAR99 | EAR99 | - | EAR99 | EAR99 |
| Other features | MOUNT, EARS OPTIONAL | MOUNT, EARS OPTIONAL | - | MOUNT, EARS OPTIONAL | ACTION PIN |
| Board mount options | #2-56 THD HOLE | #2-56 THD HOLE | - | #2-56 THD HOLE | #2-56 THD HOLE |
| body width | 0.564 inch | 0.564 inch | - | 0.564 inch | 0.65 inch |
| subject depth | 1.175 inch | 1.175 inch | - | 1.175 inch | 0.48 inch |
| body length | 8.73 inch | 4.23 inch | - | 10.73 inch | 1.868 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | - | RECEPTACLE | PLUG |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | - | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED |
| Contact completed and terminated | TIN LEAD | TIN LEAD | - | TIN LEAD | TIN LEAD |
| Contact point gender | FEMALE | FEMALE | - | FEMALE | MALE |
| Contact material | BERYLLIUM COPPER | BERYLLIUM COPPER | - | BERYLLIUM COPPER | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR |
| Contact resistance | 20 mΩ | 20 mΩ | - | 20 mΩ | 20 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | - | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | - | NO | NO |
| Dielectric withstand voltage | 900VAC V | 900VAC V | - | 900VAC V | 900VAC V |
| Durability | 250 Cycles | 250 Cycles | - | 250 Cycles | 250 Cycles |
| Filter function | NO | NO | - | NO | NO |
| IEC compliance | NO | NO | - | NO | NO |
| maximum insertion force | .6672 N | .6672 N | - | .6672 N | .6672 N |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | - | 5000000000 Ω | 5000000000 Ω |
| Insulator color | BLACK | BLACK | - | BLACK | BLACK |
| insulator material | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER | - | GLASS FILLED POLYESTER | GLASS FILLED POLYESTER |
| JESD-609 code | e0 | e0 | - | e0 | e0 |
| MIL compliance | NO | NO | - | NO | NO |
| Plug contact pitch | 0.1 inch | 0.1 inch | - | 0.1 inch | 0.1 inch |
| Match contact row spacing | 0.1 inch | 0.1 inch | - | 0.1 inch | 0.1 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | - | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | - | NO | NO |
| Installation option 1 | GUIDE PIN | GUIDE PIN | - | GUIDE PIN | - |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | - | RIGHT ANGLE | STRAIGHT |
| Installation type | BOARD | BOARD | - | BOARD | BOARD |
| Number of connectors | ONE | ONE | - | ONE | ONE |
| PCB row number | 6 | 6 | - | 6 | 6 |
| Number of rows loaded | 6 | 6 | - | 6 | 6 |
| Maximum operating temperature | 105 °C | 105 °C | - | 105 °C | 105 °C |
| Minimum operating temperature | -55 °C | -55 °C | - | -55 °C | -55 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | - | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.54 mm | 2.54 mm | - | 2.54 mm | 2.54 mm |
| Plating thickness | 30u inch | 30u inch | - | 30u inch | 30u inch |
| polarization key | POLARIZED KEY | POLARIZED KEY | - | POLARIZED KEY | POLARIZED KEY |
| Guideline | UL, CSA | UL, CSA | - | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | - | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.185 inch | 0.185 inch | - | 0.185 inch | 0.25 inch |
| Terminal pitch | 2.54 mm | 2.54 mm | - | 2.54 mm | 2.54 mm |
| Termination type | PRESS FIT | PRESS FIT | - | PRESS FIT | PRESS FIT |
| Total number of contacts | 480 | 210 | - | 600 | 90 |
| UL Flammability Code | 94V-0 | 94V-0 | - | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 | 1 | 1 | - |
