3-1600636-5: DescriptionHEADER CONNECTOR,HYBRID,RECEPT,8+2 CONTACTS,SKT,LOCKING; CategoryThe connector The connector; File Size1MB，6 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-1600636-5 Overview

HEADER CONNECTOR,HYBRID,RECEPT,8+2 CONTACTS,SKT,LOCKING

3-1600636-5 Parametric

Parameter Name	Attribute value
Objectid	313641862
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH GUIDES
body width	0.64 inch
subject depth	1.15 inch
body length	2.5 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S8P2
Contact point gender	FEMALE
Contact resistance	20 mΩ
Contact style	HYBRID
Dielectric withstand voltage	2500VDC V
Durability	250 Cycles
Insulation resistance	500000000 Ω
insulator material	POLYETHYLENE
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Guideline	UL
Total number of contacts	10

Preview

Download Datasheet

View All

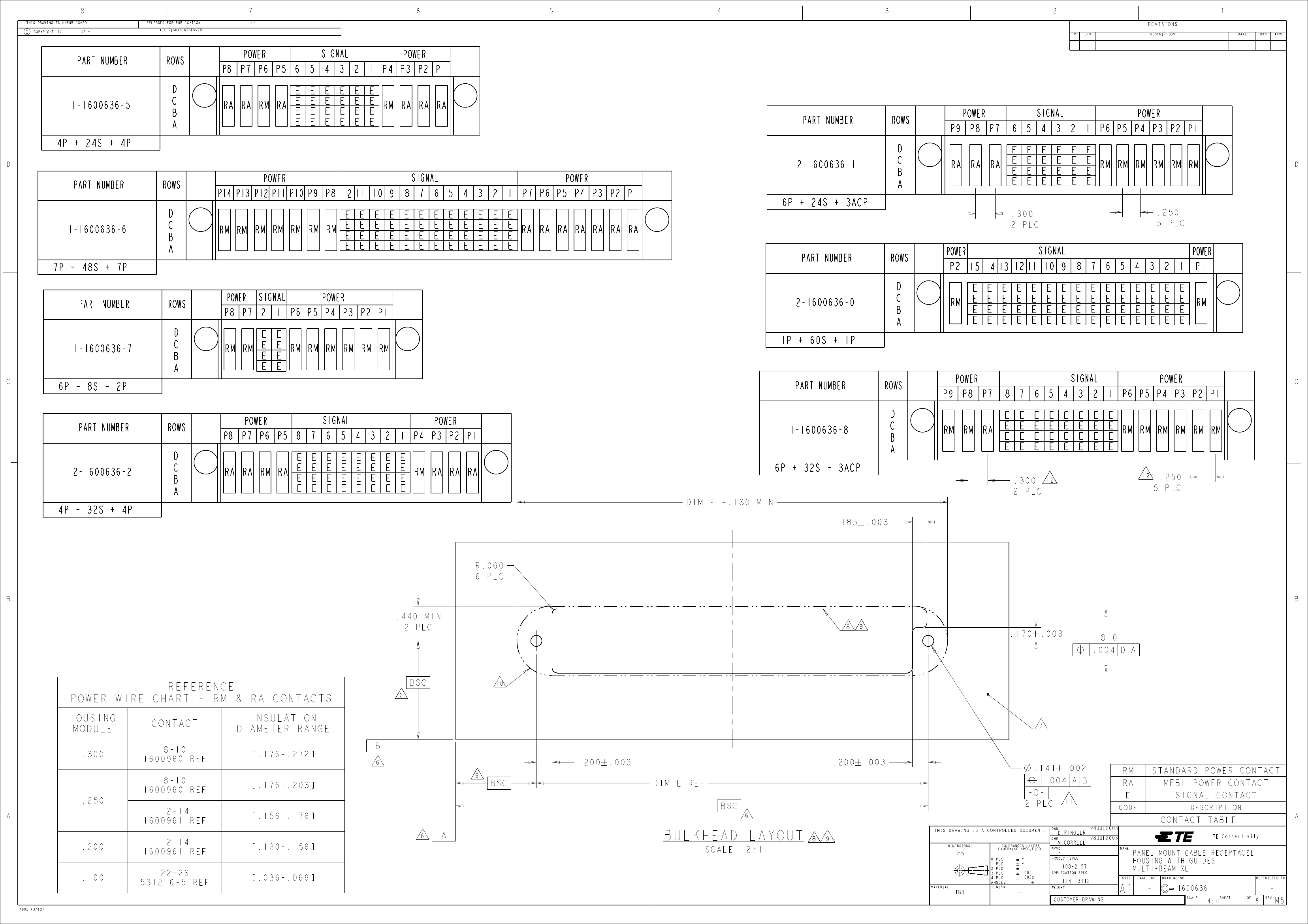

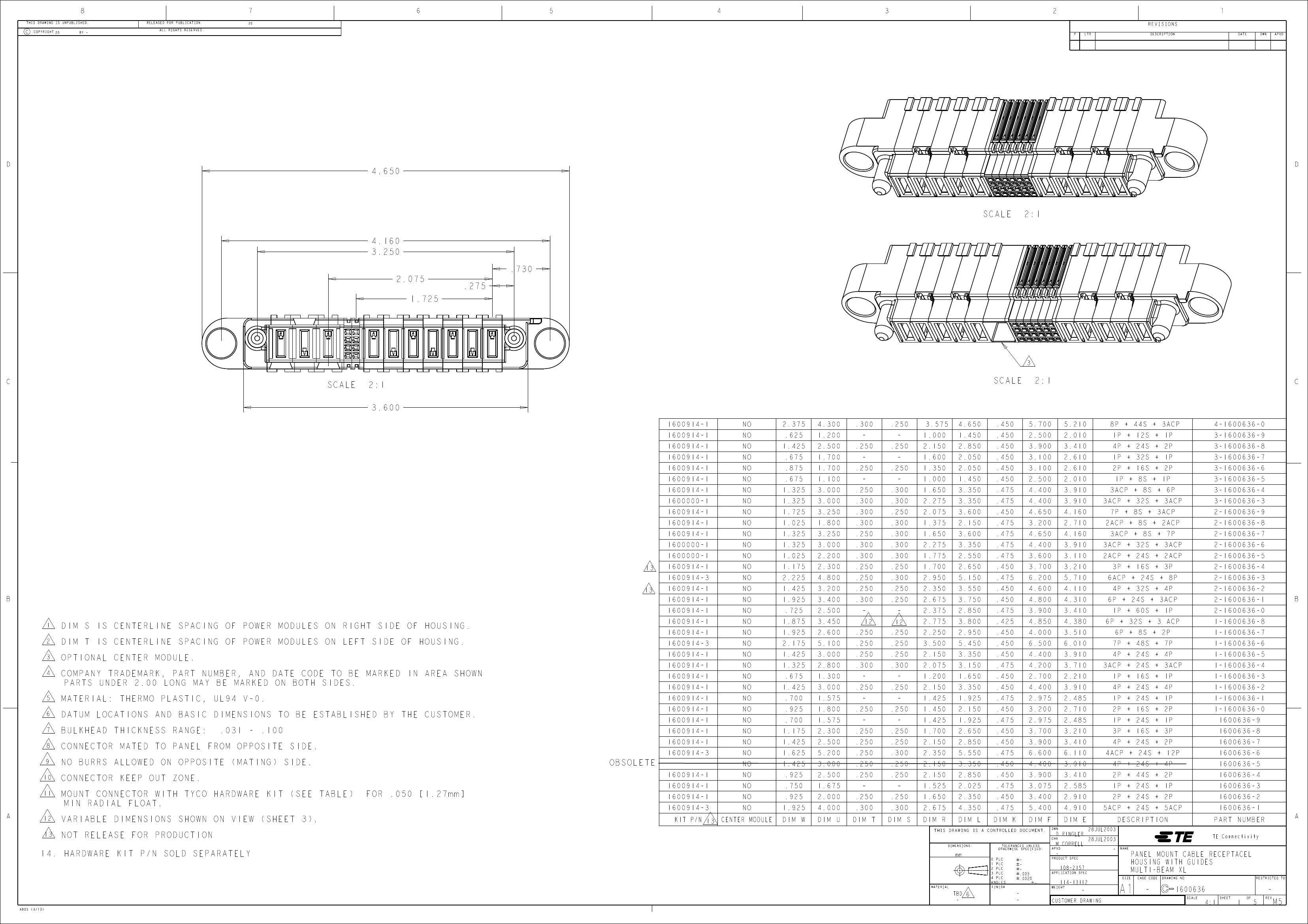

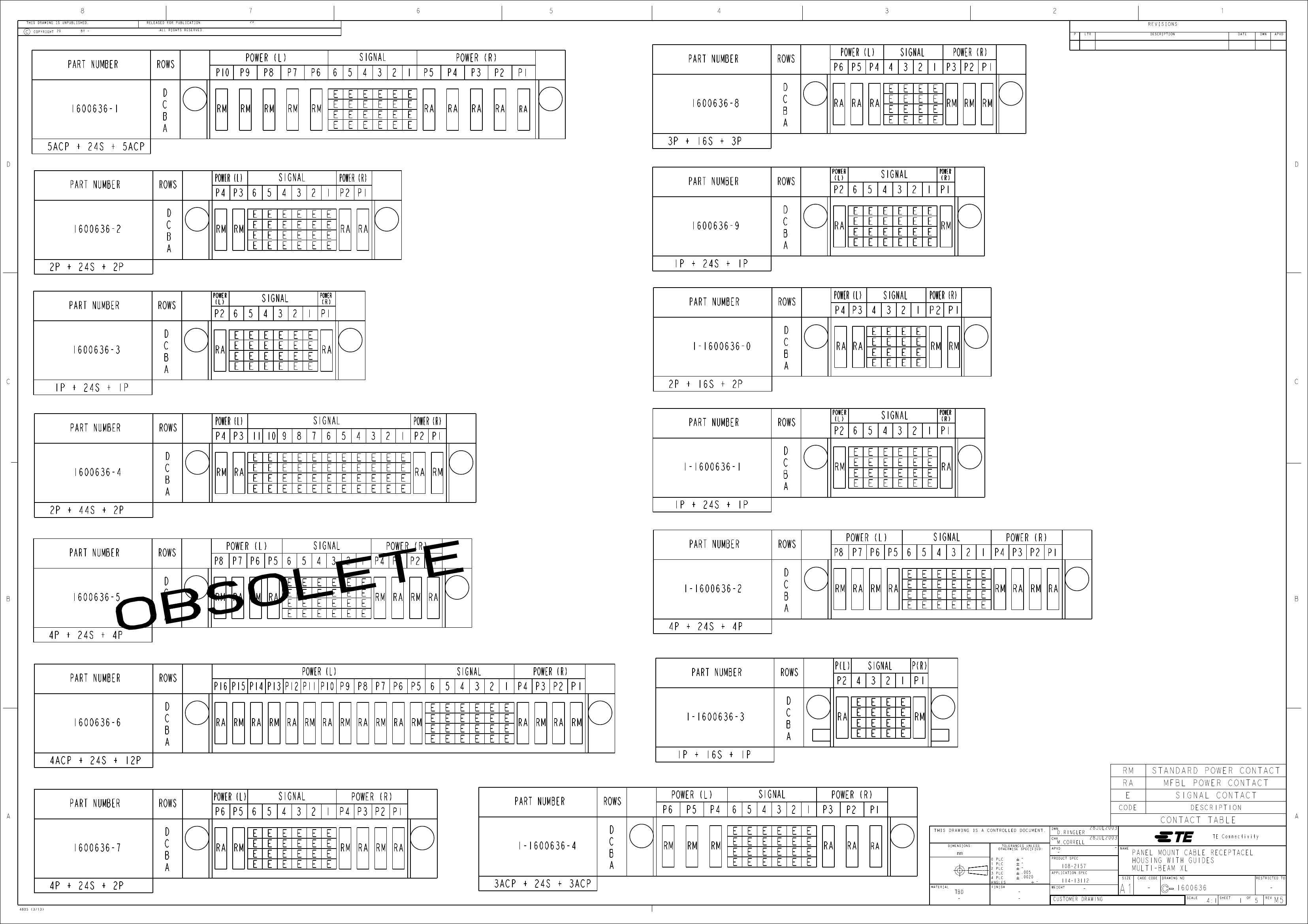

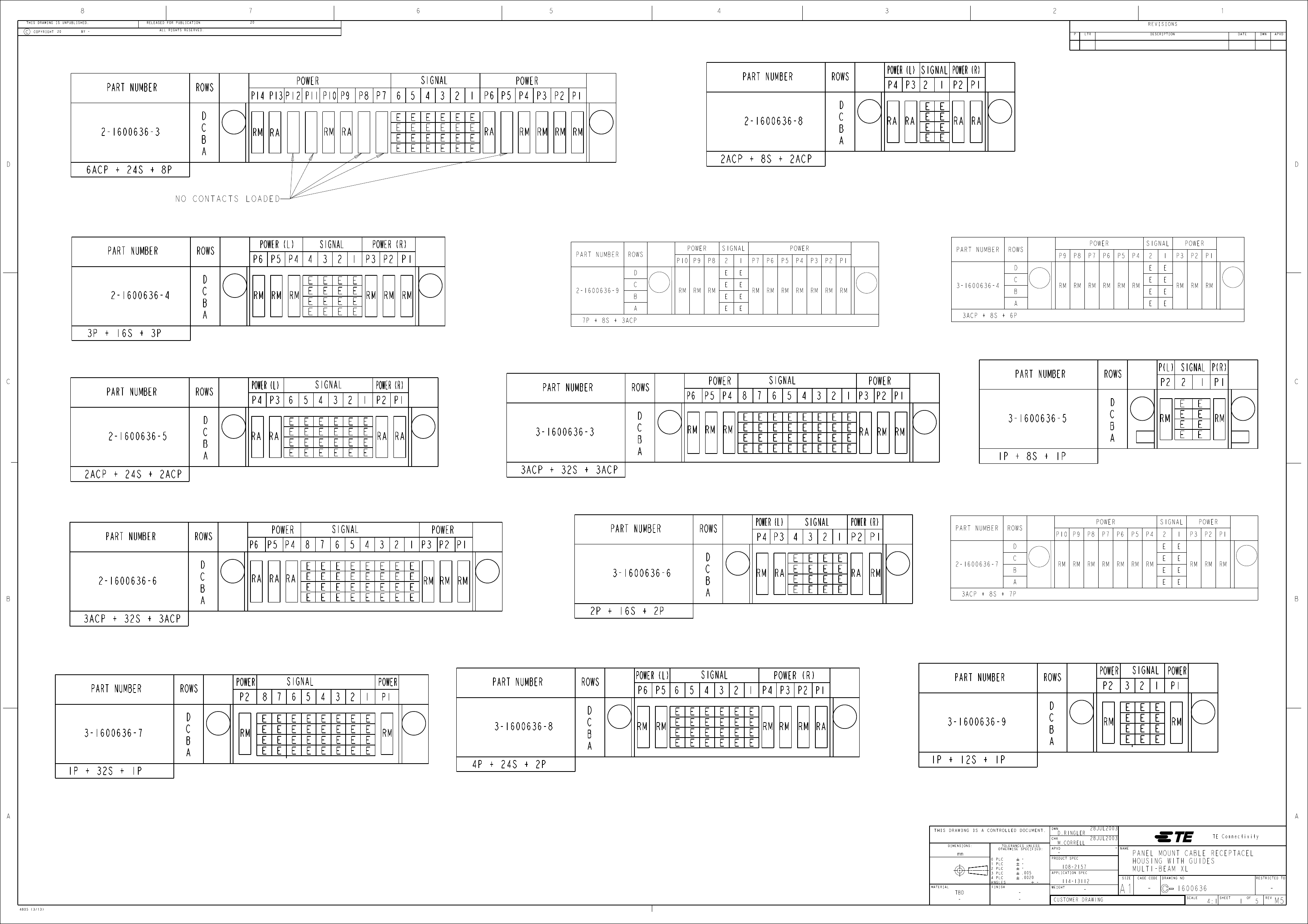

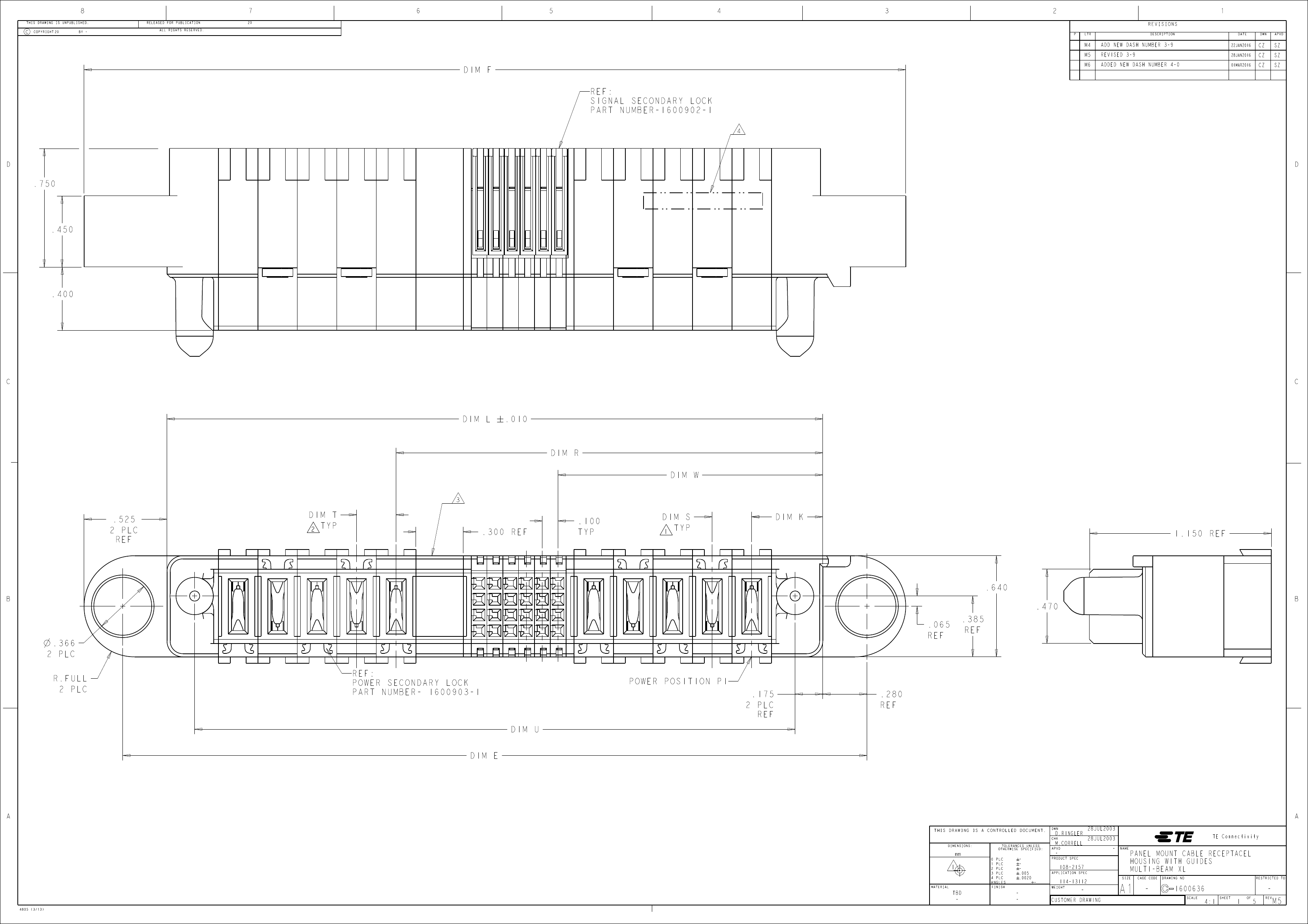

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

ADD NEW DASH NUMBER 3-9

REVISED 3-9

ADDED NEW DASH NUMBER 4-0

22JAN2016

28JAN2016

01MAR2016

DIM F

REF:

SIGNAL SECONDARY LOCK

PART NUMBER-1600902-1

.750

.450

.400

DIM L

# .010

DIM R

DIM W

.525

2 PLC

REF

DIM T

TYP

.300

REF

.100

TYP

DIM S

TYP

DIM K

1.150

REF

.640

.385

REF

.470

.366

2 PLC

R .FULL

2 PLC

REF:

POWER SECONDARY LOCK

PART NUMBER- 1600903-1

POWER POSITION P1

.065

REF

.175

2 PLC

REF

.280

REF

DIM U

DIM E

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

D.RINGLER

M.CORRELL

28JUL2003

NAME

TE Connectivity

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.005

.0020

PRODUCT SPEC

APPLICATION SPEC

108-2157

TBD

WEIGHT

114-13112

CUSTOMER DRAWING

SIZE

PANEL MOUNT CABLE RECEPTACEL

HOUSING WITH GUIDES

MULTI-BEAM XL

CAGE CODE

DRAWING NO

RESTRICTED TO

1600636

SCALE

4805 (3/13)

4:1

SHEET

REV

3-1600636-5 Related Products

	3-1600636-5	1-1600636-0	1600636-9	1600636-1	1600636-8	1600636-2
Description	HEADER CONNECTOR,HYBRID,RECEPT,8+2 CONTACTS,SKT,LOCKING	MBXL RCPT PMT 2P+16S+2P	MBXL RCPT PMT 1P+24S+1P	MBXL RCPT PMT 5ACP+24S+5ACP	MBXL RCPT PMT 3P+16S+3P	MBXL RCPT PMT 2P+24S+2P
Objectid	313641862	1679666999	1679667042	1679667034	1679667041	1679667035
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	compliant
Other features	WITH GUIDES	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE
body width	0.64 inch	0.64 inch	0.64 inch	0.64 inch	0.64 inch	0.64 inch
subject depth	1.15 inch	1.15 inch	1.15 inch	1.15 inch	1.15 inch	1.15 inch
body length	2.5 inch	3.2 inch	2.975 inch	5.4 inch	3.7 inch	3.4 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S8P2	S16P4	S24P2	S24P10	S16P6	S24P4
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Durability	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
Mixed contacts	YES	YES	YES	YES	YES	YES
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Guideline	UL	UL	UL	UL	UL	UL
Total number of contacts	10	20	26	34	22	28
Brand Name	-	AMP	AMP	AMP	AMP	AMP
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to	conform to	conform to	conform to
Factory Lead Time	-	20 weeks	12 weeks	9 weeks 5 days	14 weeks	8 weeks 5 days
Samacsys Description	-	MBXL RCPT PMT 2P+16S+2P	MBXL RCPT PMT 1P+24S+1P	MBXL RCPT PMT 5ACP+24S+5ACP	MBXL RCPT PMT 3P+16S+3P	MBXL RCPT PMT 2P+24S+2P
Samacsys Manufacturer	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Samacsys Modified On	-	2020-10-11 10:54:44	2020-10-11 10:54:44	2020-10-11 10:54:44	2020-10-11 10:54:44	2020-10-11 10:54:44
YTEOL	-	9.15	9.15	9.15	9.15	9.15
Contact to complete cooperation	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact material	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	-	NO	NO	NO	NO	NO
Electromagnetic interference shielding	-	NO	NO	NO	NO	NO
empty shell	-	YES	YES	YES	YES	YES
Filter function	-	NO	NO	NO	NO	NO
IEC compliance	-	NO	NO	NO	NO	NO
Insulator color	-	BLACK	BLACK	BLACK	BLACK	BLACK
MIL compliance	-	NO	NO	NO	NO	NO
Power Connector Ratings	-	115/230VAC	115/230VAC	115/230VAC	115/230VAC	115/230VAC
Match contact row spacing	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation type	-	PANEL	PANEL	PANEL	PANEL	PANEL
Number of ports	-	1	1	1	1	1
Number of rows loaded	-	4	4	4	4	4
Options	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	-	NO	NO	NO	NO	NO
Rated voltage	-	200 V	60 V	300 V	200 V	200 V
Terminal pitch	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	-	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
UL Flammability Code	-	94V-0	94V-0	94V-0	94V-0	94V-0
