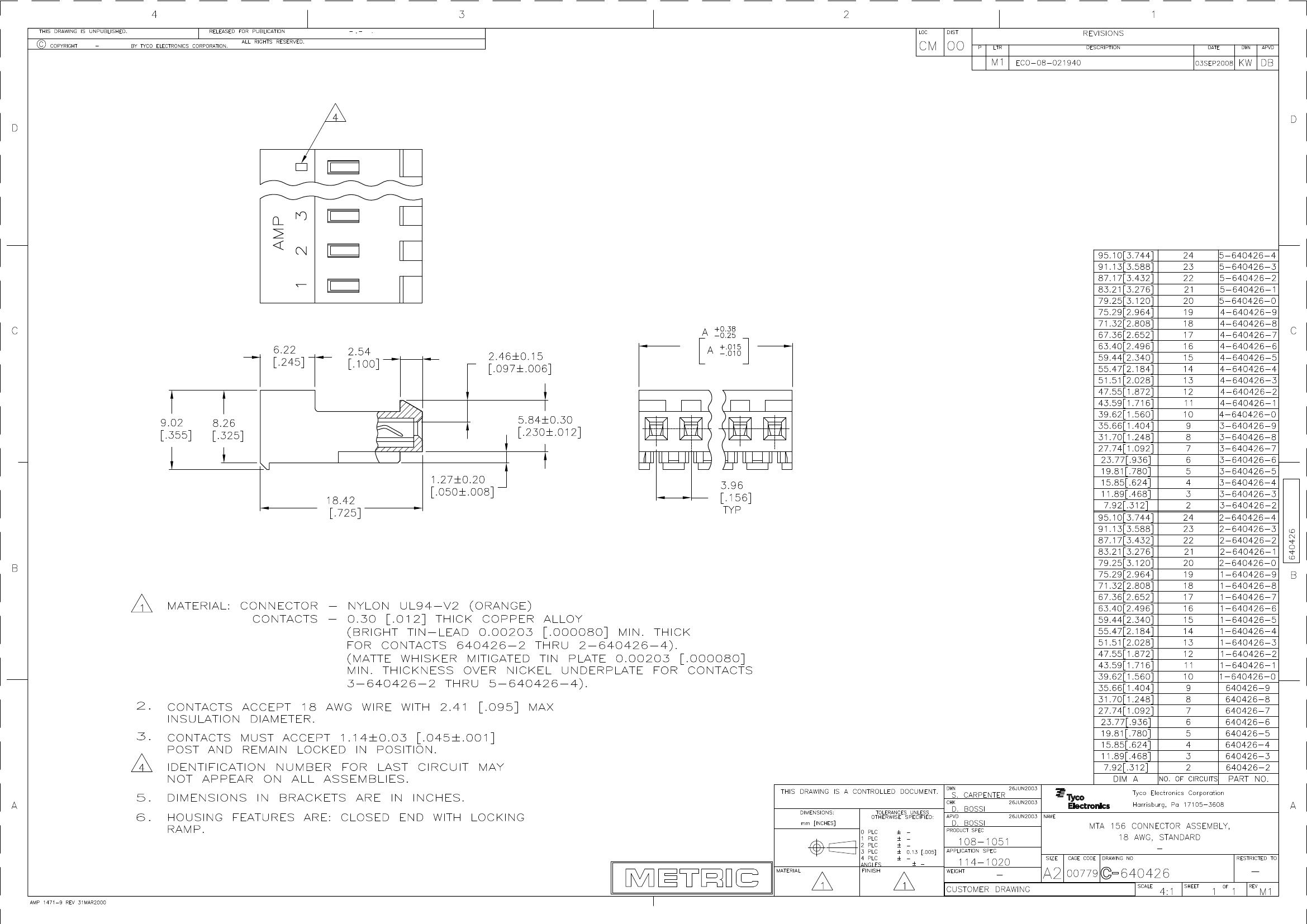

Preview

1-6404265: Description15 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC; CategoryThe connector The connector; File Size132KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1-6404265 Overview

15 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC

1-6404265 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	compliant
Is Samacsys	N
Other features	AMP
body width	0.355 inch
subject depth	0.725 inch
body length	2.34 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	3 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2200VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	8.0064 N
Insulation resistance	5000000000 Ω
Insulator color	ORANGE
insulator material	NYLON
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	640426
Plug contact pitch	0.156 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	80u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	15
UL Flammability Code	94V-2
Maximum wire diameter	18 AWG
Minimum wire diameter	18 AWG
Evacuation force-minimum value	.8896 N
Base Number Matches	1
