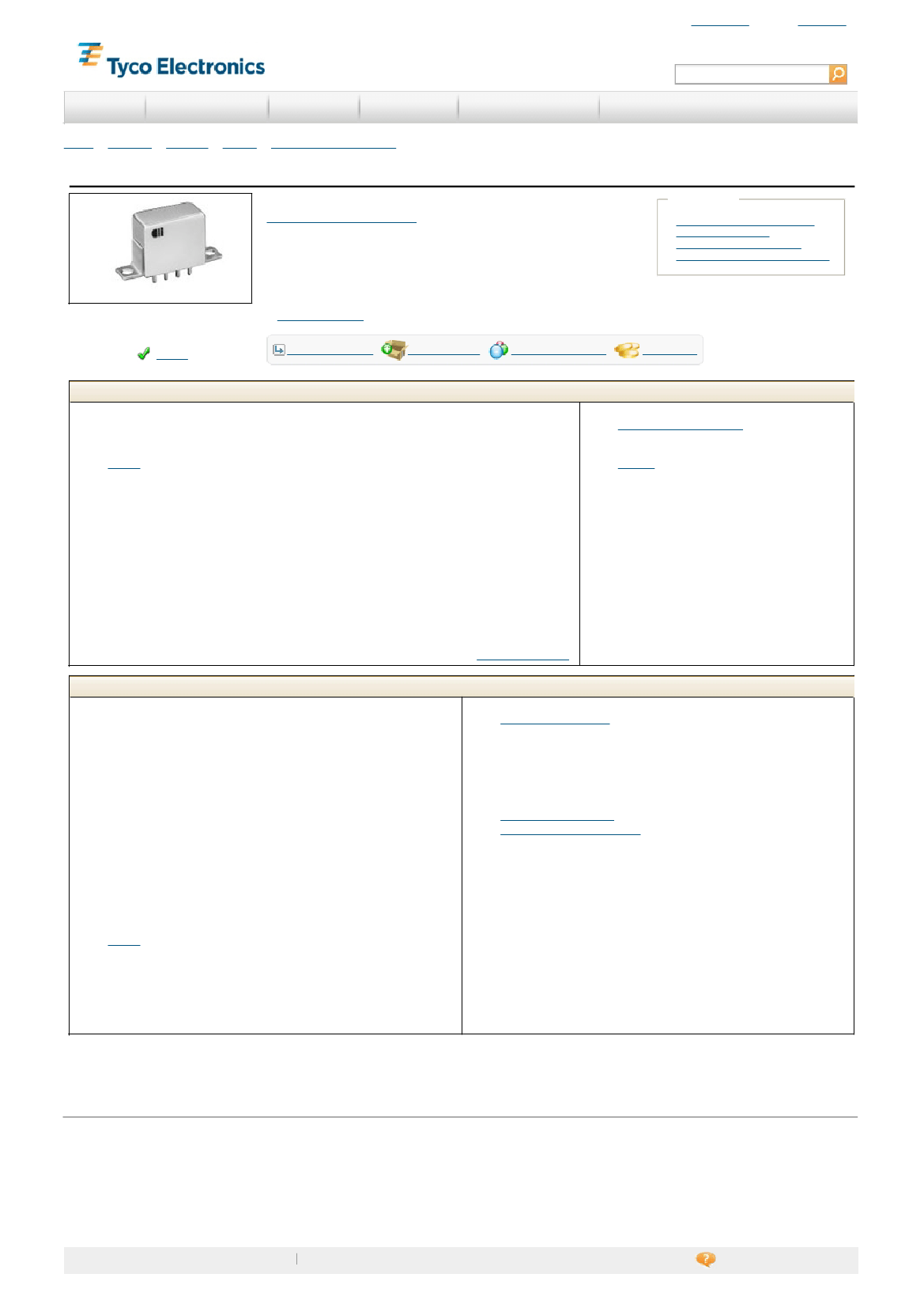

3-1617004-5

Description
POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.088A (COIL), 26.5VDC (COIL), 2341mW (COIL), 10A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT
CategoryMechanical and electronic products    relay
File Size100KB，1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

3-1617004-5 Overview

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.088A (COIL), 26.5VDC (COIL), 2341mW (COIL), 10A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

3-1617004-5 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Objectid1666979243
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys DescriptionB07D915BC4-0264 = MS27247-4
Samacsys ManufacturerTE Connectivity
Samacsys Modified On2020-10-04 19:49:56
YTEOL6.95
body width15.88 mm
body height25.91 mm
Body length or diameter27.31 mm
Maximum coil current (DC)0.088 A
Coil operating voltage (DC)13 V
Coil power2340 mW
Coil release voltage (DC)7 V
Coil resistance300 Ω
Maximum coil voltage (DC)26.5 V
Nominal coil voltage28 V
Coil/Input Power TypeDC
Contact (AC) maximum rated R load10A@115VAC
Maximum contact current (AC)10 A
Maximum contact current (DC)10 A
Contact (DC) maximum rated R load10A@28VDC
Maximum contact voltage (AC)115 V
Maximum contact voltage (DC)28 V
Contact/Output Power TypeAC/DC
Electrical life100000 Cycle(s)
End contact materialSILVER CADMIUM OXIDE
Input switching control typeRandom
Installation featuresPANEL MOUNT
Number of terminals8
operating hours10 ms
Maximum operating temperature125 °C
Minimum operating temperature-70 °C
physical size27.31mm x 15.88mm x 25.91mm
Relay actionMOMENTARY
Relay style2 FORM C
Relay functionDPDT-CO
Relay typePOWER/SIGNAL RELAY
release time10 ms
sealHERMETICALLY SEALED
surface mountNO
Terminal length0.005300990601981204 inch
Termination typeSOLDER

Preview

Download Datasheet
My Account
Tyco Electronics
(C hange)
Se a rch by Ke yword or Pa rt #
Products
Documentation
Resources
My Account
Customer Support
Home
>
Products
>
By Type
>
Relays
>
Product Feature Selector
> Product Details
B07D915BC4-0264 Product Details
Military/Aerospace High Performance Relays
Not EU R oHS or ELV C om plia nt
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
B07D915BC4-0264
(3-1617004-5)
T E I nternal N umber: 3 - 1 6 1 7 0 0 4 - 5
Product Highlights:
l
07 Full Size Relay Series
l
Input Voltage = 26.5 VDC
l
C ontact Arrangement = 2 Form C , DPDT, 2 C /O
l
C ontact C urrent Rating = 10 Amps.
l
Non Polarized, Monostable C oil Magnetic System
View all Features
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Active
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
RELAY
(PDF, English)
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Termination Type = PC Pins
Electrical Characteristics:
l
Input Voltage (VDC ) = 26.5
l
C ontact C urrent Rating (Amps.) = 10
l
C oil Polarity Protection Diode = Without
l
Transistor Driver = Without
l
C oil Resistance (?) = 300
l
MOSFET Driver = Without
l
C oil Power Measurement = Milliwatts
l
C oil Power, Nominal (mW) = 2341
l
Actuating System = DC
l
Shock = 100G's, 6ms
l
Vibration = 20G's, 10 to 2000Hz
Body Related Features:
l
Series
= 07 Full Size Relay
Contact Related Features:
l
Mounting Options = C hassis Mount
l
Enclosure = Hermetically Sealed
l
Approved Standards = M5757 Qualified
Configuration Related Features:
l
C ontact Arrangement
= 2 Form C , DPDT, 2 C /O
l
C oil Magnetic System = Non Polarized, Monostable
l
C oil Suppression Diode = Without
Industry Standards:
l
Government/Industry Qualification = Yes
l
Government/Industry Part Number = MS27247-4
l
RoHS/ELV C ompliance
= Not ELV/RoHS compliant
l
Lead Free Solder Processes
= Not suitable for lead free processing
Conditions for Usage:
l
Temperature Range (?C ) = -65 – +125
Other:
l
Brand = C II
Additional Information:
l
Product Line Information
Related Products:
l
Tooling
Corporate Information
Who We Are
Investors
News Room
Supplier Portal
C areers
Quick Links
C heck Distributor Inventory
C ross Reference
Find Documents & Drawings
Product C ompliance Support C enter
Site Map
Priva cy Policy
Customer Support
Email or C hat with Us
Find a Phone Number
Search Knowledge Base
