9607S-A2-01-90 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 9607S-A2-01-90

9607S-A2-01-90: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size68KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric View All

9607S-A2-01-90 Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Plug

9607S-A2-01-90 Parametric

Parameter Name	Attribute value
Objectid	304355363
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.197 inch
subject depth	0.181 inch
body length	0.35 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	9600S
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	14

Preview

Download Datasheet

View All

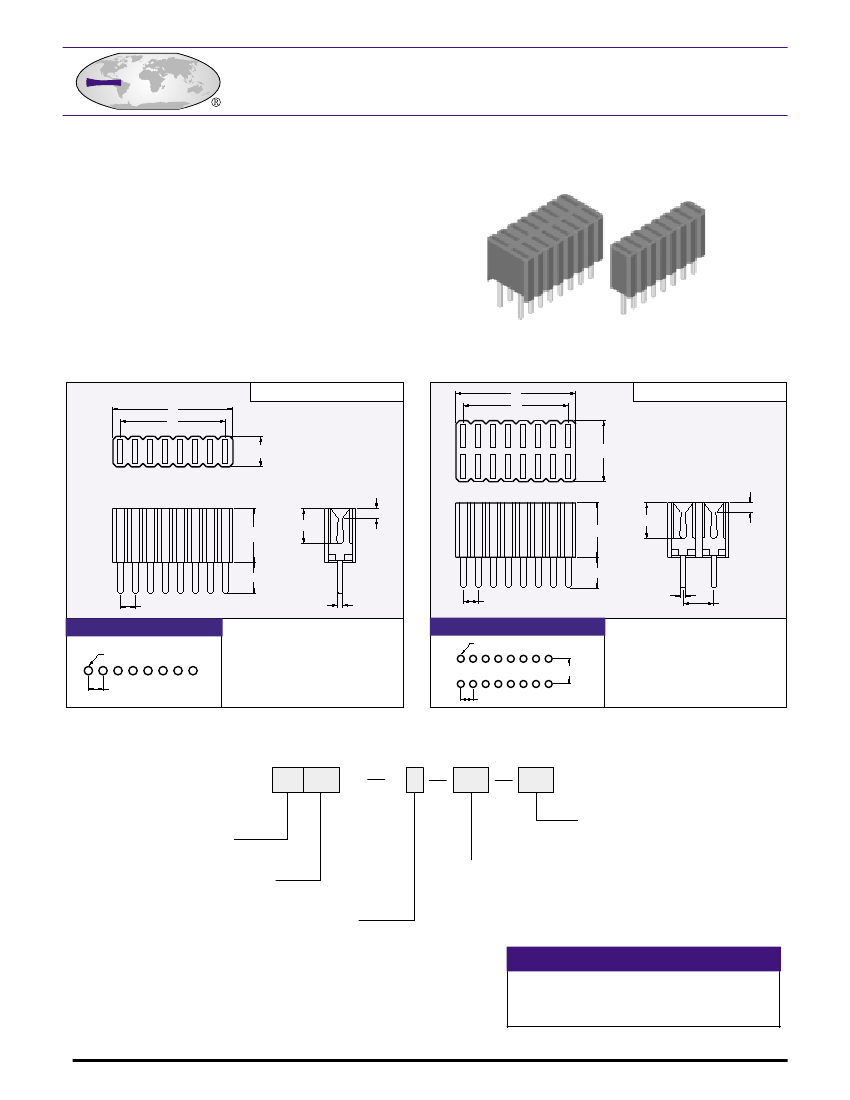

Specifications

.050 [1.27] Low Profile Socket

9600S Series Sockets

Insulator Material: Glass filled polyester, Thermoplastic,

94V-O Nylon-6T, UL Recognized.

Contact Material: Phosphor Bronze

Contact Plating: Gold and/or Tin over .000050” Ni

(See contact plating options)

Insulation Resistance:

5000 M ohms min.

Contact Resistance:

20 m ohms max.

Dielectric Withstand Voltage: 500 VAC

Current Rating:

1 AMP

Operating Temperature:

-40°C To +105°C

Max Operating Temp.:

230°C for 60 seconds

UL File Numbers:

E146967 & E176234

SINGLE ROW

.102 [2.60]

DOUBLE ROW

.197 [5.00]

.181 [4.6]

.118 [3.0]

.033 [.85]

.181 [4.6]

.118 [3.0]

.033 [.85]

TAIL LENGTH

.050 [1.27]

Ø .018 [.46]

.050 [1.27]

TAIL LENGTH

Ø .018 [.46]

.100 [2.54]

PCB LAYOUT

Ø.028+.003 [0.7+.05]

PCB LAYOUT

= .050 x No. of Pos.

= .050 x (No. of Cont. -1)

Ø.028+.003 [0.7+.05]

.100 [2.54]

= .050 x No. of Pos.

= .050 x (No. of Cont./2 -1)

.050 [1.27]

DIMENSIONS ARE IN INCHES [MM]

.050 [1.27]

PART NUMBERING

96 XX

SERIES CODE

.050 SOCKETS

A X

CONTACT PLATING

.000050” Nickel underplate

MATING

TAIL

= 100µ”Sn

100µ”Sn

= Au Flash

Au Flash

= 10µ”Au

10µ”Au

= 30µ”Au

30µ”Au

NO. OF CONTACTS

SINGLE ROW =

03 - 40

DOUBLE ROW =

06 - 98

100 =

TAIL LENGTH

= .094 [2.40] STANDARD

= .060 [1.50]

= .118 [3.00]

BODY STYLE

= SINGLE ROW

= DOUBLE ROW

CONSULT FACTORY FOR OTHER TAIL LENGTH OPTIONS

SUGGESTED MATING CONNECTORS

SINGLE ROW:

96XX-AX-01-XX

(F-05)

96XX-BX-01-XX

(F-06)

96XX-CX-01-XX-XXX (F-07)

DOUBLE ROW:

96XX-JX-X1-XX

(F-14)

96XX-K1-01-XX

(F-15)

96XX-C2-01-XX-XXX (F-07)

CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION

ELECTRONIC CONNECTOR SERVICE INC.

11880 WESTERN AVE. STANTON, CA 90680 TOLL FREE (877) ECS-CONN TEL (714) 895-6351 FAX (714) 894-1858

WWW.ECSCONN.COM
