Part Number

Search

3-1658464-3

Description
84 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT
CategoryThe connector    The connector
File Size282KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

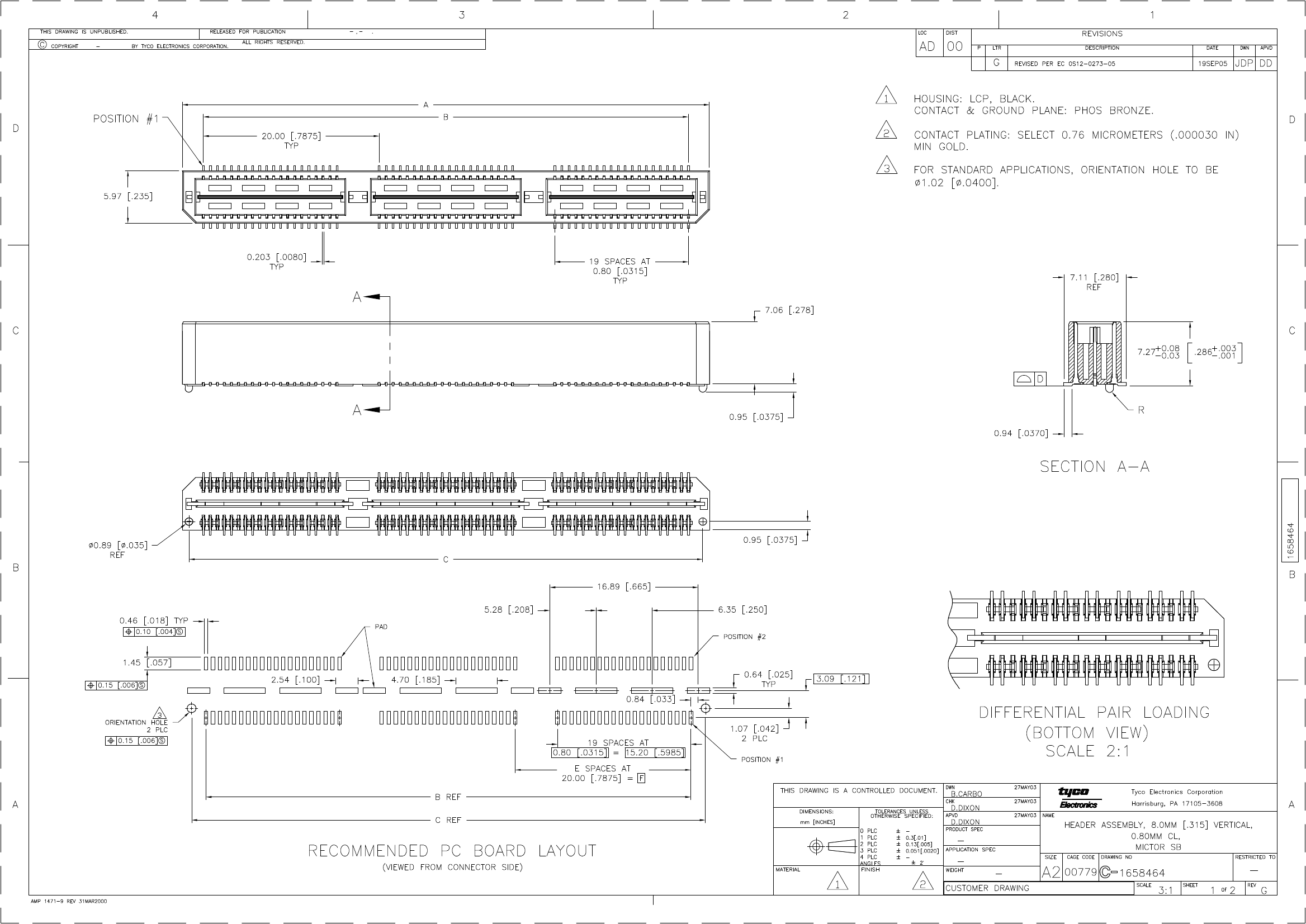

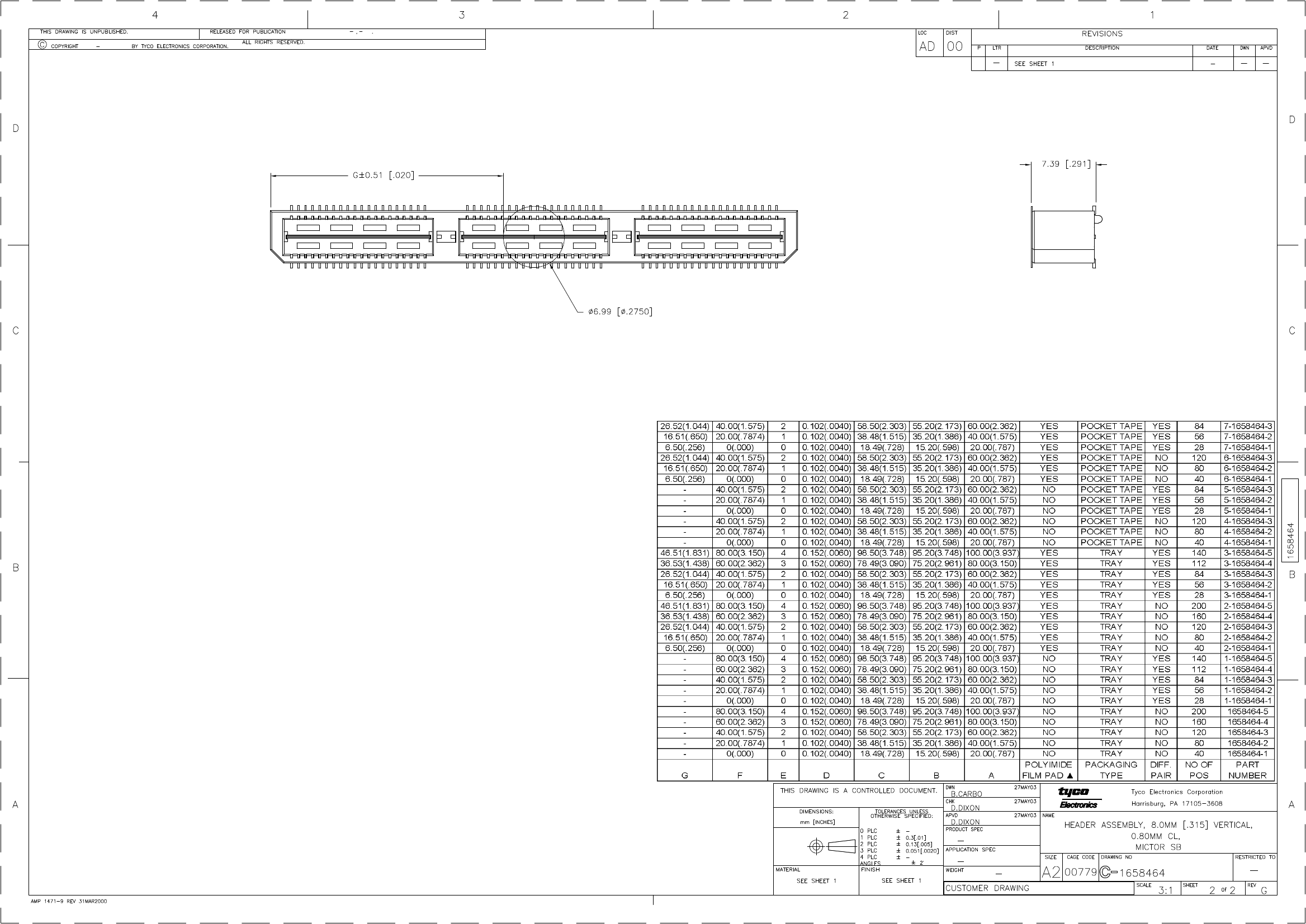

3-1658464-3 Overview

84 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT

3-1658464-3 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1674245207
Reach Compliance Codecompliant
YTEOL8.7
body width0.235 inch
subject depth0.291 inch
body length2.362 inch
Body/casing typePLUG
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
DIN complianceNO
Dielectric withstand voltage675VAC V
Durability100 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER
MIL complianceNO
Manufacturer's serial number1658464
Plug contact pitch0.032 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing6.096 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
reliabilityCOMMERCIAL
Terminal pitch0.8 mm
Termination typeSURFACE MOUNT
Total number of contacts84
