3-1658468-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-1658468-3

3-1658468-3: Description84 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT; CategoryThe connector The connector; File Size293KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1658468-3 Overview

84 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT

3-1658468-3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1715304999
Reach Compliance Code	compliant
YTEOL	8.7
Board mount options	PEG
body width	0.265 inch
subject depth	0.836 inch
body length	2.362 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Dielectric withstand voltage	675VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	1658468
Plug contact pitch	0.032 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.9436 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	84

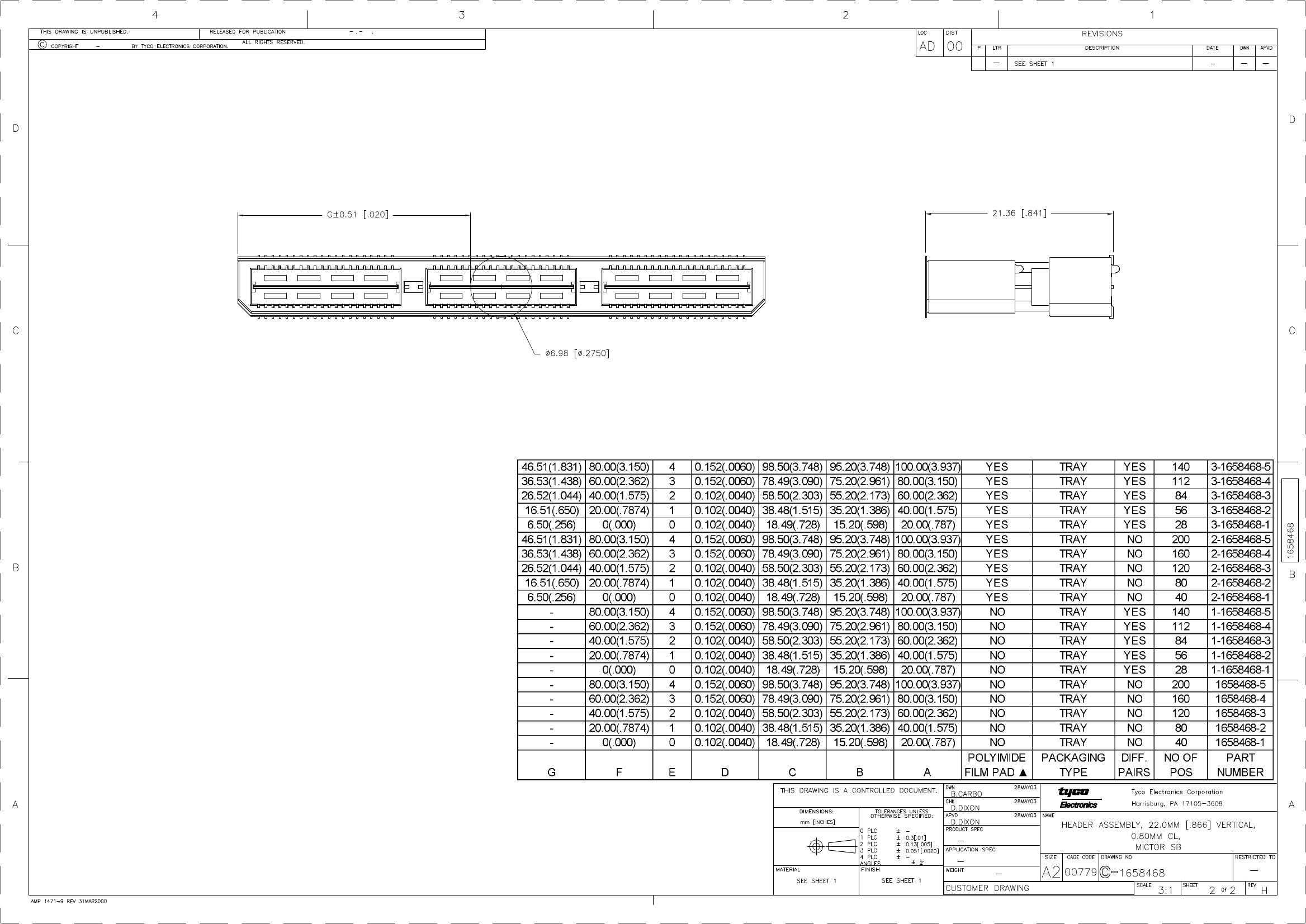

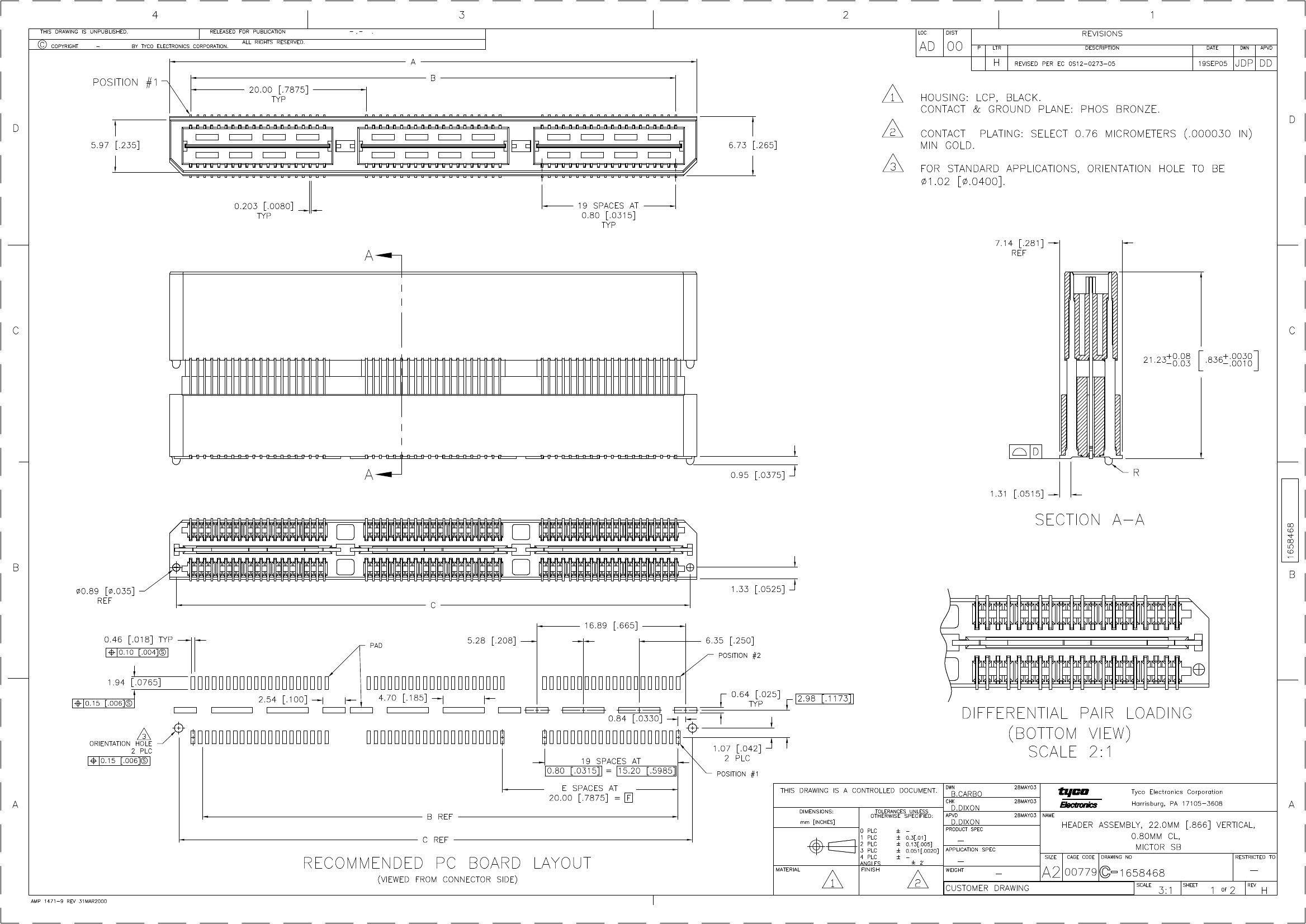

Preview

Download Datasheet

View All

3-1658468-3 Related Products

	3-1658468-3	3-1658468-1	1-1658468-1	3-1658468-2	1-1658468-2	1-1658468-3	ECS-320-8-47ADM-TR	ECS-320-8-47AP-TR	ECS-320-8-47B-ADL-TR	ECS-320-8-47B-ADY-TR
Description	84 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT	28 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT	28 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT	56 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT	56 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT	84 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT	Parallel - Fundamental Quartz Crystal, 32MHz Nom, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 32MHz Nom, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 32MHz Nom, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 32MHz Nom, SMD, 4 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Objectid	1715304999	1715304997	1715304957	1715304998	1715304958	1715304959	1268629154	1268629190	145146946153	145146944276
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
YTEOL	8.7	8.7	8.7	8.7	8.7	8.7	7.35	7.35	7.35	7.35
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	70 °C	105 °C	70 °C	85 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-20 °C	-40 °C	-10 °C	-30 °C
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	-	-
Board mount options	PEG	PEG	PEG	PEG	PEG	PEG	-	-	-	-
body width	0.265 inch	0.265 inch	0.265 inch	0.265 inch	0.265 inch	0.265 inch	-	-	-	-
subject depth	0.836 inch	0.836 inch	0.836 inch	0.836 inch	0.836 inch	0.836 inch	-	-	-	-
body length	2.362 inch	0.787 inch	0.787 inch	1.575 inch	1.575 inch	2.362 inch	-	-	-	-
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	-	-	-	-
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	-	-	-	-
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	-	-
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	-	-	-	-
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	-	-
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	-	-
DIN compliance	NO	NO	NO	NO	NO	NO	-	-	-	-
Dielectric withstand voltage	675VAC V	675VAC V	675VAC V	675VAC V	675VAC V	675VAC V	-	-	-	-
Durability	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles	100 Cycles	-	-	-	-
Filter function	NO	NO	NO	NO	NO	NO	-	-	-	-
IEC compliance	NO	NO	NO	NO	NO	NO	-	-	-	-
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	-	-	-	-
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	-	-	-	-
insulator material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	-	-	-	-
MIL compliance	NO	NO	NO	NO	NO	NO	-	-	-	-
Manufacturer's serial number	1658468	1658468	1658468	1658468	1658468	1658468	-	-	-	-
Plug contact pitch	0.032 inch	0.032 inch	0.032 inch	0.032 inch	0.032 inch	0.032 inch	-	-	-	-
Mixed contacts	NO	NO	NO	NO	NO	NO	-	-	-	-
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	-	-	-	-
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-	-	-	-
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	-	-	-	-
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	-	-	-	-
PCB row number	2	2	2	2	2	2	-	-	-	-
Number of rows loaded	2	2	2	2	2	2	-	-	-	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	-	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	-	-
PCB contact row spacing	5.9436 mm	5.9436 mm	5.9436 mm	5.9436 mm	5.9436 mm	5.9436 mm	-	-	-	-
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	-	-	-	-
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	-	-	-	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-	-	-
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	-	-	-	-
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	-	-	-
Total number of contacts	84	28	28	56	56	84	-	-	-	-
