6-1658052-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 6-1658052-1

6-1658052-1: DescriptionCONNECTOR, 60 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT; CategoryThe connector The connector; File Size123KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

6-1658052-1 Overview

CONNECTOR, 60 CONTACT(S), FEMALE, STRAIGHT BOARD STACKING CONNECTOR, SURFACE MOUNT, RECEPTACLE, ROHS COMPLIANT

6-1658052-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Is Samacsys	N
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	1658052
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	60
Base Number Matches	1

Preview

Download Datasheet

View All

My Account

Tyco Electronics

(C hange)

Se arch by Ke yword or Part #

Products

Documentation

Resources

My Account

Customer Support

Home

Products

By Type

Parallel (Stacking) C onfiguration

Product Feature Selector

> Product Details

6-1658052-1 Product Details

Live Product Chat

MICTOR SB Connectors

Always EU R oHS/ELV C om pliant

(

Sta te m e nt of C om pliance

)

Quick Links

C heck Pricing & Availability

Search for Tooling

Product Feature Selector

C ontact Us About This Product

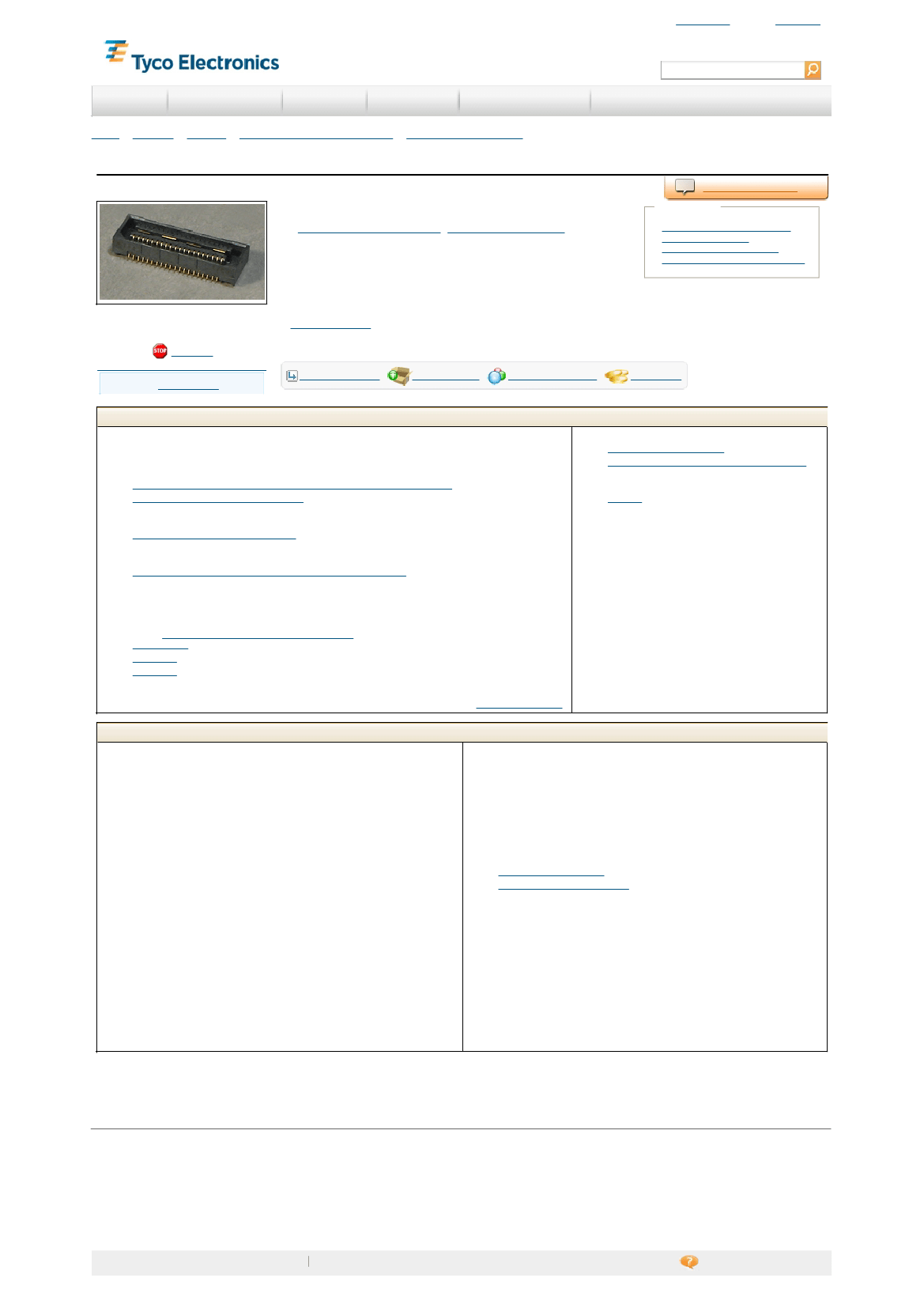

6-1658052-1

T E I nternal N umber: 6 - 1 6 5 8 0 5 2 - 1

Product Highlights:

C onnector

C onnector Type = Receptacle

MIC TOR SB Product Line

60 Positions

.50 mm C enterline

View all Features

Obsolete

C ontact Product Information C enter

View 3D PDF

A dd to M y P art L is t

Reques t Sample

Find Similar P roduc ts

Buy P roduc t

Documentation & Additional Information

Product Drawings:

None Available

Catalog Pages/Data Sheets:

HIGH SPEED, C ONTROLLED IMPEDANC E TWO-PIEC E C ONNEC TORS

(PDF, English)

MIC TOR SB Interconnection System

(PDF, English)

Product Specifications:

MIC TOR SB (True SMT) C onnector

(PDF, English)

Application Specifications:

MIC TOR SB Vertical C onnectors for Surface Mount Tech...

(PDF, English)

Instruction Sheets:

None Available

CAD Files:

AD Format & C ompression Information)

2D Drawing

(DXF, Version D)

3D Model

(IGES, Version D)

3D Model

(STEP, Version D)

List all Documents

Product Features

(Please use the Product Drawing for all design activity)

Product Type Features:

Product Type = C onnector

C onnector Type = Receptacle

Product Line = MIC TOR SB

Number of Positions = 60

C omment = Use of stand offs recommended. C ontact Product

Engineering for recommendations.

Electrical Characteristics:

Impedance (?) = 50

Termination Related Features:

Solder Tail C ontact Plating = Gold over Nickel

Body Related Features:

C enterline (mm [in]) = 0.50 [0.0197]

Polyamide Film Pad = With

Contact Related Features:

C ontact Loading Pattern = Fully Loaded

C ontact Plating, Mating Area, Material = Select Gold Flash

C ontact Material (Signal) = Phosphor Bronze

C ontact Material (Ground) = Phosphor Bronze

Housing Related Features:

Housing C olor = Black

Housing Material = Liquid C rystal Polymer (LC P)

Configuration Related Features:

Stack Height (mm [in]) = 5.00 [0.197], 8.00 [0.315], 11.00 [0.433],

16.00 [0.630], 19.00 [0.748], 22.00 [0.866], 25.00 [0.984], 30.00

[1.181]

Industry Standards:

RoHS/ELV C ompliance

= RoHS compliant, ELV compliant

Lead Free Solder Processes

= Reflow solder capable to 245?C ,

Reflow solder capable to 260?C

RoHS/ELV C ompliance History = Always was RoHS compliant

Conditions for Usage:

Temperature Range (?C ) = -65 – +125

Packaging Related Features:

Packaging Method = Tape & Reel

Other:

Brand = AMP

Additional Information:

Product Line Information

High Speed MIC TOR SB C able Assemblies
