RJM-25V222MI7#-G10 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> RJM-25V222MI7#-G10

RJM-25V222MI7#-G10: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 2200uF,; CategoryPassive components capacitor; File Size111KB，2 Pages; ManufacturerELNA; Environmental Compliance

Download Datasheet Parametric Compare View All

RJM-25V222MI7#-G10 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 2200uF,

RJM-25V222MI7#-G10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	252140567
package instruction	,
Reach Compliance Code	unknown
Country Of Origin	Thailand
ECCN code	EAR99
YTEOL	6.95
capacitance	2200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	12.5 mm
dielectric materials	ALUMINUM
length	30 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	3450 mA
series	RJM
Terminal pitch	5 mm

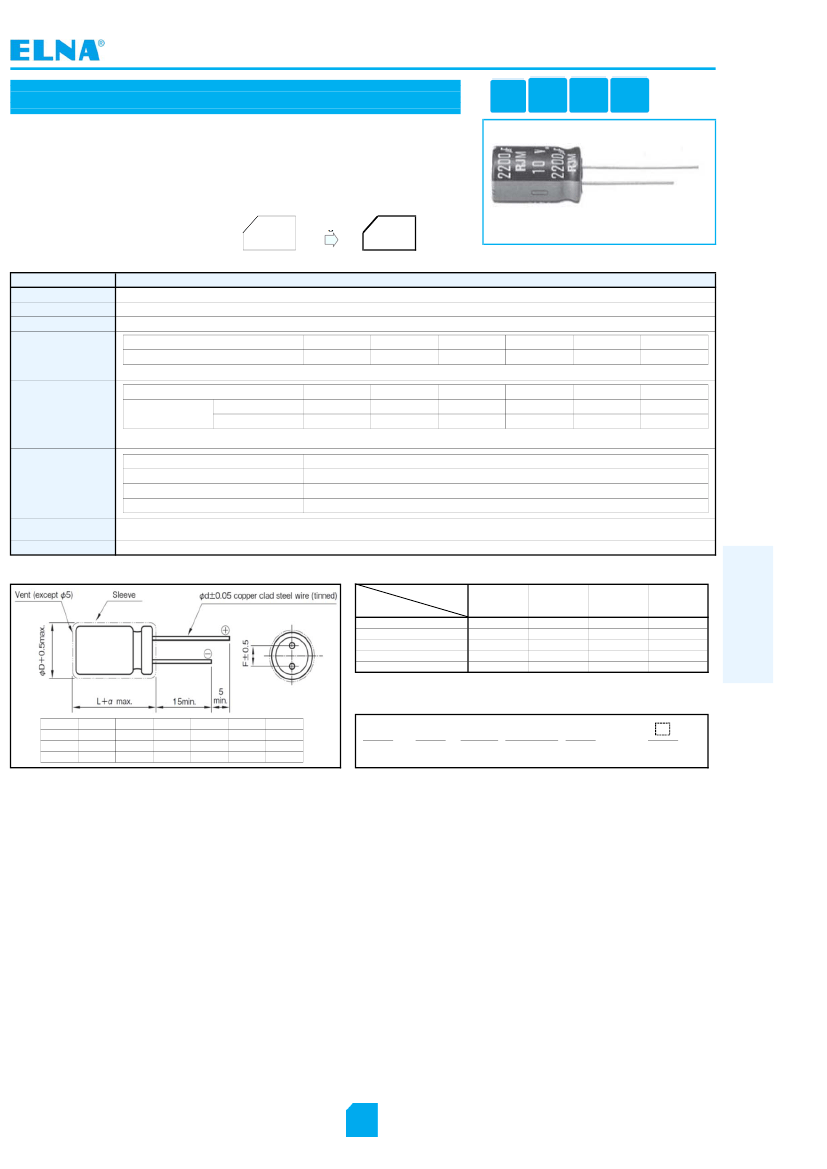

Preview

Download Datasheet

View All

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

105°C Use,Miniature, High-Reliability, Extra Low Impedance

・Long

life than RJF series.

・Guarantees

10000 hours at 105°C

(5:

5000 hours、6.3: 6000 hours、8: 8000 hours)

GREEN

CAP

Low

105C

Impedance 10000hours

RJM

Anti-

cleaning

solvent

RJF

Specifications

Item

Category temperature range(°C)

Tolerance rated capacitance(%)

Long Life

RJM

Marking color

：

White print on a black sleeve

Performance

-40 to +105

±20

(20°C,120Hz)

(20°C)

0.10

(20°C,120Hz)

(120Hz)

0.16

0.14

0.12

Leakage current (A)

Tangent of loss angle

(tanδ)

Less than 0.01CV or 3 whichever is larger (after 2 minutes) C : Rated capacitance (F)　V : Rated voltage(V)

Rated voltage (V)

tanδ(max.)

6.3

0.22

0.19

0.02 is added to every 1000F increase over 1000F.

Rated voltage(V)

Characteristics at high

and low temperature

Impedance ratio

(max.)

Z-25°C/Z+20°C

Z-40°C/Z+20°C

6.3

Test time

Endurance (105°C)

(Applied ripple current)

Leakage current

Percentage of capacitance change

Tangent of loss angle

Shelf life(105°C)

Applicable standards

10000hours (5: 5000hours、6.3: 6000hours、8: 8000hours )

The initial specified value or less

Within ±25% of initial value(6.3V,10V:within ±30% of initial value)

200% or less of the initial specified value

Test time：1000hours ; other items are the same as those for the endurance. Voltage application treatment

JIS C5101- 1，- 4 1998

（IEC

60384 - 1 1992，- 4 1985）

Unit : mm

Outline Drawing

Coefficient of Frequency for Rated Ripple Current

Frequency(Hz)

Rated

capacitance(F)

27½33

47½270

330½680

820½1800

2200½8200

120

0.42

0.50

0.55

0.60

0.70

0.73

0.77

0.80

0.85

10k

0.90

0.92

0.94

0.96

0.98

100k

1.00

Miniature

Aluminum Electrolytic

Capacitors

Part numbering system (example：10V1000F)





2.0

0.5

1.0

6.3

2.5

0.5

1.0

3.5

0.6

1.0

5.0

0.6

2.0

12.5

5.0

0.6

2.0

7.5

0.8

2.0

RJM

－

10 V 102

Series code

Rated voltage Rated capacitance

symbol

Capacitance

tolerance symbol

Casing

symbol

－

Taping(Forming)

symbol

NOTE

Design, Specifications are subject to change without notice.

Ask factory for technical specifications before purchase and/ or use.

1/2

CAT.No.2013/2014
