6-176135-6 datasheet, PDF - EEWORLD Datasheet

6-176135-6: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,50 CONTACTS,SKT,0.079 PITCH,PC TAIL TERMINAL,BLACK; CategoryThe connector The connector; File Size366KB，17 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

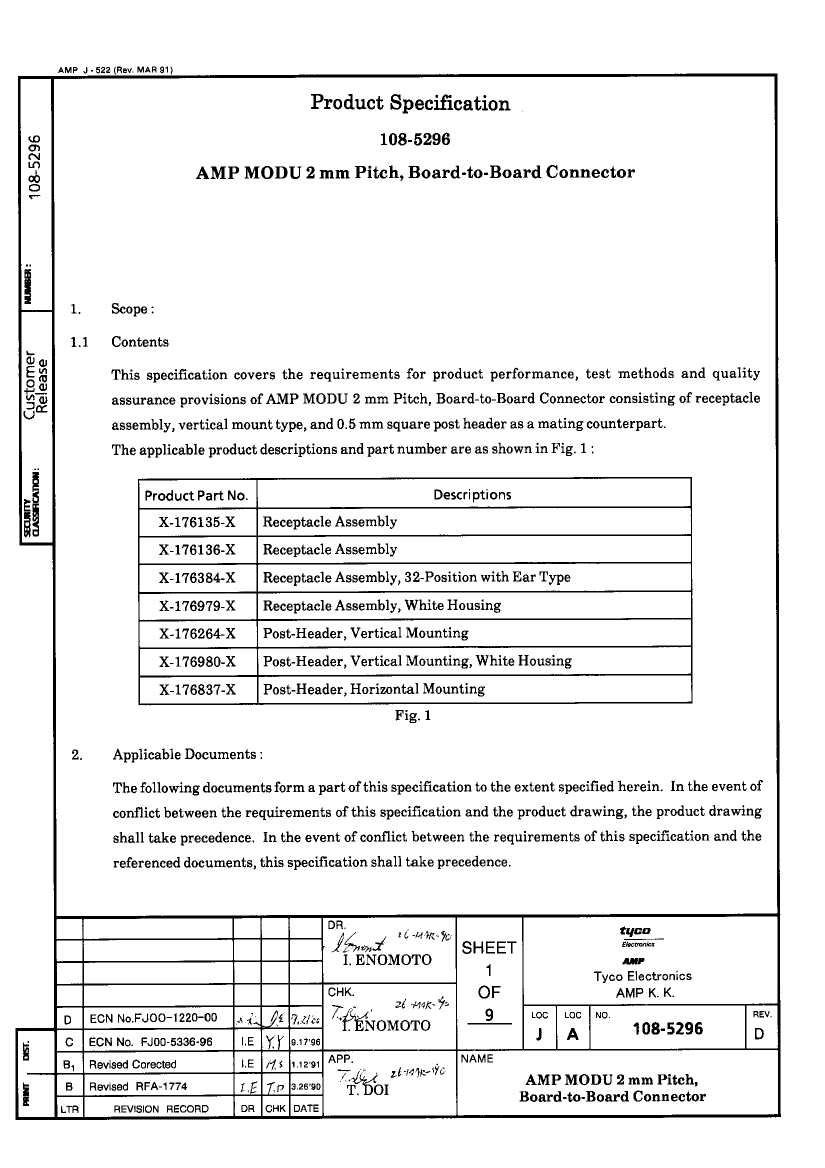

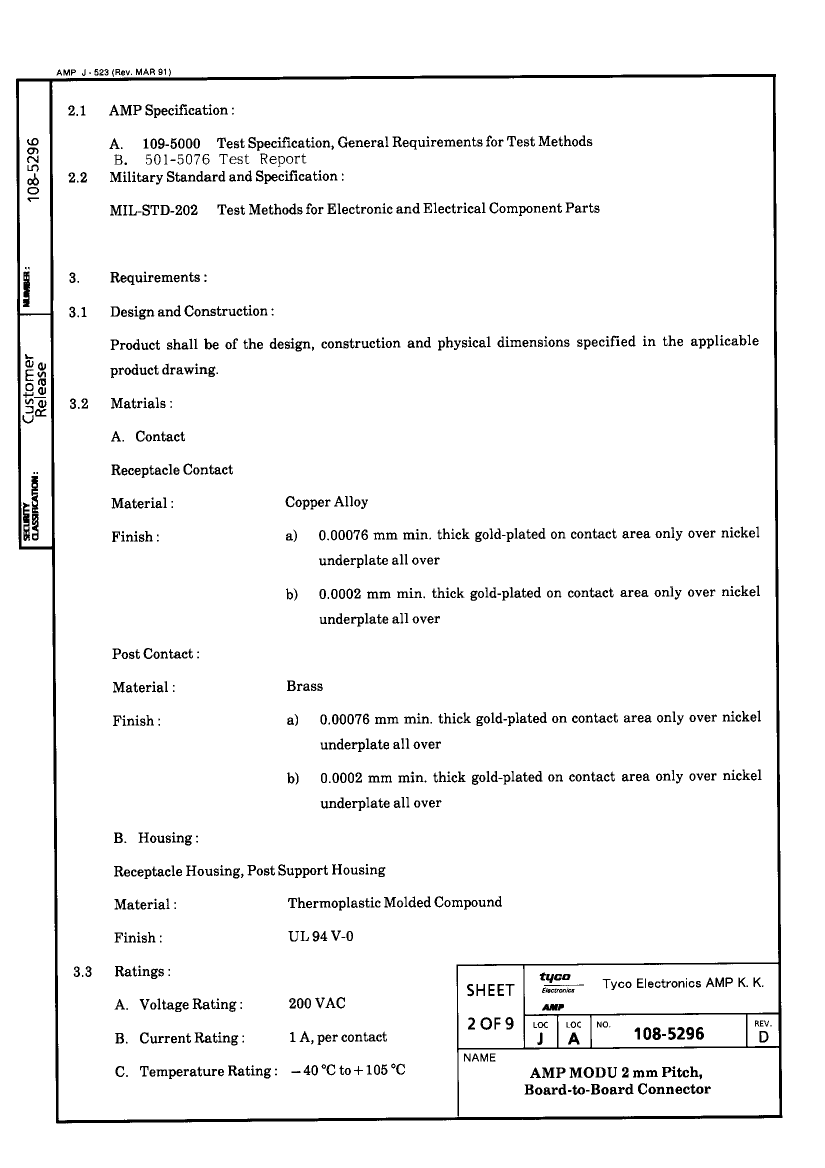

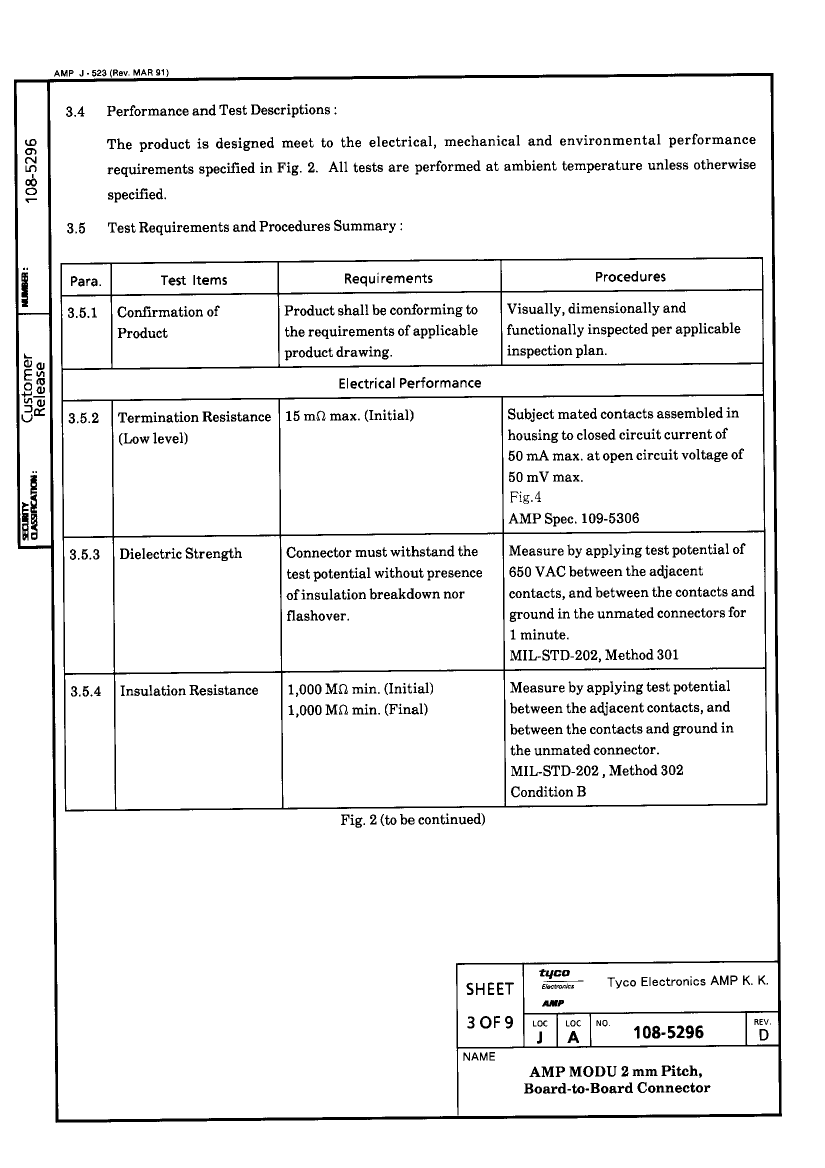

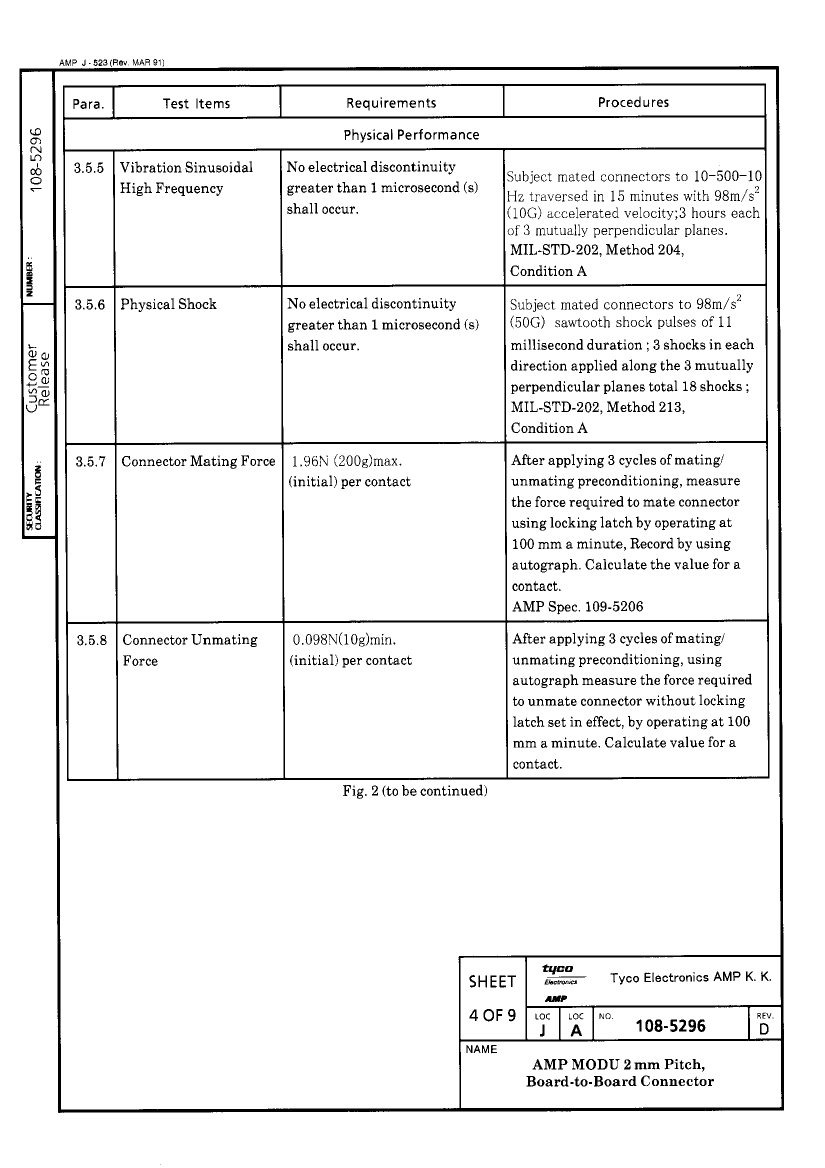

6-176135-6 Overview

HEADER CONNECTOR,PCB MNT,PLUG,50 CONTACTS,SKT,0.079 PITCH,PC TAIL TERMINAL,BLACK

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Is Samacsys	N
Other features	AMPMODU
body width	0.157 inch
subject depth	0.177 inch
body length	1.969 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED NYLON
MIL compliance	NO
Plug contact pitch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1

	6-176135-6	SMDT0402DBC2083N	177872-1	3-176135-8
Description	HEADER CONNECTOR,PCB MNT,PLUG,50 CONTACTS,SKT,0.079 PITCH,PC TAIL TERMINAL,BLACK	Fixed Resistor, Thin Film, 0.0625W, 208000ohm, 25V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 0402, CHIP	AMPMODU 2MM REC ASSY V 4P	HEADER CONNECTOR,PCB MNT,PLUG,8 CONTACTS,SKT,0.079 PITCH,PC TAIL TERMINAL,BLACK
Reach Compliance Code	unknown	compliant	unknown	unknown
Maker	TE Connectivity	-	TE Connectivity	TE Connectivity
Is Samacsys	N	-	N	N
Other features	AMPMODU	PRECISION	-	NONE
body width	0.157 inch	-	0.157 inch	0.16 inch
subject depth	0.177 inch	-	0.177 inch	0.18 inch
body length	1.969 inch	-	0.157 inch	0.31 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE	PLUG
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	-	FEMALE	FEMALE
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT
insulator material	GLASS FILLED NYLON	-	GLASS FILLED NYLON	THERMOPLASTIC
Plug contact pitch	0.079 inch	-	0.079 inch	0.079 inch
Installation method	STRAIGHT	-	STRAIGHT	STRAIGHT
Installation type	BOARD	-	BOARD	BOARD
PCB row number	2	-	2	2
Number of rows loaded	2	-	2	2
Terminal pitch	2 mm	-	2 mm	2.0066 mm
Termination type	SOLDER	-	SOLDER	SOLDER
Total number of contacts	50	-	4	8
Base Number Matches	1	-	1	1
Maximum operating temperature	-	155 °C	105 °C	105 °C
Minimum operating temperature	-	-55 °C	-40 °C	-40 °C
