November 9, 2010
SUB: NIC Components PCN & EOL Notifications
RE: EOL Notification
Product Type:
NIC Series:
Radial Leaded Film Capacitors
NPRM Series
THE FOLLOWING IS NOTICE THAT THE NPRM SERIES IS BEING DISCONTINUED.
Last Time Buy Date: 2/4/2011
Last Time Ship Date: 5/4/2011
REASON FOR TERMINATION: LOW DEMAND
See table 1 for affected NIC part numbers*:
For alternatives NIC suggests the use of the
Film Capacitor QuickBUILDER
(http://www.niccomp.com/products/qb_film.asp) to best
find an alternative SMT or other Leaded Film Capacitor.
Discontinued Part Numbers
NPRM103K100F
NPRM153K100F
NPRM223K100F
NPRM333K100F
NPRM473K100F
NPRM683K100F
NPRM104K100F
NPRM154K100F
NPRM224K100F
NPRM334K100F
NPRM474K100F
NPRM684K100F
NPRM105K100F
NPRM155K100F
NPRM225K100F
NPRM335K100F
NPRM475K100F
NPRM685K100F
NPRM106K100F
NPRM103K250F
NPRM153K250F
NPRM223K250F
NPRM333K250F
NPRM473K250F
NPRM683K250F
NPRM104K250F
NPRM154K250F
NPRM224K250F
NPRM334K250F
NPRM474K250F
NPRM684K250F
NPRM105K250F
NPRM155K250F
NPRM225K250F
NPRM335K250F
NPRM475K250F
NPRM685K250F
NPRM106K250F
NPRM103K400F
NPRM153K400F
NPRM223K400F
NPRM333K400F
NPRM473K400F
NPRM683K400F
NPRM104K400F
NPRM154K400F
NPRM224K400F
NPRM334K400F
NPRM474K400F
NPRM684K400F
NPRM105K400F
NPRM155K400F
-
-
-
-
-
NPRM103K630F
NPRM153K630F
NPRM223K630F
NPRM333K630F
NPRM473K630F
NPRM683K630F
NPRM104K630F
NPRM154K630F
NPRM224K630F
NPRM334K630F
NPRM474K630F
NPRM684K630F
-
-
-
-
-
-
-
*Note: EOL includes all optional tolerance and packaging styles.
Follow NIC PCN alerts to get email notifications of EOL and PCN announcements at
www.niccomp.com/pcn
I S O 9 0 0 1: 2 0 0 0 R E G I S T E R E D

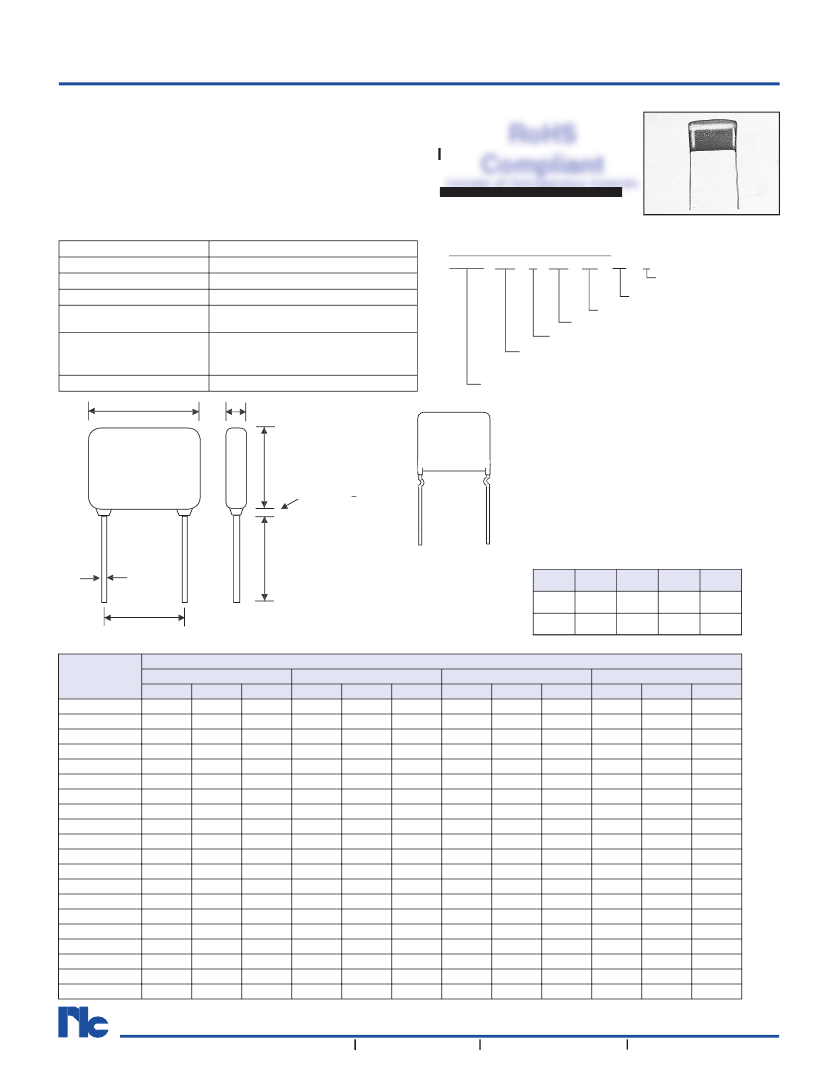

Metallized Polypropylene Film Capacitors
FEATURES
• HIGH RELIABILITY AND SELF-HEALING PERFORMANCE
includes all homogeneous materials
• LOW DISSIPATION FACTOR
• RECOMMENDED FOR HIGH FREQUENCY COUPLING
*See Part
Number System for Details
AND DECOUPLING CIRCUITS (E.G. S-CURVE COMPENSATING CIRCUIT)
SPECIFICATIONS
Operating Temperature
-40
o
C to +85
o
C
PART NUMBER SYSTEM
NPRM Series
EPOXY COATED, NON-INDUCTIVE, METALLIZED POLYPROPYLENE
FILM CAPACITORS, RADIAL LEAD
RoHS
Compliant
Rated Voltage (VDC)
Capacitance Range
Capacitance Tolerance
Insulation Resistance(Min.)
Dissipation Factor
Dielectric Strength
L
100V, 250V, 400V 630V
0.01 to 10
µF
±5% (J), ±10% (K)
C<0.33
µ
F IR
≥
30,000 Megohm
C≥0.33
µ
F IR
≥
10,000 Megohm/
µF
≤
0.002 (at 1 KHZ) (Typical 0.001)
≤
0.002 (at 10 KHZ) For 0.01 < C
≤
0.1
µF
≤
0.003(at 10 KHZ) For 0.1 < C
≤
1.0
µF
150% of Rated Voltage for 5 Seconds
T
NPRM 104
K 250
TR
F2
F
RoHS compliant
Special Lead Forming
Tape & Reel Packaging
Voltage (VDC)
Tolerance Code J =
±5%,
K =
±10%
Capacitance code in pF, first two digits are
significant, third digit is no. of zeros.
E.G. 102 = .001µF, 103 = .01µF, 104 = .1µF
Series
H
*2mm max. L > 20mm
1.5mm max. L < 20mm
LL = 25mm min.
dφ
SPECIAL LEAD FORMING AVAILABLE,
PLEASE CONSULT FACTORY
LEAD SPACING AND DIAMETER(mm)
½
½
½½½½
½½½½
½½½
½½½½
½½½½
½½½
½½½½
½½½½
½½½
½½½½
½½½½
½½½
S
±
1mm
½∅
Working Voltage
250VDC/220VAC
400VDC/250VAC
L
T
H
L
T
H
13.0
5.0
9.0
13.0
5.0
9.0
13.0
6.0
9.5
13.0
6.0
9.5
13.0
5.0
9.0
13.0
5.5
10.5
13.0
5.5
9.0
13.0
7.0
11.0
13.0
6.0
10.0
13.0
7.5
12.5
13.0
6.0
11.0
18.0
6.5
12.5
13.0
7.0
11.0
18.0
7.5
13.5
18.0
7.0
12.0
26.0
7.5
14.5
18.0
7.5
12.5
26.0
8.5
15.5
18.0
8.5
14.0
26.0
10.0
17.5
26.0
8.5
15.0
31.0
10.0
18.0
26.0
9.5
17.0
31.0
12.5
21.5
26.0
12.0
20.5
31.0
15.0
24.0
31.0
13.0
20.5
31.0
17.5
26.5
31.0
15.0
24.5
31.0
17.0
26.0
31.0
19.0
28.0
42.0
19.0
33.0
42.0
21.0
36.0
42.0
22.0
38.0
STANDARD PRODUCTS AND CASE SIZE TABLE (mm)
Cap(
µ
F)
0.01
0.015
0.022
0.033
0.047
0.068
0.1
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
8.2
10.0
®
L
10.0
10.0
10.0
10.0
13.0
13.0
13.0
13.0
18.0
18.0
18.0
26.0
26.0
26.0
31.0
31.0
31.0
31.0
31.0
31.0
100VDC/63VAC
T
H
5.5
9.0
5.5
9.0
6.0
9.5
6.0
9.5
6.0
10.5
6.5
11.0
6.5
11.0
7.0
11.0
6.5
12.0
7.5
14.0
8.5
15.0
9.0
16.0
11.0
17.5
13.0
19.0
13.0
20.0
15.0
21.5
17.0
23.0
21.0
25.0
23.0
26.0
24.0
28.0
630VDC/300VAC
L
T
H
13.0
6.5
11.5
13.0
7.5
12.0
13.0
9.0
13.5
18.0
8.0
14.0
18.0
8.5
13.5
18.0
9.5
15.5
26.0
8.5
15.5
26.0
9.5
17.5
31.0
10.0
17.0
31.0
13.0
21.5
31.0
15.5
24.5
31.0
17.5
27.0
60
